This product is discontinued please contact support to see if there is a replacement part available.
CFAP2002AYECS
Part Number: CFAP2002A-YEC-S
Datasheet
Description

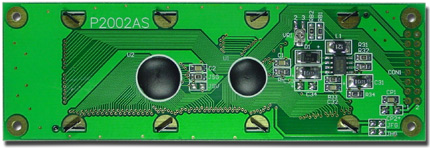

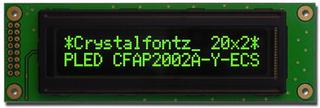

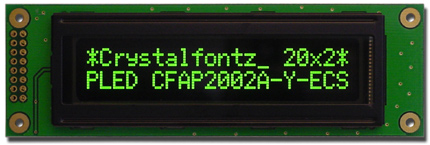

20x2 PLED Module, Yellow-Green PLED display- PLED (Polymer Organic Light Emitting Diode) / OLED (Organic LED) Display Module
- Ideal for LCD module or VFD replacement applications
- Very wide viewing angles -- approaches 180 degrees in all directions
- 8-bit or 4-bit parallel interface
- Industry-standard HD44780 compatible controller
- RoHS Compliant
TECHNICAL SPECS
For reference only. For design purposes, please use the specifications in the datasheet.

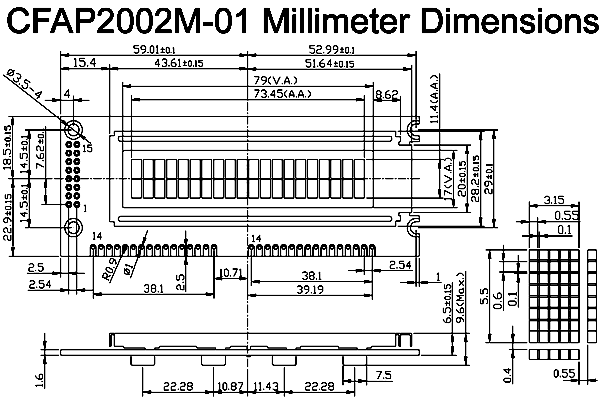

Physical Characteristics
| Characters x Lines | 20 x 2 |
| Module Overall | width | height |
|---|---|---|
| millimeters | 113 | 41.4 |
| inches | 4.449 | 1.630 |
| PCB Outline | width | height |
|---|---|---|
| millimeters | 113 | 41.4 |
| inches | 4.449 | 1.630 |
| Viewing Area | width | height |
|---|---|---|
| millimeters | 79 | 17 |
| inches | 3.110 | 0.669 |
| Active Area | width | height |
|---|---|---|
| millimeters | 73.45 | 11.4 |
| inches | 2.892 | 0.449 |
| Character Size | height |
|---|---|
| millimeters | 5.5 |
| inches | 0.217 |
Optical Characteristics
| Glass Type | PLED |
| View Direction | 6 o'clock |
| Backlight Color | Yellow-Green |
| Backlight Type | LED |
Environmental
| Operating Temperatures | min | max |
|---|---|---|
| Celsius | -20° | 70° |
| Fahrenheit | -4° | 158° |
| Storage Temperatures | min | max |
|---|---|---|
| Celsius | -30° | 80° |
| Fahrenheit | -22° | 176° |
Electronics
| Controller Documents | Hitachi HD44780 HD44780U (LCD-II) (Dot Matrix Liquid Crystal Display Controller/Driver) Hitachi HD44780 1985: HD44780 Historical Data Sheet |
| Interface | 4-bit Parallel, 8-bit Parallel |
