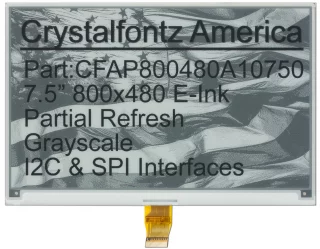

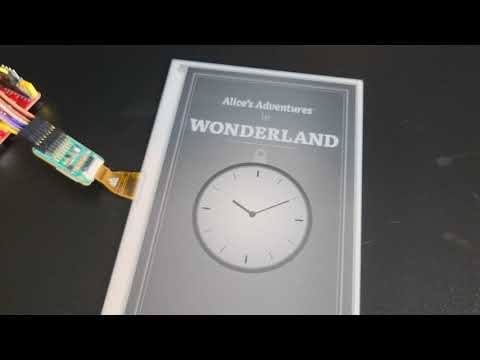

800x480 7.5" ePaper Display Module

Part Number: CFAP800480A1-0750

Show an image, then cut the power completely, and the picture stays. This 7.5" ePaper display module holds a crisp 800x480 black-and-white image indefinitely with zero power draw, making it the ideal choice for battery-powered signage, labels, and any product that updates occasionally but needs to stay readable around the clock. At just 1.25mm thick and 44 grams, it slips into slim enclosures where a backlit LCD never could.

This is a true active matrix electrophoretic display (AMEPD) with a pure reflective, paper-like surface that looks great in any lighting, including direct sunlight. There is no backlight to wash out and no glare to fight, thanks to the antiglare hard-coated front surface. With 35% reflectance, an 8:1 contrast ratio, and an ultra-wide viewing angle, your content reads clearly from nearly any position, in both landscape and portrait orientations.

The onboard UC8179 controller does the heavy lifting so your microcontroller doesn't have to. It integrates the gate buffer, source buffer, timing logic, oscillator, on-chip display RAM, and an on-chip booster and regulator that generates VCOM plus the gate and source driving voltages internally. That means built-in voltage generation and only a handful of external components to get running. A standard SPI interface (3-wire or 4-wire selectable) keeps wiring simple, and a built-in I²C master interface lets the panel read an external temperature sensor to optimize its waveforms automatically.

Power behavior is where ePaper shines. The module draws current only during a screen update, then drops into an ultra-low-current deep sleep mode that sips just microamps while your image remains on screen. A full refresh completes in 3 seconds, a fast update in 1.5 seconds, and a partial refresh in just 0.3 seconds when you only need to change part of the screen.

Need more than pure black and white? The onboard UC8179 controller supports a 4-level grayscale mode, giving you black, white, and two intermediate grays for smoother logos, photos, and shaded UI elements.

New to ePaper wiring? The CFA10126 ePaper breakout board gives you a ready-made way to connect the 24-pin, 0.5mm-pitch FPC and start driving the panel right away.

Ideal Applications

• Electronic shelf labels and retail price tags
• Battery-powered and solar-powered signage
• Smart home control panels and status displays
• Meeting room and desk name plates
• Warehouse and asset tracking labels
• Medical and laboratory instrument readouts
• IoT sensor dashboards and remote monitors
• Digital notice boards and menu boards

Key Features

• 7.5" diagonal, 800x480 pixel resolution at 124 ppi
• Bi-stable image: holds content with power fully disconnected
• 4-level grayscale mode (black, white, and two grays)
• True windowed partial updates
• Update times: 3s full, 1.5s fast, 0.3s partial
• Pure reflective, sunlight-readable, paper-like surface
• High contrast (8:1) with 35% reflectance
• Ultra-wide viewing angle, landscape and portrait modes
• Ultra-low power with microamp-level deep sleep mode
• SPI interface (3-wire or 4-wire selectable)
• On-chip booster/regulator generates VCOM, gate, and source voltages
• I²C master interface for external temperature sensor
• Slim 1.25mm profile, 44g weight, 24-pin 0.5mm FPC
• Antiglare hard-coated front surface
• UC8179 controller with on-chip display RAM
• Commercial operating temperature range (0°C to +50°C)

Part Number Breakdown

• CFA – Crystalfontz America
• P – ePaper display technology
• 800480 – 800 x 480 pixel resolution
• A1 – design family and revision
• 0750 – 7.5" diagonal display size

• grid_on Resolution

  Pixel Grid

  Column Dots	800 px
  Row Dots	480 px

  Color

  Color Depth	2-bit greyscale bits
  EPD Color Channels	4-level Grayscale

  Ratio

  Aspect Ratio

  5:3

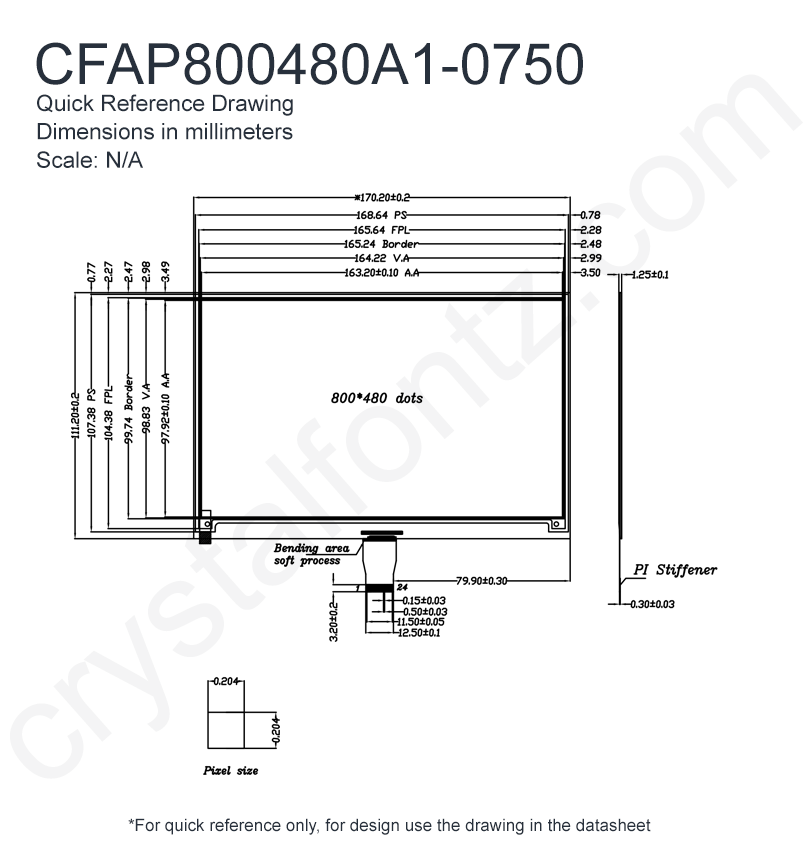

• square_foot Physical Dimensions

  Module	Metric	Imperial
  Overall Width	170.20 mm	6.701 in
  Overall Height	111.20 mm	4.378 in
  Overall Depth	1.25 mm	0.049 in
  Diagonal Dimension	7.5 in
  Weight	44 g
  Shape	Rectangle

  Display Area	Metric	Imperial
  Active Area Width	163.20 mm	6.425 in
  Active Area Height	97.72 mm	3.847 in
  Viewing Width	164.22 mm	6.465 in
  Viewing Height	98.83 mm	3.891 in

  Dot Geometry	Metric	Imperial
  Dot Pitch Width	0.20 mm	0.008 in
  Dot Pitch Height	0.20 mm	0.008 in
  Dot Size Width	0.20 mm	0.008 in
  Dot Size Height	0.20 mm	0.008 in

• build Mechanical

  Connectors

  Module Connector Type	FPC/FFC (ZIF)
  Foldable Tab	Yes

  Cable

  Cable/FPC Length

  24.00 mm (0.94 in)

• visibility Display Optics

  Technology

  Display Technology	EPD
  Mode	Reflective

  Viewing

  View Angle

  Ultra-Wide°

• palette Color & Appearance

  Display Colors

  Foreground Color	Grayscale
  Background Color	White

• electric_bolt Electrical

  Display	Min	Typ	Max	Unit
  Supply Voltage - Logic
  Supply Voltage for Logic	2.5	3.3	3.6	V
  Supply Current	—	8	12	mA

• cable Interface

  Available Interfaces

  Standard Interface(s)

  SPI

• speed Timing & Performance

  EPD Timing

  Full Screen Update Time	3000 ms
  Partial Update Supported	Yes
  Partial Screen Update Time	0.3 s
  Time Between Updates	180 s

  Lifetime

  Rated Lifetime

  ~1M updates

• nature Environmental

  Temperature

  	Min (°C)	Max (°C)	Min (°F)	Max (°F)
  Operating Temperature	0°C	50°C	32°F	122°F
  Storage Temperature	-25°C	70°C	-13°F	158°F

• info Product Metadata

  Controller

  Built-in Controller

  UC8179
