                This product has reached end of life. We recommend CFAX12864U1TFH as a replacement display.

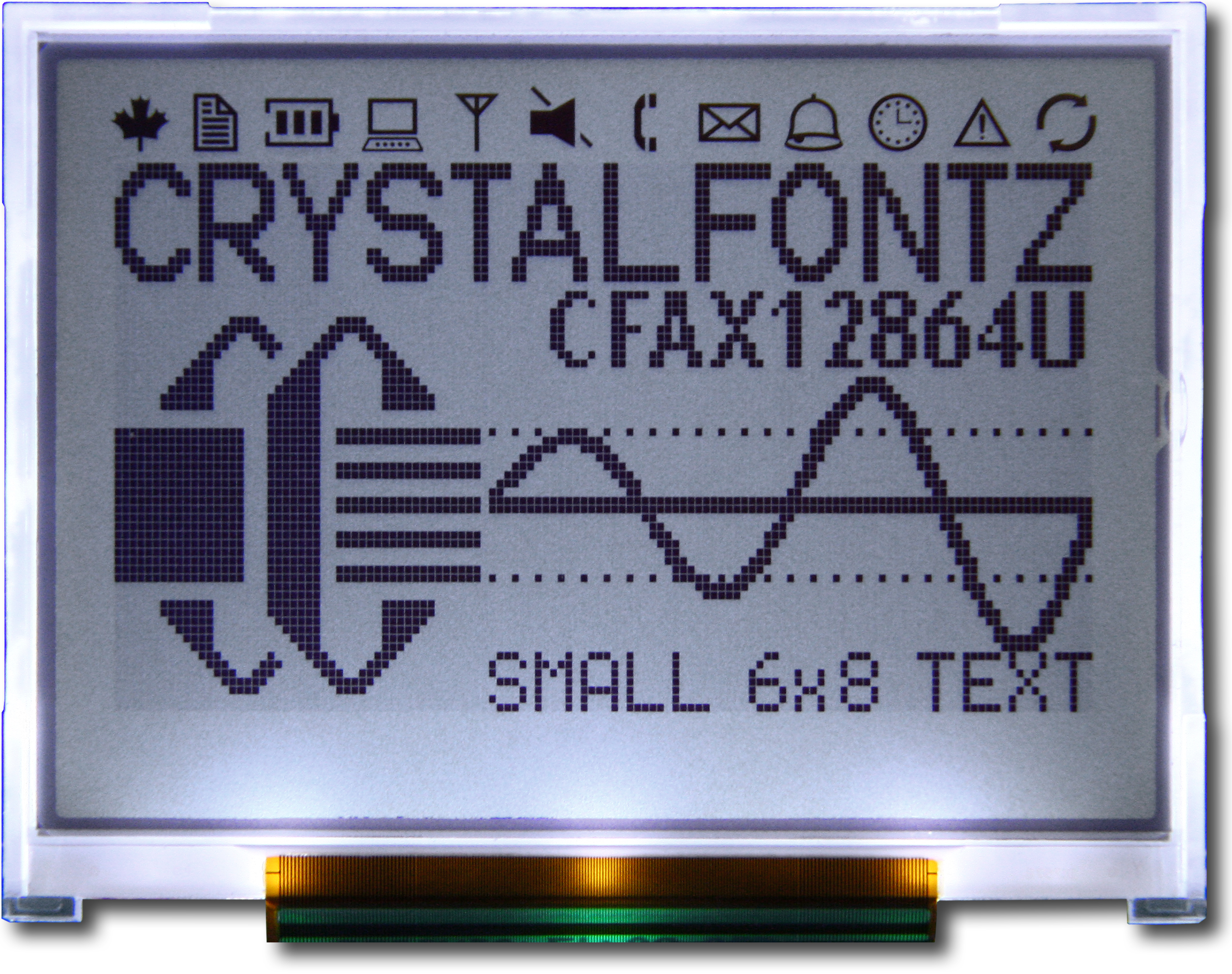

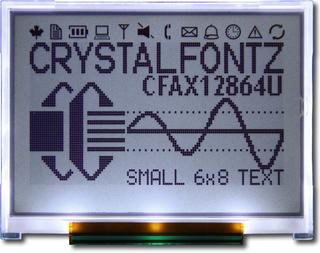

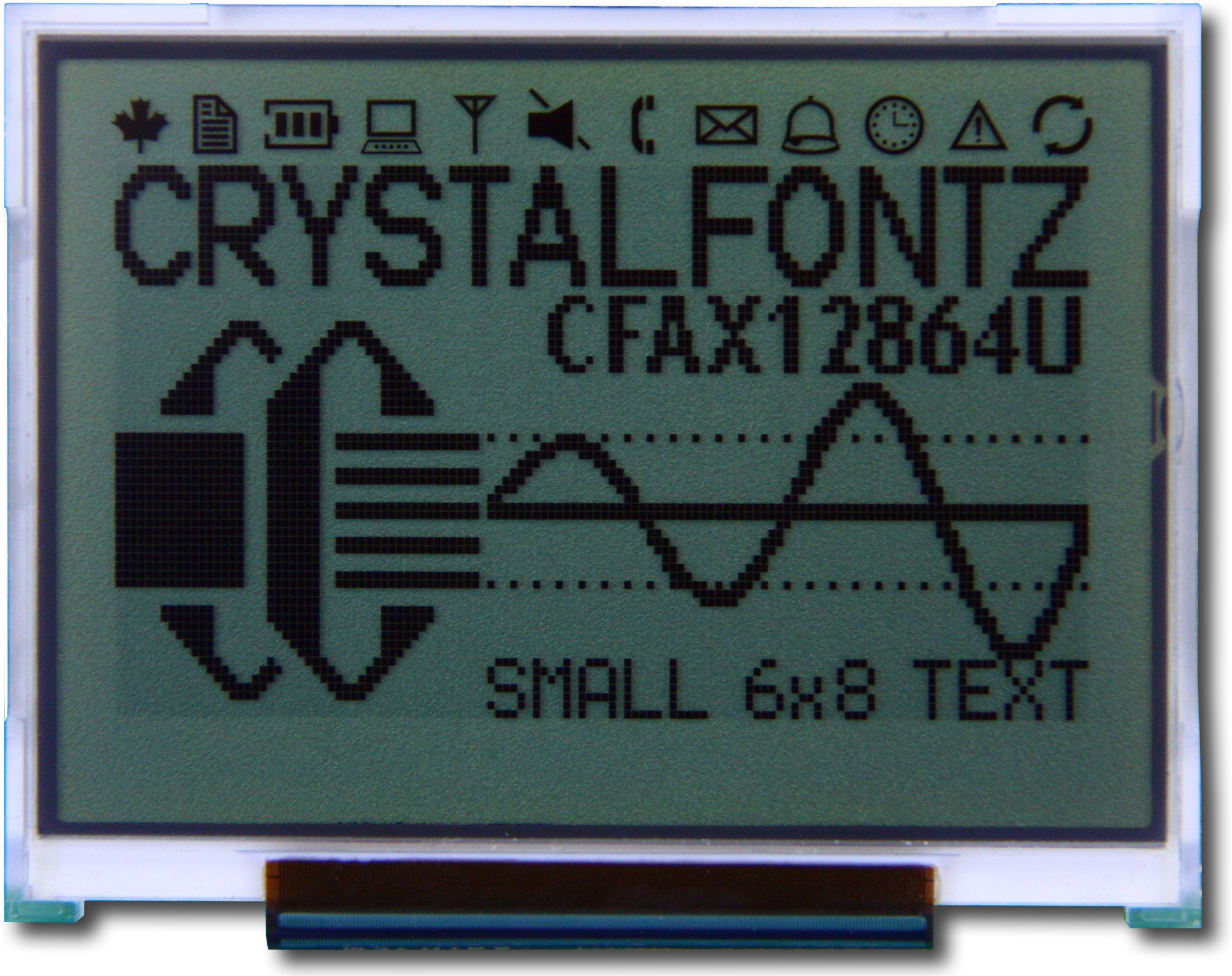

128x64 Serial Graphic Transflective LCDPart Number: CFAX12864U-TFHThe CFAX12864U-TFH is an extremely low-power 128x64 graphic LCD display module.  With the integrated white LED backlight, illuminating the display is no problem for low-light conditions.  This display is perfectly suited for low-power, hand-held applications, or any application where power consumption or the requirement of a thin display is a must.  With the row of icons at the top of the display, the display generates further interest by allowing you to have the icons shown without having to render them.  The CFAX12864U-TFH also has an integrated controller, and the FFC is designed for inexpensive mass-production, with no need for a mating connector as the module and backlight connections solder directly to your PCB.
Ultra thin and light TAB construction
Form and Function compatible with CFAX12864C series of LCD modules
Wide temperature range: -20°C to 70°C (-4°F to 158°F)
Built-in Novatek NT7534 controller
Great for handheld instruments, cell phones, PDAs, etc
Ultra low power consumption
	Demonstration board available below.
RoHS Compliant

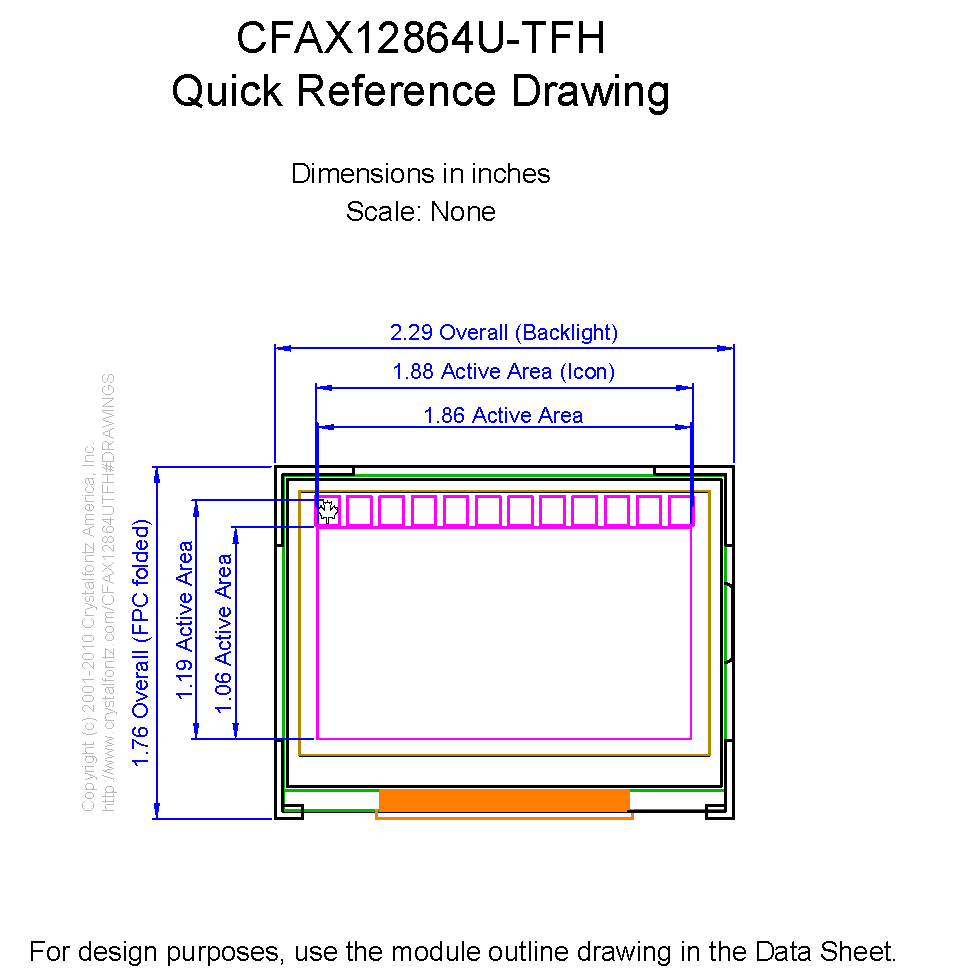

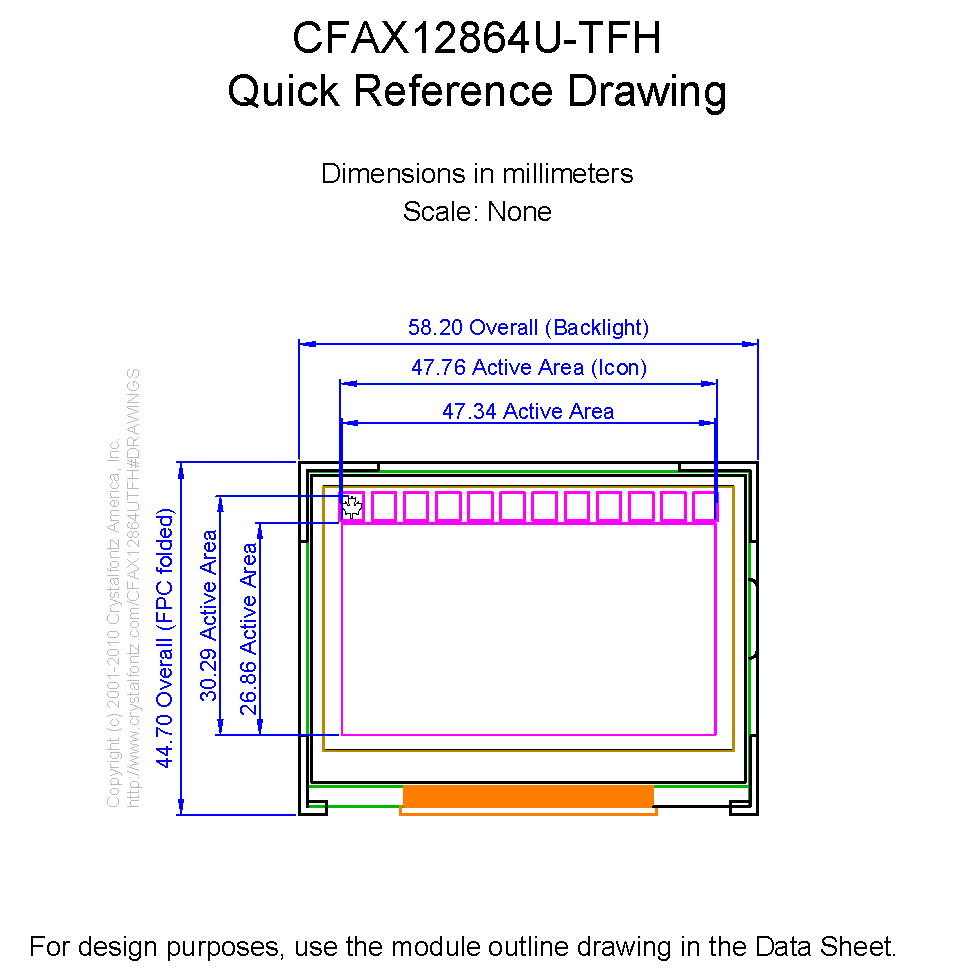

 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            128 x 64

    Module Overall        width
        height
        depth

        millimeters
        58.2
        44.7
        5.5

        inches
        2.29
        1.76
        0.22

*width / height does not include Foldable Tab

        Diagonal Dimension
            2.14"

    Viewing Area        Width
        Height

        millimeters
        52
        33.5

        inches
        2.05
        1.32

    Active Area        Width
        Height

        millimeters
        47.34
        26.86

        inches
        1.86
        1.06

    Dot Size        Width
        Height

        millimeters
        0.35
        0.4

        inches
        0.014
        0.016

    Dot Pitch        Width
        Height

        millimeters
        0.37
        0.42

        inches
        0.015
        0.017

    Flexible Cable (FFC/FPC)        length

        millimeters
        19.5

        inches
        0.768

        Weight
            18g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            FSTN/Light Gray
Polarizer
            Transflective
View Direction
            6 o'clock
Sunlight Readable
            Yes

        Backlight Color
            White
Backlight Type
            LED
Mode
            Positive
Foreground Color
            Dark
Background Color
            White

 electric_bolt Electrical Specification
Electrical Specifications

        Supply Current Typical
            0.18mA

        Module Connector Pitch
            0.6mm

 electric_bolt Backlight Specification
Backlight Electrical Specifications

        Forward Voltage Minimum
            3.4V
Forward Voltage Maximum
            3.6V
Forward Voltage Typical
            3.5V

        Forward Current Minimum
            43.2mA
Forward Current Maximum
            60mA
Forward Current Typical
            48mA

 nature Environmental
Environmental

    Operating Temperatures        min
        max

        Celsius
        -20°
        70°

        Fahrenheit
        -4°
        158°

    Storage Temperatures        min
        max

        Celsius
        -30°
        80°

        Fahrenheit
        -22°
        176°

    Humidity        min
        max

        Non-condensing
        0%
        90%

 cable Electronics
Electronics

        Controller Documents
            Novatek NT7534
NT7534

132 X 65 RAM-Map STN LCD

Controller/Driver
(This controller is a possible replacement for the EOL Samsung S6B1713)
Interface
            8-bit Parallel, SPI

 picture_as_pdf Datasheets
picture_as_pdfCFAX12864U-TFH after date code 2016-08-01 (see Product Notice)

picture_as_pdfCFAX12864U-TFH before date code 2016-08-01 (see Product Notice)

 download Files and Downloads
folder_zip Software Source - ATMega2561 Demo Code
folder_zip Software Source - ATMega2561 SPI example code
folder_zip CAD Export - CFAX12864U-TFH 2D CAD
picture_as_pdf 1 to 1 Template - CFAX12864U-TFH 1 TO 1.pdf

Module Overall	width	height	depth
millimeters	58.2	44.7	5.5
inches	2.29	1.76	0.22
*width / height does not include Foldable Tab

Viewing Area	Width	Height
millimeters	52	33.5
inches	2.05	1.32

Active Area	Width	Height
millimeters	47.34	26.86
inches	1.86	1.06

Dot Size	Width	Height
millimeters	0.35	0.4
inches	0.014	0.016

Dot Pitch	Width	Height
millimeters	0.37	0.42
inches	0.015	0.017

Flexible Cable (FFC/FPC)	length
millimeters	19.5
inches	0.768

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Humidity	min	max
Non-condensing	0%	90%

Note
Notices

Product Note:

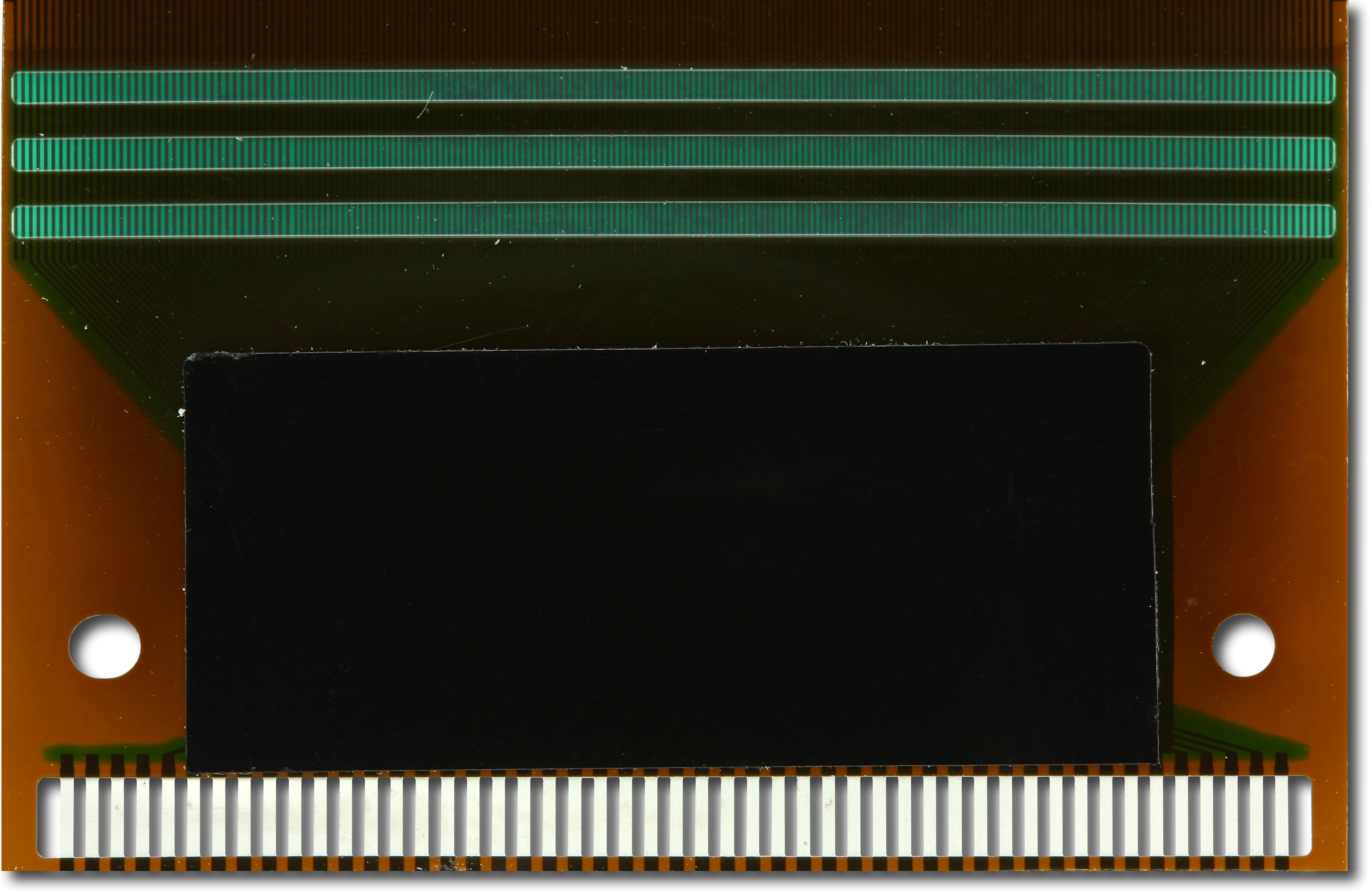

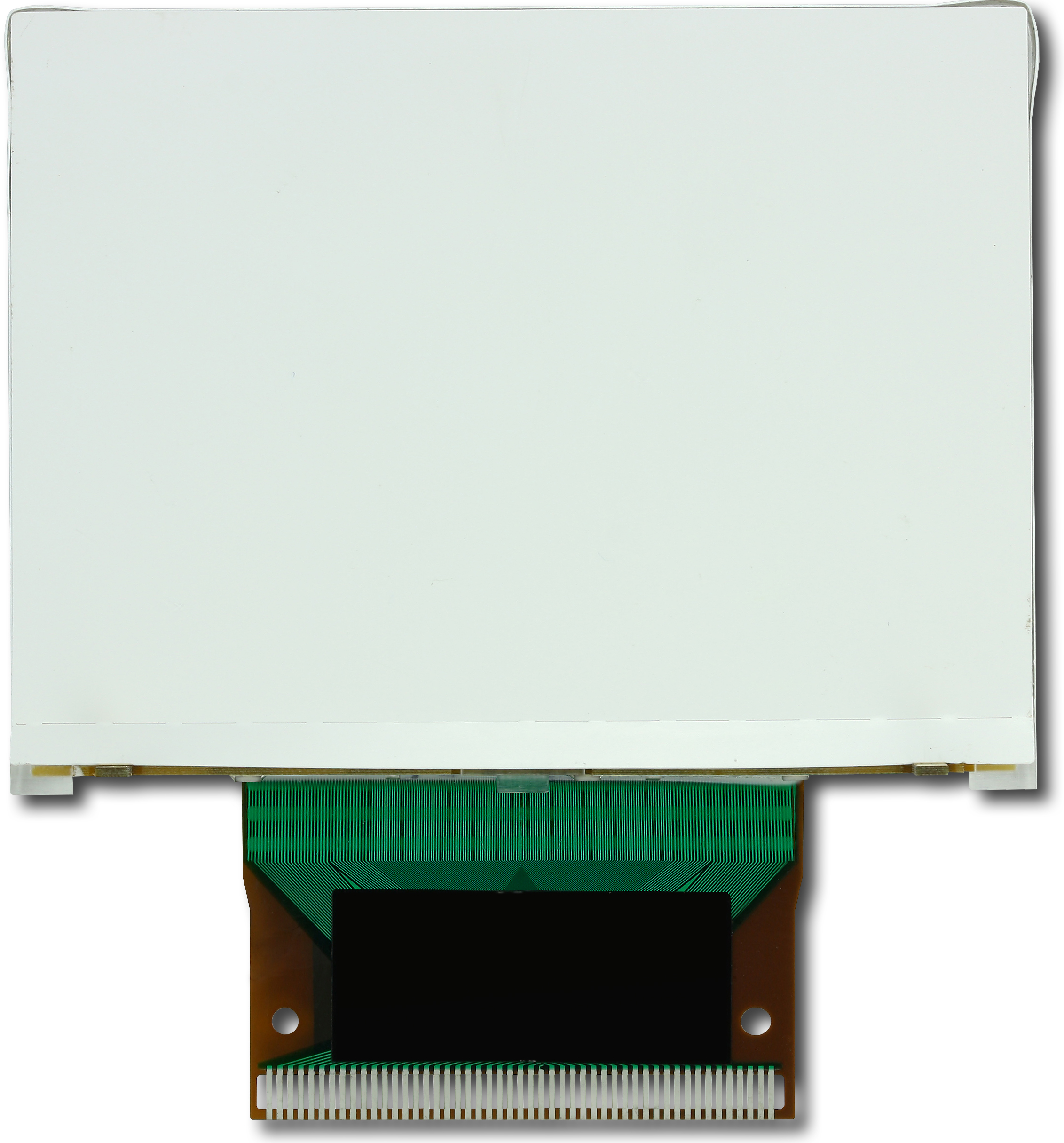

This module is engineered for high volume production. It uses a "TAB" (tape automated bonding) or "COF" (chip on flex) style flex tail mated with a thin display. The TAB connector must be soldered directly to corresponding pads on your PCB using a hot-bar soldering machine, or bonded with anisotropic adhesive using heat and pressure. High volume contract manufacturers will be familiar with this type of construction and its assembly methods. Hot-bar soldering machines designed for prototype, rework or repair of TAB connections are available from equipment suppliers at reasonable cost. The TAB style connection requires no separate connector, so the cost is very low, and the ultra thin profile of the display is maintained. This same LCD is also available with FFC tail designed for ZIF connectors to allow its use in prototype and lower volume applications.

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Product Update #10858: End of Life Notice

Products Affected:	CFAX12864T-NFH, CFAX12864T-WFH, CFAX12864T-TFH, CFAX12864U-NFH, CFAX12864U-WFH, CFAX12864U-TFH
Date Issued:	June 8, 2017
Summary:	End of Life Notice
Description:	The following products have reached the end of their lifecycle.
Reason:	The controller chip used in these parts will not be available after August 2017.
Impact:	These parts will not be available for purchase after the dates for the last time buys.
Availability:	Due to long manufacturing lead times, all orders for last time buys must be received by July 14, 2017.
Price Change:	Prices will not change from the current prices.

Product Update #10728: CFAX12864U and CFAX12864U1 series backlight improvements.

Products Affected:	CFAX12864U1-TFH, CFAX12864U-TFH
Date Issued:	July 27, 2016
Summary:	CFAX12864U and CFAX12864U1 series backlight improvements.
Description:	The white LED backlight of the Crystalfontz CFAX12864U and CFAX12864U1 series of compact graphic display modules is changing as a result of manufacturing improvements of white LEDs and backlight assembly. The changes are as follows: Forward voltage: Old value 3.5v -> new value 3.5v – NO CHANGE Supply current (typical): Old value 48mA -> new value 40mA – 17% decrease Luminosity (typical): Old value 150 cd/M^2 -> new value 570 cd/M^2 – 280% increase Uniformity (typical): Old value 80% -> New value 90% - 12.5% increase Note: With 16mA of supply current, luminosity is rated at 250 cd/M^2. This is a 66% decrease in current with a 66% increase in luminosity. Display modules with a date code of 08/01/16 (August 01, 2016) will have the new backlight. Date code prior to 08/01/16 will have current backlight. To determine the date code, please see the attached document How to read CFAX12864U and CFAX12864U1 Date Codes.PDF
Reason:	As part of our continuous improvement, design changes have been made to the white LED backlight of the CFAX12864U and CFAX12864U1 for improved luminosity, and reduced current profile.
Impact:	Reduced current requirements values will effect current driving circuitry. Increased luminosity values will effect visual appearance.
Recommendation:	Test engineering samples when available to evaluate backlight circuitry changes and settings for visual consistency.
Availability:	CFAX12864U and CFAX12864U1 display modules with new backlight should begin shipping at the end of Q3 2016. Engineering samples for testing / validation will be available during this same time frame.
Price Change:	No price change is currently scheduled.
Attachment:	HowtoreadCFAX12864UandCFAX12864U1DateCodes.pdf (165KB)
