This display is not recommended for new designs. Once current stock is depleted it will no longer be available.

320x240 Resistive Touch Screen LCD

Part Number: CFAX320240DX-TFH-T-TS


Quantity Price
1 $92.69
* Contact us about potential lead times.
Need a written quote? Add to cart, then enter your email address in the "request a quote" box.

Part Change Notices

Subscribe to Part Change Notices by
email Email subscription for changes to CFAX320240DX-TFH-T-TS or RSS RSS feed for changes to CFAX320240DX-TFH-T-TS for CFAX320240DX-TFH-T-TS

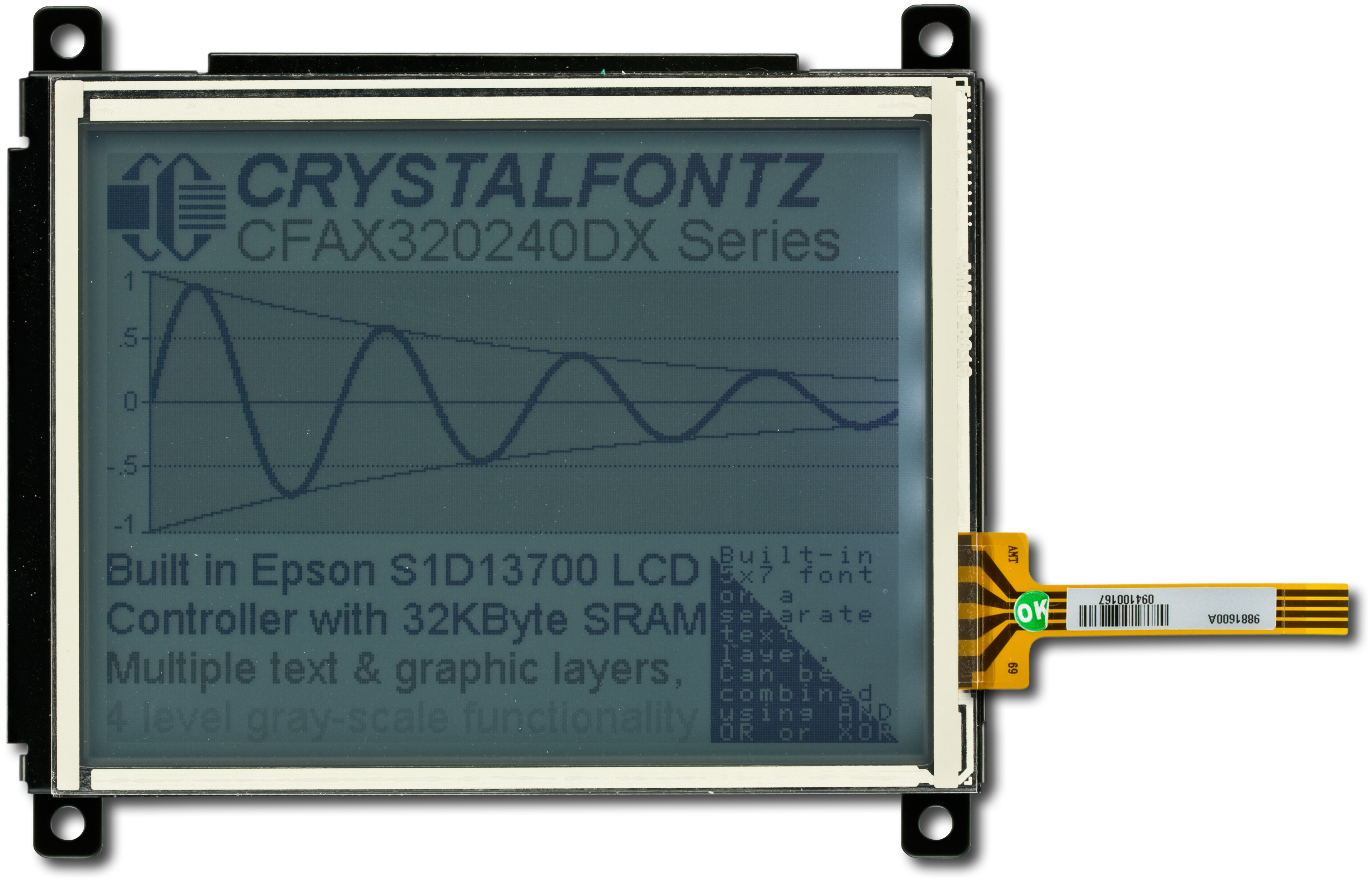

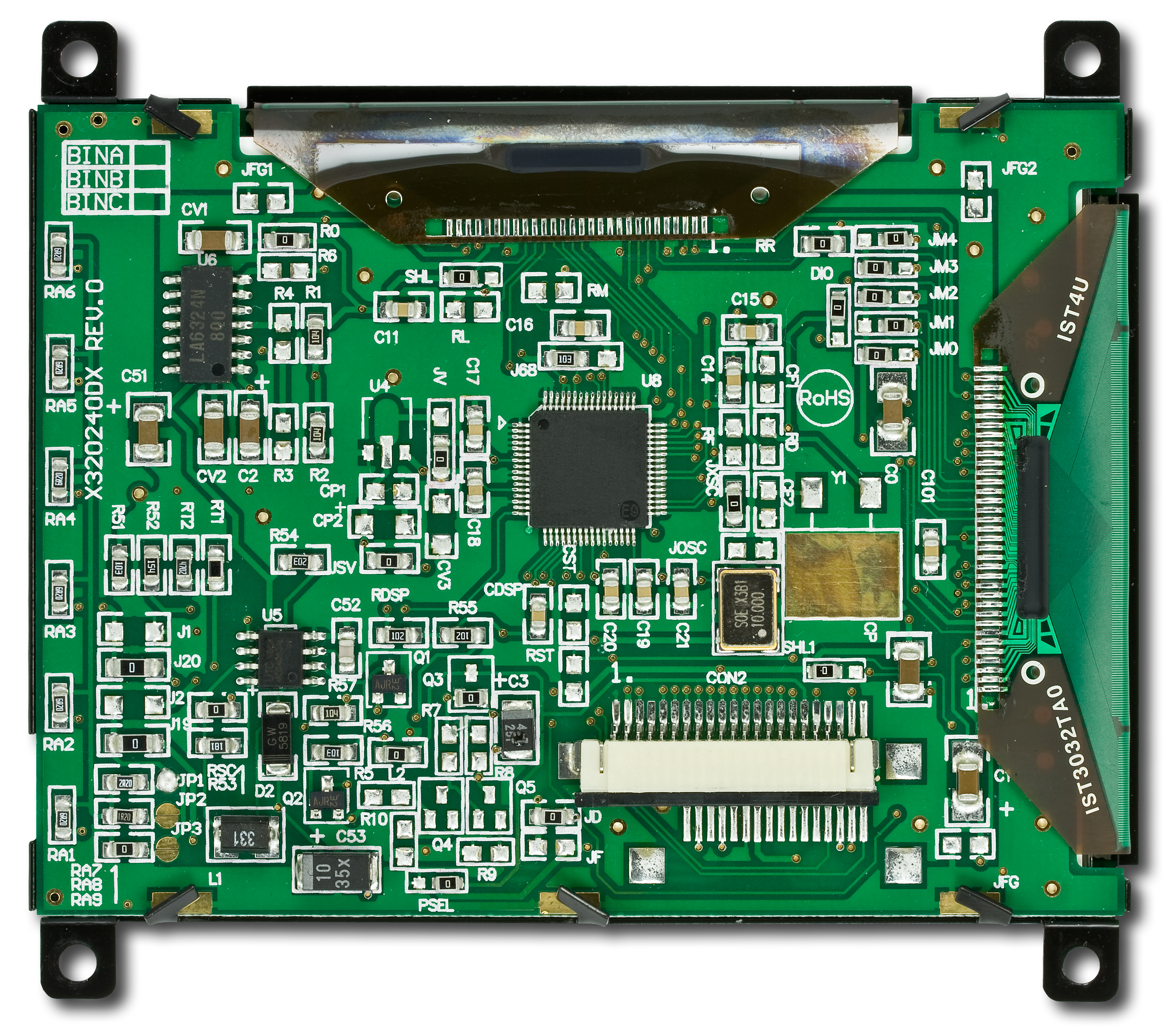

This 320x240 graphic LCD module offers resistive touch screen.

  • 3.3v operation.
  • 8-bit parallel interface(8080 or 6800).
  • Built-in Epson S1D13700 or compatible controller with 32Kbyte SRAM.
  • Available in several variations of backlight and polarizer (minimum order may be required).
  • Operating temperature range from -20°C to 70°C.

Need this module without a touchscreen, or in a different color? Contact us about availability.


Physical Characteristics

Column Dots x Row Dots 320 x 240
Module Overall width height depth
millimeters 94.7 83.3 11.6
inches 3.728 3.280 0.457
Viewing Area width height
millimeters 81.4 61
inches 3.205 2.402
Active Area width height
millimeters 76.78 57.58
inches 3.023 2.267
Dot Size width height
millimeters 0.23 0.23
inches 0.009 0.009
Dot Pitch width height
millimeters 0.24 0.24
inches 0.009 0.009
Flexible Cable (FFC/FPC) length
millimeters 30.7
inches 1.209
Weight 77g

Optical Characteristics

Glass Type/Glass Color FSTN/Light Gray
Polarizer Transflective
View Direction 6 o'clock
Sunlight Readable Yes
Backlight Color White
Backlight Type LED
Mode Positive
Foreground Color Dark
Background Color Light Gray

Electrical Specifications

Supply Voltage for Logic Minimum 3V
Supply Voltage for Logic Maximum 3.6V
Supply Voltage for Logic Typical 3.3V
Supply Current Minimum 22mA
Supply Current Maximum 50mA
Supply Current Typical 30mA

Backlight Electrical Specifications

Forward Voltage Minimum 3.4V
Forward Voltage Maximum 3.6V
Forward Voltage Typical 3.5V
Forward Current Minimum 72mA
Forward Current Maximum 120mA
Forward Current Typical 82mA


Operating Temperatures min max
Celsius 20° 70°
Fahrenheit 68° 158°
Storage Temperatures min max
Celsius -30° 80°
Fahrenheit -22° 176°
Humidity min max
Non-condensing 0% 90%


Controller Documents Epson S1D13700
Embedded Memory Graphics LCD Controller
Epson S1D13700
Hardware Functional Specification
Epson S1D13700
Technical Manual
Epson S1D13700
Hardware Functional Specification

Epson S1D13700
Hardware Functional Specification

Interface 8-bit Parallel


Touch Screen yes

Additional Options

Purchase a demonstration kit to quickly show the features of this display module. Demonstration kits are shipped complete with everything you need to get the display up and running, simply plug in the AC adapter.

Part Number: DMOXIX320240DX-TFH-TTS

Our CFA-10019 graphic display demonstration board with CFAX320240DX-TFH-T-TS LCD display module installed.

The display is a critical component in any project, impacting every aspect of your design. In addition, the display is the most prominent and visible component of any finished product, and as such, must be evaluated and approved by not only the mechanical design team, but marketing and management as well.

Our ready-to-use development kits provide you with a plug and play solution to explore all aspects of a display. All development kits ship loaded with demonstration scripts to provide a complete working example of the displays. You can easily create your own demonstrations by loading your own scripts and images onto the included microSD card, allowing you to create your own test screens, or load mockups of user interfaces to show how a display will function in your product.

These kits not only empower, but also provide flexibility to your engineering departments, allowing them to have a hands-on, working display during the design phase. This, along with datasheets, schematics, and Eagle CAD files (available below) give your team everything they need to know about the display early in your product's development.

Each demo board is pre-programmed with a microSD boot loader, which can load our demonstration scripts, the miniBASIC interpreter, or your own application built with AVRStudio or WinAVR (both free) for this board's versatile ATMEGA2561. Use the JTAG port for more advanced programming and debugging. We have brought out all the ports to 0.1" centers. Since these demonstration boards are both powerful and convenient, they can be even used as a base development platform for your project.

Would you prefer a different color display with your kit? Contact us about availability.

Quantity 1 *
Price $183.41

Part Change Notice

Subscribe to Part Change Notices by email Email subscription for changes to CFAX320240DX-TFH-T-TS or RSS RSS feed for changes to CFAX320240DX-TFH-T-TS

Part Change Notice #11040: End-of-Life Notification

Product Affected: CFAX320240DX-TFH-T-TS
Date Issued: March 13, 2019
Summary: End-of-Life Notification
Description: The part listed is being set to end-of-life.
Reason: Critical components are no longer available.
Impact: Once current stock is depleted, this part will not be available.
Recommendation: These parts are not recommended for new designs.
Availability: Current stocks only. No replacement parts are available at this time.

Product Update #10333: New Product in Standard Graphic Modules: CFAX320240DX-TFH-T-TS

New Product: CFAX320240DX-TFH-T-TS
Date Issued: March 28, 2011
Summary: New Product in Standard Graphic Modules: CFAX320240DX-TFH-T-TS
Description: 320x240 Graphic LCD, White Edge LED Backlight, FSTN Positive, Transflective -20°C to +70°C 6:00, 4-wire Analog Touch Screen
