Home » Products » Accessories » ZIF Connectors

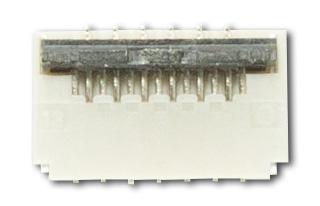

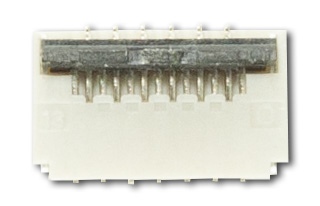

13 Position, 0.30mm Pitch, Gold, FPC FFC ZIF Connector

Part Number: CS030Z13G-A0

This 13 position, 0.30mm Pitch, Gold plated ZIF Connector is typically used to mate with FPC tails on TFT displays or and touch screens as well as and FFC cables.
  • 13 Position
  • 0.30mm Pitch
  • Gold Plated
  • Top & Bottom Contacts
13 Position, 0.30mm Pitch, Gold, FPC FFC ZIF Connector (CS030Z13G-A0)
Qty:
Quantity Price
5 $0.79
100 $0.47
3000 $0.39
* For quantites over this amount the lead time may be up to 60 Days. Contact us about potential lead times.
Need a written quote? Add to cart, then enter your email address in the "request a quote" box.

Datasheet

Part Change Notices

Subscribe to Part Change Notices by
email Email subscription for changes to CS030Z13G-A0 or RSS RSS feed for changes to CS030Z13G-A0 for CS030Z13G-A0

Compliance Documents

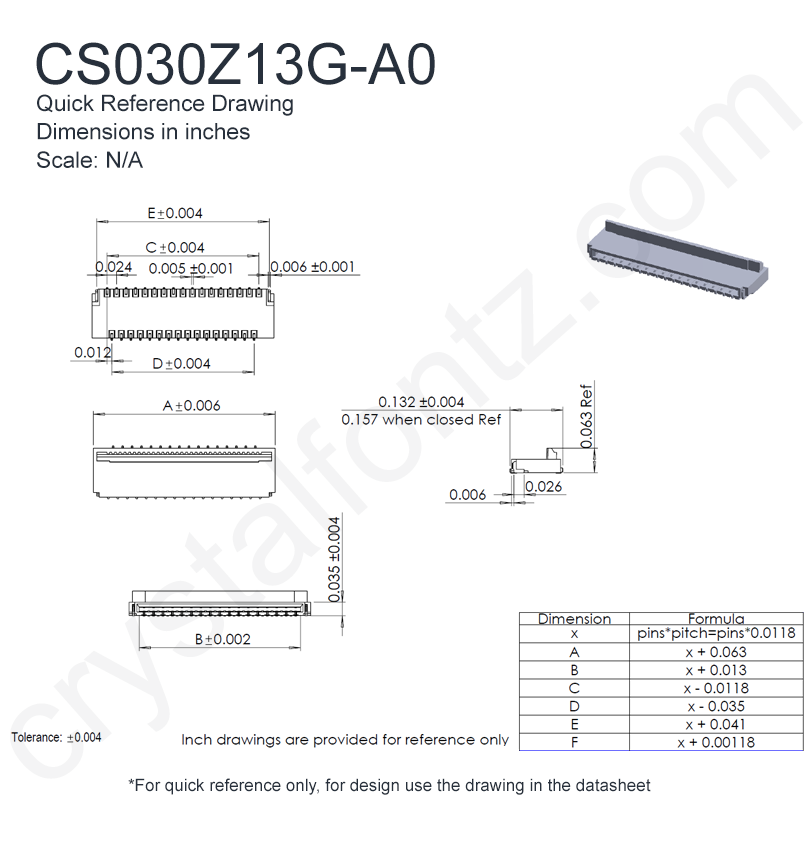

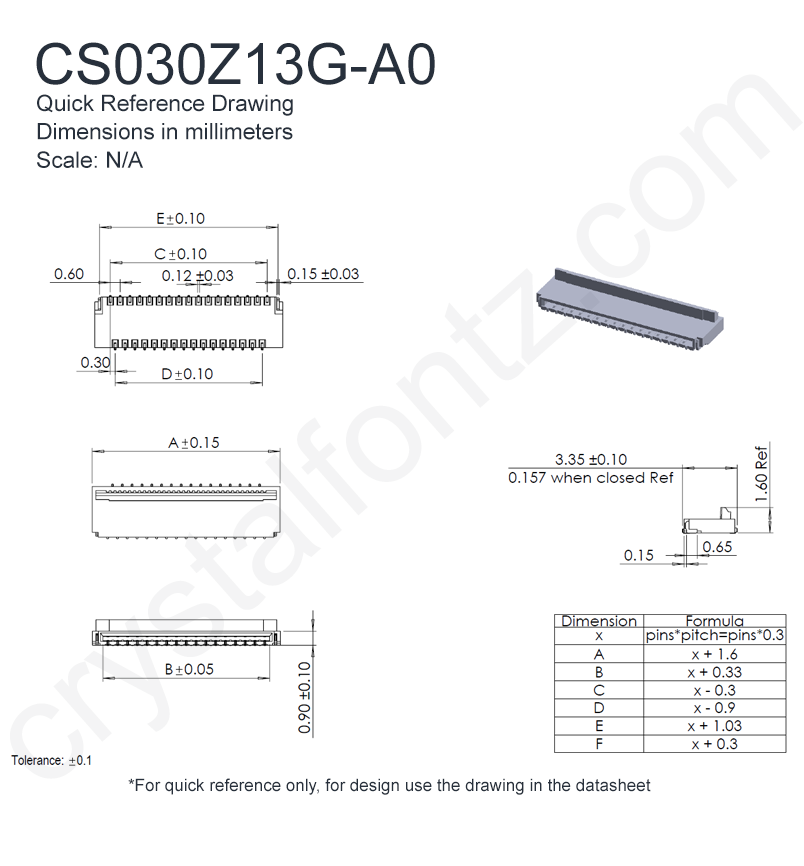

TECHNICAL SPECS

Physical Characteristics

Module Overall width height
millimeters 5.5 0.9
inches 0.217 0.035
Weight 0.159g
Pin Count 13

Electrical Specifications

Module Connector Pitch 0.3mm
For reference only. For design purposes, please use the specifications in the datasheet.
