31 Position, 0.3mm Pitch, Gold, FCC FPC ZIF connector

Part Number: CS030Z31G-A0

Pricing

Quantity Price
5 $0.99
100 $0.59
3000 $0.49
* Contact us about potential lead times.
Qty:
Need a written quote? Add to cart, then enter your email address in the "request a quote" box.

Files

Part Change Notices

Subscribe to Part Change Notices by
email Email subscription for changes to CS030Z31G-A0 or RSS RSS feed for changes to CS030Z31G-A0 for CS030Z31G-A0

Compliance Documents

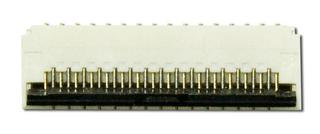

31 Position, 0.3mm Pitch, Gold, FCC FPC ZIF connector (CS030Z31G-A0)

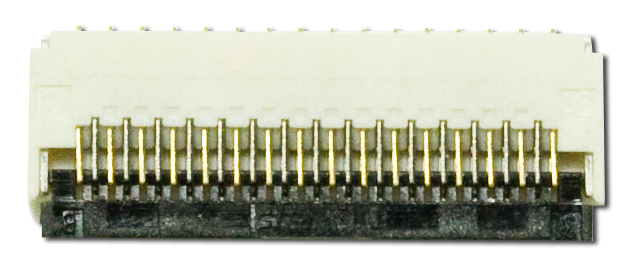

31-pin, 0.3mm Pitch, Gold, FCC FPC ZIF connector, Closed

Description

A ZIF connector that can be used to mate with any compatible display or touch screen that has a 0.3mm pitch, 31-position FFC or FPC tail including most TFT and OLED displays and many Graphical LCD displays.
  • 0.3mm Pitch
  • 31 position
  • Gold plated
  • Top and bottom connector
View our full lineup of ZIFconnectors here.

TECHNICAL SPECS

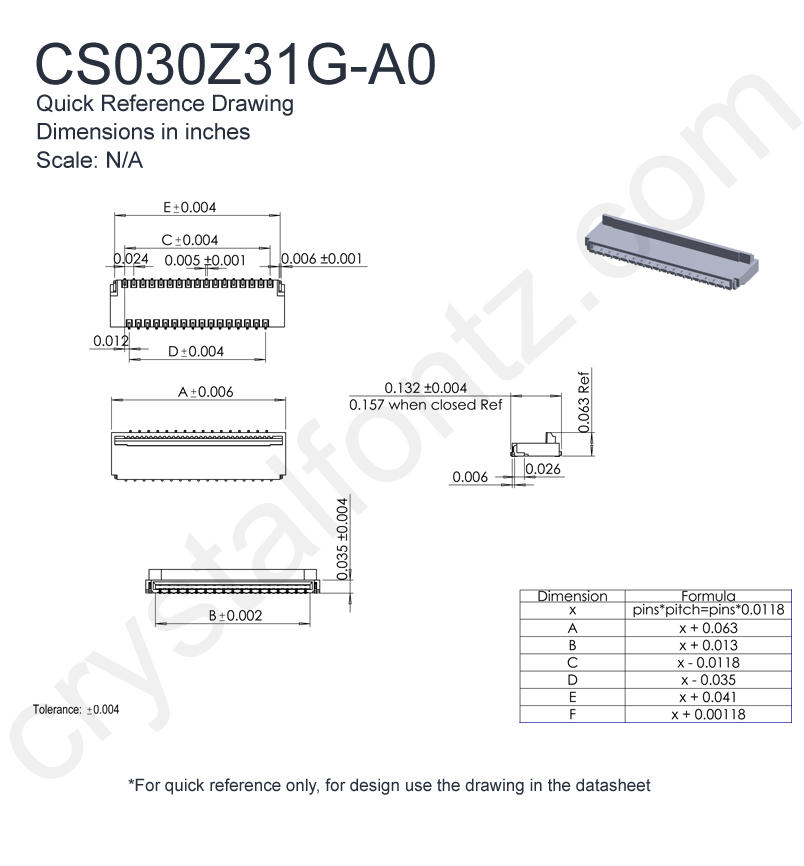

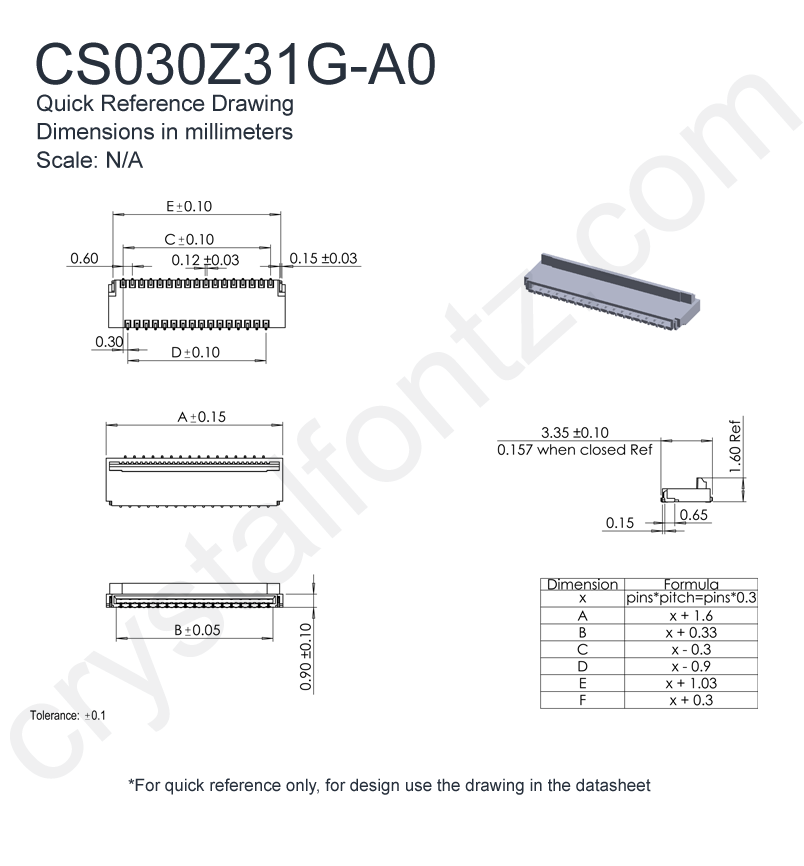

Physical Characteristics

Module Overall depth
millimeters 2
inches 0.079
Pin Count 31

Electrical Specifications

Module Connector Pitch 0.3mm
For reference only. For design purposes, please use the specifications in the datasheet.
