Home » Products » Accessories » ZIF Connectors

6 Position, 0.5mm Pitch, Gold, FCC FPC ZIF Connector

Part Number: CS050Z06G-A0

Pricing

Quantity Price
5 $0.35
100 $0.21
1500 $0.17
* Contact us about potential lead times.
Qty:
Need a written quote? Add to cart, then enter your email address in the "request a quote" box.

Files

Part Change Notices

Subscribe to Part Change Notices by
email Email subscription for changes to CS050Z06G-A0 or RSS RSS feed for changes to CS050Z06G-A0 for CS050Z06G-A0

Compliance Documents

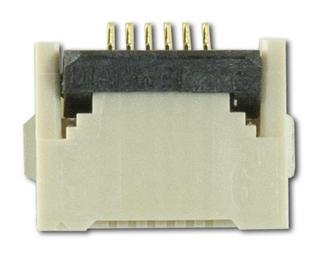

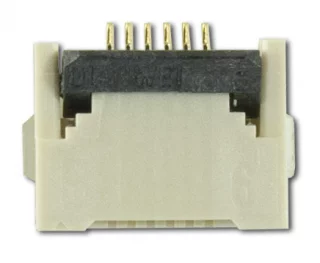

6 Position, 0.5mm Pitch, Gold, FCC FPC ZIF Connector (CS050Z06G-A0)

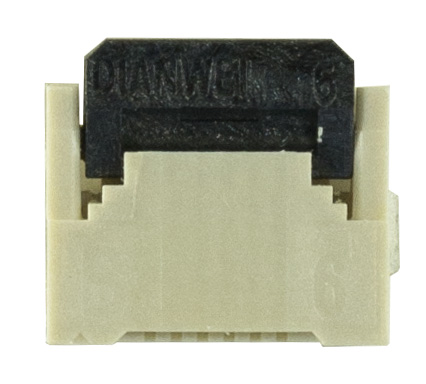

6 Position, 0.5mm Pitch, Gold, FCC FPC ZIF Connector, closed position.

Description

This 6 Position, 0.5mm Pitch, gold-plated ZIF connector is typically used to mate with FPC tails on TFT displays or and touch screens as well as and FFC cables.
  • Top and bottom contacts for dual mounting options
  • Gold plated
  • 6 position
  • 0.5mm Pitch

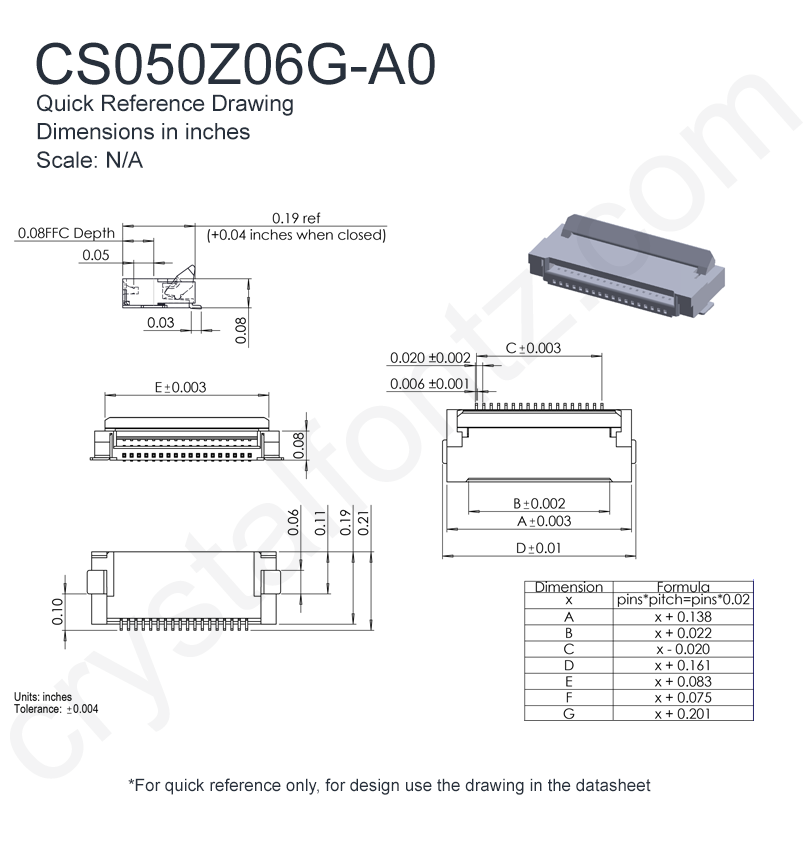

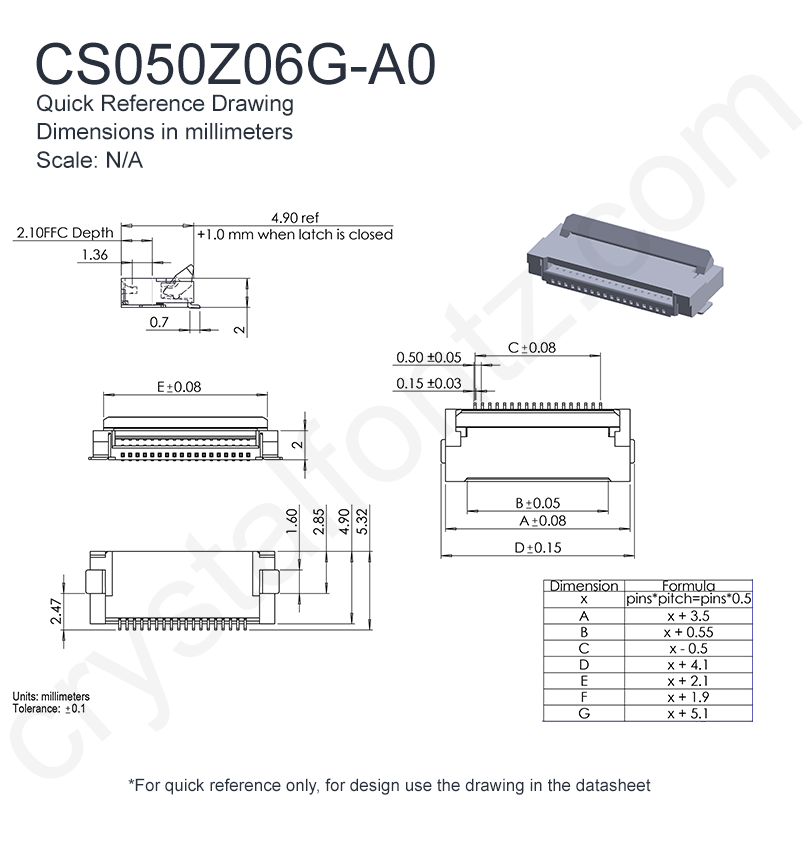

TECHNICAL SPECS

Physical Characteristics

Module Overall width height depth
millimeters 7.1 4.9 2
inches 0.280 0.193 0.079
Weight 0.17g

Electrical Specifications

Module Connector Pitch 0.5mm
For reference only. For design purposes, please use the specifications in the datasheet.
