Home » Products » Accessories » ZIF Connectors

34 Position, 0.50mm Pitch, Gold, FCC FPC ZIF Connector

Part Number: CS050Z34G-B0

Pricing

Quantity Price ea.
5 $0.92
100 $0.54
3000 $0.45
* Contact us about potential lead times.
Qty:
Need a written quote? Add to cart, then enter your email address in the "request a quote" box.

Datasheet

Part Change Notices

Subscribe to Part Change Notices by
email Email subscription for changes to CS050Z34G-B0 or RSS RSS feed for changes to CS050Z34G-B0 for CS050Z34G-B0

Compliance Documents

34 Position, 0.50mm Pitch, Gold, FCC FPC ZIF Connector (CS050Z34G-B0)

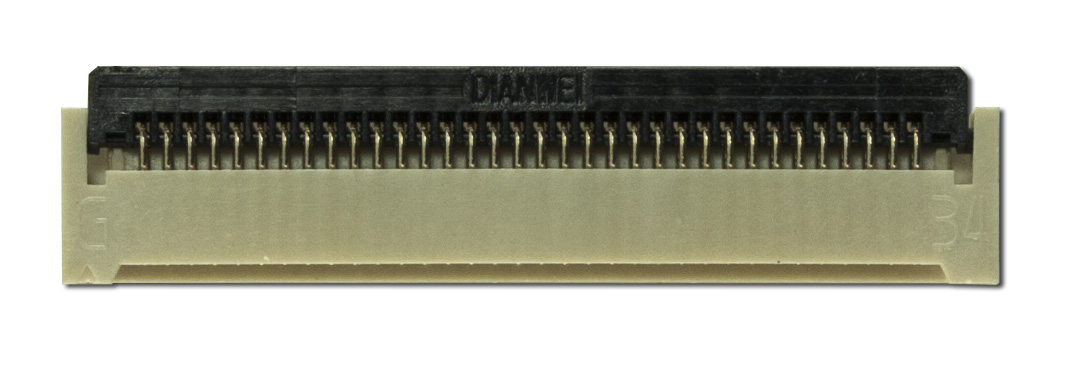

34 Position, 0.50mm Pitch ZIF Connector. Closed position.

Description

This 34 position, 0.50mm pitch, gold-plated ZIF connector is typically used to mate with FPC tails on TFT displays or and touch screens as well as and FFC cables.
  • 34 Position
  • 0.50 Pitch
  • Gold Plated
  • Top & Bottom Contacts

TECHNICAL SPECS

Physical Characteristics

Module Overall width height
millimeters 20.06 1.2
inches 0.790 0.047
Weight 0.351g
Pin Count 34

Electrical Specifications

Module Connector Pitch 0.5mm
For reference only. For design purposes, please use the specifications in the datasheet.
