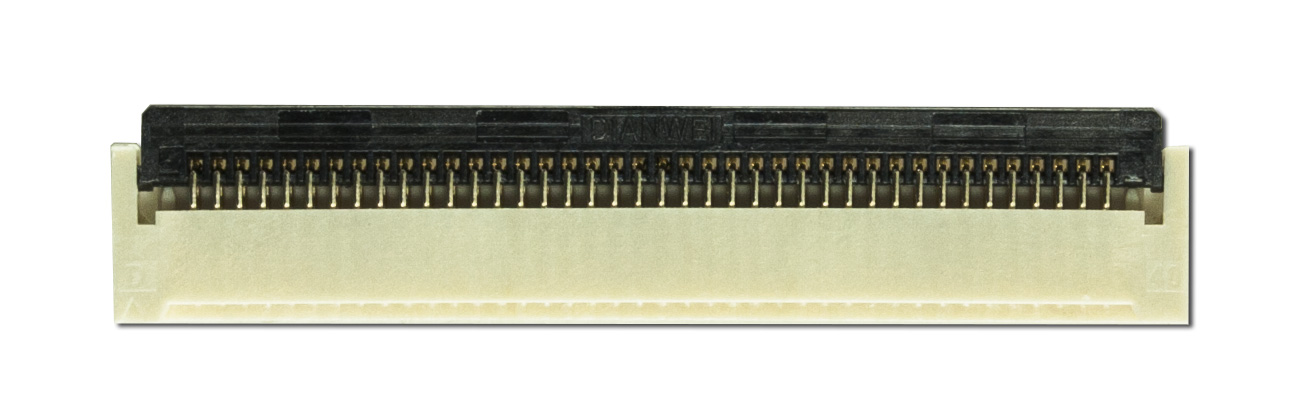

40 Position, 0.50mm Pitch, Gold, FCC FPC ZIF connector

Part Number: CS050Z40G-B0

This 40 position, 0.50mm pitch, gold-plated ZIF connector is typically used to mate with FPC tails on TFT displays or and touch screens as well as and FFC cables.
  • 40 Position
  • 0.50 Pitch
  • Gold Plated
  • Top & Bottom Contacts
40 Position, 0.50mm Pitch, Gold, FCC FPC ZIF connector (CS050Z40G-B0)
Qty:
Quantity Price
5 $1.45
100 $0.85
3000 $0.71
* Pricing is subject to change. Contact us about potential lead times.
Need a written quote? Add to cart, then enter your email address in the "request a quote" box.

Datasheet

Part Change Notices

Subscribe to Part Change Notices by
email Email subscription for changes to CS050Z40G-B0 or RSS RSS feed for changes to CS050Z40G-B0 for CS050Z40G-B0

Compliance Documents

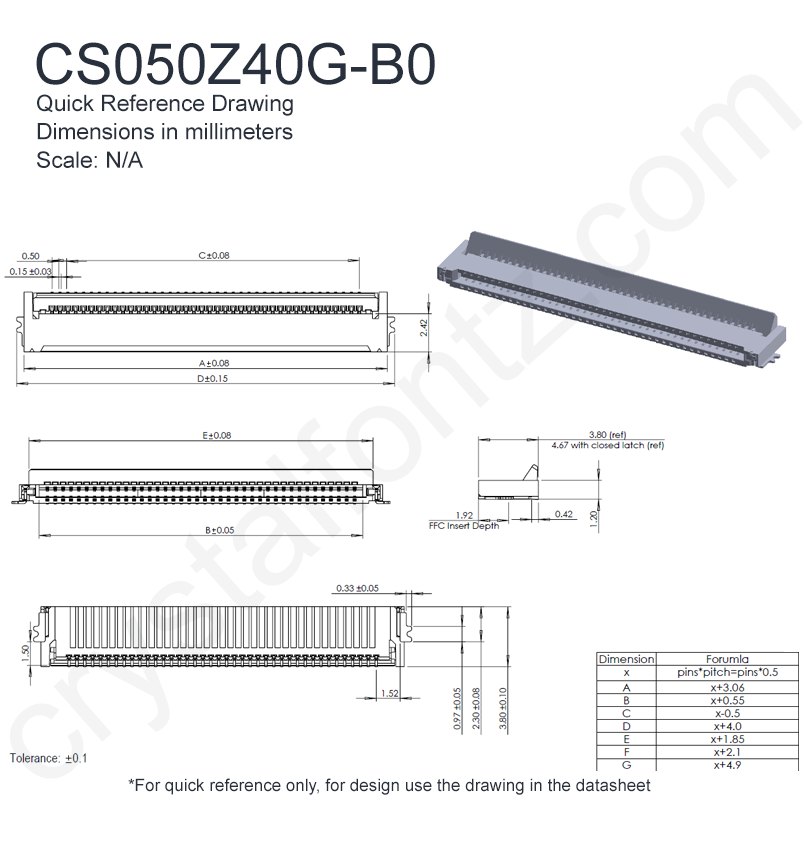

TECHNICAL SPECS

Physical Characteristics

Module Overall width height
millimeters 23.06 1.2
inches 0.908 0.047
Weight 0.413g
Pin Count 40

Electrical Specifications

Module Connector Pitch 0.5mm
For reference only. For design purposes, please use the specifications in the datasheet.
