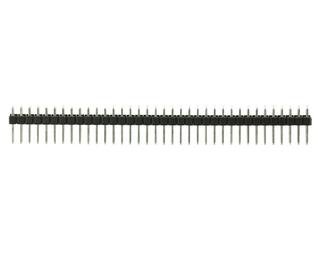

36-Pin 0.1" Header Pins

Part Number: CT254R36T-A0

Pricing

Quantity Price ea.
5 $0.29
10 $0.17
100 $0.13
500 $0.11
1000 $0.09
* Contact us about potential lead times.
Qty:
Need a written quote? Add to cart, then enter your email address in the "request a quote" box.

Part Change Notices

Subscribe to Part Change Notices by
email Email subscription for changes to CT254R36T-A0 or RSS RSS feed for changes to CT254R36T-A0 for CT254R36T-A0

Compliance Documents

Description

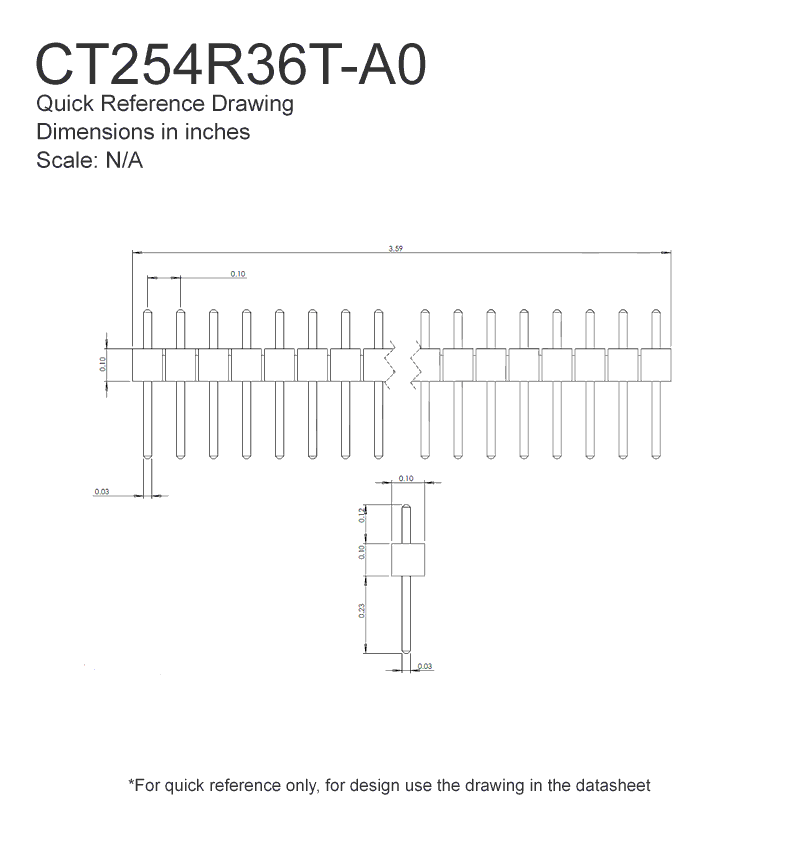

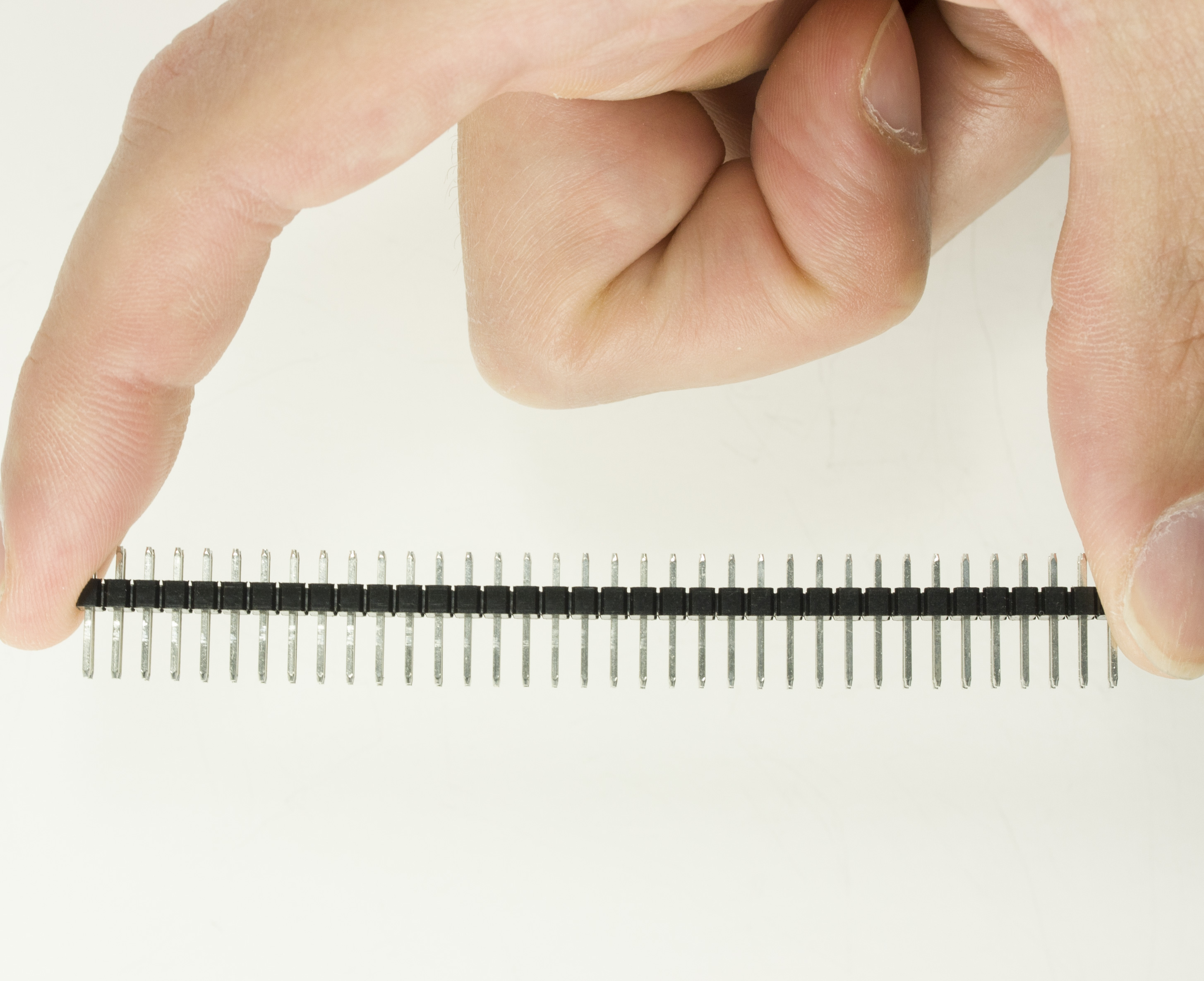

Use this 0.1" header soldered to a PCB to break out pins. The PCB side of the pins is shorter so the header solders easily to a standard width PCB without overhang. With 36 breakaway style pins, this header is easily broken to the desired length.
  • 36 position
  • 0.1" spacing
  • Made for soldering to a standard PCB width
  • 3.00mm length on PCB end
  • 5.96mm length on free end
  • Tin plated
  • Breakaway style to easily reduce the number of positions

TECHNICAL SPECS

Physical Characteristics

Weight 2g
Pin Count 36
For reference only. For design purposes, please use the specifications in the datasheet.
