EDP2

Part Number: EDP-2

Pricing

Quantity Price
1 $50.00
* Contact us about potential lead times.
Qty:


Datasheet



EDP2 (EDP-2)

Description

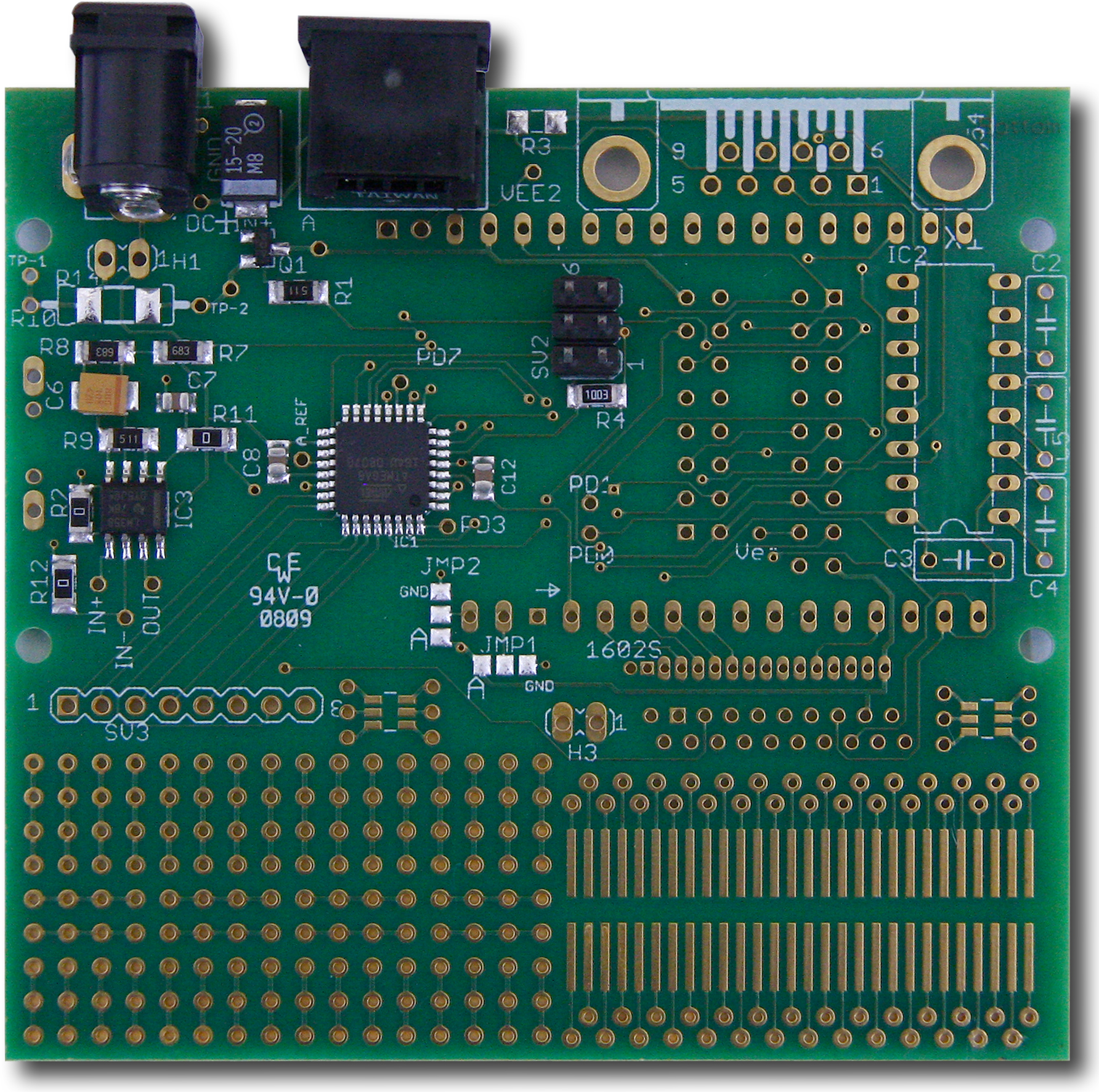

Character LCD Evaluation and Development Platform. Order this board with one of our CFAH* modules, and we will attach the module to the board for you. Includes a power supply.

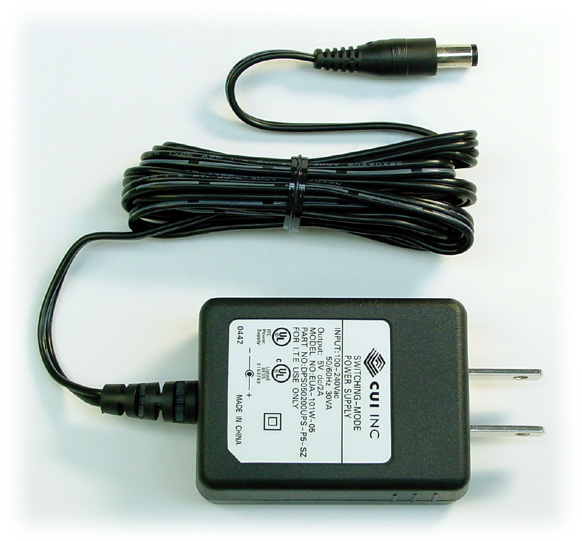

The EDP allows you to quickly and easily evaluate any Crystalfontz CFAH module. When you order an EDP plus a CFAH module, we will attach the module to the EDP and include a power supply. All you have to do is plug in the power supply and the module and backlight will come to life.

This is an ideal solution to be able to get a module powered up for approval by other departments within your company.

Crystalfontz will only sell an EDP mounted (soldered) to a CFAH* module. If you would like to purchase an EDP board separately, please contact Jem Innovation.

This board does NOT work with the 1602d, 1602m, 1602o, 1602p and 2002D modules, nor will it work with any part number ending in JPV, JTV or V.

TECHNICAL SPECS

For reference only. For design purposes, please use the specifications in the datasheet.

Physical Characteristics

Weight 25g

*Suggest a Correction

Part Change Notice

Subscribe to Part Change Notices by email Email subscription for changes to EDP-2 or RSS RSS feed for changes to EDP-2

Product Update #10299: New Product in Graphic LCD Development Kit / Demonstration Board: EDP2

New Product: EDP-2
Date Issued: November 30, 2010
Summary: New Product in Graphic LCD Development Kit / Demonstration Board: EDP2
Description: Character LCD Evaluation and Development Platform, Order along with a CFAH* module, we will attach the module to the EDP-2, and include a power supply.
