PDK-1 Images
View of the PDK-1 with the default firmware and the LCD powered.
![On](PDK_LCD_on.jpg)
Front view of the PDK-1.
![off](PDK_Front_LCD_off.jpg)

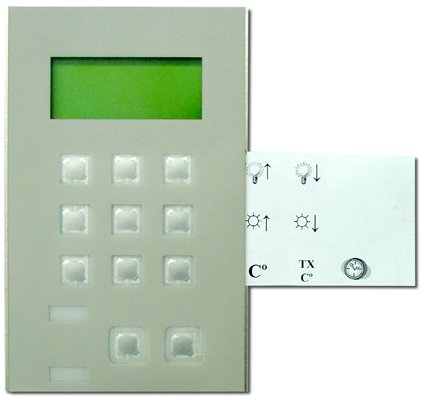

View of the PDK-1 with the key legends removed and entry point shown.
![key legends removed and entry point](PDK_Front_Key_Legends_Removed.jpg)

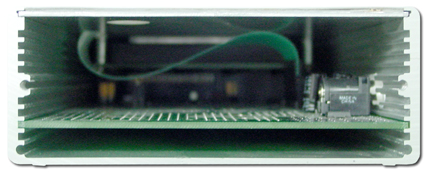

View of the PDK-1 with the bottom end-cap removed, showning the assembled view.
![bottom end-cap removed](PDK_Open_End_View.jpg)

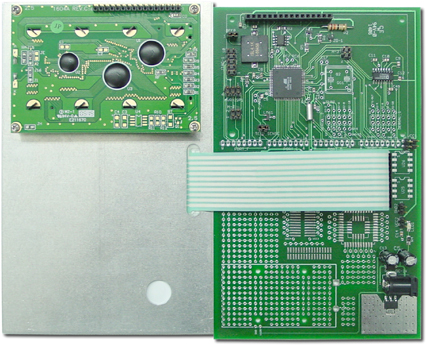

View of the PDK-1 with the front panel and PCB removed.
![front panel and PCB removed](PDK_Open_View.jpg)

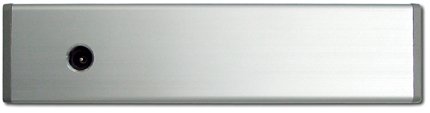

Side view of the PDK-1 showing the power connection.
![power connection](PDK_Side_View.jpg)
