New Product: 128 x 32 OLED Displays

May 2, 2016 3:32 pm

Crystalfontz is pleased to announce a new line of 128 x 32 OLED (Organic Light-Emitting Diode) displays as part of our product catalog. These displays are compact in size and feature a high resolution 128×32 graphic display.

Quick Start Guide – What You Need to Know

1) These displays are small and thin. You can put them in places where more traditional display technologies simply would not fit. Less than half an inch tall, less than one and a quarter inches wide, and less than an eighth of an inch thick.

OLED Size Comparison - www.crystalfontz.com

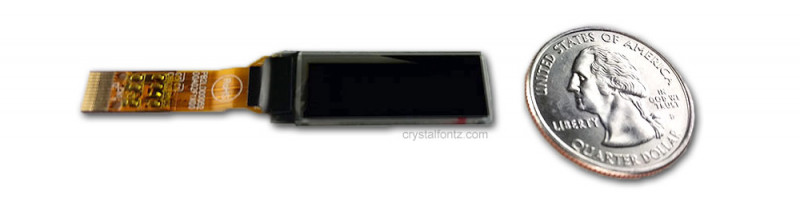

The CFAL12832D-BB is a 0.91″ 128 x 32 blue-on-black graphic OLED – front view, power off. Size compared to an American 25 cent piece. Unfolded FPC ZIF tail is complete.

2) With 128 x 32 pixels, they can show a lot of information. Text, bar graphs, icons, logos . . . anything you can imagine in 128 x 32 pixels can be shown on this compact display.

128x32 OLED Blue - Crystalfontz America

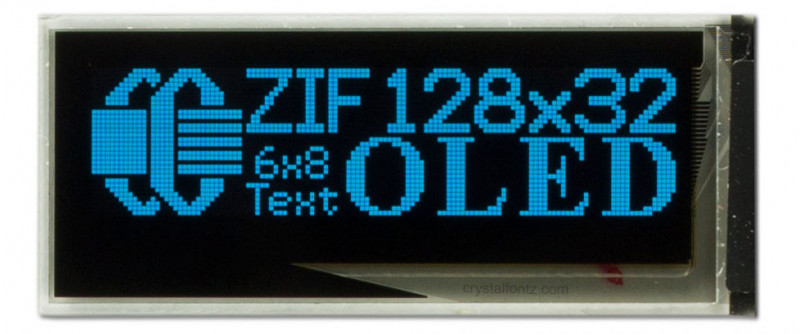

The CFAL12832D-BB is a 0.91″ 128 x 32 blue-on-black graphic OLED – front view, power on. ZIF FPC tail is not shown.

3) Easy to integrate. The ZIF version supports either SPI or I2C and since it uses a standard SMT ZIF connector, there is no need to purchase special soldering equipment or add a special assembly process. The FPC mates with a 12-pin ZIF connector which can be processed through your normal SMT reflow.

128x32 OLED Blue with ZIF Connector - www.crystalfontz.com

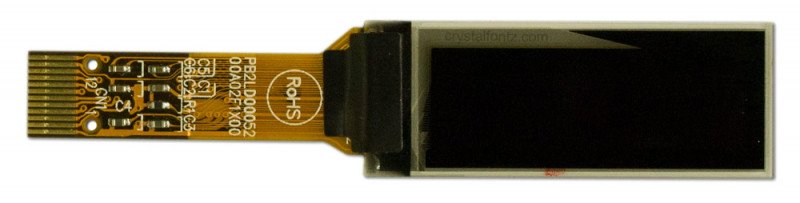

The CFAL12832D-BB is a 0.91″ 128 x 32 blue-on-black graphic OLED – front view, power off. Unfolded ZIF FPC tail is complete.

Special Product Notes

I2C and SPI only modules:

These module connectors are engineered for high volume production. They feature a “TAB” (tape automated bonding) or “COF” (chip on flex) style flex tail mated with a thin display.

The TAB connector must soldered directly to corresponding pads on your PCB using a hot-bar soldering machine, or bonded with anisotropic adhesive using heat and pressure. High volume contract manufacturers will be familiar with this type of construction and its assembly methods.

Modules featuring ZIF connectors

Quick and easy. The FPC mates with a 12-pin ZIF connector which can be processed through your normal SMT reflow. There is no need to purchase special soldering equipment or add a special assembly process.

Get Started With OLED Modules

View all 128 x 32 OLED modules or contact our helpful customer support team via chat, phone, or email — to see what display will best suit your needs or answer any questions about these modules.
