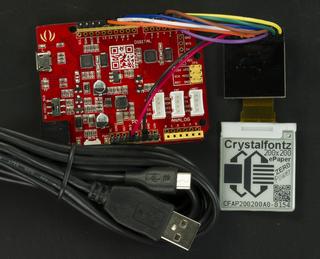

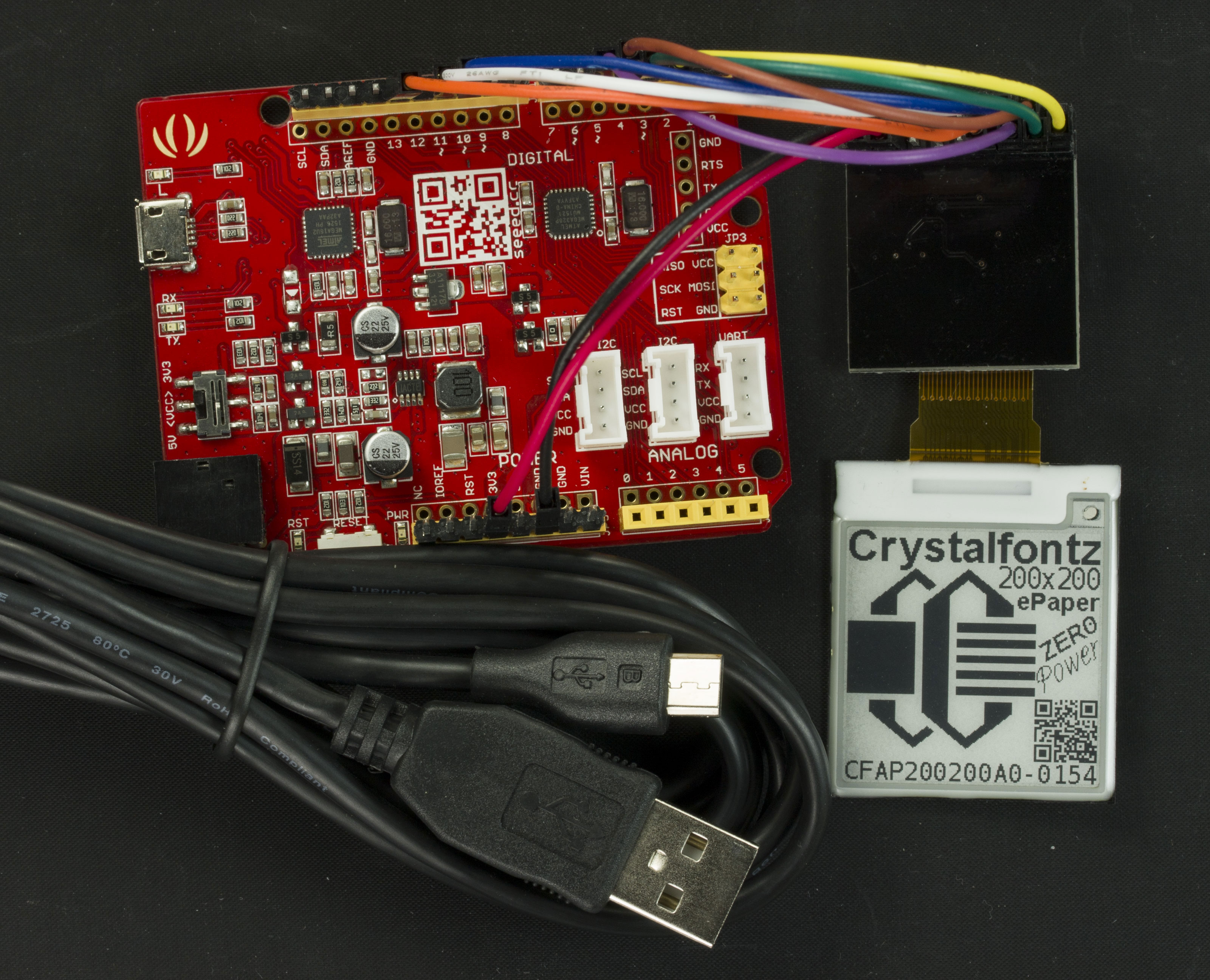

Complete ePaper Demonstration Kit - 1.54",  Black and WhitePart Number: CFA214A0-0154Complete ePaper demonstration kit is assembled and programmed for the 1.54-inch black and white display module. Kit includes a Seeeduino development board, a breakout board, connection assembly, and a WR-USB-Y27 cable (USB-A to Micro-B, 1.85m feet long). The Seeeduino is a 3.3v capable Arduino derivative programmed for the CFAP200200A0-0154.
 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            200 x 200

    Module Overall        width
        height
        depth

        millimeters
        31.8
        37.32
        1.05

        inches
        1.25
        1.47
        0.04

*width / height does not include Foldable Tab

        Diagonal Dimension
            1.54"

    Active Area        Width
        Height

        millimeters
        27.6
        27.6

        inches
        1.09
        1.09

    Dot Size        Width
        Height

        millimeters
        0.138
        0.138

        inches
        0.0054
        0.0054

    Dot Pitch        Width
        Height

        millimeters
        0.138
        0.138

        inches
        0.0054
        0.0054

        Weight
            80g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type
            e ink
Polarizer
            Reflective
Sunlight Readable
            Yes

        Foreground Color
            black
Background Color
            white

 electric_bolt Electrical Specification
Electrical Specifications

        Supply Voltage for Logic Minimum
            3V
Supply Voltage for Logic Maximum
            3.6V

        Supply Voltage for Logic Typical
            3.3V

 nature Environmental
Environmental

    Operating Temperatures        min
        max

        Celsius
        0°
        50°

        Fahrenheit
        32°
        122°

    Storage Temperatures        min
        max

        Celsius
        -25°
        70°

        Fahrenheit
        -13°
        158°

    Humidity        min
        max

        Non-condensing
        0%
        90%

 cable Electronics
Electronics

        Interface
            SPI

Module Overall	width	height	depth
millimeters	31.8	37.32	1.05
inches	1.25	1.47	0.04
*width / height does not include Foldable Tab

Active Area	Width	Height
millimeters	27.6	27.6
inches	1.09	1.09

Dot Size	Width	Height
millimeters	0.138	0.138
inches	0.0054	0.0054

Dot Pitch	Width	Height
millimeters	0.138	0.138
inches	0.0054	0.0054

Operating Temperatures	min	max
Celsius	0°	50°
Fahrenheit	32°	122°

Storage Temperatures	min	max
Celsius	-25°	70°
Fahrenheit	-13°	158°

Humidity	min	max
Non-condensing	0%	90%

Notices

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Part Change Notice #10953: End-of-Life Notification

Products Affected:	CFA214A0-0154, CFAP128296D0-E1-2, CFAP122250A0-E1-2, CFAP122250A0-E1-1, CFAP128296C0-E1-1, CFAP128296C0-E1-2, CFAP128296D0-E1-1, CFAP176264A0-E1-1, CFAP176264A0-E1-2, CFAP104212C0-E1-1, CFAP104212C0-E1-2, CFAP152152A0-E1-1, CFAP152152A0-E1-2
Date Issued:	June 4, 2018
Summary:	End-of-Life Notification
Description:	The parts listed are being set to End of Life due to the unavailability of a critical part.
Reason:	The Red adapter board - CFA part number CFAPN15087 has been discontinued and is no longer available
Impact:	The listed parts cannot be purchased. All stocks of the CFAPN15087 have been depleted.
Recommendation:	Products using the listed parts will have to be re-designed to use the replacement adapter board. Products still in the design phase should be placed on hold until the new adapter board is available.
Availability:	A new adapter board is being designed - CFA part number CFA-10084. This part has the same functionality as the CFAPN15087. This part will be available after July 1, 2018. The parts listed will be revised to include the use of this new adapter board and will be available by mid-July 2018
Price Change:	TBD
Response:	None Required
