CFA921-TS Graphic TFT

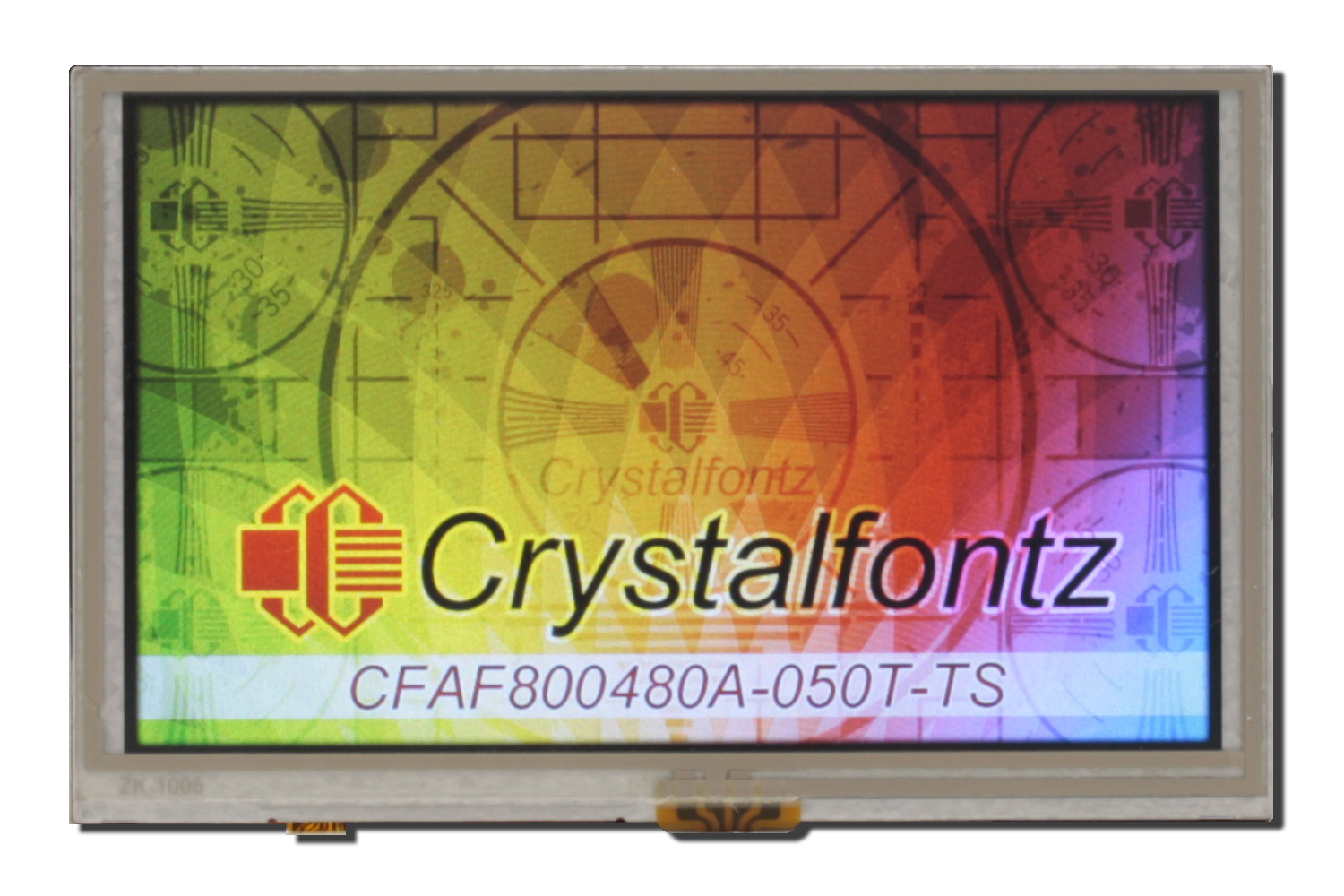

CFA921-TS Graphic TFT photo

Internet Ready Linux SOM, Freescale i.MX283 or i.MX287 Processor, 5.0 inch 800x480 full color TFT touchscreen, Ethernet and USB ports for ease of connectivity, Yocto desktop loaded and ready to go.

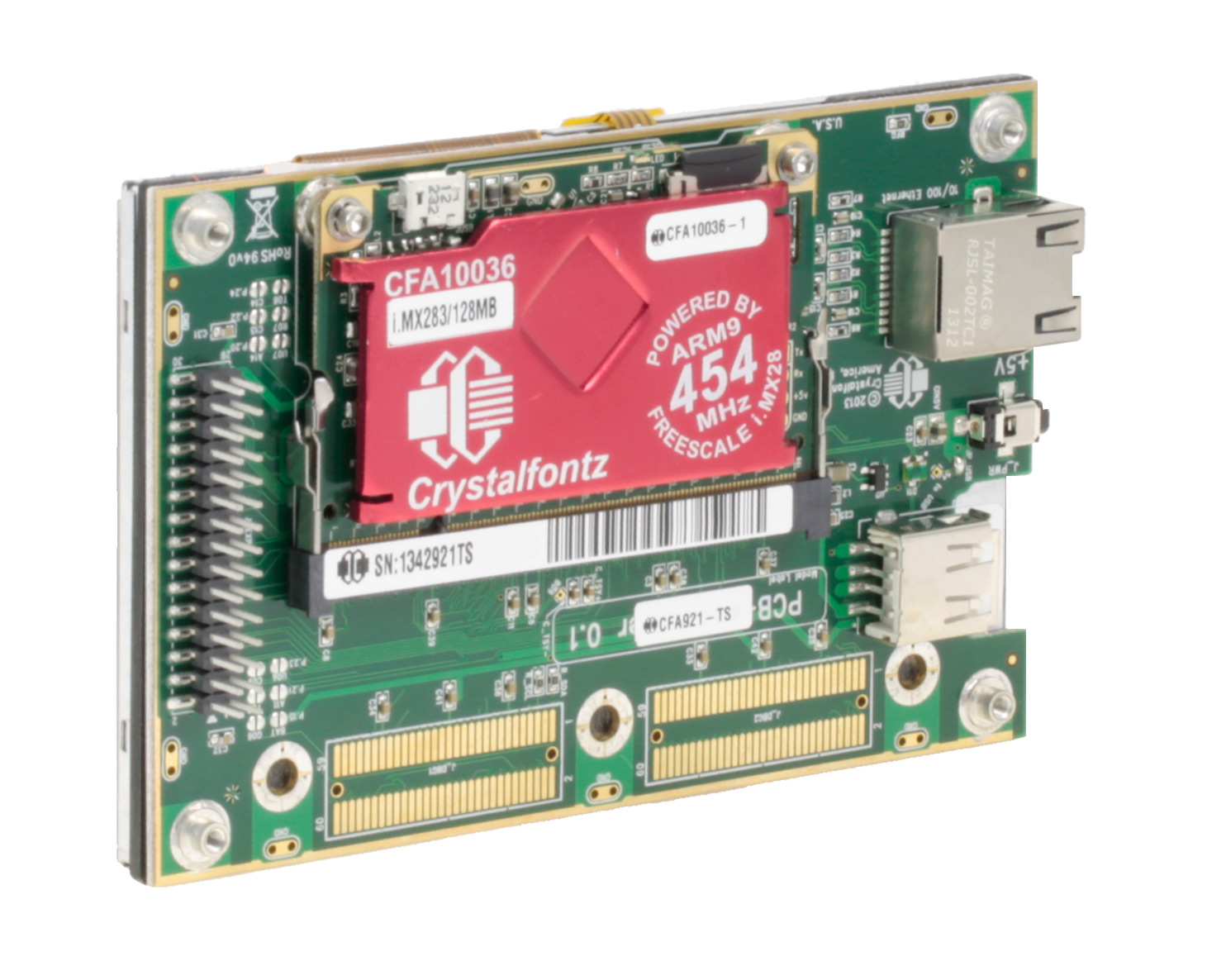

A complete package that includes our CFA10036 with:
  • Freescale i.MX283 or i.MX287 processor
  • optional "debug" 128x32 OLED
  • 5.0 inch 800*480 TFT touchscreen display
  • 10/100 Ethernet port
  • USB port
  • 128MB or 256MB DDR2 RAM (processor dependent)
  • μSD reader supports up to 64GB
  • CFA10040PWR +5v, 1A power adapter
  • 24 GPIO on easy-access 0.1” center header
  • Up to 108 GPIO on 1mm compression connector
Quantity 1 10 * 20 * 50 * 100 * 200 * 500 *
Price $189.11 $183.60 $181.60 $179.60 $177.80 $175.80 $173.80
Quantity Price
1 $189.11
10 * $183.60
20 * $181.60
50 * $179.60
100 * $177.80
200 * $175.80
500 * $173.80
Quantity:
* May require 60 days lead time.



TECHNICAL SPECS

For reference only. For design purposes, please use the specifications in the datasheet.

Physical Characteristics

Column Dots x Row Dots 800 x 480
Module Overall width height
millimeters 121.000 77.000
inches 4.78 3.05
PCB Outline width height
millimeters 121.000 77.000
inches 4.78 3.05
Diagonal Dimension 5.000"
Viewing Area width
millimeters 59.000
inches 2.34
Active Area width height
millimeters 108.000 64.000
inches 4.25 2.55
Weight 172g

Optical Characteristics

Glass Type/Glass Color TFT/Black
Polarizer Transmissive
View Direction 6 o'clock
Backlight Color White
Backlight Type LED
Mode Negative
Foreground Color RGB
Background Color Dark

Electrical Specifications

Supply Voltage for Logic Minimum 5V
Supply Voltage for Logic Maximum 5V
Supply Voltage for Logic Typical 5V

Miscellaneous

Touch Screen yes


Part Change Notices

Subscribe to Part Change Notices by email Email subscription for changes to CFA921-TS Graphic TFT or RSS RSS feed for changes to CFA921-TS Graphic TFT

Part Change Notice #10667

Products Affected: CFA921-TS Graphic TFT, CFA-921-TS1, CFA-921-TS2, CFA-921-TS5, CFA-921-TS6
Date Issued: July 22, 2015
Summary: CFA-921 revised for backlight and ethernet corrections
Description: Backlight driver schematic update and roll-up of R_MDIO change from Product Update #10588.
Reason: R_MDIO had been unpopulated initially, but corrected by Product Update #10588. Backlight driver schematic had two resistors swapped, making the backlight not able to be set to 0%.
Impact: Affects all CFA921 variants. No change will be required on the part of any users.
Recommendation: Swap RBL2 and RBL3 on product shipped prior to 2015-07-21 if backlight behavior is inappropriate for your application.
Availability: Immediate.
Price Change: None.

Product Update #10588

Products Affected: CFA10037, CFA10037-1, CFA10037-2, CFA921-TS Graphic TFT, CFA920-TS Graphic TFT, CFA10037-5, CFA10037-6, CFA-920-TS1, CFA-920-TS2, CFA-920-TS5, CFA-920-TS6, CFA-921-TS1, CFA-921-TS2, CFA-921-TS5, CFA-921-TS6
Date Issued: May 22, 2014
Summary: R_MDIO needs populated with a 1.5K resistor
Description: R_MDIO needs populated with a 1.5K resistor so that the device gets properly set up by Linux on start-up.
Reason: MDIO times out before it can be detected.
Recommendation: 1. Install 1.5k pull-up to R_MDIO.

Or

2. Use kernel version cfa-3.12.17, commit ID 2cbfe6e36266b82daac0a9e9aa92e0706e306411

located:
https://github.com/crystalfontz/cfa_10036_kernel/tree/cfa-3.12.17

Please make sure you use the commit above if you decide to use this method.

Product Update #10584

Products Affected: CFA-10036, CFA10037, CFA10055-8, CFA10056-4, CFA10037-1, CFA10037-2, CFA921-TS Graphic TFT, CFA920-TS Graphic TFT, CFA10037-5, CFA10037-6, CFA-920-TS1, CFA-920-TS2, CFA-920-TS5, CFA-920-TS6, CFA-921-TS1, CFA-921-TS2, CFA-921-TS5, CFA-921-TS6
Date Issued: April 28, 2014
Summary: The Linux SOM family has had a kernel and a build update.

Description: Linux kernel update and build update.
Recommendation: To access the new build please visit: http://images.crystalfontz.com/releases/

Product Update #10573

Products Affected: CFA921-TS Graphic TFT, CFA-921-TS1, CFA-921-TS2, CFA-921-TS5, CFA-921-TS6
Date Issued: November 1, 2013
Summary: The CFA921-TS series has had a modification to the part numbering scheme. The part number has changed to signify the selection of the particular CFA10036 module utilized.
Description: The CFA921's part number scheme was modified to allow for easier ordering and more efficient order processing.

The following part numbers have been created:

CFA921-TS1 (Uses a CFA100361)
CFA921-TS2 (Uses a CFA100362)
CFA921-TS5 (Uses a CFA100365)
CFA921-TS6 (USes a CFA100366)
Reason: The CFA921 series has had a modification to the part numbering scheme. The part number has changed to signify the selection of the particular CFA10036 module utilized.

Product Update #10571

Products Affected: CFA-10036, CFA10037, CFA10037-1, CFA10037-2, CFA921-TS Graphic TFT, CFA920-TS Graphic TFT, CFA10037-5, CFA10037-6, CFA-920-TS1, CFA-920-TS2, CFA-920-TS5, CFA-920-TS6, CFA-921-TS1, CFA-921-TS2, CFA-921-TS5, CFA-921-TS6
Date Issued: October 30, 2013
Summary: The CFA-10036 modules have been updated to include a heat shield to provide better thermal cooling for the i.MX28 processor.
Reason: To provide more efficient thermal cooling for the i.MX28 processor.

Product Update #10532

New Product: CFA921-TS Graphic TFT
Date Issued: August 29, 2013
Summary: (New Product) CFA921-TS
Description: Linux SOM: Internet Ready Linux SOM w/i.MX283 Processor, 5 inch TFT touchscreen

Product Update #10483

New Product: CFA921-TS Graphic TFT
Date Issued: April 22, 2013
Summary: (New Product) CFA921-TS
Description: Linux SOM: Internet Ready Linux SOM w/i.MX283 Processor, 5 inch TFT touchscreen
