128x128 1.44 TFT Full Color Display

Part Number: CFAF128128B-0145T

Add some dazzle to your project with this 1.44" diagonal graphic TFT display module. This small display packs 128x128 full color pixels into one square inch of active display area. It is a great choice when you need color and sharp detail while using minimal front panel space. At less than 5 grams, the display adds little weight to handheld devices.

Thanks to the integrated Sitronix ST7735S or compatible controller, a single 3.3v source powers everything. The SPI host interface allows full read and write control of the display while using only 10 pins. The single bright white LED backlight has anode (A,+) and cathode (K, -) pins brought out on the Flexible Printed Circuit (FPC) tail. To connect, all you need is a standard 10-conductor, 0.5 mm ZIF socket such as Omron Electronics XF2L-1025-1A sold by Digi-Key.

Need this module with a Touch Screen? Contact us about availability.

Arduino + TFT Display Demo Using Simple SPI Interface

While the SPI interface requires only a few lines to control this TFT LCD module, it is still possible to transfer data at a rate that supports 20 FPS (Frames Per Second) screen updates -- fast enough to play a full motion video as shown in our videos.

The project write-up on how to connect this TFT, including the Arduino Sketch is on our forum.

To get started, download the datasheet and SPI sample code. And of course Crystalfontz is always here to help you when you integrate this display into your application.

Quantity 1 10 20 50 100 200 500 1000
Price $7.52 $7.30 $5.98 $4.72 $3.86 $3.30 $3.00 $2.84
Quantity Price
1 $7.52
10 $7.30
20 $5.98
50 $4.72
100 $3.86
200 $3.30
500 $3.00
1000 $2.84
* Contact us about lead times on larger orders.
Quantity:


TECHNICAL SPECS

For reference only. For design purposes, please use the specifications in the datasheet.

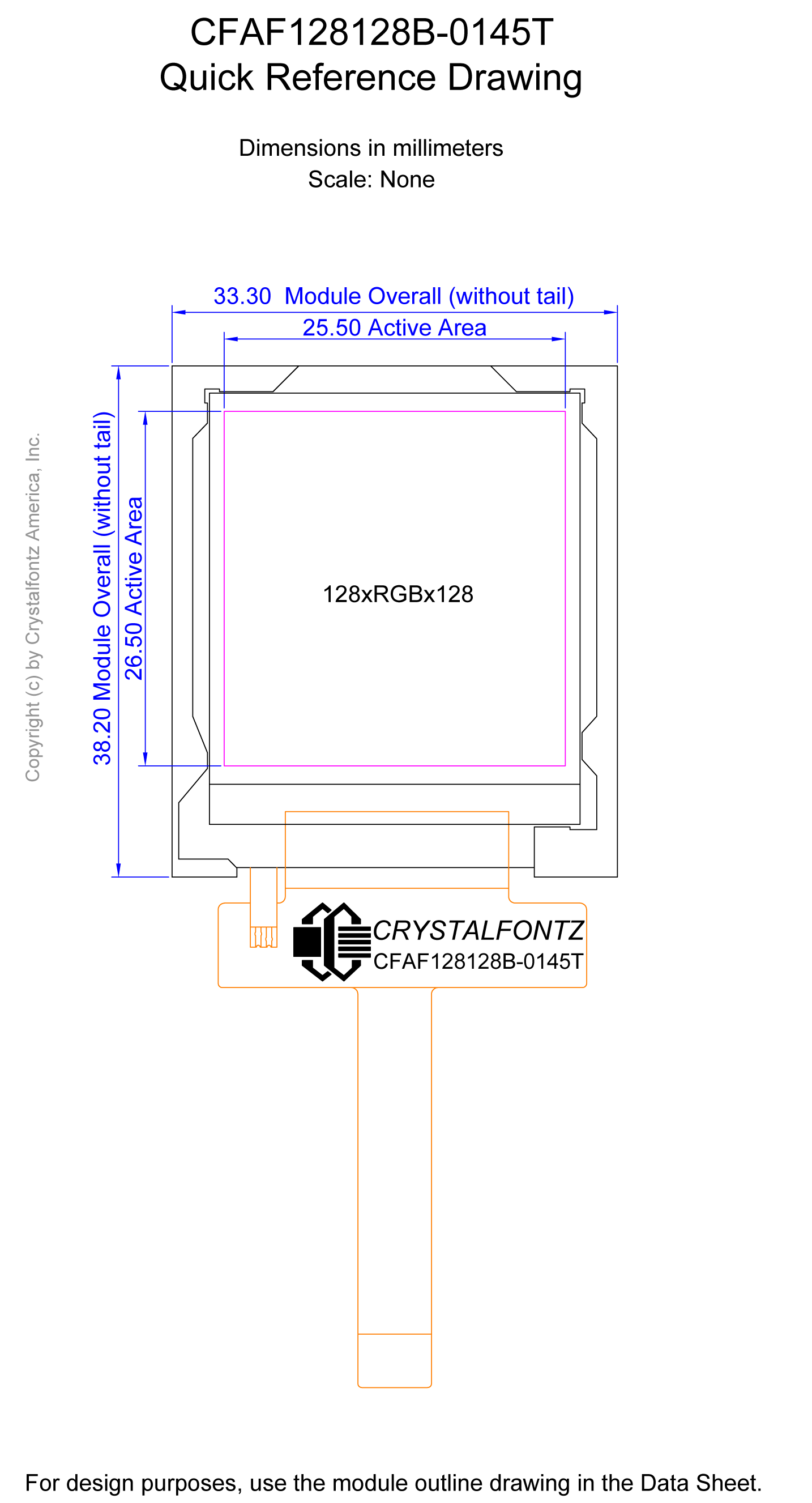

Physical Characteristics

Column Dots x Row Dots 128 x 128
Module Overall width height depth
millimeters 33.3 38.2 2.8
inches 1.311 1.504 0.110
*width / height does not include Foldable Tab
Diagonal Dimension 1.440"
Active Area width height
millimeters 25.5 26.5
inches 1.004 1.043
Dot Pitch width height
millimeters 0.1992 0.207
inches 0.0078 0.0081
Flexible Cable (FFC/FPC) length
millimeters 38
inches 1.496
Weight 4.4g

Optical Characteristics

Glass Type TN
Polarizer Transmissive
View Direction 12 o'clock
Backlight Color White
Backlight Type LED
Foreground Color RGB
Background Color Dark

Electrical Specifications

Supply Voltage for Logic Minimum 2.5V
Supply Voltage for Logic Maximum 3.3V
Supply Voltage for Logic Typical 3.7V
Module Connector Pitch 0.5mm

Backlight Electrical Specifications

Forward Voltage Typical 3.2V
Forward Current Typical 12mA

Environmental

Operating Temperatures min max
Celsius -10° 60°
Fahrenheit 14° 140°
Storage Temperatures min max
Celsius -20° 60°
Fahrenheit -4° 140°
Humidity min max
Non-condensing 0% 90%

Electronics

Controller Sitronix ST7735S
Interface SPI

Miscellaneous

Foldable Tab Yes


*Suggest a Correction

Part Change Notice

Subscribe to Part Change Notices by email Email subscription for changes to CFAF128128B-0145T or RSS RSS feed for changes to CFAF128128B-0145T

Product Update #10575: ***UPDATE*** All current product is now the finalized version listed in the final comparison document. For any questions please contact technical support. The current CFAF128128B-0145T is a limited quantity first time production run. The next version will have minor design modifications. Please see the diagram under the docs/files tab titled: CFAF128128B-0145T Early vs Final Comparison. This document will outline the dimension changes.

Product Affected: CFAF128128B-0145T
Date Issued: November 25, 2013
Summary: ***UPDATE*** All current product is now the finalized version listed in the final comparison document. For any questions please contact technical support.

The current CFAF128128B-0145T is a limited quantity first time production run. The next version will have minor design modifications. Please see the diagram under the docs/files tab titled: CFAF128128B-0145T Early vs Final Comparison. This document will outline the dimension changes.

Product Update #10534: (New Product) CFAF128128B-0145T

New Product: CFAF128128B-0145T
Date Issued: October 17, 2013
Summary: (New Product) CFAF128128B-0145T
Description: TFT LCD Modules: Full-color (65K/262K) 128xRGBx128
For reference only. For design purposes, please use the specifications in the datasheet.
