CFAF240400D-030T TFT With Carrier Board and Standoffs
Part Number: CFAF240400D-030T-CB1

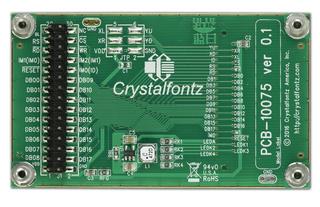

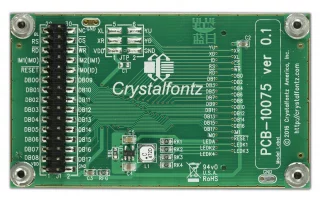

This kit consists of a CFAF240400D-030T TFT LCD module mounted on a carrier board with standoffs. The carrier board supports a driver for the LED backlight of the display. It is available under Additional Options on the website page for CFAF240400D-030T.
Physical Characteristics
| Column Dots x Row Dots |
240 x 400 |
| Module Overall | width |
height |
|---|
| millimeters |
45.04 |
77 |
| inches |
1.77 |
3.03 |
| *width / height does not include Foldable Tab
|
| Viewing Area | Width |
Height |
|---|
| millimeters |
43 |
68.8 |
| inches |
1.69 |
2.71 |
| Active Area | Width |
Height |
|---|
| millimeters |
38.88 |
64.8 |
| inches |
1.53 |
2.55 |
| Dot Pitch | Width |
Height |
|---|
| millimeters |
0.16 |
0.16 |
| inches |
0.006 |
0.006 |
Optical Characteristics
| Glass Type/Glass Color |
TFT/Black |
| Polarizer |
Transmissive |
| View Direction |
12 o'clock |
| Backlight Color |
White |
| Backlight Type |
LED |
| Mode |
Negative |
| Foreground Color |
RGB |
| Background Color |
Dark |
Electrical Specifications
| Supply Voltage for Logic Minimum |
2.7V |
| Supply Voltage for Logic Maximum |
3.3V |
| Supply Voltage for Logic Typical |
2.8V |
| Module Connector Pitch |
0.8mm |
Backlight Electrical Specifications
| Forward Voltage Typical |
3.2V |
| Forward Current Typical |
60mA |
Environmental
| Operating Temperatures | min |
max |
|---|
| Celsius |
-20° |
70° |
| Fahrenheit |
-4° |
158° |
| Storage Temperatures | min |
max |
|---|
| Celsius |
-30° |
80° |
| Fahrenheit |
-22° |
176° |
| Humidity | min |
max |
|---|
| Non-condensing |
0% |
90% |
Electronics
| Controller Documents |
Orise Tech SPFD5420A
SPFD5420A
720-channel 6-bit Source Driver with
System-on-chip for Color
Amorphous TFT-LCDs
|
| Interface |
16-bit Parallel, 18-bit Parallel, 8-bit Parallel |
-
Part Change Notices
Subscribe to Part Change Notices by email
or RSS
-
| Products Affected: |
CFAF240400D-030T, CFAF240400D-030T-CB, CFAF240400D-030T-CB1 |
| Date Issued: |
September 26, 2018 |
| Summary: |
End-Of-Life Notification |
| Description: |
The parts listed are being set to End of Life Status |
| Reason: |
The Orise controller chip used on the CFAF240400D-030T has been discontinued by the manufacturer. |
| Impact: |
The CFAF240400D-030T is not available. All stock has been depleted. |
| Recommendation: |
Two replacements are available for the CFAF240400D-030T.
The CFAF240400A0-030T is available for customers using an 8-bit parallel interface.
https://www.crystalfontz.com/product/cfaf240400a0030t-240x400-3inch-tft-lcd-8-bit
The CFAF240400B0-030T is available for customers using a 16-bit parallel interface.
https://www.crystalfontz.com/product/cfaf240400b0030t-240x400-16bit-parallel-lcd
Replacements for the CFAF240400D-030T-CB and CFAF240400D-030T-CB1 kits will be available at a later date.
|
-
| Products Affected: |
CFAF240400D-030T, CFAF240400D-030T-CB, CFAF240400D-030T-CB1 |
| Date Issued: |
August 9, 2018 |
| Summary: |
End-Of-Life Notification for CFAF240400D-030T |
| Reason: |
The Orise Tech OTM4001A Controller chip has been discontinued by the manufacturer. No direct replacement is available. |
| Impact: |
This product will no longer be available when current stock is depleted. A last-time buy is not available. |
| Recommendation: |
Replacement parts will be available by the first quarter of 2019. Information regarding the replacement parts will be posted on our website and in our newsletter as it becomes available. |
| Availability: |
Contact Sales for more information on the availability of the CFAF240400D-030T. Availability of replacement parts is to be determined. |
-
| Products Affected: |
CFAF240400D-030T, CFAF240400D-030T-CB, CFAF240400D-030T-CB1 |
| Date Issued: |
June 1, 2017 |
| Summary: |
Update to PUN #10842:
Functional change the BL (Pin 29) |
| Description: |
On the 2BM-10005, the pin that enabled and disabled the backlight (Pin 29) was left floating with the expectation that the host system would drive that line.
On the CFA-10075, that pin is tied to GND using a 1M Ohm resistor.
|
| Reason: |
Customer feedback has shown that this pin is not always being driven in every situation and the cut over between the 2BM-10005 and the CFA-10075 has caused compatibility issues. |
| Impact: |
Customers not specifically enabling this pin, by driving it high, will find that the backlight does not illuminate. |
| Recommendation: |
It is important to ensure that when using this carrier board, the BL pin should be driven by the host system. Preferably using a GPO in order to actively toggle the backlight. |
| Availability: |
Immediate |
| Price Change: |
None at this time |
-
| Products Affected: |
CFAF240400D-030T, CFAF240400D-030T-CB, CFAF240400D-030T-CB1 |
| Date Issued: |
February 16, 2017 |
| Summary: |
CFA10075 replacing 2BM-10005 |
| Description: |
2BM-10005 carrier board being replaced by CFA10075 carrier board |
| Reason: |
As part of our continuous improvement, the design and manufacture of carrier board has been brought under in-house control.
|
| Impact: |
none |
| Recommendation: |
The CFA-10075 has been designed and tested to be Fit, Form, and Functional compatible with the 2BM-10005. Testing in systems is encouraged, as with any product update. |
| Availability: |
Immediate |
| Price Change: |
None at this time. |
-
| New Product: |
CFAF240400D-030T-CB1 |
| Date Issued: |
January 13, 2016 |
| Summary: |
(New Product) CFAF240400D-030T-CB1 |
| Description: |
TFT LCD Modules: Kit consists of the CFAF240400D-030T TFT display module mounted on a carrier board with standoffs. |
