This product has reached end of life and has been replaced by CFAF320240F035T

Product

Home » Products

                        This product is discontinued and has been replaced by CFAF320240F-035T

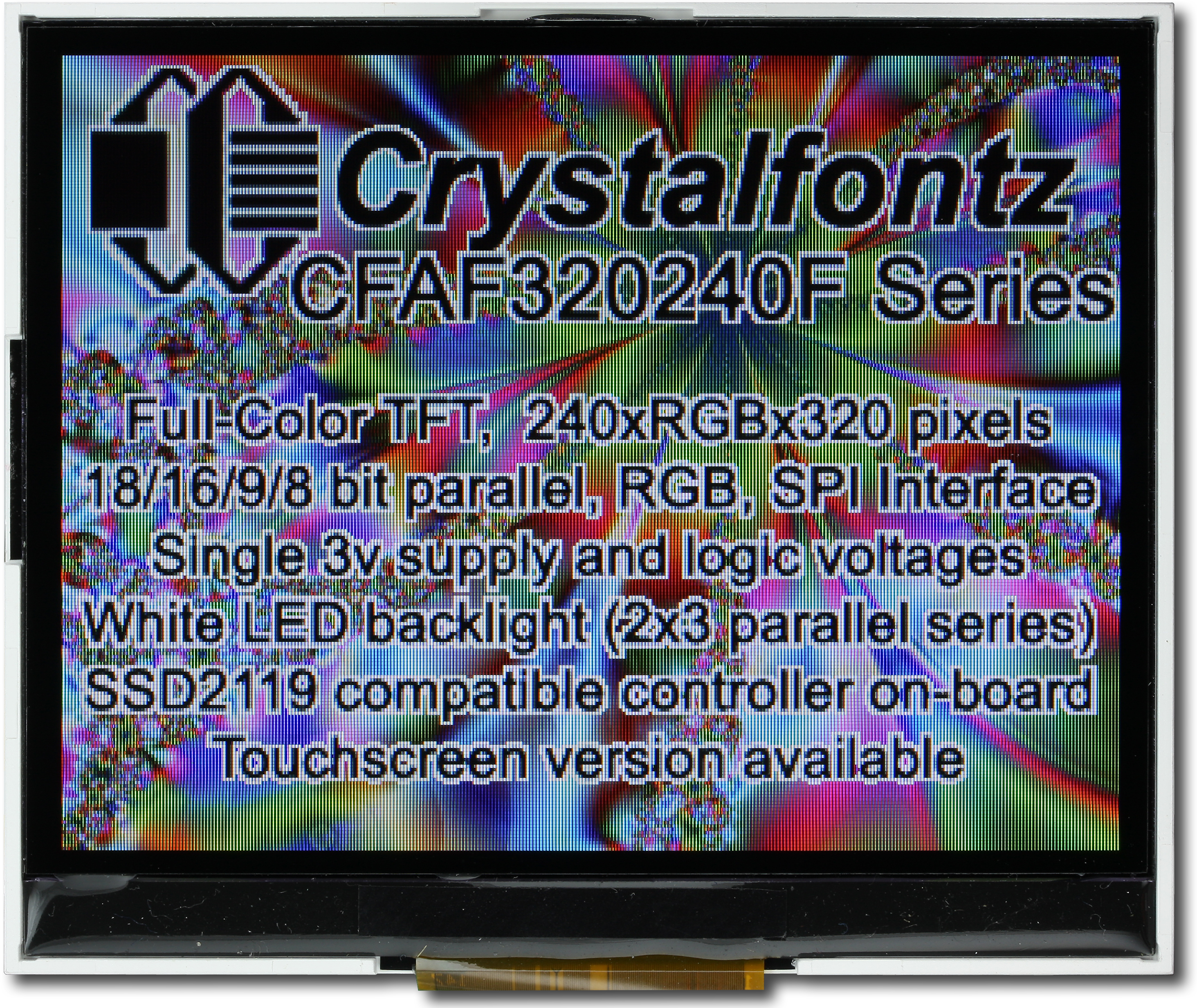

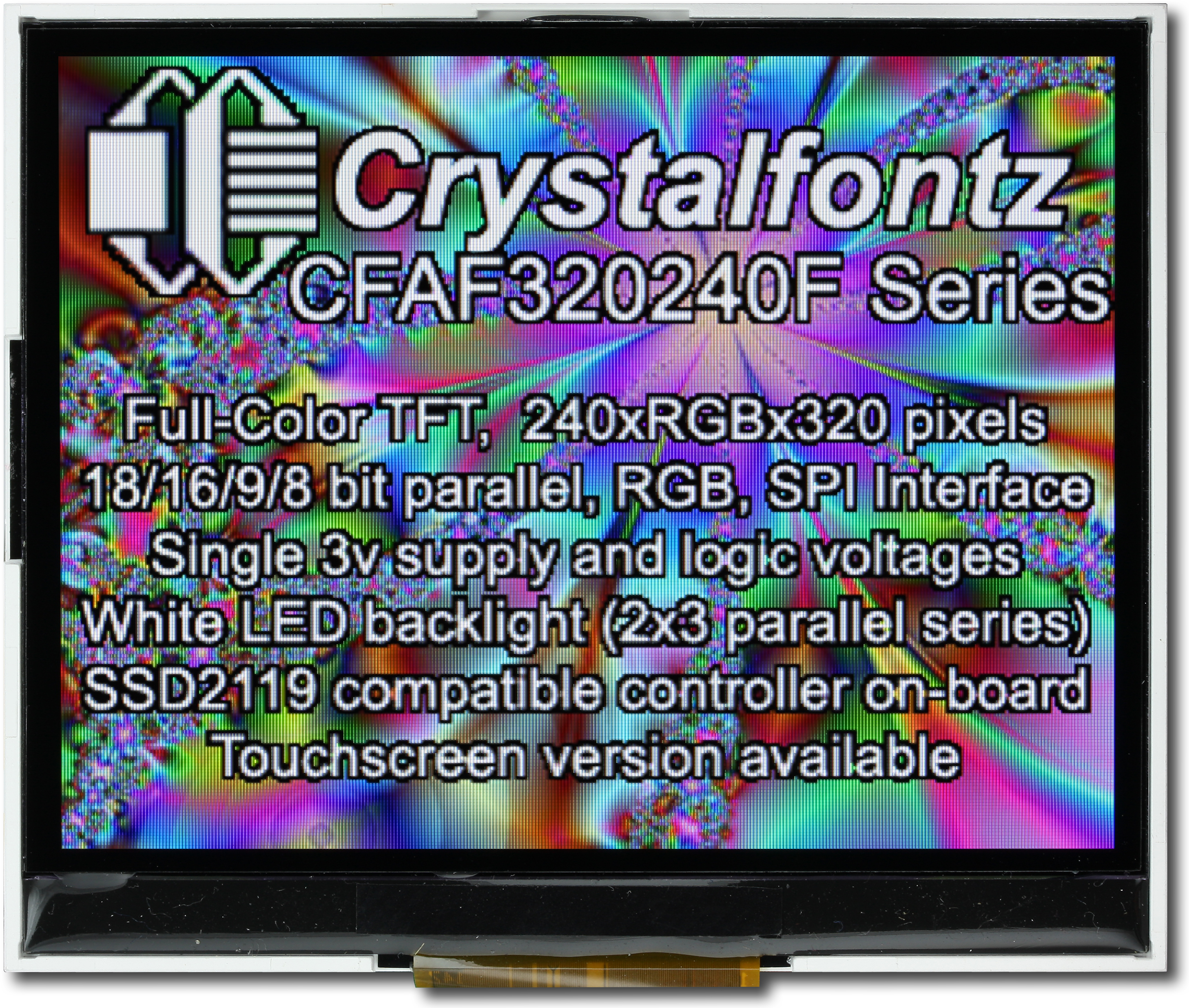

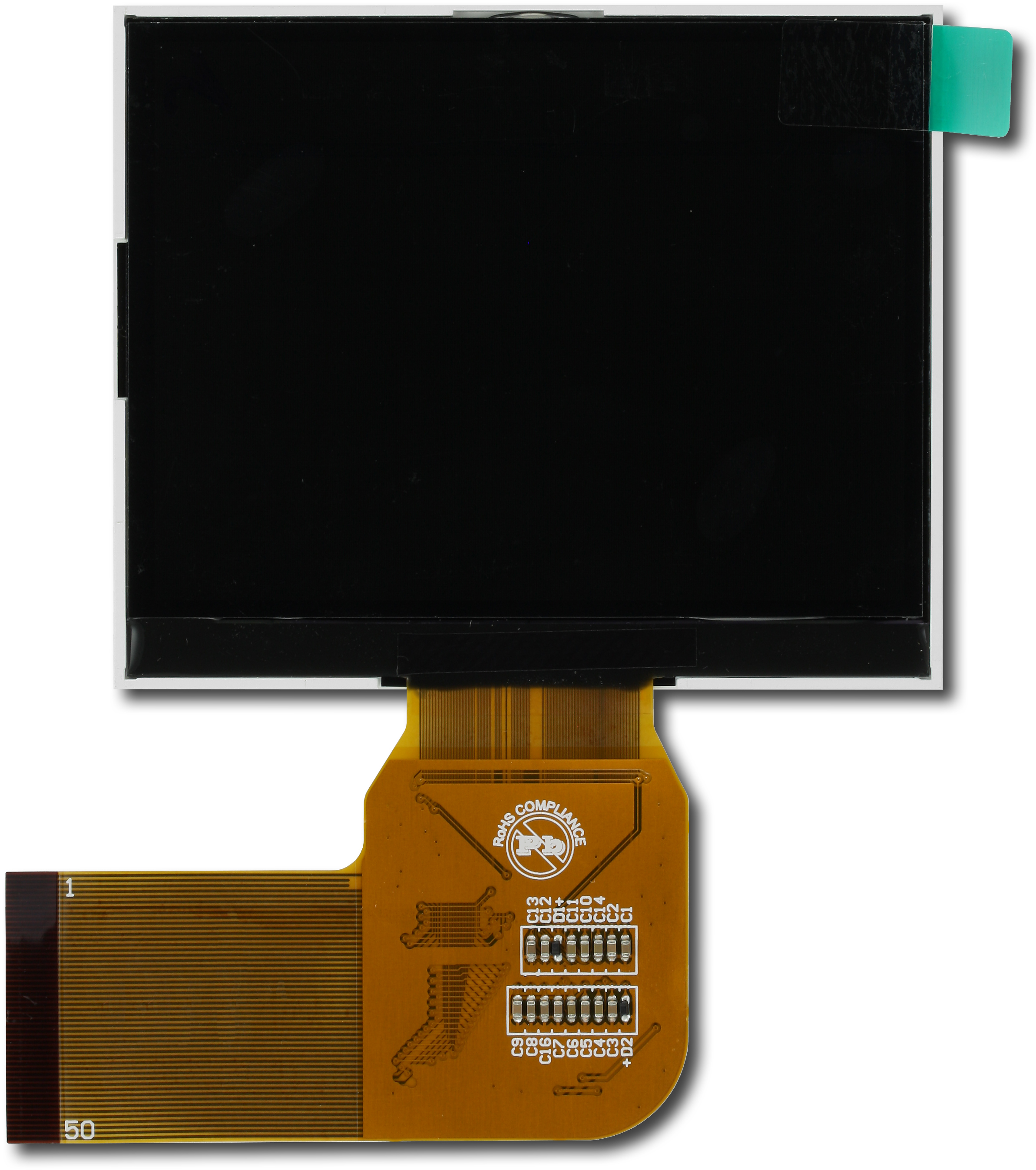

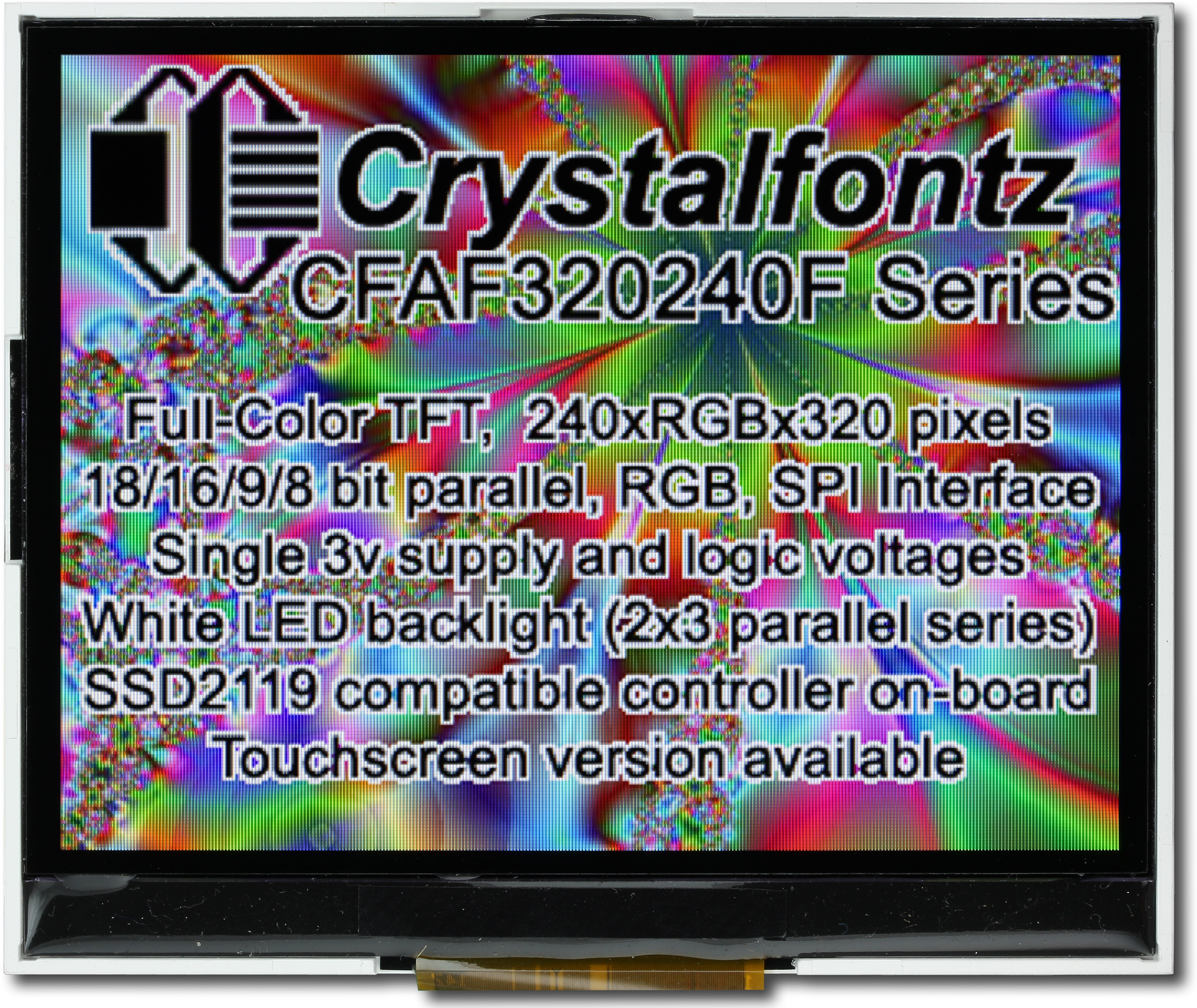

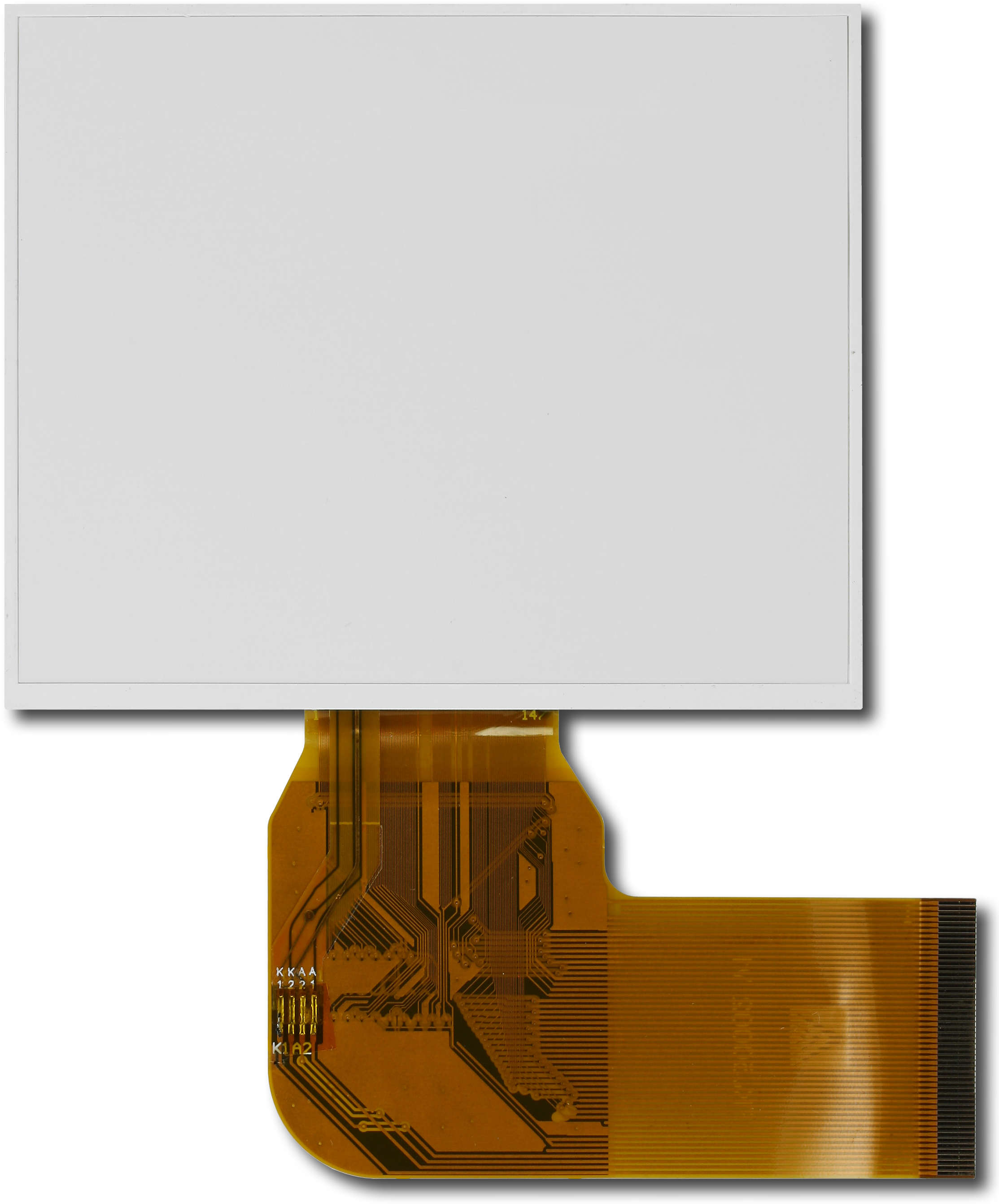

320x240  Parallel Color TFTPart Number: CFAF320240F-TThis is a 320xRGBx240, 3.5 inch diagonal, full-color QVGA graphic TFT display module.  Several interfaces such as SPI, and 18/16/9/8 bit parallel, allow compatibility with many different microcontroller configurations.  It has an integrated SSD2119 or compatible display controller. The white LED backlight has anode and cathode pins brought out on the FPC connector.  The 50 pin FPC mates with standard 0.5mm ZIF sockets such as HFJ150CT-ND and HFK150CT-ND, both readily available from Digi-Key.
	320xRGBx240 Full color graphic TFT module
	Built-in Solmon Systech SSD2119 or compatible controller
	18/16/9/8-bit parallel or SPI interface
	Wide Temperature Range
	RoHS Compliant
 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            320 x 240

    Module Overall        width
        height
        depth

        millimeters
        77.6
        64.4
        3.1

        inches
        3.06
        2.54
        0.12

*width / height does not include Foldable Tab

        Diagonal Dimension
            3.5"

    Viewing Area        Width
        Height

        millimeters
        69.92
        52.55

        inches
        2.75
        2.07

    Active Area        Width
        Height

        millimeters
        70.08
        52.56

        inches
        2.76
        2.07

    Dot Size        Width
        Height

        millimeters
        0.06
        0.21

        inches
        0.002
        0.008

    Dot Pitch        Width
        Height

        millimeters
        0.22
        0.22

        inches
        0.009
        0.009

        Weight
            21g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            TFT/Black
Polarizer
            Transmissive
View Direction
            12 o'clock

        Backlight Color
            White
Backlight Type
            LED
Mode
            Negative
Foreground Color
            RGB
Background Color
            Dark

 electric_bolt Electrical Specification
Electrical Specifications

        Module Connector Pitch
            0.5mm

 nature Environmental
Environmental

    Operating Temperatures        min
        max

        Celsius
        -20°
        70°

        Fahrenheit
        -4°
        158°

    Storage Temperatures        min
        max

        Celsius
        -30°
        80°

        Fahrenheit
        -22°
        176°

    Humidity        min
        max

        Non-condensing
        0%
        90%

 cable Electronics
Electronics

        Controller Documents
            Solomon Systech SSD2119
SSD2119 320 RGB x 240 TFT LCD Driver

Integrated Power Circuit, Source and Gate Driver and RAM
Interface
            16-bit Parallel, 18-bit Parallel, 8-bit Parallel, 9-bit Parallel, DOT-CLK interface / Generic RGB, SPI

picture_as_pdf Datasheets
picture_as_pdfCFAF320240F-T Data Sheet v1.2.pdf
(Datasheet V 1.2, Hardware A)
picture_as_pdfCFAF320240FT Data Sheet v1.1.pdf
(Datasheet V 1.1, Hardware A)
picture_as_pdfCFAF320240F-T Data Sheet v1.0.pdf
(Datasheet V 1.0, Hardware A)
picture_as_pdfCFAF320240FT.pdf

Module Overall	width	height	depth
millimeters	77.6	64.4	3.1
inches	3.06	2.54	0.12
*width / height does not include Foldable Tab

Viewing Area	Width	Height
millimeters	69.92	52.55
inches	2.75	2.07

Active Area	Width	Height
millimeters	70.08	52.56
inches	2.76	2.07

Dot Size	Width	Height
millimeters	0.06	0.21
inches	0.002	0.008

Dot Pitch	Width	Height
millimeters	0.22	0.22
inches	0.009	0.009

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Humidity	min	max
Non-condensing	0%	90%

Notices

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Product Update #10335: Change in TFT part numbers

Products Affected:	CFAF240320K-T-TS, CFAF176220M-T, CFAF240320E-T, CFAF128160C-T, CFAF240320P-T, CFAF320240F-T, CFAF320240F-T-TS, CFAF240400D-T, CFAF128160C-018T, CFAF176220U-020T, CFAF240400D-030T, CFAF320240F-035T
Date Issued:	March 29, 2011
Summary:	Change in TFT part numbers
Description:	We are changing our TFT part numbers to have them better describe the parts being ordered. The change should be complete for all TFT modules shipping within the next six months. Part numbers will change as follows: CFAF128160C-T will change to CFAF128160C-018T CFAF176220M-T will change to CFAF176220U-020T CFAF240320E-T will change to CFAF240320H-022T CFAF240320K-T-TS will change to CFAF240320K-024T-TS CFAF240320P-T will change to CFAF240320S-032T CFAF240400D-T will change to CFAF240400D-030T CFAF320240F-T will change to CFAF320240F-035T CFAF320240F-T-TS will change to CFAF320240F-035T-TS
Reason:	There are many TFT modules with the same logical dimensions (resolution) with considerably different sizes. In order to help ease any confusion, we have decided to add the diagonal dimension to the part number.
Impact:	The part number is all that is changing, there are no other changes to the parts, so there should be no significant impact.
Availability:	The transition period should be about six months from the date of this bulletin.

Finding the LCD you need?

Need some help?

Search by Tech Spec
Search by size, controller, interface, etc
Ask our product support team
We're here to help! 8:30-4:30 PST 888.206.9720
Product Notices
Sign-up for part change or update notices
Newest products!
We're adding new displays all the time.

Purchasing Resources

Quick Order
Know your part number? Checkout fast!
Request a Quote
Get pricing and lead time info!
Our ISO 9001:2015 Certificate
Of course we're ISO 9001:2015 certified
Conflict Mineral Reporting Template
Download our latest CMRT
California Prop 65
Proposition 65 Information
Payment Information
We accept many payment methods

Builder Resources

Popular LCD Searches

Help Us Improve Our Product Offerings?

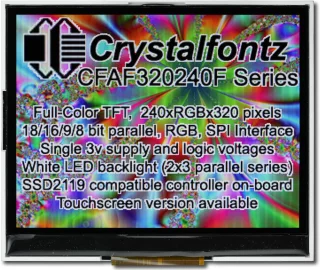

320x240 Parallel Color TFT
