In order to keep this display in production over the long term, we are revising it to the CFAF320480C7-035TN. Any backorders placed now will be fulfilled with the new part when it becomes available. Please contact support with any questions.

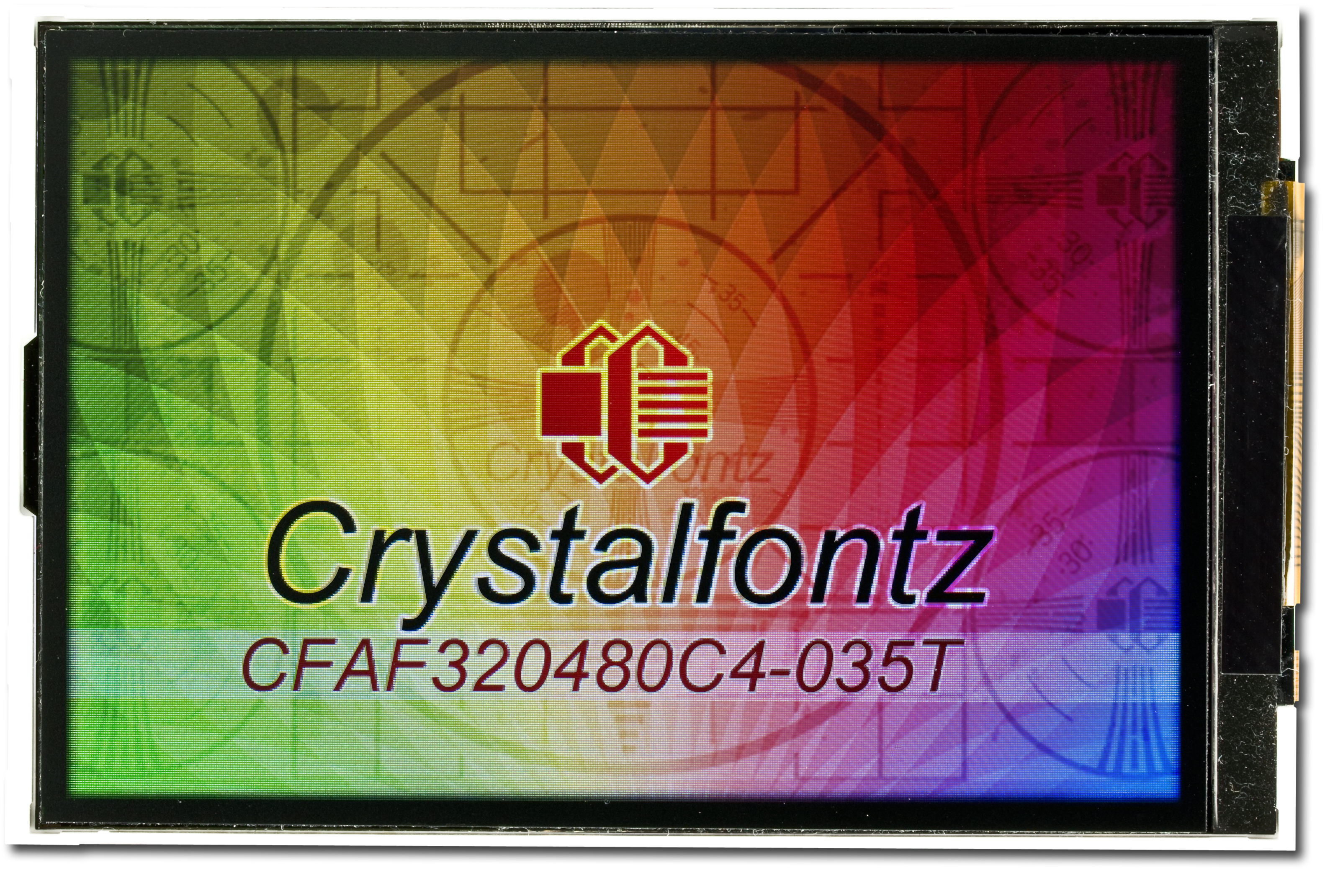

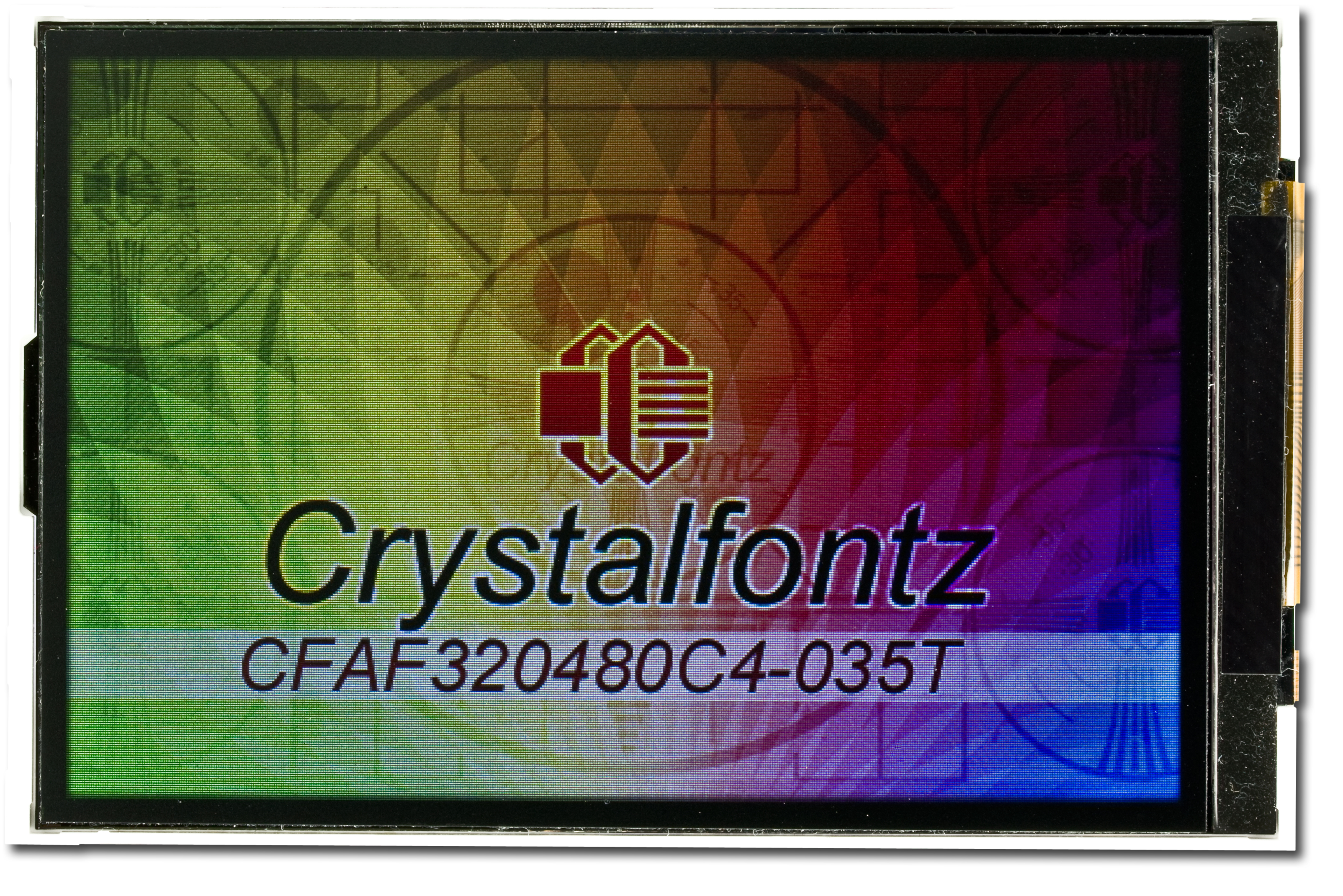

320x480 3.5" Color TFT LCD

Part Number: CFAF320480C4-035T

Customers in many different industries have chosen this full color graphic TFT display module for its stunning 320x480 pixel 3.5-inch diagonal active area.

Need a touchscreen? The CFAF320480C5-035T-TS is the identical display module with a 4-wire resistive touchscreen.

Highlights

  • As with all of our TFTs, only a single 3v source for both power and logic is needed.
  • The display has a built-in Himax HX8357-B or compatible display controller.
  • Host interface modes are:
    • 8-bit, 9-bit, 16-bit or 18-bit parallel interface to host.
    • 16-bit or 18-bit "DOTCLK" RGB interface.
    • 3- or 4-wire SPI.
  • As an added convenience, the white LED backlight has anode (A,+) and cathode (K, -) pins brought out on the FPC instead of requiring a separate backlight connection.

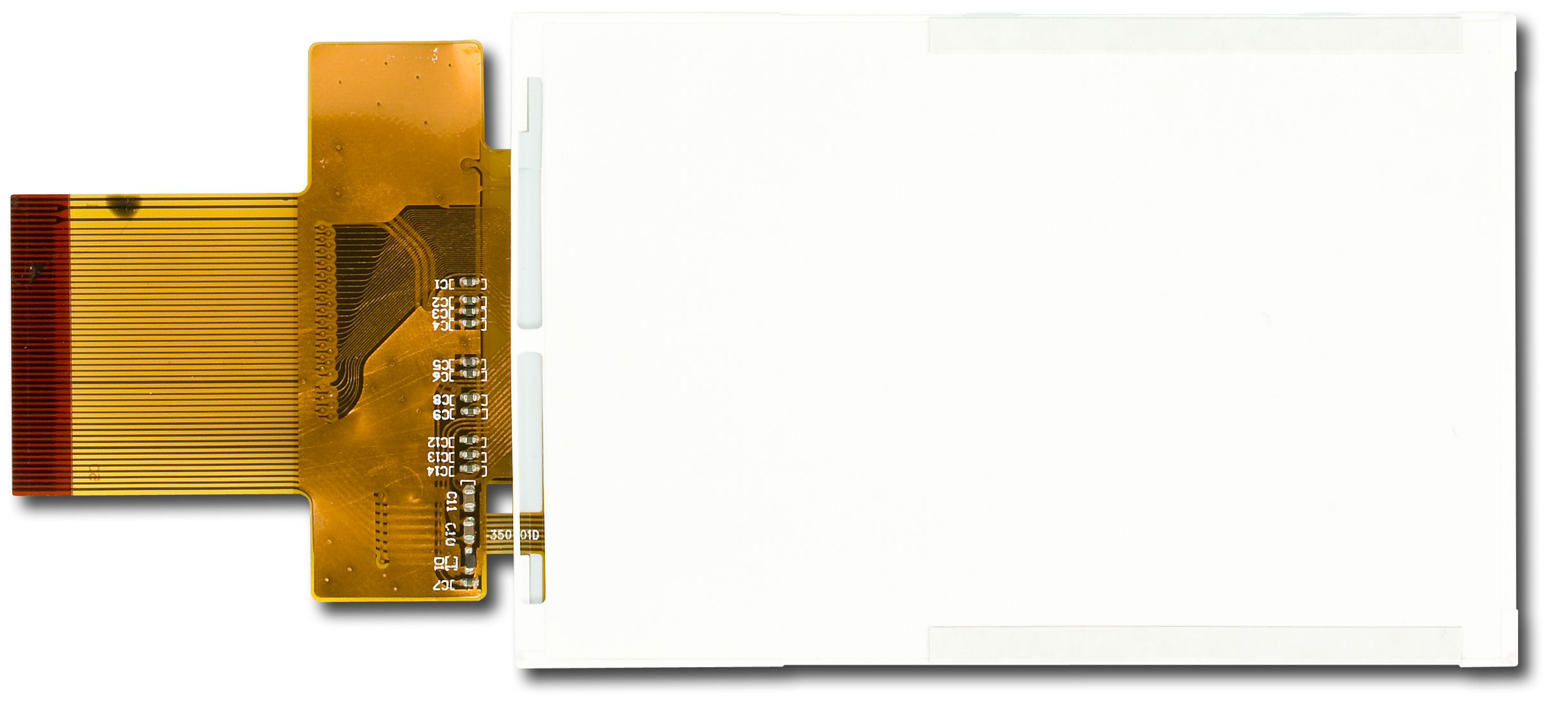

  • The 50-pin FPC mates with standard 0.5mm ZIF sockets such as this 50 Position, 0.50mm Pitch ZIF Connector.
  • This TFT display is RoHS compliant.

Buy with confidence. This TFT display module has a limited 1-year warranty and free technical support.

Qty:
Quantity Price
1 $38.22
5 $39.88
10 $34.74
20 $31.60
50 $30.49
100 $30.05
200 * $29.83
300 * $29.61
500 * $27.55
1000 * $25.52
* Contact us about potential lead times.
Need a written quote? Add to cart, then enter your email address in the "request a quote" box.

Part Change Notices

Subscribe to Part Change Notices by
email Email subscription for changes to CFAF320480C4-035T or RSS RSS feed for changes to CFAF320480C4-035T for CFAF320480C4-035T

TECHNICAL SPECS

Physical Characteristics

Column Dots x Row Dots 320 x 480

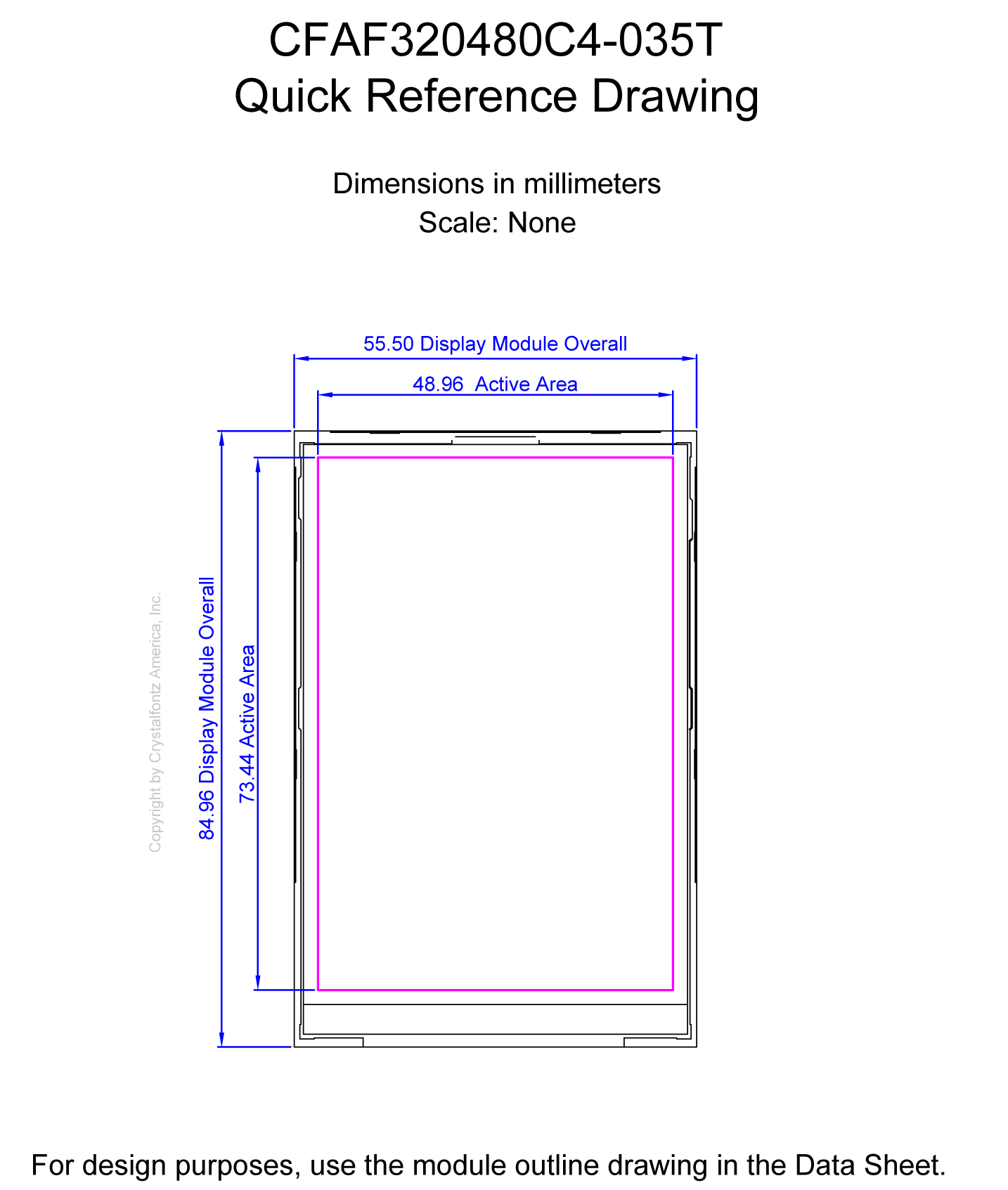

Module Overall width height depth
millimeters 55.5 84.96 2.5
inches 2.185 3.345 0.098
*width / height does not include Foldable Tab
Diagonal Dimension 3.47"
Active Area width height
millimeters 48.96 73.44
inches 1.928 2.891
Dot Pitch width height
millimeters 0.053 0.053
inches 0.0021 0.0021
Optional Connectors CS050Z50GB0
Weight 19g

Optical Characteristics

Glass Type TFT
Polarizer Transmissive
View Direction 0.25 o'clock
Backlight Color White
Backlight Type LED
Foreground Color RGB
Background Color Dark

Electrical Specifications

Supply Voltage for Logic Minimum 2.4V
Supply Voltage for Logic Maximum 4.2V
Supply Voltage for Logic Typical 3.3V
Supply Current Typical 10mA

Backlight Electrical Specifications

Forward Voltage Minimum 2.9V
Forward Voltage Maximum 3.4V
Forward Voltage Typical 3.2V
Forward Current Typical 90mA

Environmental

Operating Temperatures min max
Celsius -20° 70°
Fahrenheit -4° 158°
Storage Temperatures min max
Celsius -30° 80°
Fahrenheit -22° 176°
Humidity max
Non-condensing 90%

Electronics

Controller Documents Himax HX8357-B
HX8357-B
320RGB x 480 dot, 262K color,
with internal GRAM,
TFT Mobile Single Chip Driver
Interface 16-bit Parallel, 18-bit Parallel, 8-bit Parallel, 9-bit Parallel, DOT-CLK interface / Generic RGB, SPI

Miscellaneous

Foldable Tab Yes

Part Change Notice

Subscribe to Part Change Notices by email Email subscription for changes to CFAF320480C4-035T or RSS RSS feed for changes to CFAF320480C4-035T

End-Of-Life #11115: End-Of-Life Notification

Product Affected: CFAF320480C4-035T
Date Issued: February 18, 2022
Summary: End-Of-Life Notification
Description: The HX8357B display controller used on this display has gone EOL. We will be releasing new displays that use the ILI9488 display controller. For more information about the replacement display, contact support@crystalfontz.com.
Reason: The display controller, HX8357B, has gone EOL and needs to be replaced by another one.
Availability: Contact Crystalfontz Support for up-to-date information by emailing support@crystalfontz.com.

Product Update #10614: (New Product) CFAF320480C4-035T

New Product: CFAF320480C4-035T
Date Issued: September 18, 2014
Summary: (New Product) CFAF320480C4-035T
Description: TFT LCD Modules: 320x480 3.5 inch TFT Display

Product Update #10492: (New Product) CFAF320480C4-035T

New Product: CFAF320480C4-035T
Date Issued: May 16, 2013
Summary: (New Product) CFAF320480C4-035T
Description: TFT LCD Modules: 320x480 3.5 inch TFT Display

Product Update #10489: (New Product) CFAF320480C4-035T

New Product: CFAF320480C4-035T
Date Issued: April 30, 2013
Summary: (New Product) CFAF320480C4-035T
Description: TFT LCD Modules: 320x480 3.5 inch TFT Display
For reference only. For design purposes, please use the specifications in the datasheet.
