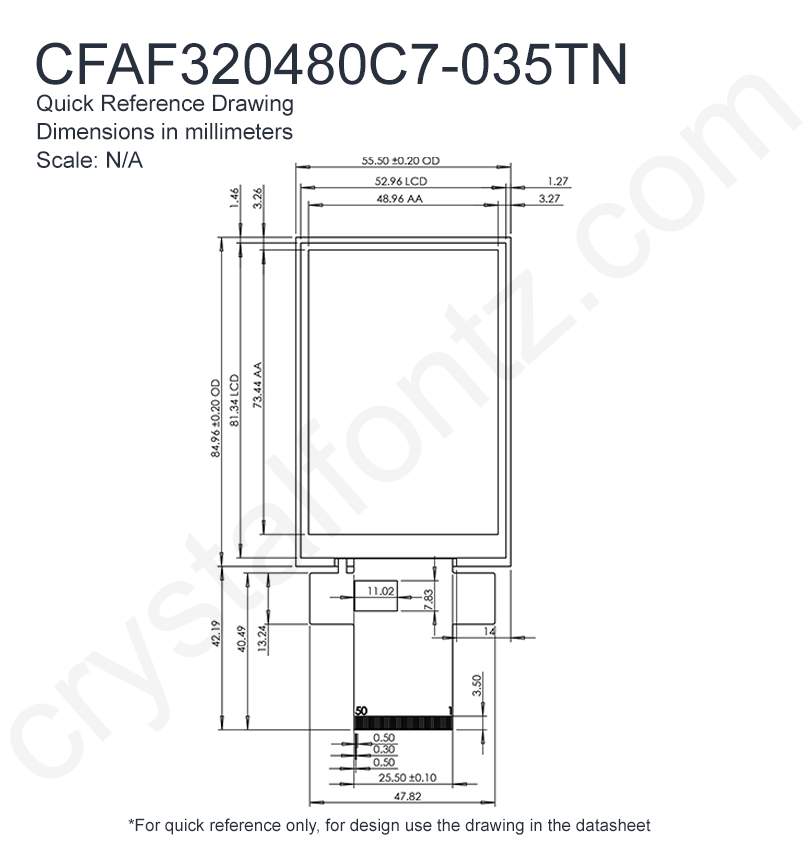

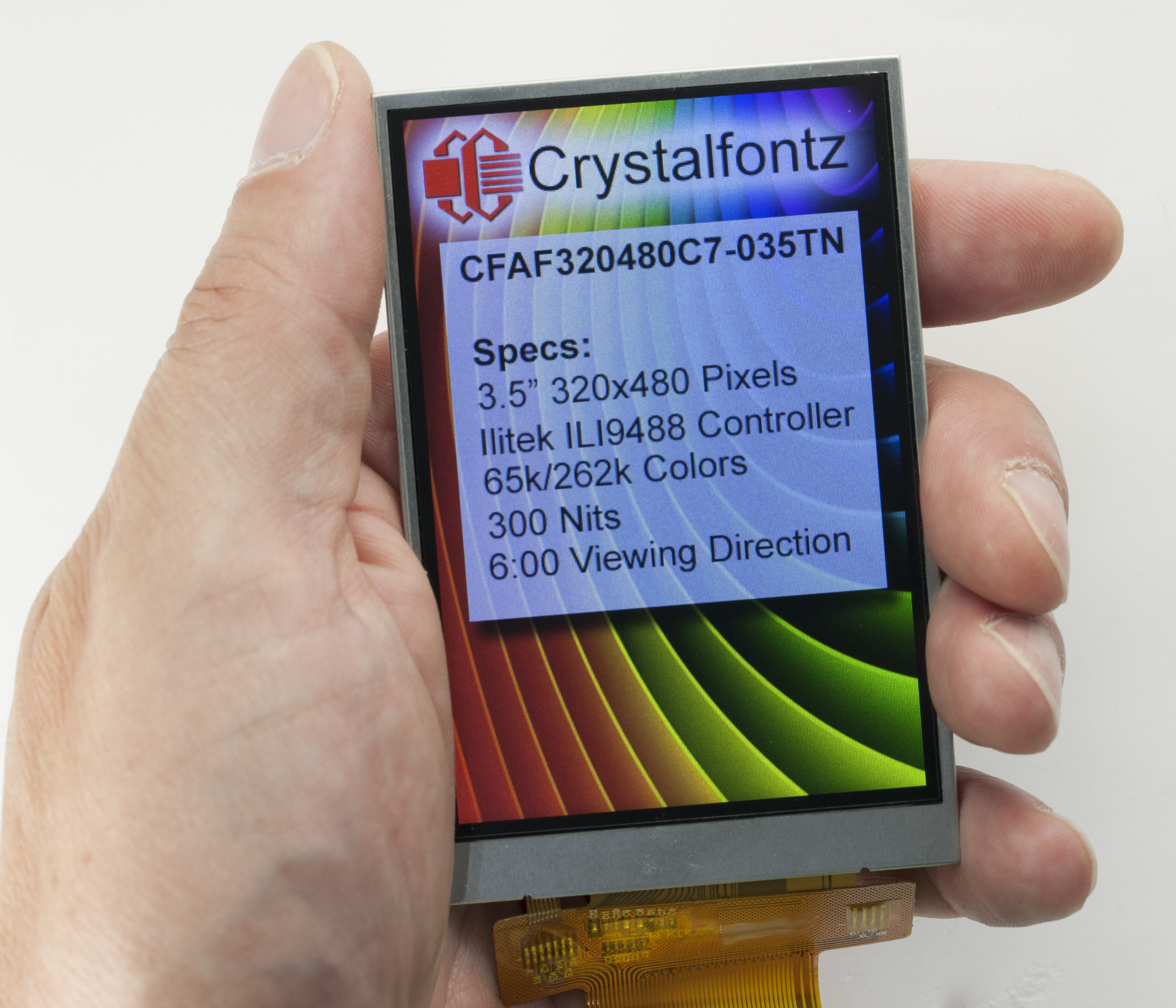

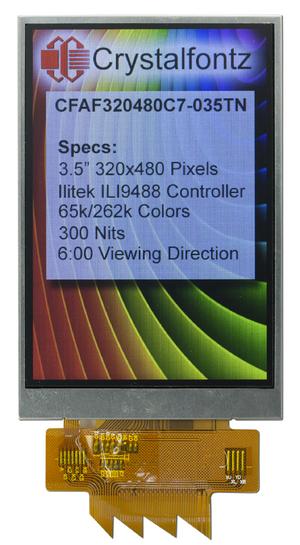

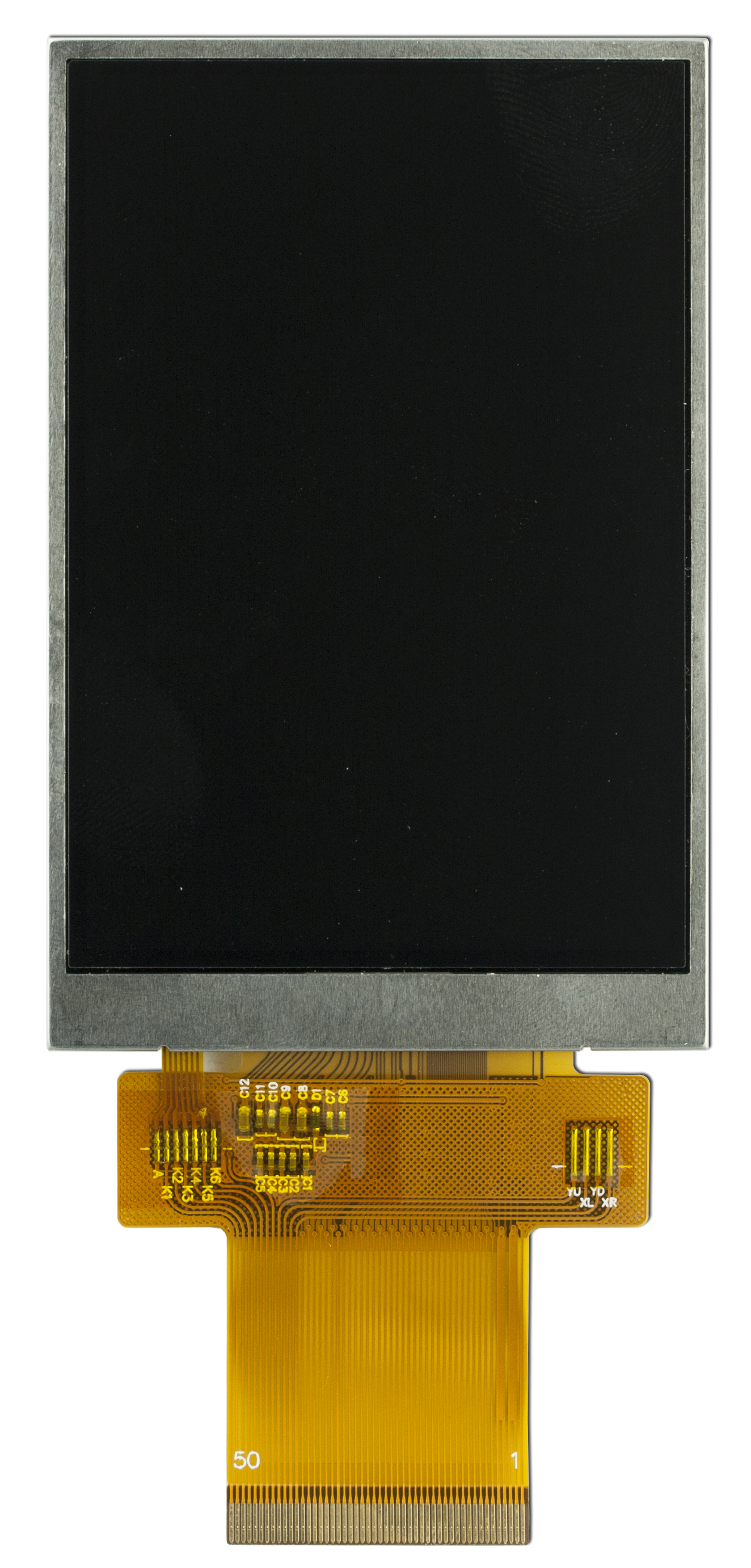

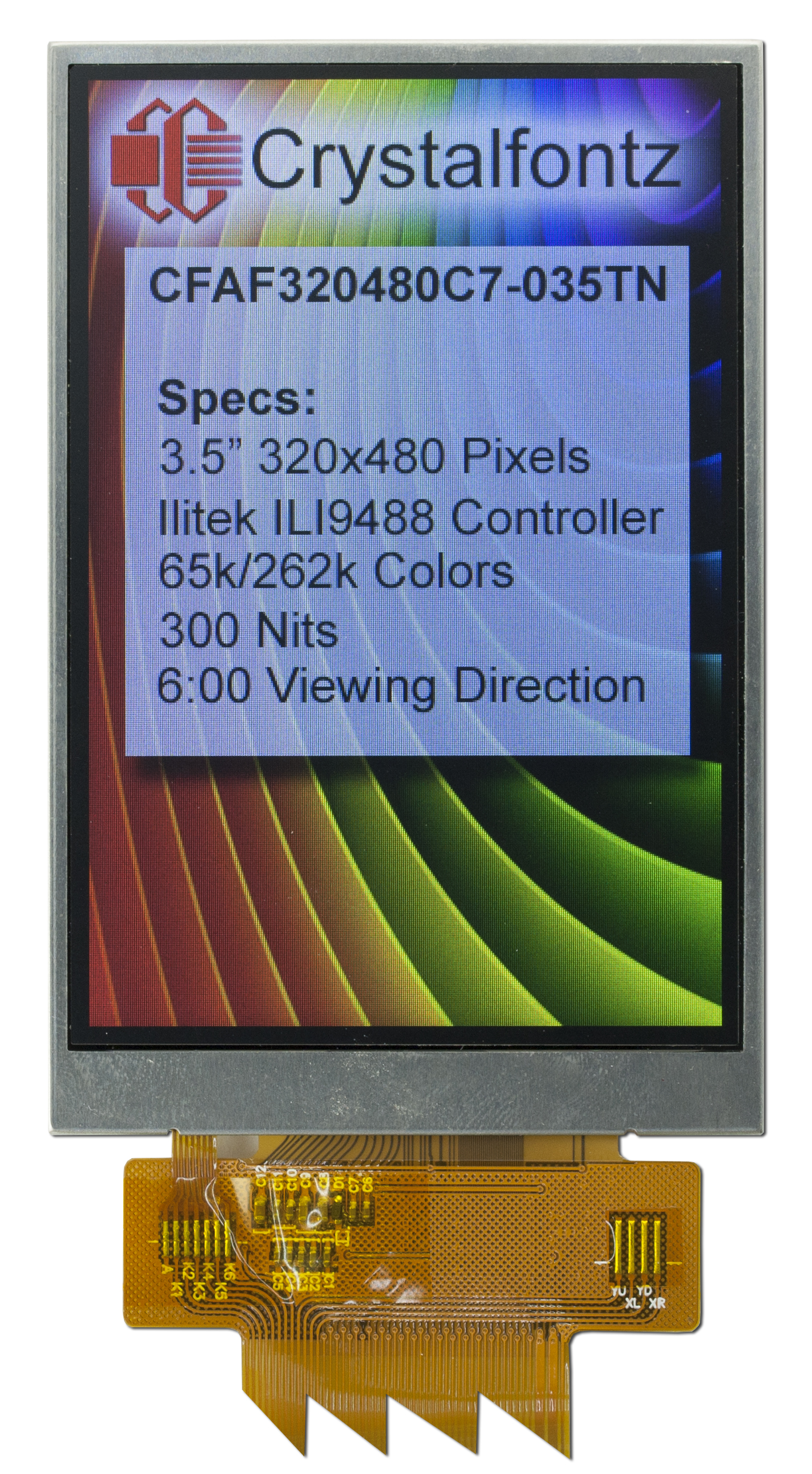

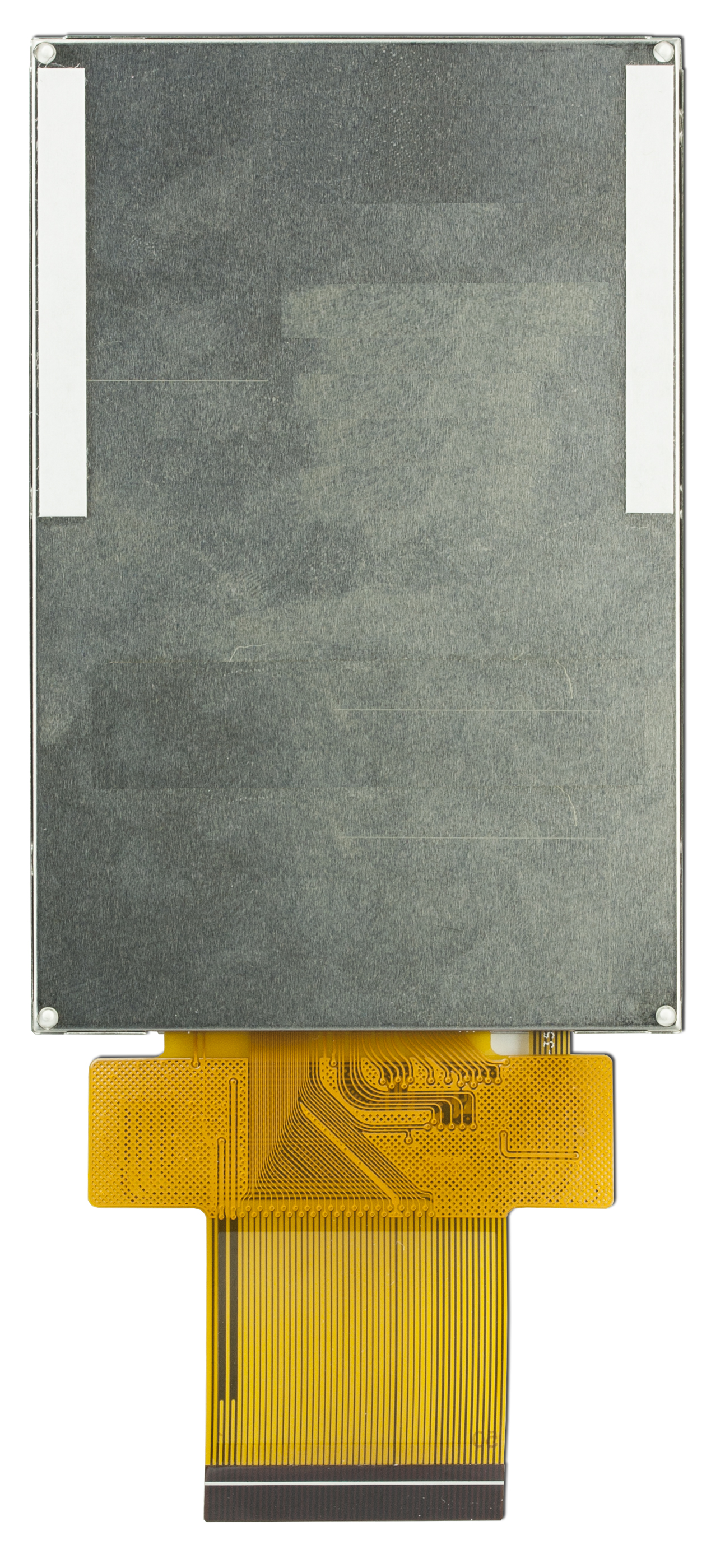

320x480 3.5" Color TFT

Part Number: CFAF320480C7-035TN

Customers in many different industries have chosen this full-color graphic TFT display module for its stunning 320x480 pixel 3.5-inch diagonal active area.

A compatible display with a resistive touchscreen is also available.

The combination of high pixel density and only 3.3v for all power makes this display a perfect choice for hand held, portable, or desktop instruments.

Highlights
  • Only requires a 3.3v source for power, logic, and backlight
  • Integrated ILI9488 or compatible display controller
  • Host interface modes are:
    • 8-bit, 9-bit, 16-bit or 18-bit parallel interface to host.
    • 16-bit or 18-bit "DOTCLK" RGB interface.
    • 3- or 4-wire SPI.
  • White LED backlight has anode (A,+) and cathode (K, -) pins brought out on the FPC

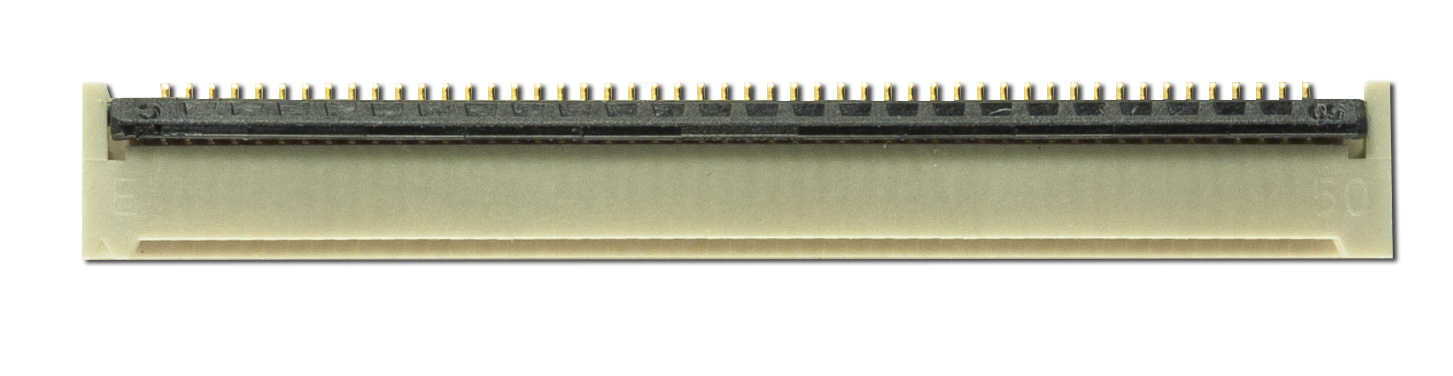

  • The 50-pin FPC mates with standard 0.5mm ZIF sockets such as this 50 Position, 0.50mm Pitch ZIF Connector
  • Replaces the CFAF320480C4-035T
Part Number Decoder:
CFA - Crystalfontz America
F - TFT
320480 - 320x480 Pixels
C7 - Family Identifier
035 - 3.5" Diagonal
T - Standard Brightness
N - No Touchscreen

Product Variants


16-bit Parallel / 18-bit Parallel / 8-bit Parallel / 9-bit Parallel / DOT-CLK interface / Generic RGB / SPI

Qty:
Quantity Price
1 $47.41
5 $42.14
10 $38.55
20 $37.25
50 $35.95
100 $35.42
200 * $35.17
300 * $32.96
500 * $32.72
1000 * $28.65
* Pricing is subject to change. Contact us about potential lead times.
Components worth considering
4639 50 Position, 0.50mm Pitch, Gold, FCC FPC ZIF Connector
Need ZIF Connectors? $1.76 ea.
4831 50-Position ZIF Breakout Board
Add a 50-pin ZIF Breakout Board? $6.54 ea.
