This product is discontinued please contact support to see if there is a replacement part available.

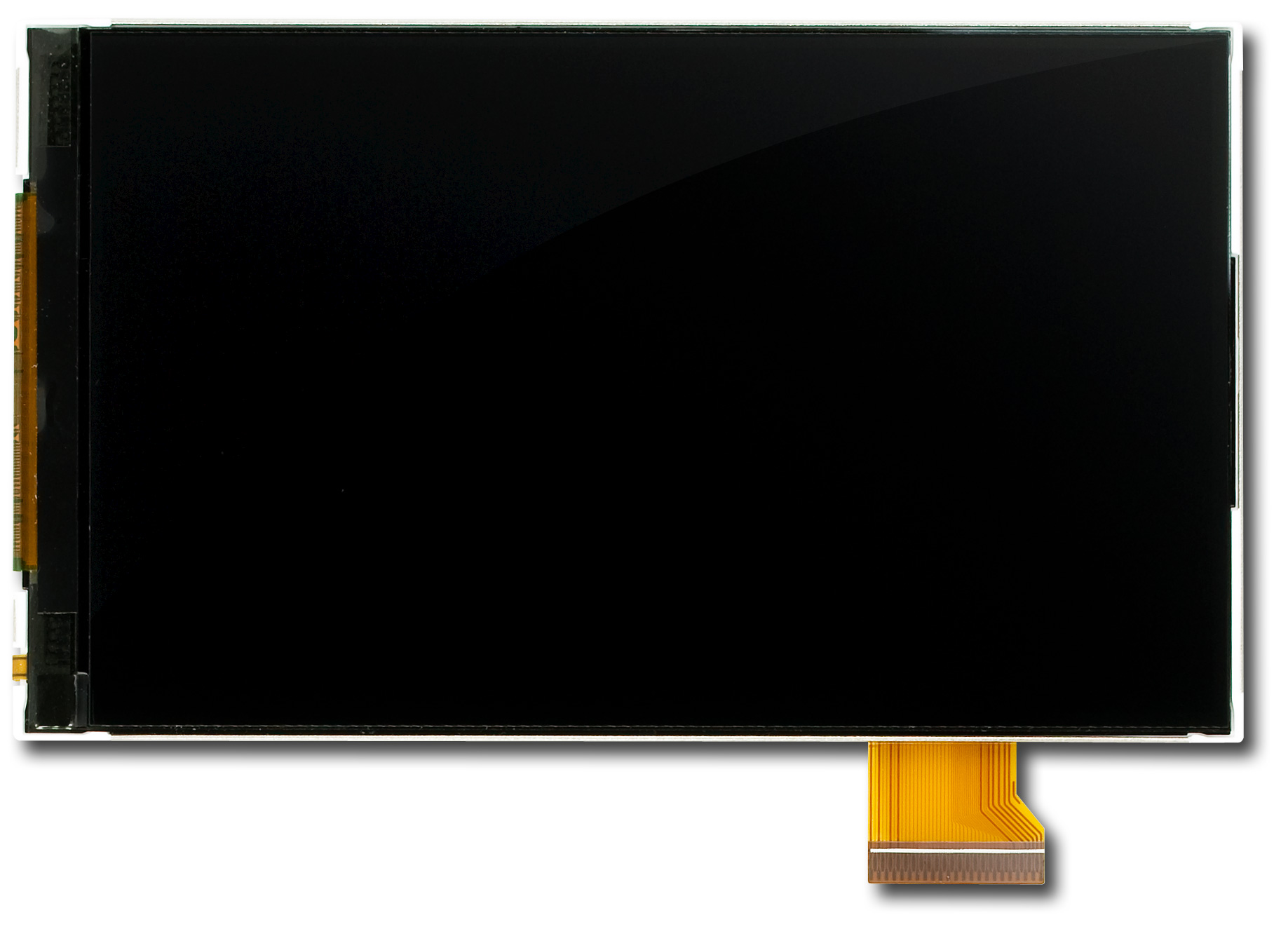

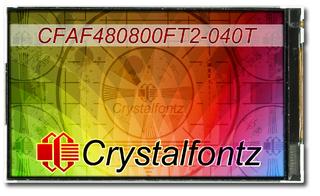

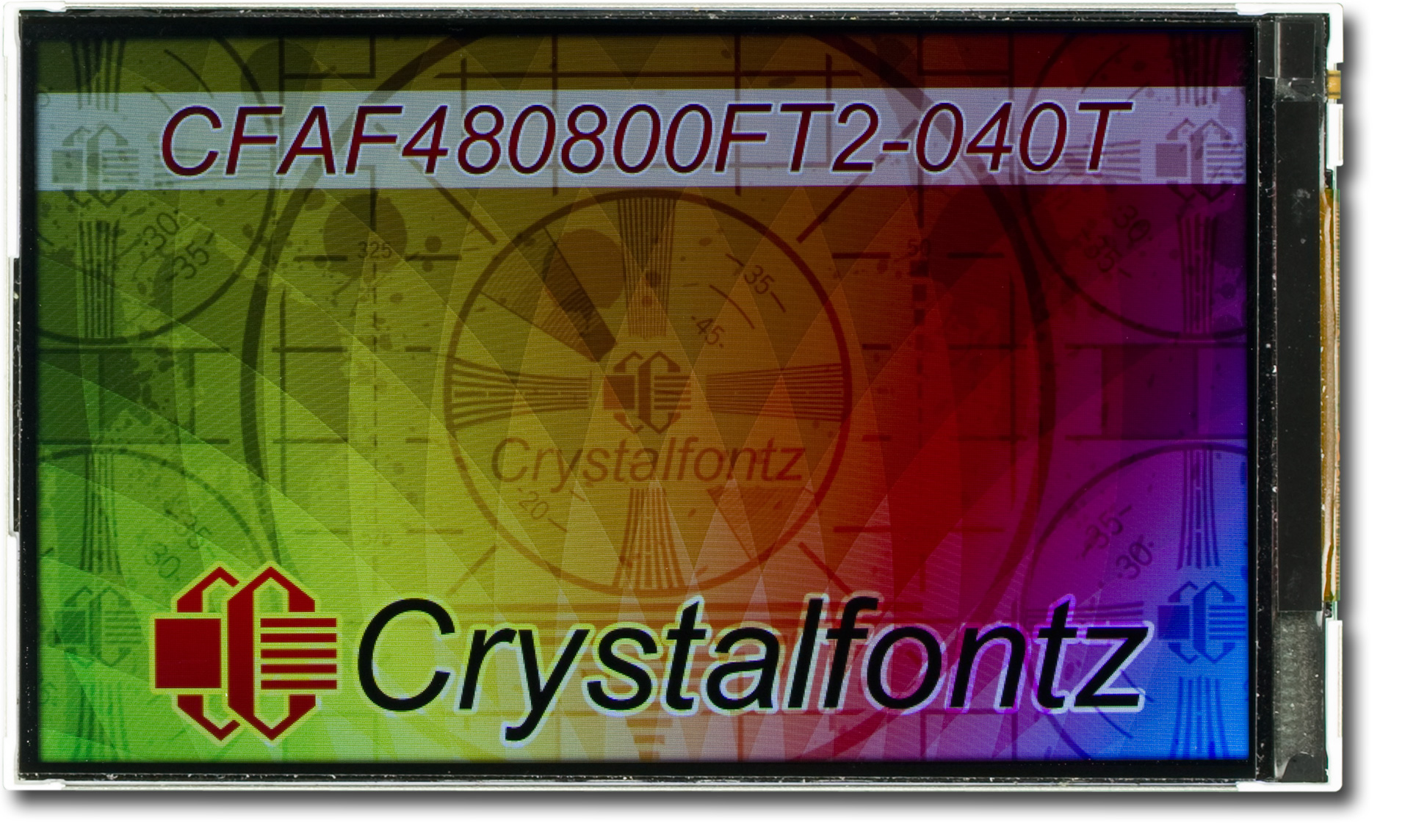

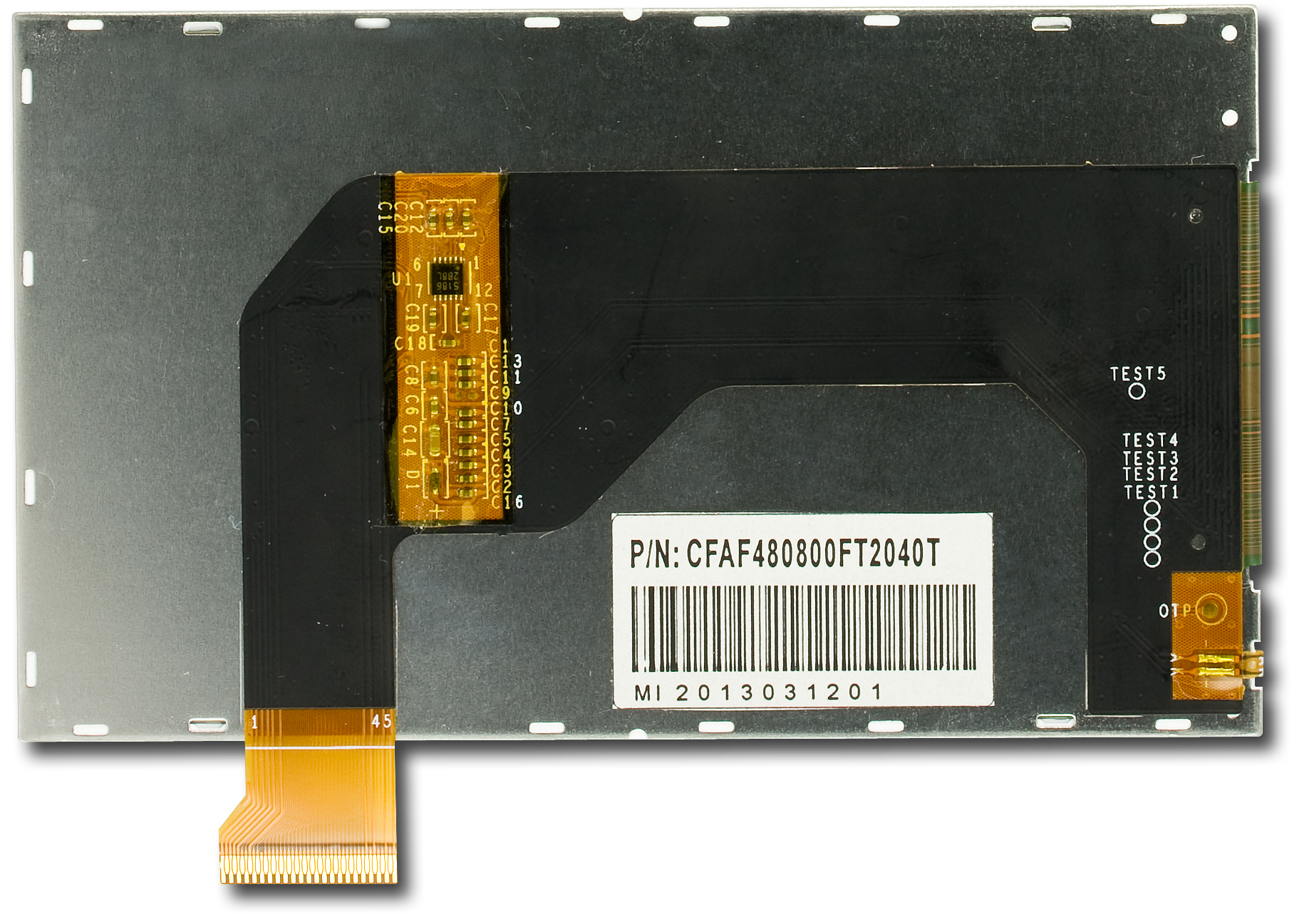

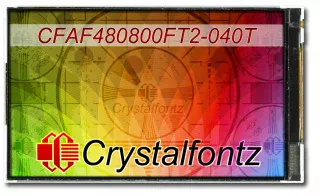

480x800 4" RGB Color TFT LCD

Part Number: CFAF480800FT2-040T

480xRGBx800 full color graphic 4" diagonal TFT display. Integrated Himax HX8369-A or compatible controller and white LED backlight. Several interface modes allows compatibility with many different microcontroller configurations. Requires only a single source 3v for both power and logic.

  • square_foot Physical Characteristics

    Physical Characteristics

    Column Dots x Row Dots 480 x 800
    Module Overall width height depth
    millimeters 56.34 95.7 1.8
    inches 2.22 3.77 0.07
    *width / height does not include Foldable Tab
    Diagonal Dimension 4"
    Viewing Area Width Height
    millimeters 52.84 87.4
    inches 2.08 3.44
    Active Area Width Height
    millimeters 51.84 86.4
    inches 2.04 3.40
    Dot Pitch Width Height
    millimeters 0.11 0.11
    inches 0.004 0.004
    Weight 26g
  • visibility Optical Characteristics

    Optical Characteristics

    Glass Type/Glass Color IPS/Black
    Polarizer Transmissive
    Backlight Color White
    Backlight Type LED
    Mode Negative
    Foreground Color RGB
    Background Color Dark
  • electric_bolt Electrical Specification

    Electrical Specifications

    Supply Voltage for Logic Minimum 1.65V
    Supply Voltage for Logic Maximum 3.3V
    Supply Voltage for Logic Typical 1.8 / 2.8V
    Supply Voltage for Driving Panel Typical 2.8V
    Module Connector Pitch 0.6mm
  • electric_bolt Backlight Specification

    Backlight Electrical Specifications

    Forward Voltage Typical 3.2V
    Forward Current Typical 20mA
  • nature Environmental

    Environmental

    Operating Temperatures min max
    Celsius -20° 70°
    Fahrenheit -4° 158°
    Storage Temperatures min max
    Celsius -30° 80°
    Fahrenheit -22° 176°
    Humidity max
    Non-condensing 90%
  • cable Electronics

    Electronics

    Controller Documents Himax HX8369-A
    HX8369-A
    480RGB x 864 dot, 16.7M color,
    with internal GRAM,
    TFT Mobile Single Chip Driver
    Interface DOT-CLK interface / Generic RGB
  • picture_as_pdf Datasheets

Part Change Notice

Subscribe to Part Change Notices by email Email subscription for changes to CFAF480800FT2-040T or RSS RSS feed for changes to CFAF480800FT2-040T
  • text_snippet
    Product Update #10931: End-of-Life Notification
    Product Affected: CFAF480800FT2-040T
    Date Issued: February 7, 2018
    Summary: End-of-Life Notification
    Description: This part has been set to End of Life (EOL) Status.
    Reason: Manufacturers of critical components have discontinued those parts.
    Impact: This part is not recommended for new designs.
    Recommendation: Crystalfontz recommends selecting a replacement display from our line of TFT displays. New and updated displays are being added regularly.

    https://www.crystalfontz.com/c/tft-lcd-displays/25
    Availability: When current stock is depleted, this display will no longer be available.
  • text_snippet
    Product Update #10485: (New Product) CFAF480800FT2-040T
    New Product: CFAF480800FT2-040T
    Date Issued: April 26, 2013
    Summary: (New Product) CFAF480800FT2-040T
    Description: TFT LCD Modules: 480x800 Full Color TFT 4 inch Display module
