800x480 TFT with Graphic Accelerator Board
Part Number: CFAF800480E0-050SC-A1-1
Datasheet
Description

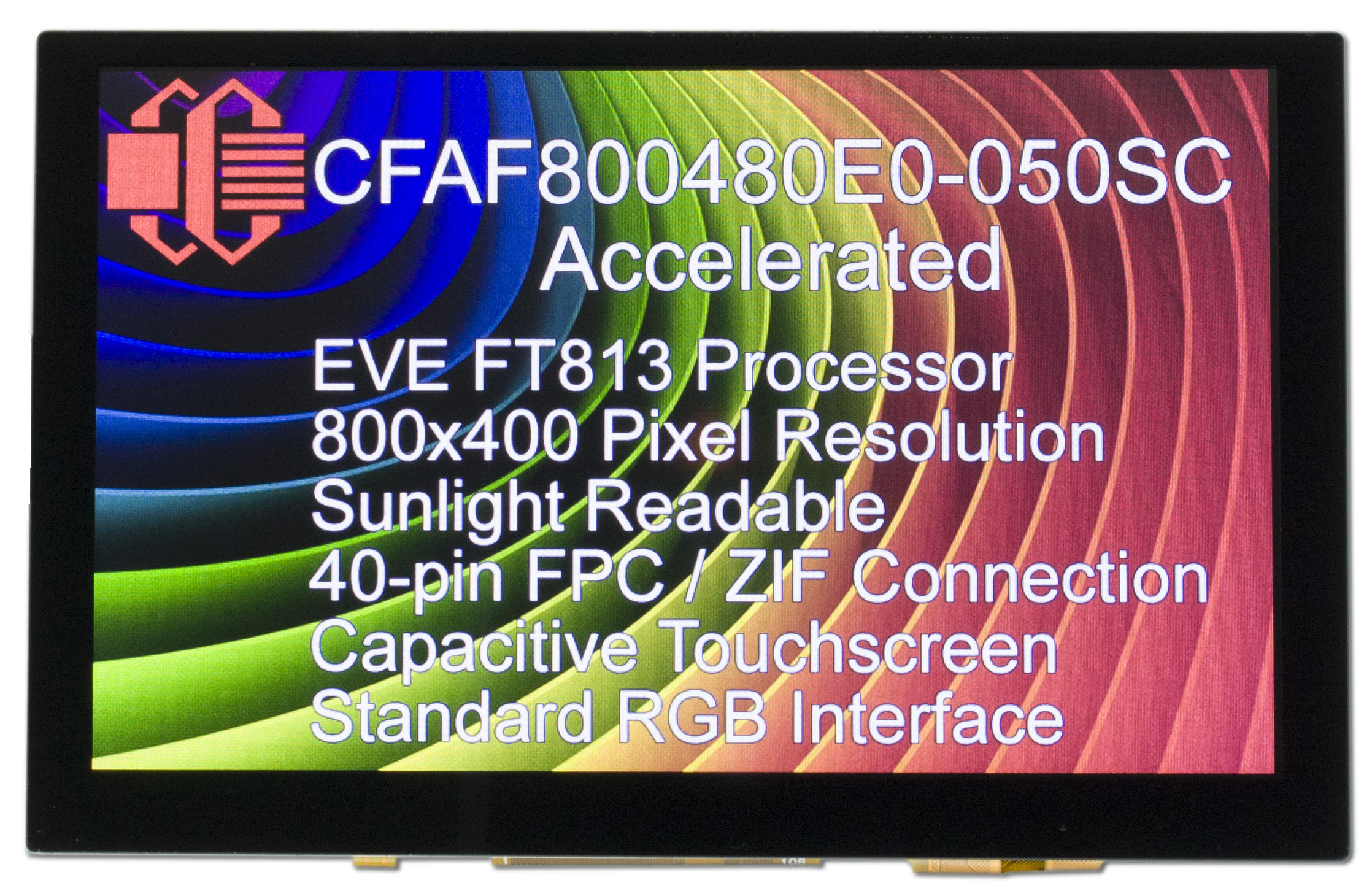

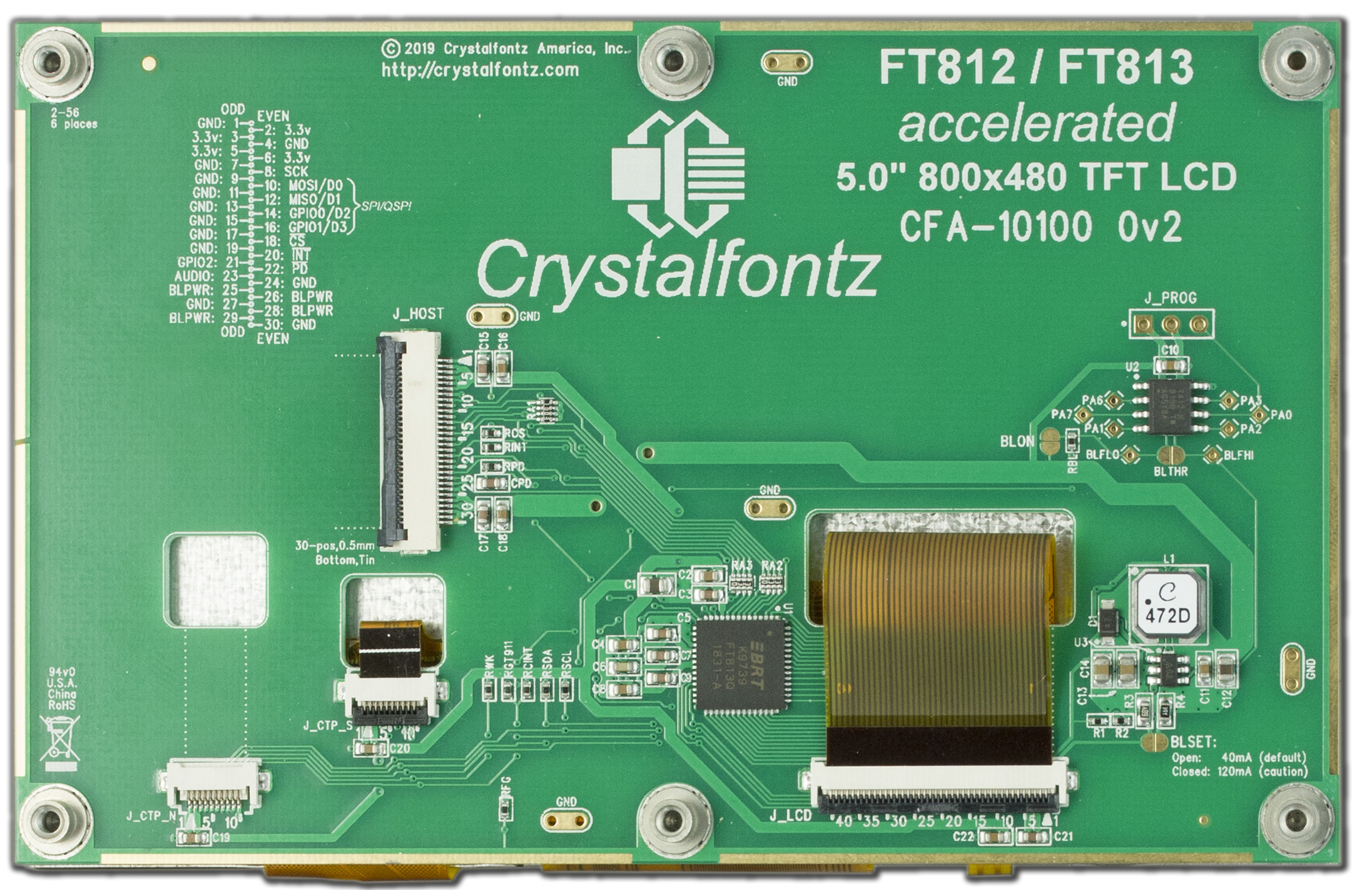

This is a revolutionary new 5", 800x480 TFT that boasts high-brightness, sunlight readability. It's based around an FTDI/BridgeTek FT813 Embedded Video Engine (EVE). All display, touch sensing, backlight control and audio features are controlled via the Embedded Video Engine which appears to the host MCU as a memory-mapped SPI device. The host MCU sends commands and data over the EVE SPI serial protocol.For detailed information on the Embedded Video Engine, please see the FTDI FT81x Datasheet.
Further information including programming examples, interface design software, and more can be found on FTDI’s website here: https://www.ftdichip.com/Support/Utilities.htm
TFT Display Module Features
- 5-inch 800x480 sunlight readable TFT LCD
- 5-point capacitive touch sensing screen
- FTDI/BridgeTek FT813 EVE graphics accelerator
- SPI Single or Quad host interface
- Compact 30-position 0.5mm flat-cable ZIF host connection
- Threaded mounting standoffs for simple mechanical design
- Compact form-factor, overall size is no larger than LCD
- Single +3.3V power supply (backlight supply van be 3.3v to 6v)
- Bright 1000 cd/m2 backlight allows reading in sunlight
EVE Graphics Accelerator Features
- Support multiple widgets for simplified design implementation
- User interface design software (PC) simplifies the design process
- Hardware engine can recognize touch tags and track touch movement
- Enhanced sketch processing
- Anti-aliasing of primitive displayed objects for higher-quality graphics
- Assorted graphical effects such as alpha-blending, shadows, transitions, wipes, etc.
- Programmable interrupt controller provides interrupts to host MCU
- Support playback of motion-JPEG encoded AVI videos
- Mono audio channel output with wave playback and built-in sound synthesizer
- PWM output for display backlight dimming control
Need a complete Arduino/Seeeduino development kit that included this display, breakout board and Seeeduino v4.2 controller? You might consider our CFAF800480E0-050SC-A1-2.
Video Demonstrations
Driving a Hi-Def TFT with Arduino SPI + FTDI EVE
In this video, we're demonstrating driving a 800x480 5" TFT with an Seeeduino (Arduino UNO Clone with 3.3v / 5v switch) and the help of our CFA10100 EVE accelerated board.
Arduino EVE FT813 Demos
We're demonstrating our 800x480 5" Capacitive Touchscreen TFT powered with an Seeeduino/Arduino UNO clone, using the FTDI EVE.
TECHNICAL SPECS
For reference only. For design purposes, please use the specifications in the datasheet.

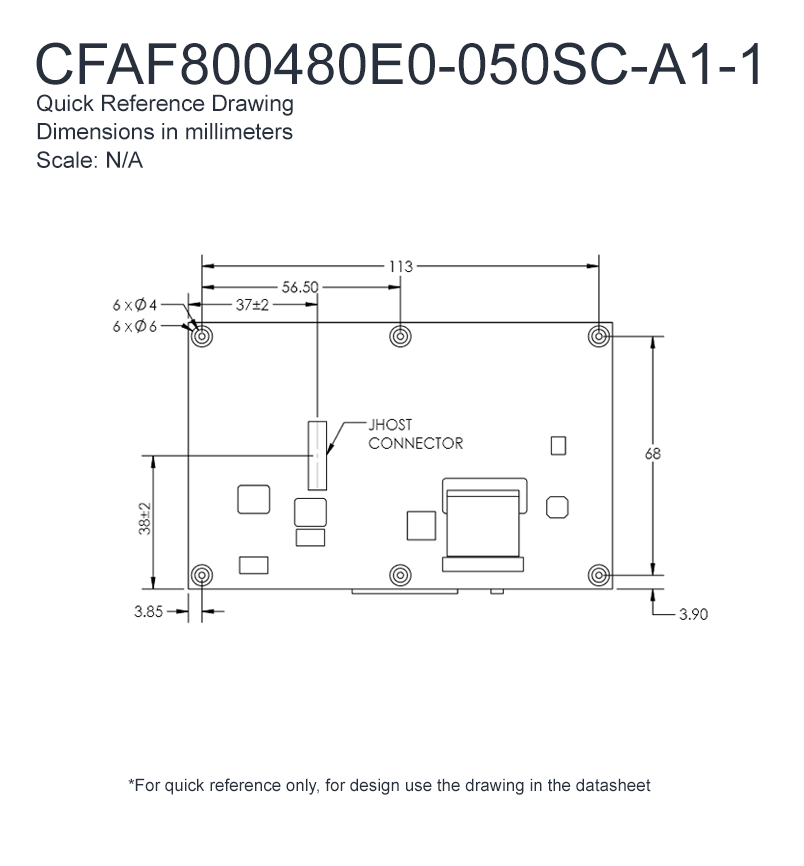

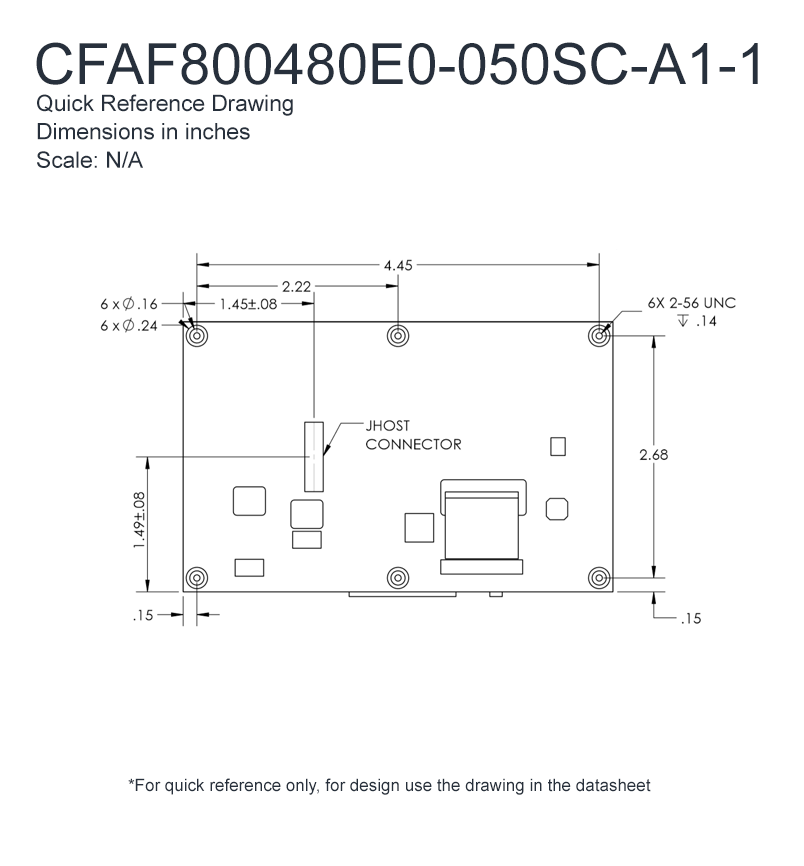

Physical Characteristics
| Column Dots x Row Dots | 800 x 480 |
| Module Overall | width | height | depth |
|---|---|---|---|
| millimeters | 120.7 | 76.3 | 10.65 |
| inches | 4.752 | 3.004 | 0.419 |
| Diagonal Dimension | 5.000" |
| Viewing Area | width | height |
|---|---|---|
| millimeters | 109 | 65.8 |
| inches | 4.291 | 2.591 |
| Active Area | width | height |
|---|---|---|
| millimeters | 108 | 64.8 |
| inches | 4.252 | 2.551 |
| Dot Pitch | width | height |
|---|---|---|
| millimeters | 0.135 | 0.135 |
| inches | 0.0053 | 0.0053 |
| Weight | 133.7g |
| Pin Count | 30 |
Optical Characteristics
| Polarizer | Transmissive |
| View Direction | 12 o'clock |
| View Angle | 70° |
| Sunlight Readable | Yes |
| Backlight Color | White |
| Backlight Type | LED |
| Foreground Color | RGB |
| Background Color | Dark |
Electrical Specifications
| Supply Voltage for Logic Minimum | 2.97V |
| Supply Voltage for Logic Maximum | 3.63V |
| Supply Voltage for Logic Typical | 3.3V |
| Supply Voltage for Driving LCD Typical | 3.3V |
| Supply Current Minimum | 2.7mA |
| Supply Current Maximum | 5.5mA |
| Supply Current Typical | 550mA |
Backlight Electrical Specifications
| Forward Voltage Minimum | 2.7V |
| Forward Voltage Maximum | 5.5V |
| Forward Voltage Typical | 3.3V |
| Forward Current Maximum | 1000mA |
| Forward Current Typical | 900mA |
Environmental
| Operating Temperatures | min | max |
|---|---|---|
| Celsius | -20° | 70° |
| Fahrenheit | -4° | 158° |
| Storage Temperatures | min | max |
|---|---|---|
| Celsius | -30° | 80° |
| Fahrenheit | -22° | 176° |
Electronics
| Controller Documents | FTDI FT813 |
| Interface | SPI |
Miscellaneous
| Touch Screen | Capacitive |
*Suggest a Correction
For reference only. For design purposes, please use the specifications in the datasheet.
