800x480 EVE Development Kit

Part Number: CFAF800480E1-050SC-A1-1

Pricing

Quantity Price
1 $87.38
* Contact us about potential lead times.
Qty:
Need a written quote? Add to cart, then enter your email address in the "request a quote" box.

Part Change Notices

Subscribe to Part Change Notices by
email Email subscription for changes to CFAF800480E1-050SC-A1-1 or RSS RSS feed for changes to CFAF800480E1-050SC-A1-1 for CFAF800480E1-050SC-A1-1

Description

With this product, you get a fantastic display in the CFAF800480E1-050SC and an EVE graphic accelerator board to quickly and cleanly bring the display to life.

This bundle boasts a revolutionary new 5", 800x480 TFT with sunlight readable high-brightness, in-plane switching for viewing at any angle, and capacitive touch. This module also has an FTDI/BridgeTek FT813 Embedded Video Engine (EVE) integrated. This means the display, touch sensing, backlight, and audio features are all controlled via the EVE. The MCU appears to be hosted as a memory-mapped SPI device. The host MCU sends commands and data over the SPI protocol.

For detailed information on the EVE, please see the FTDI FT81x Datasheet. Further information including programming examples, interface design software, and more can be found on FTDI’s website here: https://www.ftdichip.com/Support/Utilities.htm

TFT Display Module Features:

  • 5-inch 800x480 IPS TFT LCD
  • Sunlight readable at 800 nits
  • 5-point capacitive touch sensing screen
  • FTDI/BridgeTek FT813 EVE graphics accelerator
  • SPI/QSPI
  • Single +3.3V power supply (backlight supply van be 3.3v to 6v)
  • Threaded mounting standoffs for simple mechanical design
EVE Graphics Accelerator Features
  • Support multiple widgets for simplified design implementation
  • User interface design software (PC) simplifies the design process
  • Hardware engine can recognize touch tags and track touch movement
  • Enhanced sketch processing
  • Anti-aliasing of primitive displayed objects for higher-quality graphics
  • Assorted graphical effects such as alpha-blending, shadows, transitions, wipes, etc.
  • Programmable interrupt controller provides interrupts to host MCU
  • Support playback of motion-JPEG encoded AVI videos
  • Mono audio channel output with wave playback and built-in sound synthesizer
  • PWM output for display backlight dimming control
Need a complete Arduino/Seeeduino development kit that included this display, breakout board and Seeeduino v4.2 controller? You might consider our CFAF800480E1-050SC-A1-2.

TECHNICAL SPECS

Physical Characteristics

Column Dots x Row Dots 800 x 480
Module Overall width height depth
millimeters 120.7 76.3 10.75
inches 4.752 3.004 0.423
*width / height does not include Foldable Tab
Diagonal Dimension 5.000"
Viewing Area width height
millimeters 109 65.8
inches 4.291 2.591
Active Area width height
millimeters 108 64.8
inches 4.252 2.551
Dot Pitch width height
millimeters 0.135 0.135
inches 0.0053 0.0053
Flexible Cable (FFC/FPC) length
millimeters 51.78
inches 2.039
Weight 123g

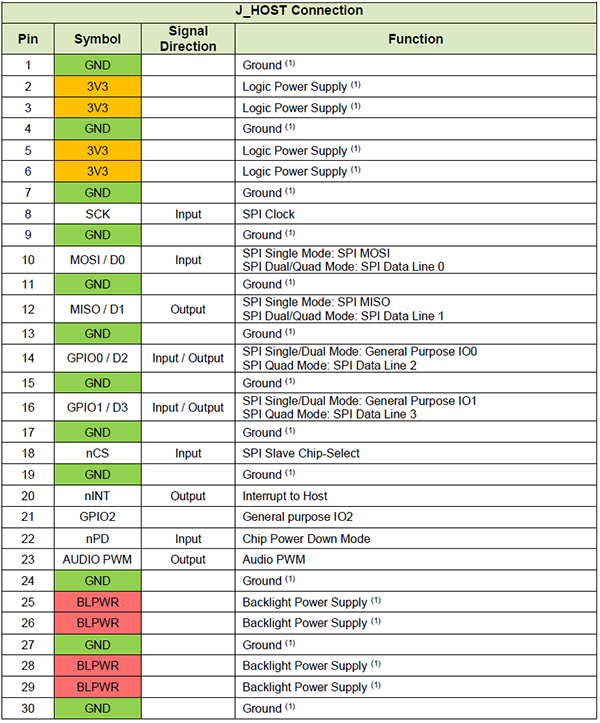

Pin Count 40

Optical Characteristics

View Direction All o'clock
View Angle >160°
Sunlight Readable Yes
Backlight Color White
Backlight Type LED
Foreground Color RGB
Background Color Black

Electrical Specifications

Supply Voltage for Logic Minimum 3.3V
Supply Voltage for Logic Maximum 3.6V
Supply Voltage for Logic Typical 3.3V
Supply Voltage for Driving LCD Typical 3.3V
Supply Current Typical 140mA

Backlight Electrical Specifications

Forward Voltage Minimum 10.8V
Forward Voltage Maximum 13.2V
Forward Voltage Typical 12V
Forward Current Maximum 140mA

Environmental

Operating Temperatures min max
Celsius -20° 70°
Fahrenheit -4° 158°
Storage Temperatures min max
Celsius -30° 80°
Fahrenheit -22° 176°

Electronics

Interface SPI

Miscellaneous

Foldable Tab Yes
Touch Screen Yes
For reference only. For design purposes, please use the specifications in the datasheet.
