800x480 TFT with Accelerated Development Kit
Part Number: CFAF800480E0-050SC-A1-2

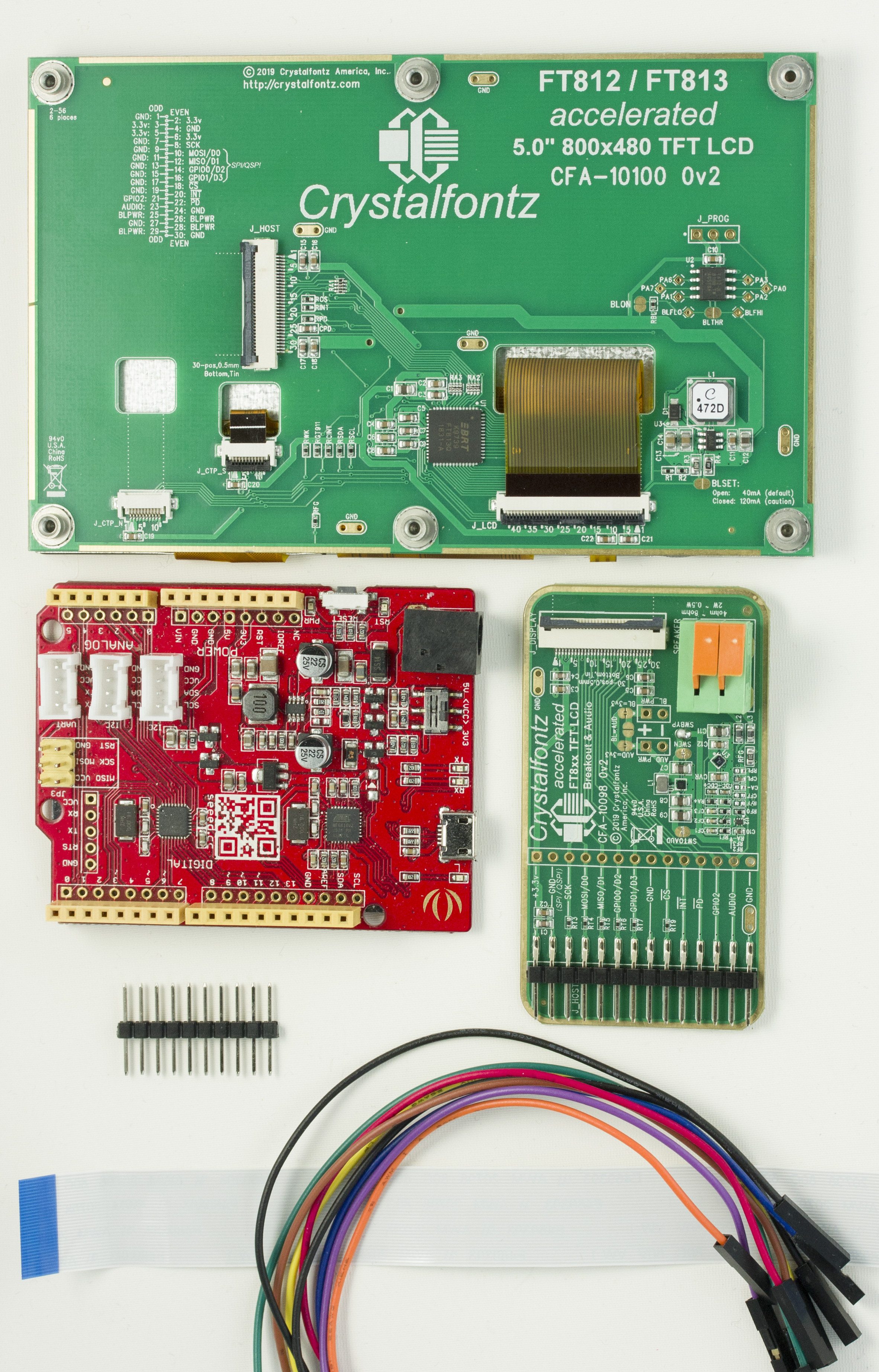

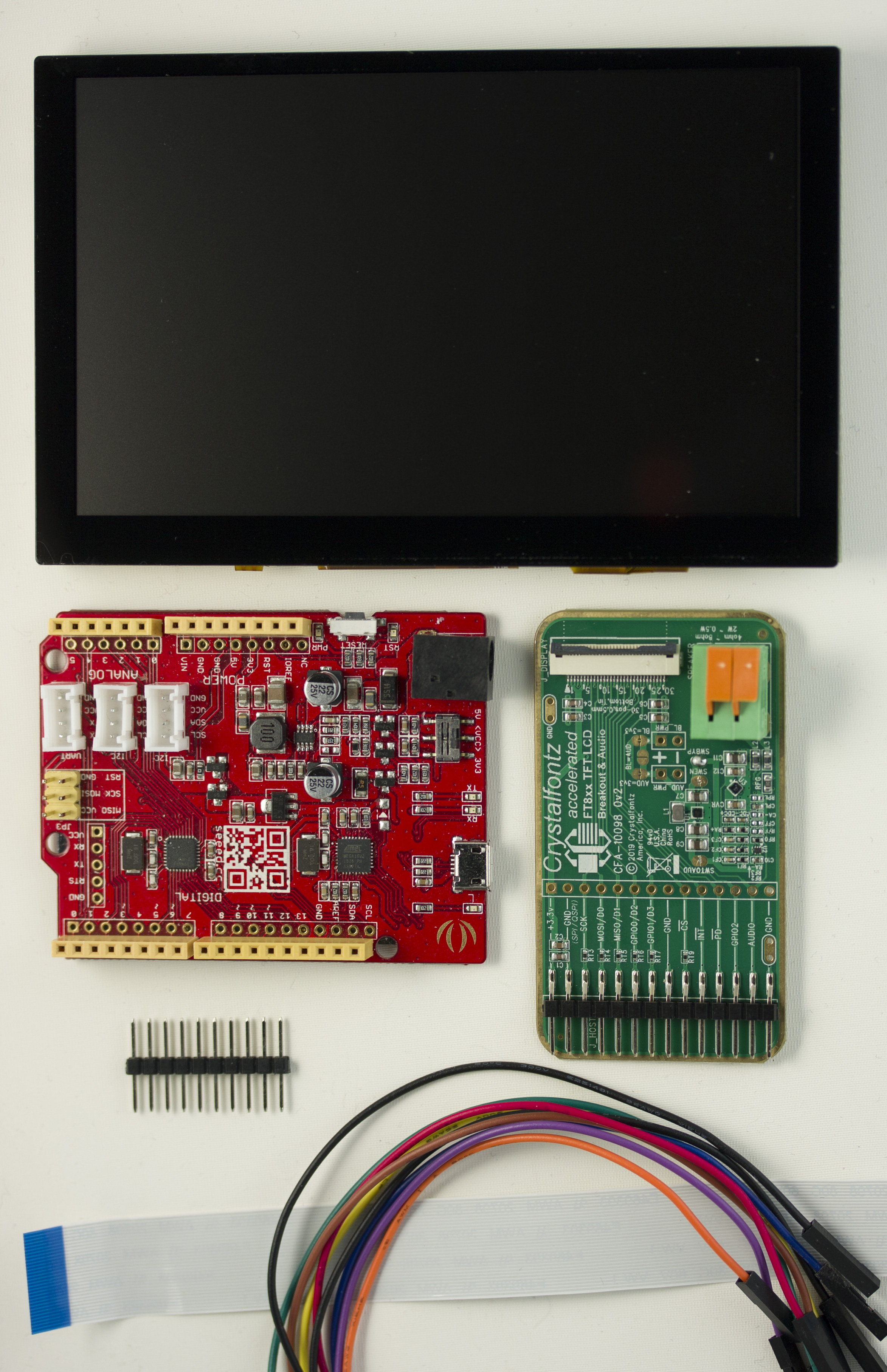

A complete 800x480 TFT with Accelerator Board, Adapter Board, and a Seeeduino (5.5v Arduino clone). This kit has everything you need to start developing with the FT813 / EVE (Embeddeded Video Engine) platform.
This kit includes everything that the CFAF800480E0-050SC-A1-1 *PLUS a Seeeduino V4.2 and breakout board pre-configured and ready to demonstrate.
The included breakout board makes it simple to wire to the controller of your choice, it also includes audio outputs via pluggable terminals.
This kit includes everything that the CFAF800480E0-050SC-A1-1 *PLUS a Seeeduino V4.2 and breakout board pre-configured and ready to demonstrate.
The included breakout board makes it simple to wire to the controller of your choice, it also includes audio outputs via pluggable terminals.
Module Features
- 5-inch 800x480 sunlight readable TFT LCD
- 5-point capacitive touch sensing screen
- FTDI/BridgeTek FT813 EVE graphics accelerator
- SPI Single or Quad host interface
- Compact 30-position 0.5mm flat-cable ZIF host connection
- Threaded mounting standoffs for simple mechanical design
- Compact form-factor, overall size is no larger than LCD
- Single +3.3V power supply (backlight supply can be 3.3v to 6v)
- Bright 1000 cd/m2 backlight allows reading in sunlight
EVE Graphics Accelerator Features
- Support multiple widgets for simplified design implementation
- User interface design software (PC) simplifies the design process
- Hardware engine can recognize touch tags and track touch movement
- Enhanced sketch processing
- Anti-aliasing of primitive displayed objects for higher-quality graphics
- Assorted graphical effects such as alpha-blending, shadows, transitions, wipes, etc.
- Programmable interrupt controller provides interrupts to host MCU
- Support playback of motion-JPEG encoded AVI videos
- Mono audio channel output with wave playback and built-in sound synthesizer
- PWM output for display backlight dimming control
Datasheet
Video Demonstrations
In this video, we're demonstrating driving a 800x480 5" TFT with an Seeeduino (Arduino UNO Clone with 3.3v / 5v switch) and the help of our CFA10100 EVE accelerated board.
We're demonstrating our 800x480 5" Capacitive Touchscreen TFT powered with an Seeeduino/Arduino UNO clone, using the FTDI EVE.
TECHNICAL SPECS
Physical Characteristics
| Column Dots x Row Dots | 800 x 480 |
| Module Overall | width | height | depth |
|---|---|---|---|
| millimeters | 120.7 | 76.3 | 10.65 |
| inches | 4.752 | 3.004 | 0.419 |
| Diagonal Dimension | 4.96" |
| Viewing Area | width | height |
|---|---|---|
| millimeters | 109 | 65.8 |
| inches | 4.291 | 2.591 |
| Active Area | width | height |
|---|---|---|
| millimeters | 108 | 64.8 |
| inches | 4.252 | 2.551 |
| Dot Pitch | width | height |
|---|---|---|
| millimeters | 0.135 | 0.135 |
| inches | 0.0053 | 0.0053 |
| Weight | 133.7g |
| Pin Count | 30 |
Optical Characteristics
| Polarizer | Transmissive |
| View Direction | 0.5 o'clock |
| View Angle | 70° |
| Sunlight Readable | Yes |
| Backlight Color | White |
| Backlight Type | LED |
| Foreground Color | RGB |
| Background Color | Dark |
Electrical Specifications
| Supply Voltage for Logic Minimum | 2.97V |
| Supply Voltage for Logic Maximum | 3.63V |
| Supply Voltage for Logic Typical | 3.3V |
| Supply Voltage for Driving Panel Typical | 3.3V |
| Supply Current Minimum | 2.7mA |
| Supply Current Maximum | 5.5mA |
| Supply Current Typical | 550mA |
Backlight Electrical Specifications
| Forward Voltage Minimum | 2.7V |
| Forward Voltage Maximum | 5.5V |
| Forward Voltage Typical | 3.3V |
| Forward Current Maximum | 1000mA |
| Forward Current Typical | 900mA |
Environmental
| Operating Temperatures | min | max |
|---|---|---|
| Celsius | -20° | 70° |
| Fahrenheit | -4° | 158° |
| Storage Temperatures | min | max |
|---|---|---|
| Celsius | -30° | 80° |
| Fahrenheit | -22° | 176° |
Electronics
| Interface | SPI |
Miscellaneous
| Touch Screen | Capacitive |
