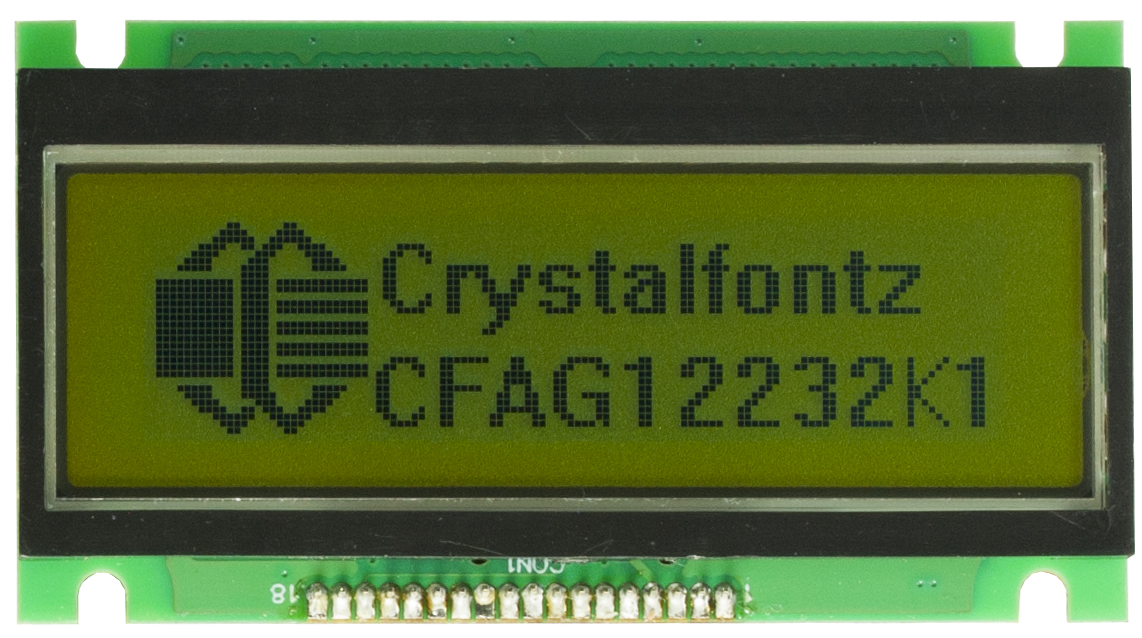

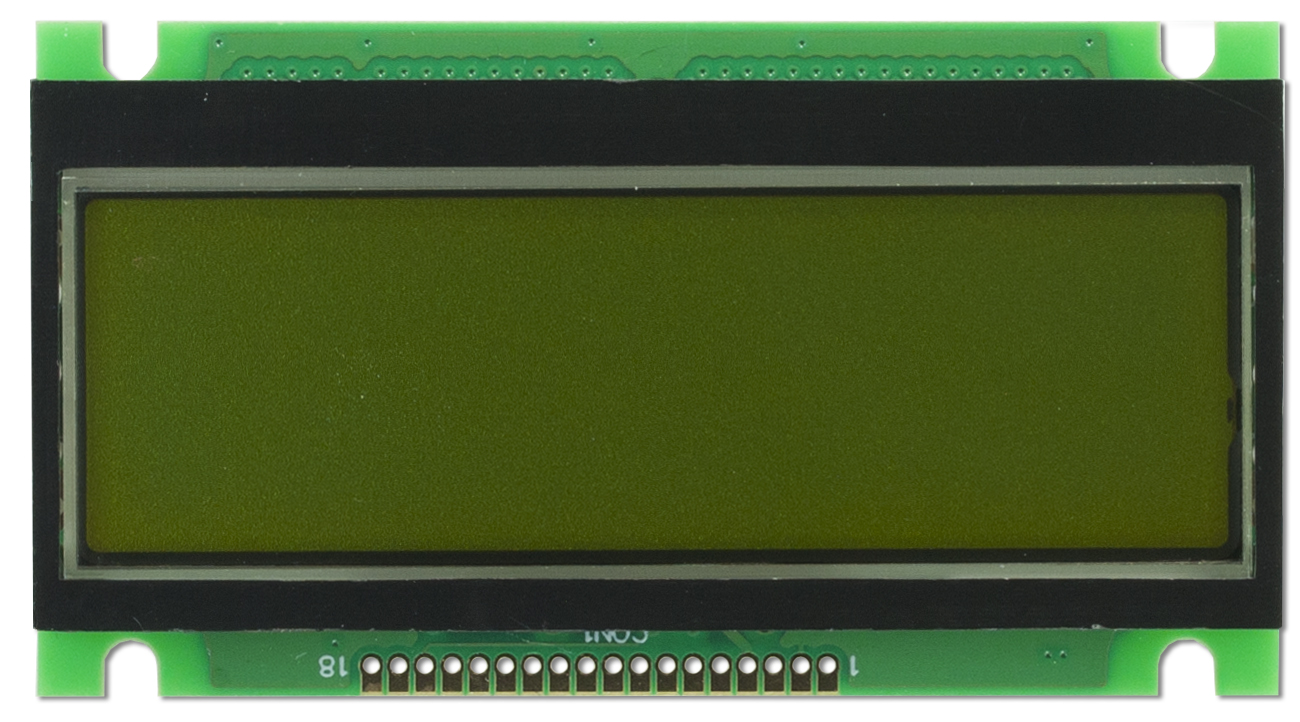

122x32 Graphic LCD Display

Part Number: CFAG12232K1-YYH-TJ

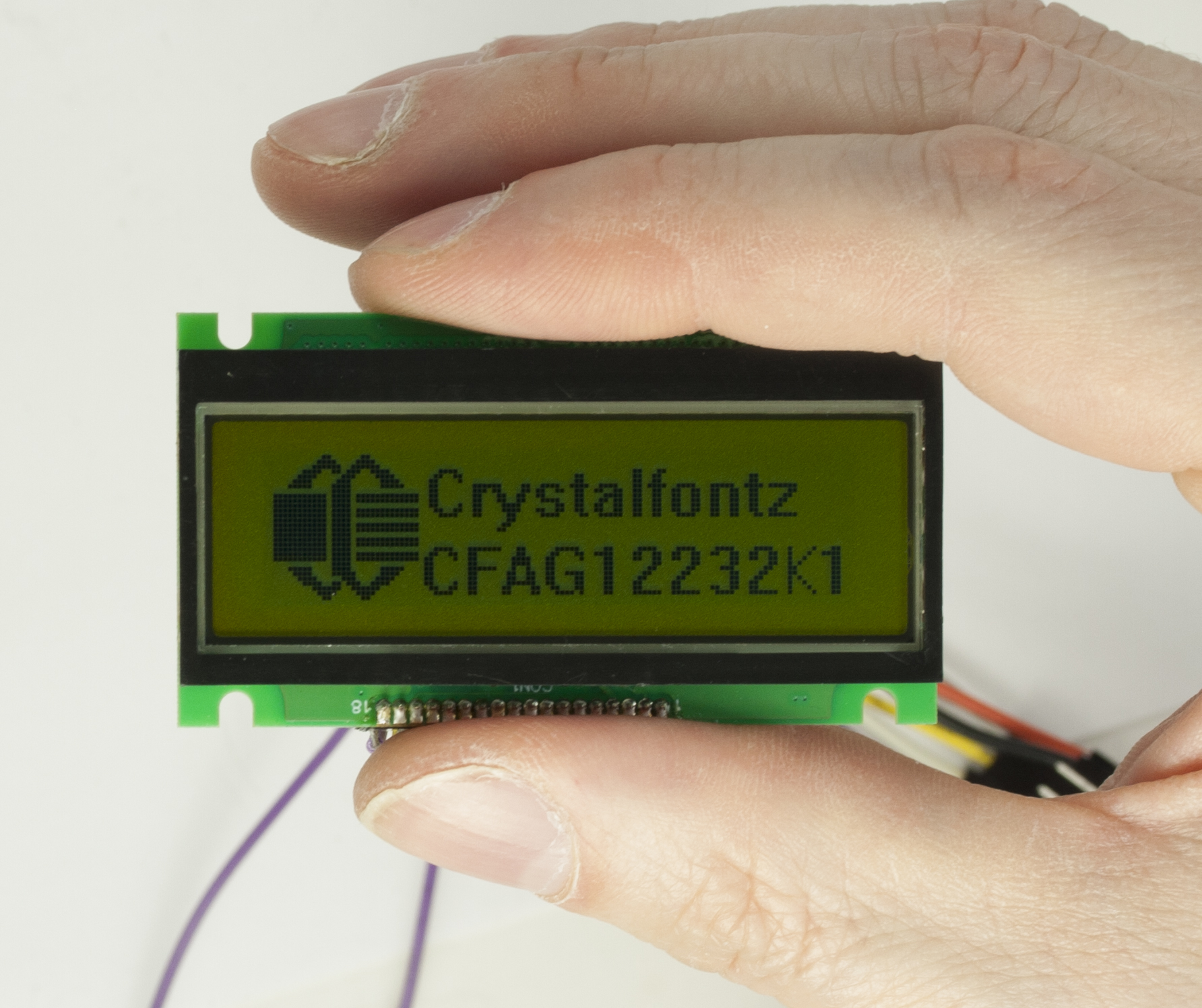

This is an ultra thin ( < 6mm ) 122x32 graphic LCD with a yellow-green background and dark pixels. It is the updated replacement for the CFAG12232K-YYH-TA, featuring a Wuxi I-Core controller in place of the Avant SBN1661G or SED1520.

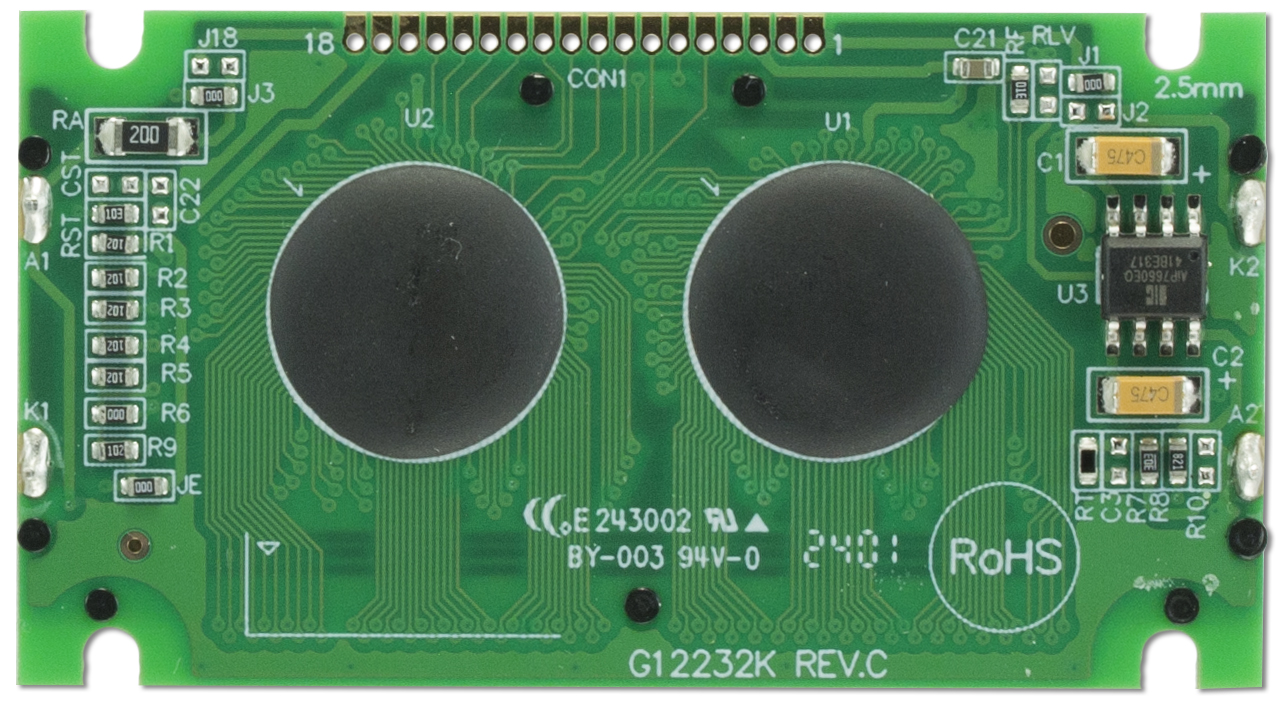

Thanks to the 1.27mm pitch through-holes (headers not included), this display is easy to integrate into a final product. The 8-bit parallel interface is also simple to integrate and quick.

Please Note: This part is 5V logic.

CFA - Crystalfontz America
G - Graphic
12232 - 122x32 pixels
K1 - Family and version
Y - Yellow-Green LED backlight
Y - STN Positive, Yellow Green LCD Mode
H - Transflective, 6:00 viewing direction
T - Built-in negative voltage generator and temperature compensation
J - Wuxi I-Core Controller

• grid_on Resolution

  Pixel Grid

  Column Dots	122 px
  Row Dots	32 px

  Color

  Color Depth

  1 bits

  Ratio

  Aspect Ratio

  4:1

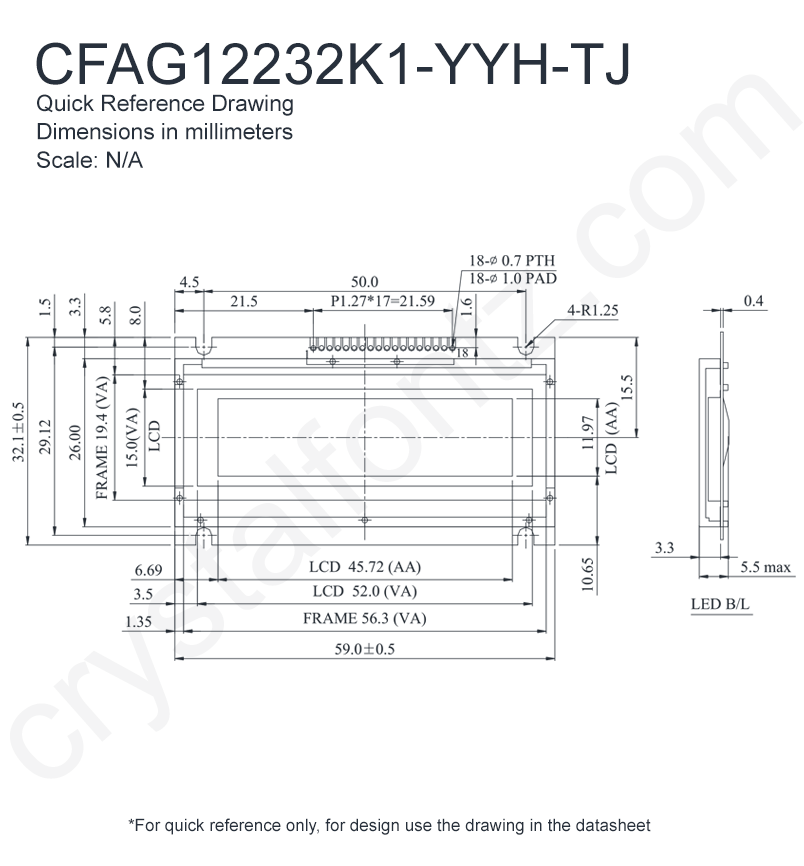

• square_foot Physical Dimensions

  Module	Metric	Imperial
  Overall Width	59.00 mm	2.323 in
  Overall Height	32.10 mm	1.264 in
  Overall Depth	5.50 mm	0.217 in
  Diagonal Dimension	1.86 in
  Weight	10 g
  Shape	Rectangle

  PCB	Metric	Imperial
  PCB Width	59.00 mm	2.323 in
  PCB Height	32.10 mm	1.264 in
  PCB Depth	5.50 mm	0.217 in

  Display Area	Metric	Imperial
  Active Area Width	45.72 mm	1.800 in
  Active Area Height	11.97 mm	0.471 in
  Viewing Width	52.00 mm	2.047 in
  Viewing Height	15.00 mm	0.591 in

  Dot Geometry	Metric	Imperial
  Dot Pitch Width	0.38 mm	0.015 in
  Dot Pitch Height	0.38 mm	0.015 in
  Dot Size Width	0.35 mm	0.014 in
  Dot Size Height	0.35 mm	0.014 in

• build Mechanical

  Connectors

  Module Connector Type	Header
  Module Connector Pitch	1.27 mm (0.05 in)
  Pin Count	18

• visibility Display Optics

  Technology

  Display Technology	LCD
  Glass Type	STN
  Mode	Transflective
  Polarizer	Positive
  Negative Voltage Generator	Yes

  Viewing

  View Direction

  6:00 o'clock

• palette Color & Appearance

  Display Colors

  Foreground Color	Dark
  Background Color	Yellow/Green
  Glass Color	Yellow/Green

  Backlight

  Backlight Type	LED
  Backlight Color	Yellow/Green

• electric_bolt Electrical

  Display	Min	Typ	Max	Unit
  Supply Voltage - Logic
  Supply Voltage for Logic	4.5	5	5.5	V
  Supply Voltage - Source
  Supply Voltage for Source	4.5	5	5.5	V
  Supply Voltage - Panel
  Supply Voltage for Driving Panel	—	4.7	—	V
  Supply Current	—	0.7	—	mA

  Backlight	Min	Typ	Max	Unit
  Voltage
  Forward Voltage	4.9	5	5.1	V
  Current
  Forward Current	32	40	60	mA

• cable Interface

  Available Interfaces

  Standard Interface(s)

  6800 (68 series parallel)

• speed Timing & Performance

  Lifetime

  Rated Lifetime

  50000

• nature Environmental

  Temperature

  	Min (°C)	Max (°C)	Min (°F)	Max (°F)
  Operating Temperature	-20°C	70°C	-4°F	158°F
  Storage Temperature	-30°C	80°C	-22°F	176°F

• info Product Metadata

  Controller

  Built-in Controller

  Wuxi AIP31520
