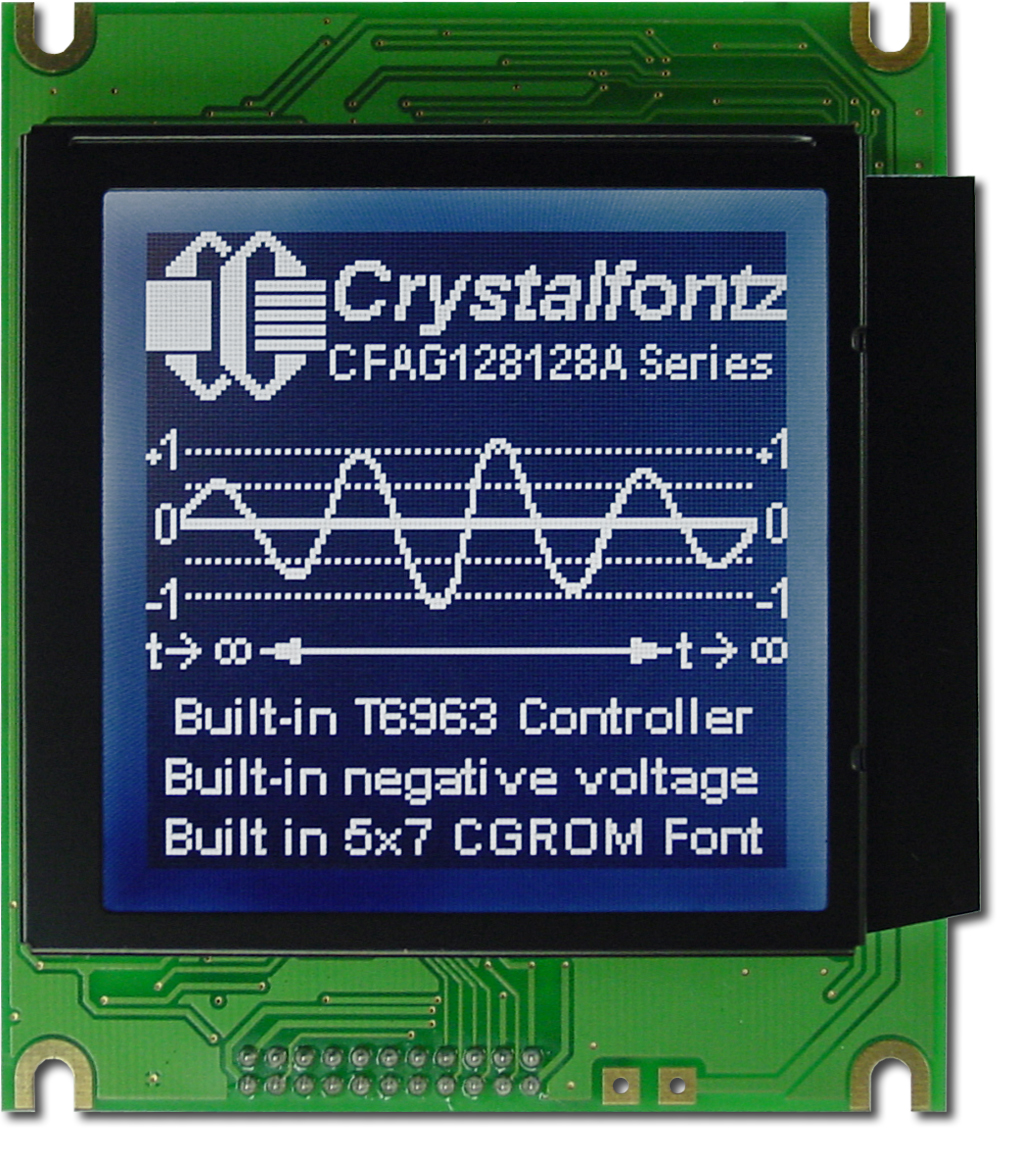

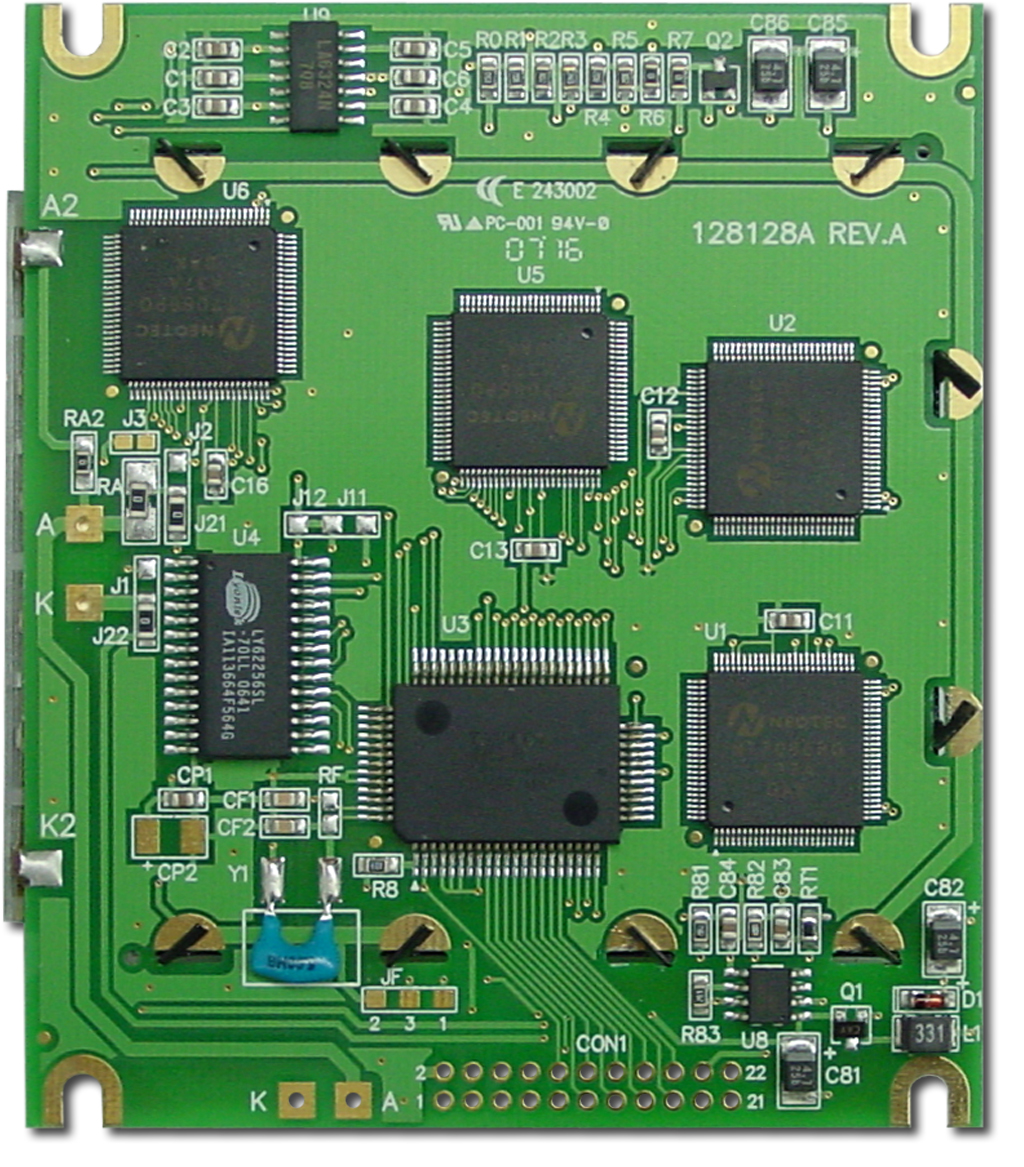

128x128 Parallel Graphic LCD (EOL)

Part Number: CFAG128128A-TTI-TZ

128x128 Graphic LCD, RoHS Compliant, High Output White Edge LED Backlight, FSTN Negative, Transmissive -20°C to +70°C 6:00 viewing angle. Negative Voltage Generator, Temperature Compensation

• grid_on Resolution

  Pixel Grid

  Column Dots	128 px
  Row Dots	128 px

  Color

  Color Depth

  1-bit bits

• square_foot Physical Dimensions

  Module	Metric	Imperial
  Overall Width	86.90 mm	3.421 in
  Overall Height	100.00 mm	3.937 in
  Overall Depth	14.50 mm	0.571 in
  Diagonal Dimension	3.06 in
  Weight	103 g
  Shape	Square

  PCB	Metric	Imperial
  PCB Width	85.00 mm	3.346 in
  PCB Height	100.00 mm	3.937 in
  PCB Depth	14.50 mm	0.571 in

  Display Area	Metric	Imperial
  Active Area Width	55.01 mm	2.166 in
  Active Area Height	55.01 mm	2.166 in
  Viewing Width	62.00 mm	2.441 in
  Viewing Height	62.00 mm	2.441 in

  Character Geometry	Metric	Imperial
  Character Width	0.40 mm	0.016 in
  Character Height	0.40 mm	0.016 in

  Dot Geometry	Metric	Imperial
  Dot Pitch Width	0.43 mm	0.017 in
  Dot Pitch Height	0.43 mm	0.017 in
  Dot Size Width	0.40 mm	0.016 in
  Dot Size Height	0.40 mm	0.016 in

• build Mechanical

  Connectors

  Module Connector Pitch

  0.10 mm (0.00 in)

• visibility Display Optics

  Technology

  Display Technology	LCD
  Display Addressing	Passive
  Glass Type	FSTN
  Mode	Transmissive
  Polarizer	Negative

  Viewing

  View Direction

  6:00 o'clock

• palette Color & Appearance

  Display Colors

  Foreground Color	White
  Background Color	Dark
  Glass Color	Black

  Backlight

  Backlight Type	LED
  Backlight Color	White

• cable Interface

  Available Interfaces

  Standard Interface(s)

  8-bit Parallel

• nature Environmental

  Temperature

  	Min (°C)	Max (°C)	Min (°F)	Max (°F)
  Operating Temperature	-20°C	70°C	-4°F	158°F
  Storage Temperature	-30°C	80°C	-22°F	176°F

  Humidity

  Relative Humidity

  0% to 90% RH (non-condensing)

• info Product Metadata

  Classification

  Special Characteristics

  Everything couldn't find any sort of datasheet for this. None on the website

  Controller

  Built-in Controller

  Toshiba T6963

• download Downloads
  Controller Documents:
  link Toshiba T6963
