[EOL] Dark 128x64 Parallel Graphic LCD from Crystalfontz

Product

                        This product has reached end of life.  You might consider a different color 128x64 graphic LCD.

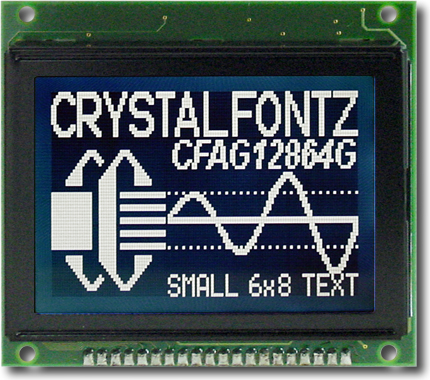

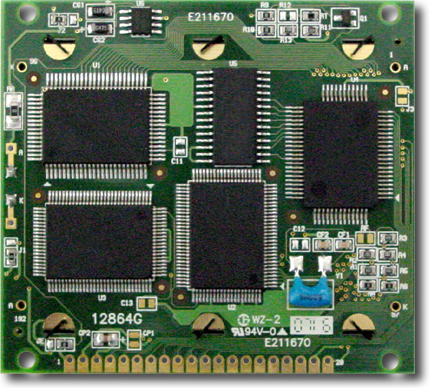

[EOL] Dark 128x64 Parallel Graphic LCDPart Number: CFAG12864G-STI-TY128x64 Graphic LCD
High Output White Edge LED Backlight
FSTN Negative Glass, Transmissive polarizer
-20°C to +70°C operating temperature
6:00 o'clock viewing direction
Negative Voltage Generator and Temperature Compensation
Built-in Toshiba T6963C or compatible controller
 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            128 x 64

    Module Overall        width
        height
        depth

        millimeters
        78
        70
        12.1

        inches
        3.07
        2.76
        0.48

    PCB Outline        width
        height
        depth

        millimeters
        78
        70
        12.1

        inches
        3.07
        2.76
        0.48

        Diagonal Dimension
            2.68"

    Viewing Area        Width
        Height

        millimeters
        62
        44

        inches
        2.44
        1.73

    Active Area        Width
        Height

        millimeters
        56.3
        38.38

        inches
        2.22
        1.51

    Dot Size        Width
        Height

        millimeters
        0.42
        0.58

        inches
        0.017
        0.023

    Dot Pitch        Width
        Height

        millimeters
        0.44
        0.6

        inches
        0.017
        0.024

        Weight
            84g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            FSTN/Black
Polarizer
            Transmissive
View Direction
            6 o'clock

        Backlight Color
            White
Backlight Type
            LED
Mode
            Negative
Foreground Color
            White
Background Color
            Dark

 electric_bolt Electrical Specification
Electrical Specifications

        Module Connector Pitch
            0.1mm

 nature Environmental
Environmental

    Operating Temperatures        min
        max

        Celsius
        -20°
        70°

        Fahrenheit
        -4°
        158°

    Storage Temperatures        min
        max

        Celsius
        -30°
        80°

        Fahrenheit
        -22°
        176°

    Humidity        min
        max

        Non-condensing
        0%
        90%

 cable Electronics
Electronics

        Controller Documents
            Toshiba T6963C
T6963C

DOT MATRIX LCD CONTROLLER LSI
Interface
            8-bit Parallel

picture_as_pdf Datasheets
picture_as_pdfCFAG12864GSTITY.pdf

download Files and Downloads

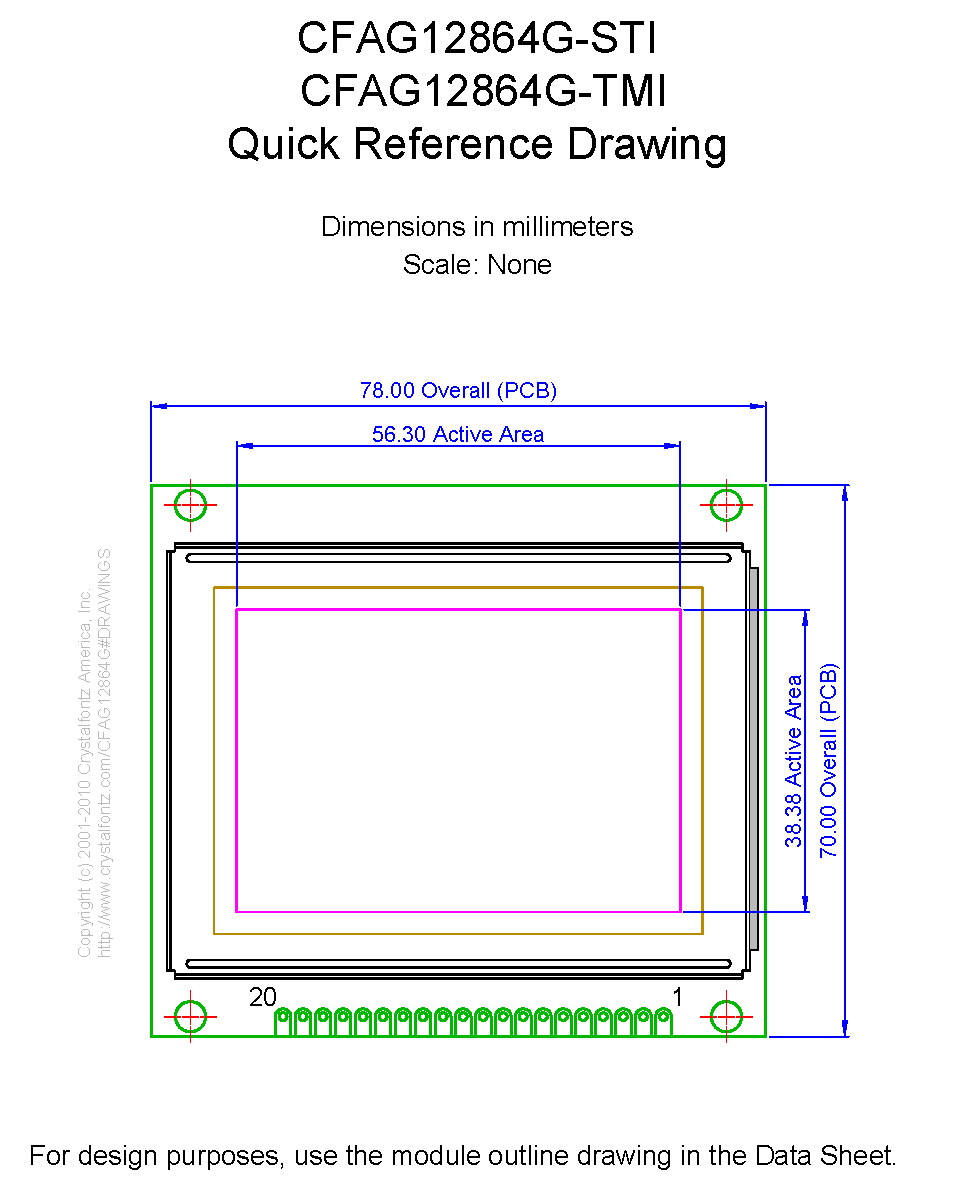

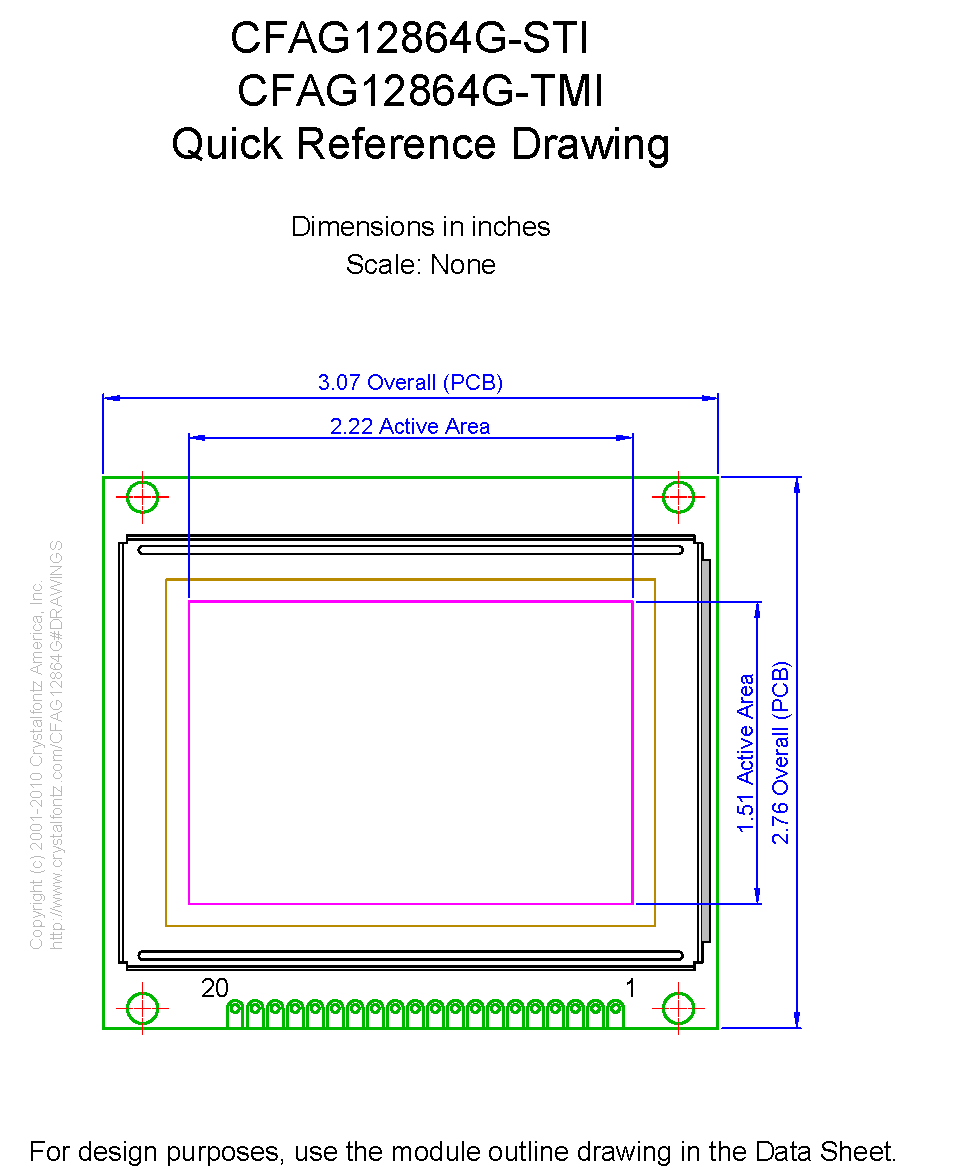

folder_zip CAD Export - CFAG12864G-STI-TMI 2D CAD
picture_as_pdf 1 to 1 Template - CFAG12864G-STI-TMI 1 TO 1.PDF

Module Overall	width	height	depth
millimeters	78	70	12.1
inches	3.07	2.76	0.48

PCB Outline	width	height	depth
millimeters	78	70	12.1
inches	3.07	2.76	0.48

Viewing Area	Width	Height
millimeters	62	44
inches	2.44	1.73

Active Area	Width	Height
millimeters	56.3	38.38
inches	2.22	1.51

Dot Size	Width	Height
millimeters	0.42	0.58
inches	0.017	0.023

Dot Pitch	Width	Height
millimeters	0.44	0.6
inches	0.017	0.024

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Humidity	min	max
Non-condensing	0%	90%

Notices

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Product Update #10910: End-of-Life Notification

Products Affected:	CFAG14432A-YYH-TT, CFAG20232C-YYH-TT, CFAG14432A-TFH-TT, CFAG320240K-YYH-TZ, CFAG14432C-TFH-TT, CFAG12864I-TMI-TN, CFAG12864F-STI-TY, CFAG12864F-TMI-TY, CFAG12864G-STI-TY, CFAH0801Z-YYH-JP, CFAG19264A-STI-TN
Date Issued:	December 13, 2017
Summary:	End-of-Life Notification
Description:	The parts listed have been set to End of Life Status.
Reason:	Critical components have been discontinued by the manufacturer.
Impact:	No replacements have been identified
Recommendation:	These parts are not recommended for new designs.
Availability:	Once current stock is depleted, these parts will no longer be available
Price Change:	N/A

Finding the LCD you need?

Need some help?

Search by Tech Spec
Search by size, controller, interface, etc
Ask our product support team
We're here to help! 8:30-4:30 PST 888.206.9720
Product Notices
Sign-up for part change or update notices
Newest products!
We're adding new displays all the time.

Purchasing Resources

Quick Order
Know your part number? Checkout fast!
Request a Quote
Get pricing and lead time info!
Our ISO 9001:2015 Certificate
Of course we're ISO 9001:2015 certified
Conflict Mineral Reporting Template
Download our latest CMRT
California Prop 65
Proposition 65 Information
Payment Information
We accept many payment methods

Builder Resources

Popular LCD Searches

Help Us Improve Our Product Offerings?

[EOL] Dark 128x64 Parallel Graphic LCD

Part Number: CFAG12864G-STI-TY

Physical Characteristics

Optical Characteristics

Electrical Specifications

Environmental

Electronics

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Product Update #10910: End-of-Life Notification

LCD Software

User Forum

Tech Support

Glass Type/Glass Color	FSTN/Black
Polarizer	Transmissive
View Direction	6 o'clock

Backlight Color	White
Backlight Type	LED
Mode	Negative
Foreground Color	White
Background Color	Dark

Controller Documents	Toshiba T6963C T6963C DOT MATRIX LCD CONTROLLER LSI
Interface	8-bit Parallel
