[EOL]128x64 Standard Graphic LCD from Crystalfontz

Product

Home » Products » Graphic LCD Displays » Interface » 8-bit Parallel

                        This product has reached end of life
If you are looking for alternative parts, we have similar displays available: By Size or By Pixel Count

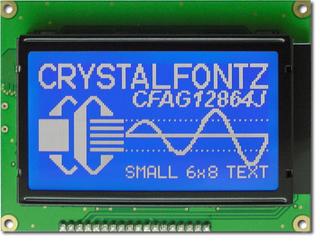

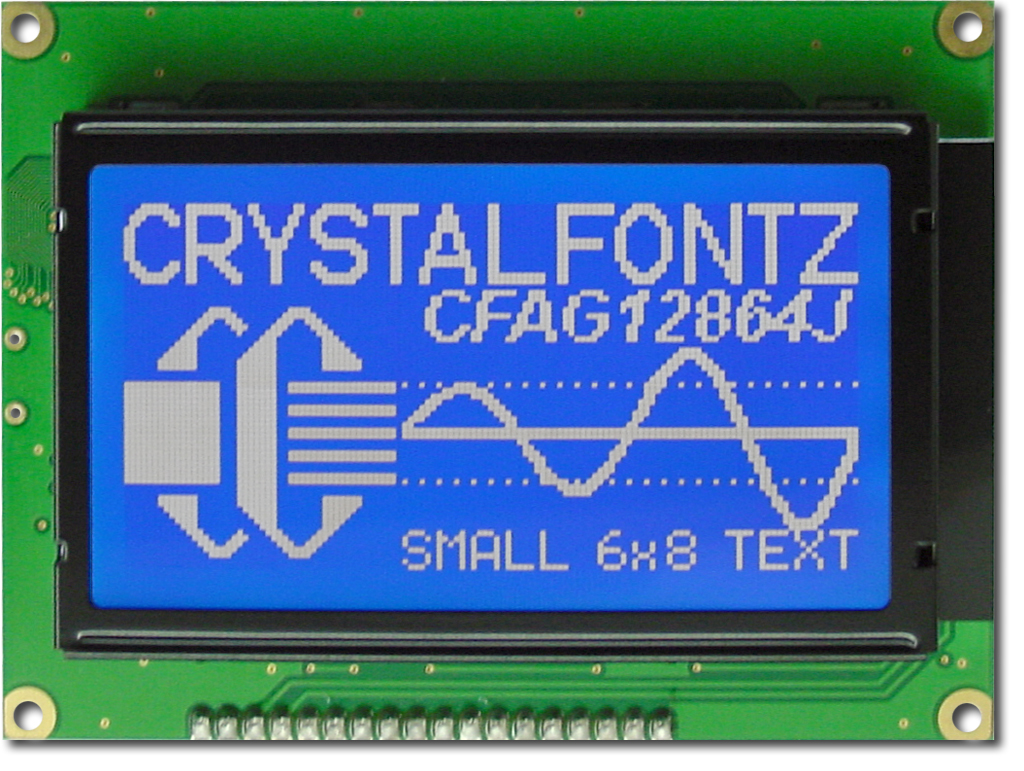

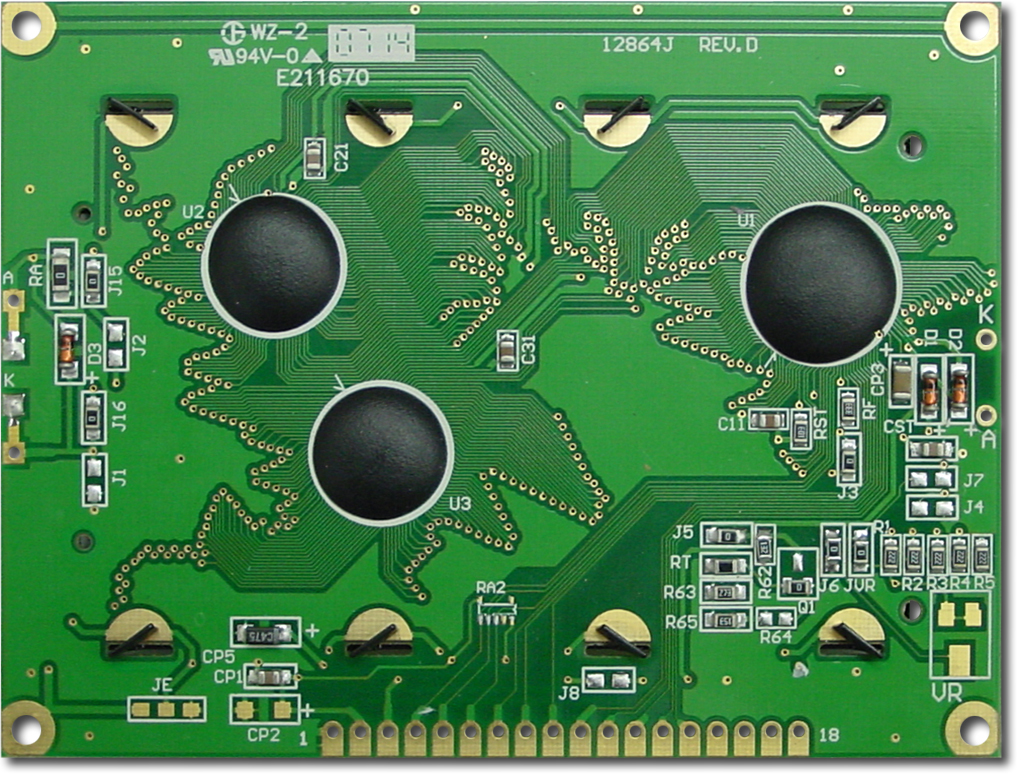

[EOL]128x64 Standard Graphic LCDPart Number: CFAG12864J-TMI-TTWhite letters on blue background 128x64 graphic LCD with temperature compensation and on-board negative voltage generator.
Glass: STN Negative, Transmissive
Backlight: White LED
Compliance: RoHS Compliant
Resolution: 128x64 pixels
Controller: Sitronix ST7920
Operating Temp:  -20°C to +70°C
Optics: 6:00 viewing direction

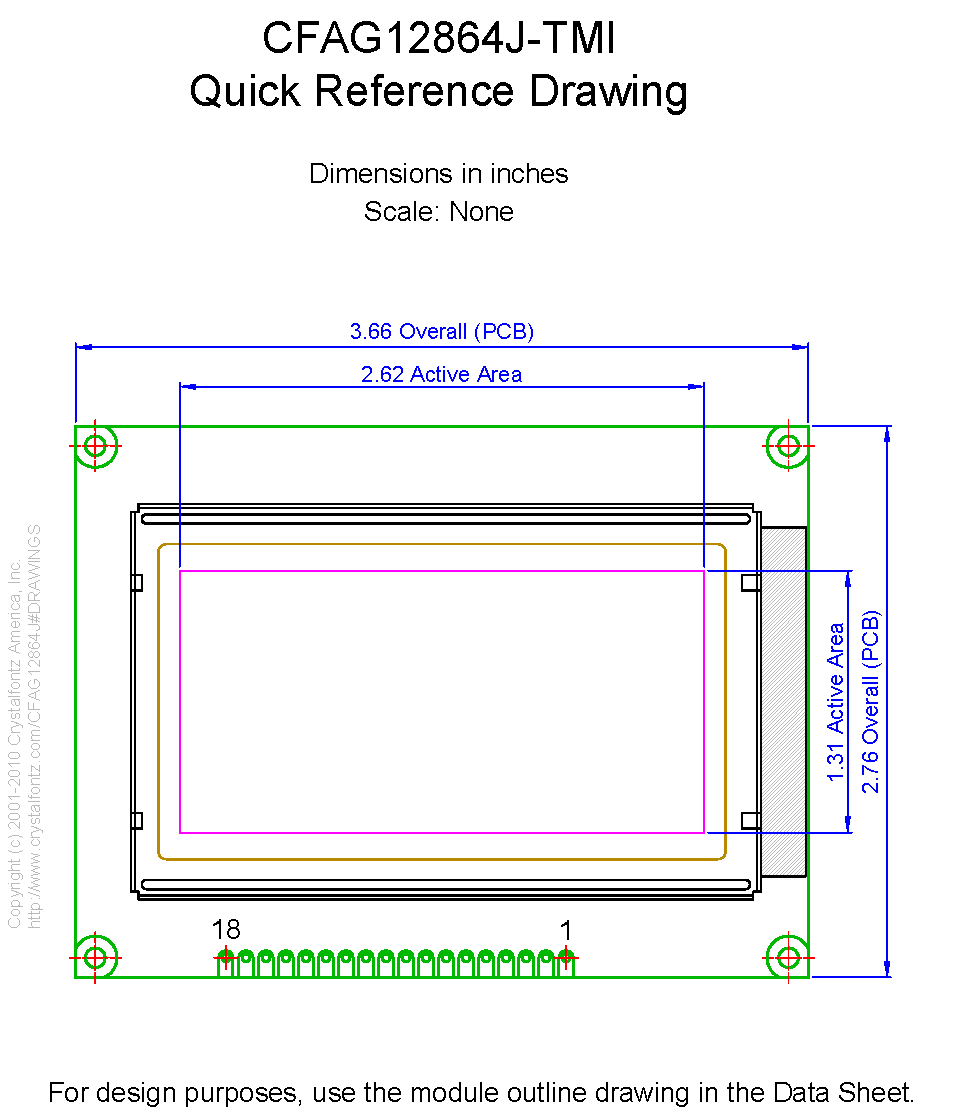

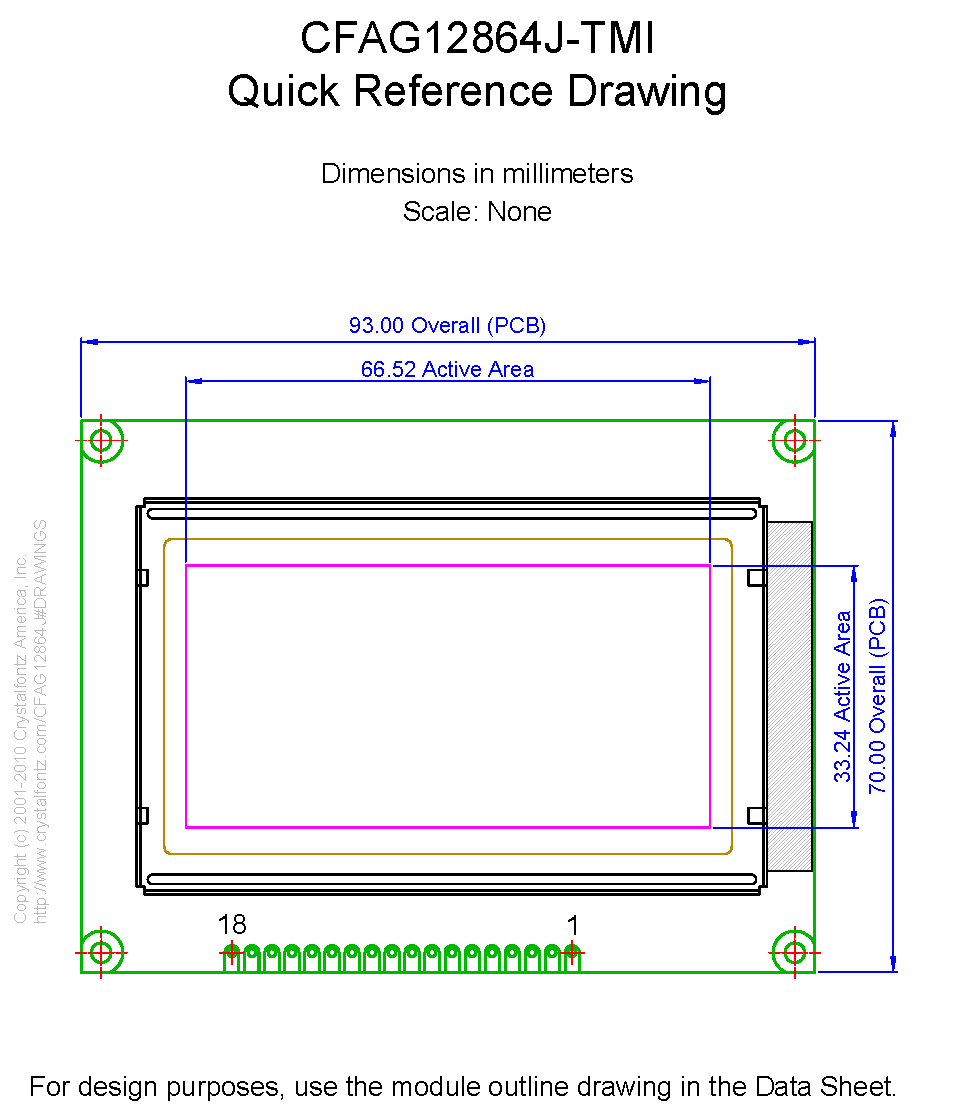

 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            128 x 64


    Module Overall        width
        height
        depth


        millimeters
        93
        70
        13.6


        inches
        3.66
        2.76
        0.54



    PCB Outline        width
        height
        depth


        millimeters
        93
        70
        13.6


        inches
        3.66
        2.76
        0.54



    Viewing Area        Width
        Height


        millimeters
        72
        40


        inches
        2.84
        1.58



    Active Area        Width
        Height


        millimeters
        66.52
        33.24


        inches
        2.62
        1.31



    Dot Size        Width
        Height


        millimeters
        0.48
        0.48


        inches
        0.019
        0.019



    Dot Pitch        Width
        Height


        millimeters
        0.52
        0.52


        inches
        0.020
        0.020



        Weight
            79g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            STN/Blue
Polarizer
            Transmissive
View Direction
            6 o'clock


        Backlight Color
            White
Backlight Type
            LED
Mode
            Negative
Foreground Color
            White
Background Color
            Blue

 electric_bolt Electrical Specification
Electrical Specifications

        Module Connector Pitch
            0.1mm

 nature Environmental
Environmental

    Operating Temperatures        min
        max


        Celsius
        -20°
        70°


        Fahrenheit
        -4°
        158°



    Storage Temperatures        min
        max


        Celsius
        -30°
        80°


        Fahrenheit
        -22°
        176°



    Humidity        min
        max


        Non-condensing
        0%
        90%


 cable Electronics
Electronics

        Controller Documents
            Sitronix ST7920
ST7920

Chinese Fonts built in LCD controller/driver
Interface
            8-bit Parallel

picture_as_pdf Datasheets
picture_as_pdfCFAG12864JTMITT Datasheet

Previous Versions of Datasheetpicture_as_pdfCFAG12864JTMITT.pdf

download Files and Downloads
folder_zip Software Source - ATMEGA2561 8-bit Demo Code
folder_zip CAD Export - CFAG12864J-TMI 2D CAD
picture_as_pdf 1 to 1 Template - CFAG12864J-TMI 1 TO 1.PDF
picture_as_pdf Other Document - UniCode to ST7920-0C CGROM Mapping
















Module Overall	width	height	depth
millimeters	93	70	13.6
inches	3.66	2.76	0.54

PCB Outline	width	height	depth
millimeters	93	70	13.6
inches	3.66	2.76	0.54

Viewing Area	Width	Height
millimeters	72	40
inches	2.84	1.58

Active Area	Width	Height
millimeters	66.52	33.24
inches	2.62	1.31

Dot Size	Width	Height
millimeters	0.48	0.48
inches	0.019	0.019

Dot Pitch	Width	Height
millimeters	0.52	0.52
inches	0.020	0.020

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Humidity	min	max
Non-condensing	0%	90%

Notices

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Part Change Notice #11043: End-of-Life Notification

Products Affected:	CFAG12864J-TMI-TT, CFAG12864J-YYH-TT
Date Issued:	April 4, 2019
Summary:	End-of-Life Notification
Description:	The parts listed are being set to End of Life Status
Reason:	Shortages of critical parts have resulted in large MOQ requirements.
Impact:	Sales of these parts are too low to warrant finding a replacement. There will be no drop-in replacements for these parts.
Recommendation:	These parts should not be considered for new designs.
Availability:	When current stocks are depleted, the parts will be available as "Special Order" The MOQ for the special orders will be 2000 pieces.
Price Change:	N/A
