White on Blue 144x32 LCD Module from Crystalfontz

Product

Home » Products » Graphic LCD Displays » Interface » 8-bit Parallel

                This display is not recommended for new designs. It is end-of-life and will be unavailable as soon as current stock is depleted.

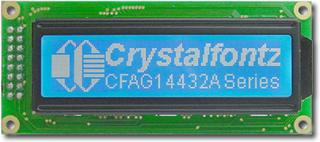

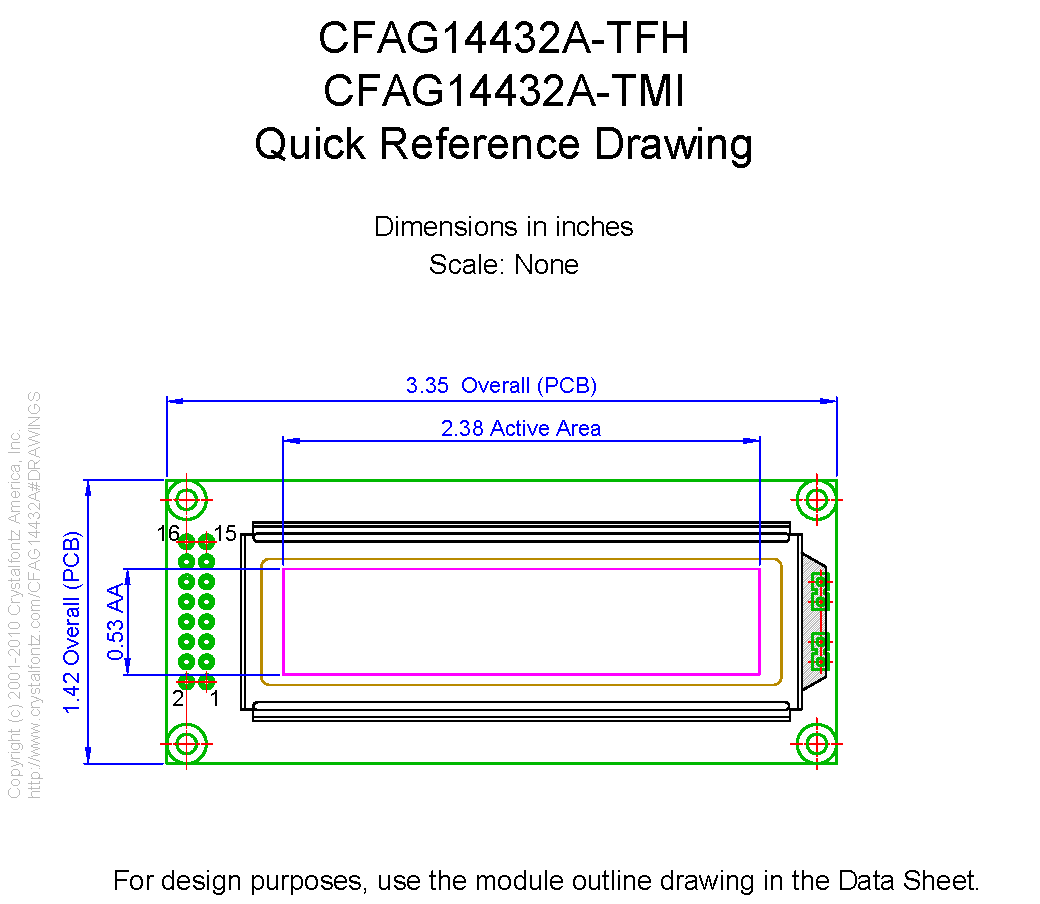

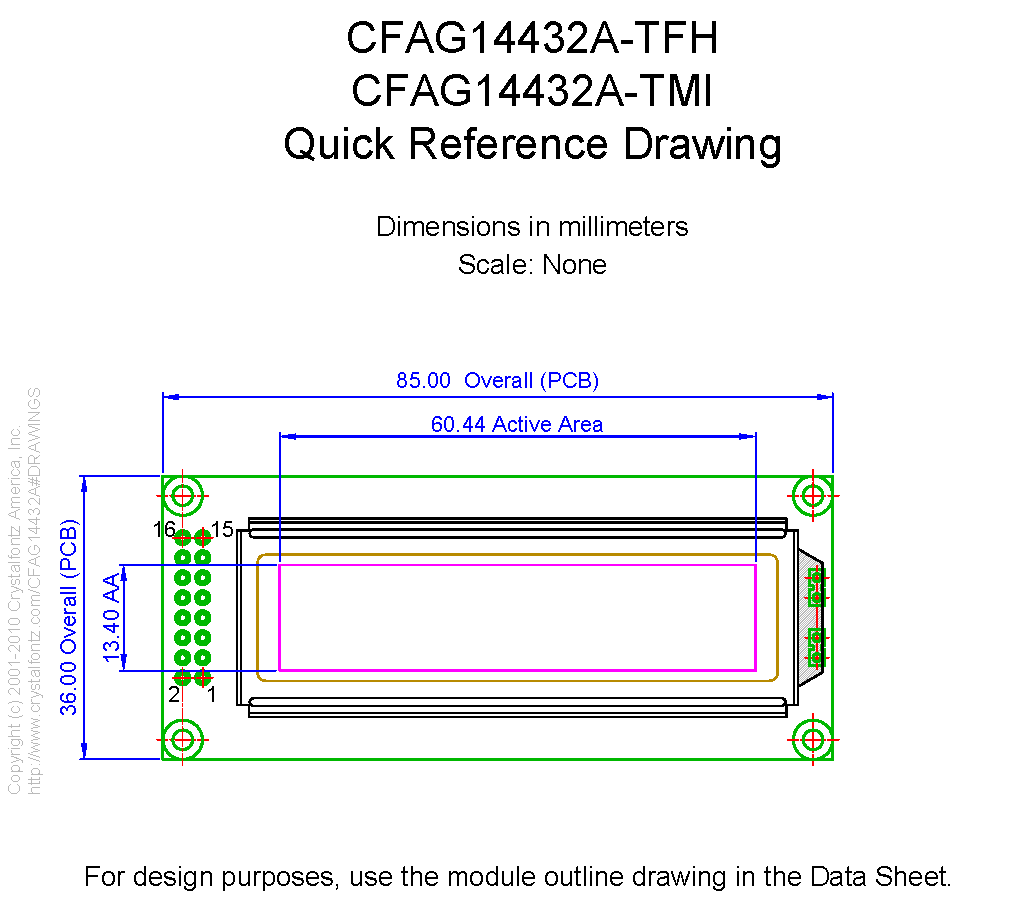

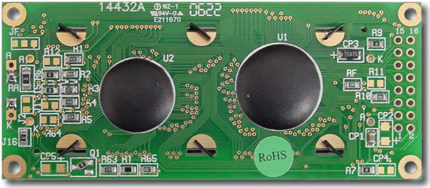

White on Blue 144x32 LCD ModulePart Number: CFAG14432A-TMI-TTWhite on blue 144x32 graphic LCD with negative voltage generator and temperature compensation.
Resolution: 144x32 pixels
Optics: 6:00 viewing direction
Backlight: White Edge LED
Glass: STN Negative, Transmissive
Controller: Sitronix ST7920 (Hitachi HD44780 Compatible) Controller
Character Generator: Chinese and English
Operating Temp:  -20°C to +70°C
Compliance: REACH & RoHS Compliant
