This product has reached end of life

320x240 Parallel Graphic LCD

Part Number: CFAG320240C0-YMI-TZ

Datasheet

CFAG320240C0-YMI-T v1.0.pdf
(Datasheet V 1.0, Hardware 1.0, Firmware 1.0)

Files


Part Change Notices

Subscribe to Part Change Notices by
email Email subscription for changes to CFAG320240C0-YMI-TZ or RSS RSS feed for changes to CFAG320240C0-YMI-TZ for CFAG320240C0-YMI-TZ


Compliance Documents

Declaration of Conformity RoHS2


Declaration of Conformity REACH

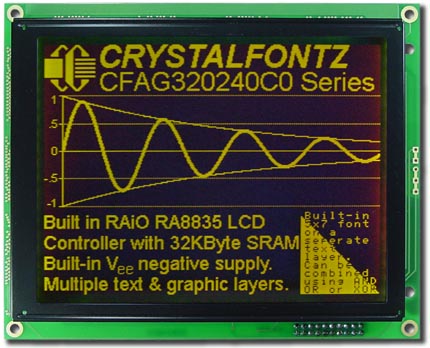

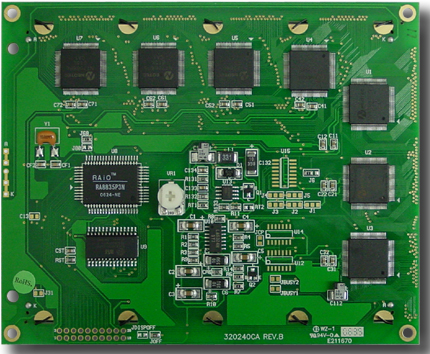

320x240 Parallel Graphic LCD (CFAG320240C0-YMI-TZ)
320x240 Parallel Graphic LCD
Close

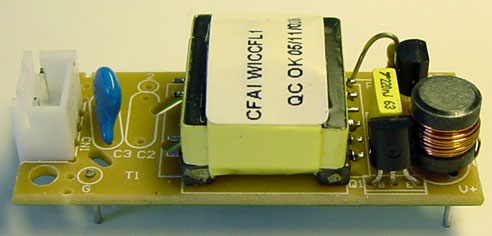

CCFL1 Inverter Front
CCFL1 Inverter Front
CCFL1 Inverter Front
Close

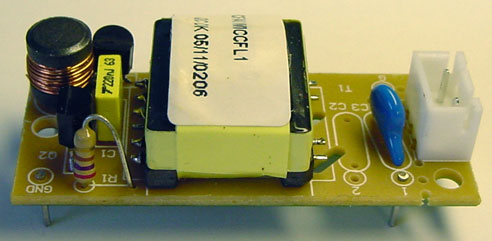

CCFL1 Inverter Back
CCFL1 Inverter Back
CCFL1 Inverter Back
Close
CCFL1 Inverter Bottom
CCFL1 Inverter Bottom
CCFL1 Inverter Bottom
Close
Close

Description

320x240 Graphic LCD, Yellow/Green LED Backlight, STN Negative, Blue, Transmissive -20°C to +70°C 6:00 viewing angle. Negative Voltage Generator, Temperature Compensation

  • 320x240 graphic LCD module
  • Built-in RAiO RA8835 (SED1335/S1D3305 Compatible) controller and 32Kbyte SRAM
  • Multiple text and graphic layers
  • Available in several variations of backlight and polarizer (minimum order may be required)
  • RoHS Compliant

TECHNICAL SPECS

For reference only. For design purposes, please use the specifications in the datasheet.

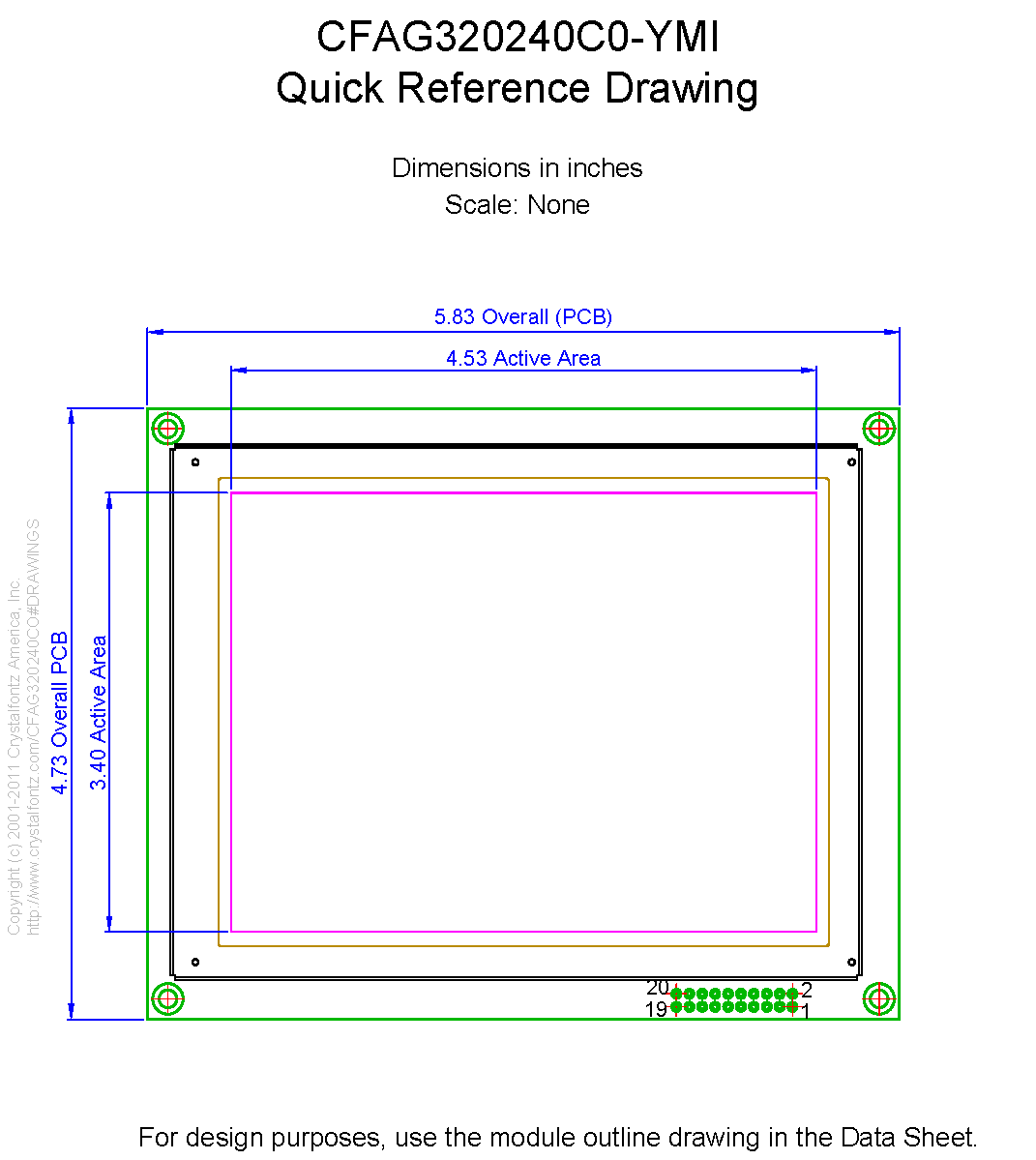

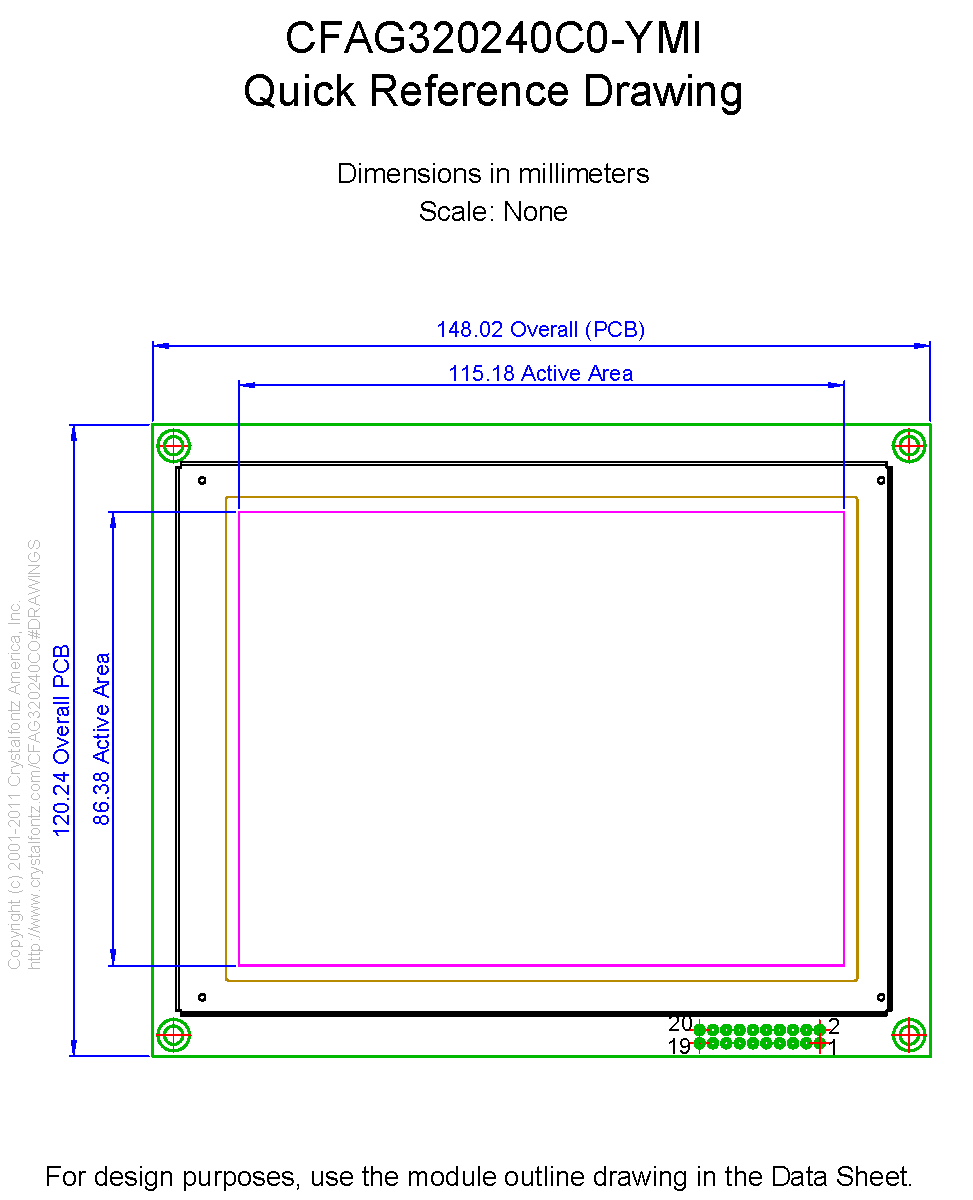

Physical Characteristics

Column Dots x Row Dots 320 x 240
Module Overall width height depth
millimeters 139.98 120.24 15.6
inches 5.511 4.734 0.614
PCB Outline width height depth
millimeters 139.98 120.24 15.6
inches 5.511 4.734 0.614
Viewing Area width height
millimeters 120.14 92.14
inches 4.730 3.628
Active Area width height
millimeters 115.18 86.38
inches 4.535 3.401
Dot Size width height
millimeters 0.34 0.34
inches 0.013 0.013
Dot Pitch width height
millimeters 0.36 0.36
inches 0.014 0.014
Weight 209g

Optical Characteristics

Glass Type/Glass Color STN/Blue
Polarizer Transmissive
View Direction 6 o'clock
Backlight Color Yellow-Green
Backlight Type LED
Mode Negative
Foreground Color Yellow
Background Color Dark

Electrical Specifications

Module Connector Pitch 0.10mm

Environmental

Operating Temperatures min max
Celsius -20° 70°
Fahrenheit -4° 158°
Storage Temperatures min max
Celsius -30° 80°
Fahrenheit -22° 176°
Humidity min max
Non-condensing 0% 90%

Electronics

Controller Documents RAiO Technology RA8835
Interface 8-bit Parallel
For reference only. For design purposes, please use the specifications in the datasheet.

Production Notes

While we do not offer any direct replacements for this product, perhaps one of our many other CFAG displays will fit your needs. Feel free to contact our tech support team to get assistance in finding the right display.
