42x65 One Inch Graphic LCD
Part Number: CFAG4265A0-TDL

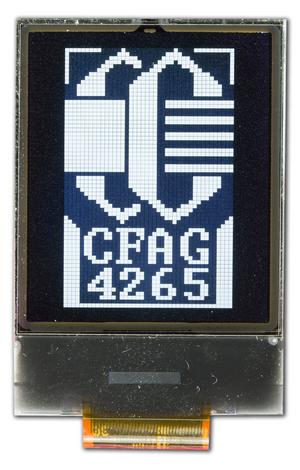

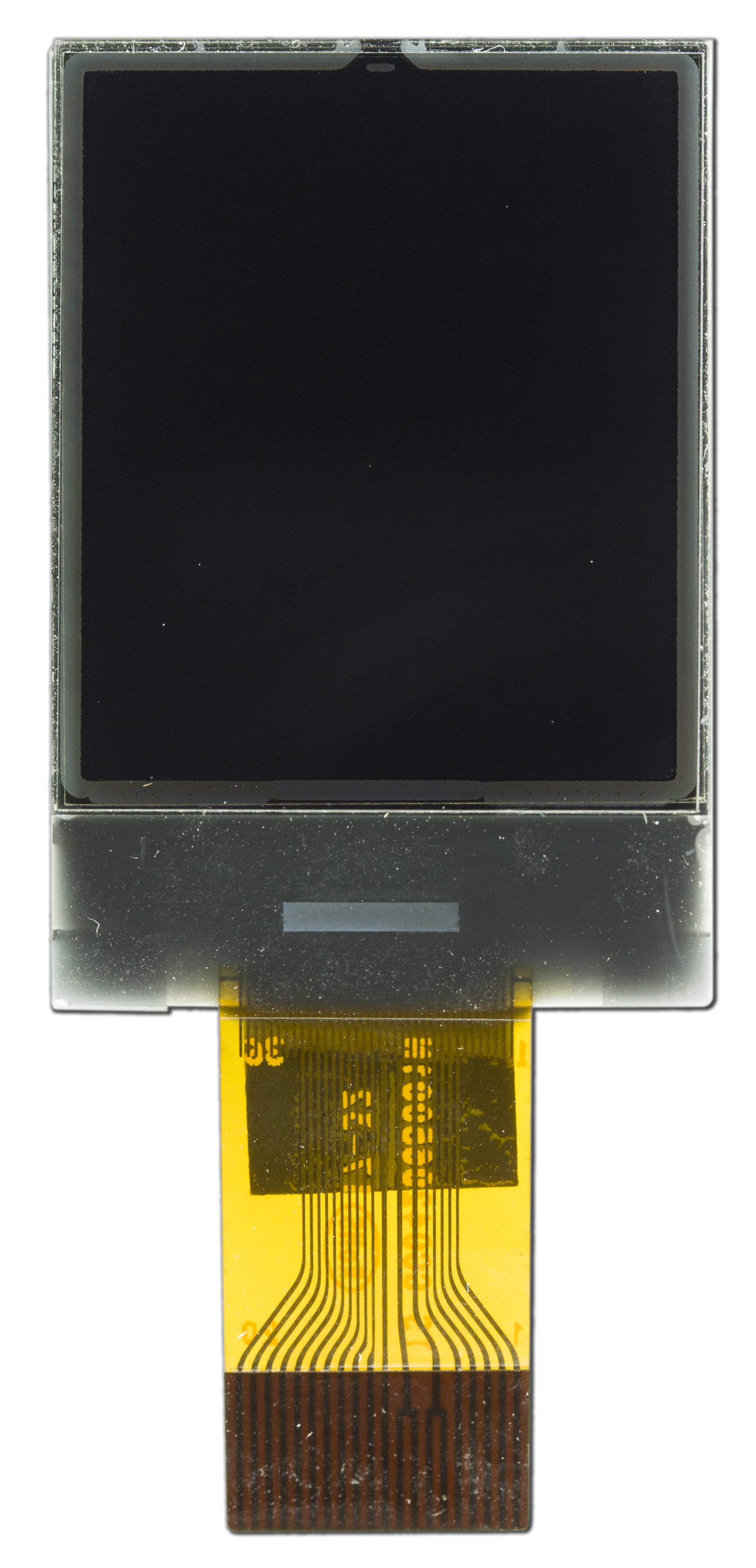

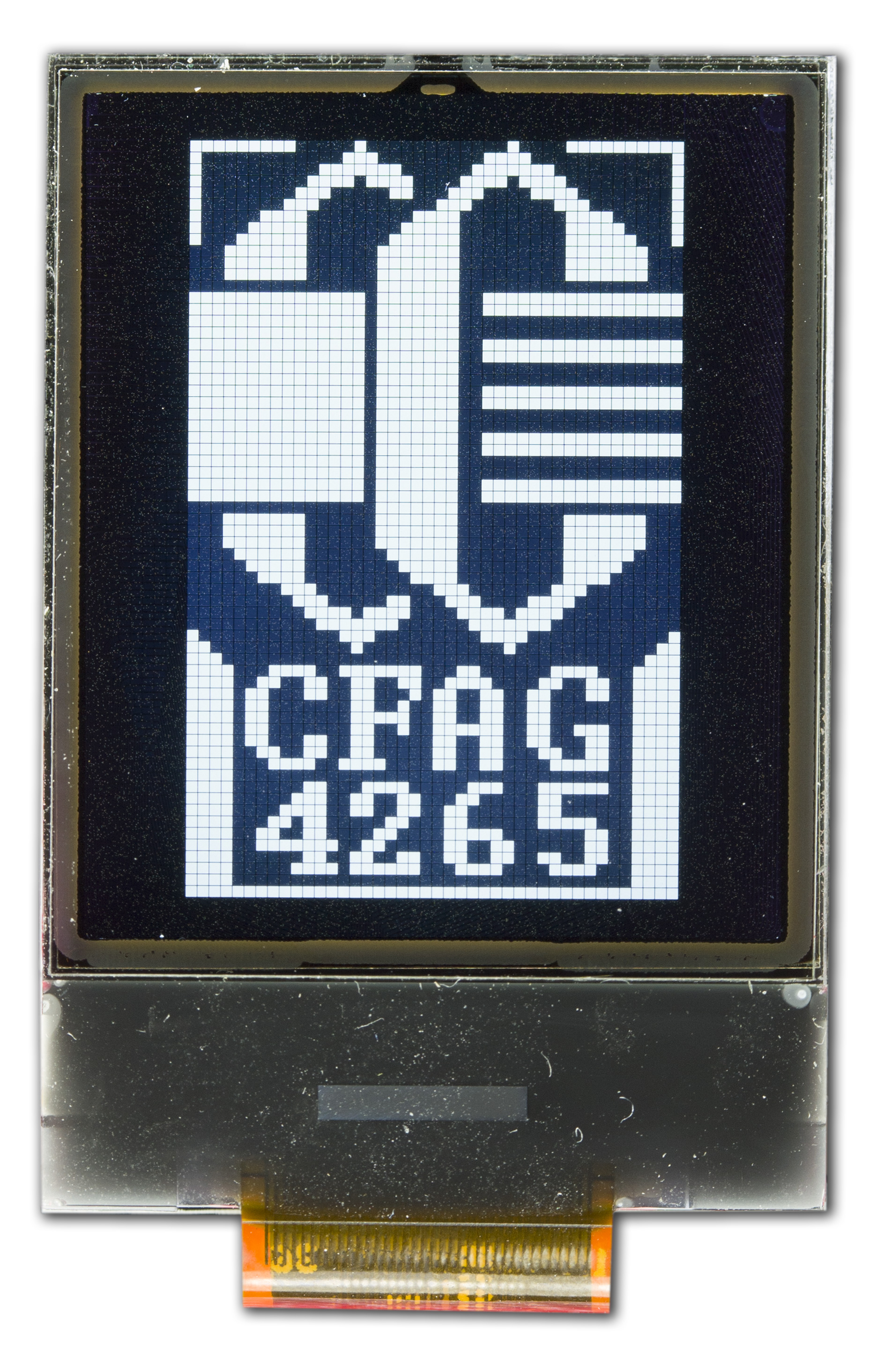

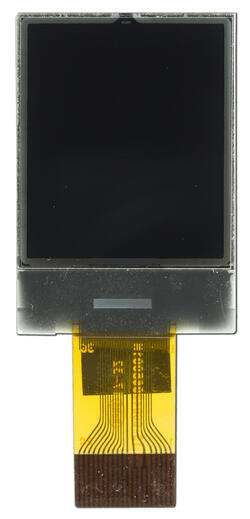

42x65 Graphic LCD – White On Dark
We designed this 42 x 65 graphic LCD display module so it fits on the face of 1-inch wide devices such as blade servers, disk drive carriers, and expansion cards.
The 0.88-inch (22.40 mm) width leaves room for the metalwork and mechanical clearance.
This economical COG (Chip-On-Glass) FFSTN transmissive display is suitable for typical office lighting and is easy to see in dimly lit areas.
This small graphic LCD display uses three long-life white LEDs for its backlight. The forward voltage is 9.6v to 10.8v. For long life, we recommend driving the backlight at 12mA
- 42 by 65 pixels.
- 12 o'clock viewing direction can be used in portrait or landscape mode.
- SPI interface (4-wire Serial Peripheral Interface).
- Sitronix ST7565R or compatible controller.

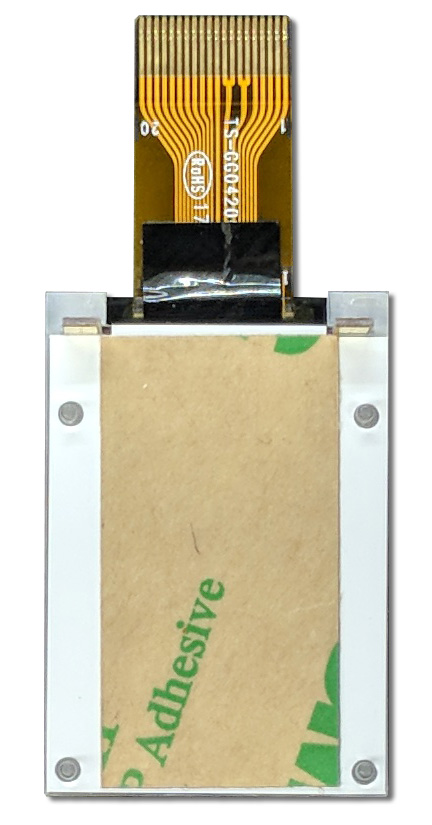

- The FFC/FPC flexible tail is easy to connect with any standard 20 pin 0.5mm pitch ZIF connector.
- Show off your creativity by tiling multiple displays on 1-inch centers.
- An additional color choice in the CFAG4265A0 series is the CFAO4265A0-TFK, which is dark pixels on a light gray background
TECHNICAL SPECS
Physical Characteristics
| Column Dots x Row Dots | 42 x 65 |
| Module Overall | width | height | depth |
|---|---|---|---|
| millimeters | 22.4 | 32.85 | 4.8 |
| inches | 0.882 | 1.293 | 0.189 |
| *width / height does not include Foldable Tab | |||
| Diagonal Dimension | 1." |
| Viewing Area | width | height |
|---|---|---|
| millimeters | 19 | 23.35 |
| inches | 0.748 | 0.919 |
| Active Area | width | height |
|---|---|---|
| millimeters | 13.84 | 21.43 |
| inches | 0.545 | 0.844 |
| Dot Size | width | height |
|---|---|---|
| millimeters | 0.31 | 0.31 |
| inches | 0.012 | 0.012 |
| Dot Pitch | width | height |
|---|---|---|
| millimeters | 0.33 | 0.33 |
| inches | 0.013 | 0.013 |
| Weight | 6g |
Optical Characteristics
| Glass Type/Glass Color | FFSTN/Black |
| Polarizer | Transmissive |
| View Direction | 12 o'clock |
| Backlight Color | White |
| Backlight Type | LED |
| Mode | Negative |
| Foreground Color | White |
| Background Color | Dark |
Electrical Specifications
| Supply Voltage for Logic Maximum | 3.3V |
| Supply Voltage for Logic Typical | 3.3V |
| Supply Voltage for Driving Panel Typical | 9.5V |
| Supply Current Typical | 0.5mA |
Backlight Electrical Specifications
| Forward Voltage Maximum | 10.8V |
| Forward Voltage Typical | 9V |
| Forward Current Typical | 16mA |
Environmental
| Operating Temperatures | min | max |
|---|---|---|
| Celsius | -20° | 70° |
| Fahrenheit | -4° | 158° |
| Storage Temperatures | min | max |
|---|---|---|
| Celsius | -30° | 80° |
| Fahrenheit | -22° | 176° |
| Humidity | min | max |
|---|---|---|
| Non-condensing | 0% | 90% |
Electronics
| Controller Documents | Sitronix ST7565R ST7565R 65 x 132 Dot Matrix LCD Controller/Driver |
| Interface | SPI |
Miscellaneous
| Foldable Tab | Yes |
Additional Options
Get this display up and running quickly and easily with a breakout board or a complete development kit.
For reference only. For design purposes, please use the specifications in the datasheet.
