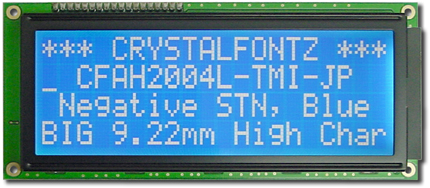

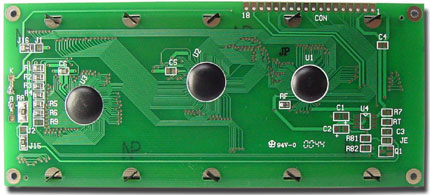

20x4 Parallel Character LCD

Part Number: CFAH2004L-TMI-JP

Parallel Character LCD 20x4, RoHS Compliant, White Edge LED Backlight, STN Negative, Blue, Transmissive -20°C to +70°C 6:00

• Available in several variations of backlight and polarizer (minimum order may be required)
• Large characters
• 8-bit or 4-bit parallel interface
• Industry-standard HD44780 compatible controller

• square_foot Physical Characteristics

  Physical Characteristics

  Characters x Lines

  20 x 4

  Module Overall	width	height	depth
  millimeters	146	65	13.9
  inches	5.75	2.56	0.55

  PCB Outline	width	height	depth
  millimeters	146	65	13.9
  inches	5.75	2.56	0.55

  Viewing Area	Width	Height
  millimeters	123	43
  inches	4.84	1.69

  Active Area	Width	Height
  millimeters	118.84	38.47
  inches	4.68	1.52

  Character Size	Width	Height
  millimeters	3.2	5.55
  inches	0.126	0.219

  Character Pitch	Width	Height
  millimeters	3.7	5.95
  inches	0.146	0.234

  Dot Size	Width	Height
  millimeters	0.6	0.65
  inches	0.024	0.026

  Dot Pitch	Width	Height
  millimeters	0.65	0.7
  inches	0.026	0.028

  Weight

  52g

• visibility Optical Characteristics

  Optical Characteristics

  Glass Type/Glass Color	STN/Blue
  Polarizer	Transmissive
  View Direction	6 o'clock

  Backlight Color	White
  Backlight Type	LED
  Mode	Negative
  Foreground Color	White
  Background Color	Blue

• nature Environmental

  Environmental

  Operating Temperatures	min	max
  Celsius	-20°	70°
  Fahrenheit	-4°	158°

  Storage Temperatures	min	max
  Celsius	-30°	80°
  Fahrenheit	-22°	176°

• cable Electronics

  Electronics

  Controller Documents	Hitachi HD44780 1985: HD44780 Historical Data Sheet
  Interface	4-bit Parallel, 8-bit Parallel

• picture_as_pdf Datasheets
  picture_as_pdf

  CFAH2004LTMIJP.pdf




• download Files and Downloads
  folder_zip CAD Export - CFAH2004L 2D CAD


  picture_as_pdf 1 to 1 Template - CFAH2004L 1 TO 1.PDF
