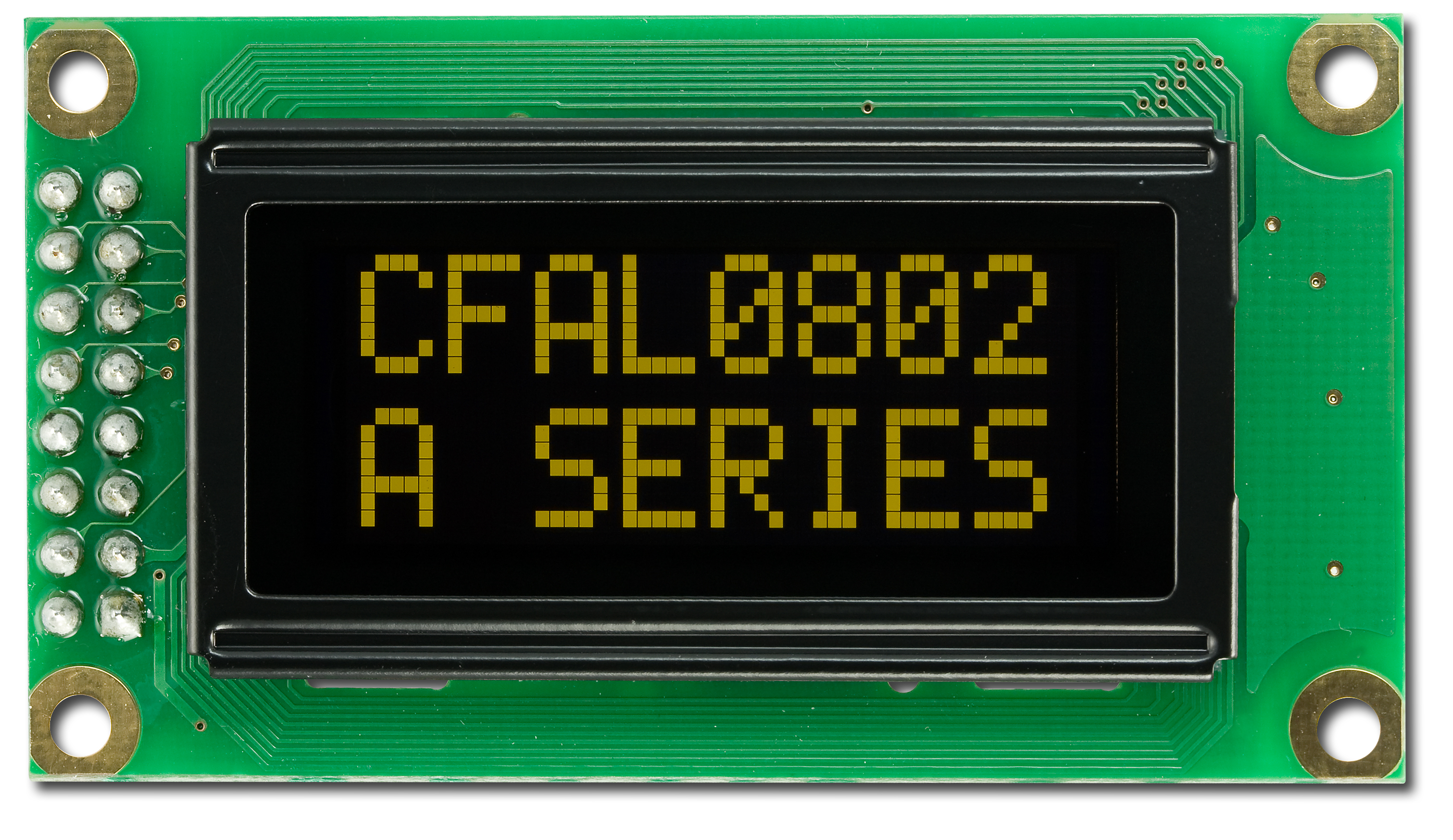

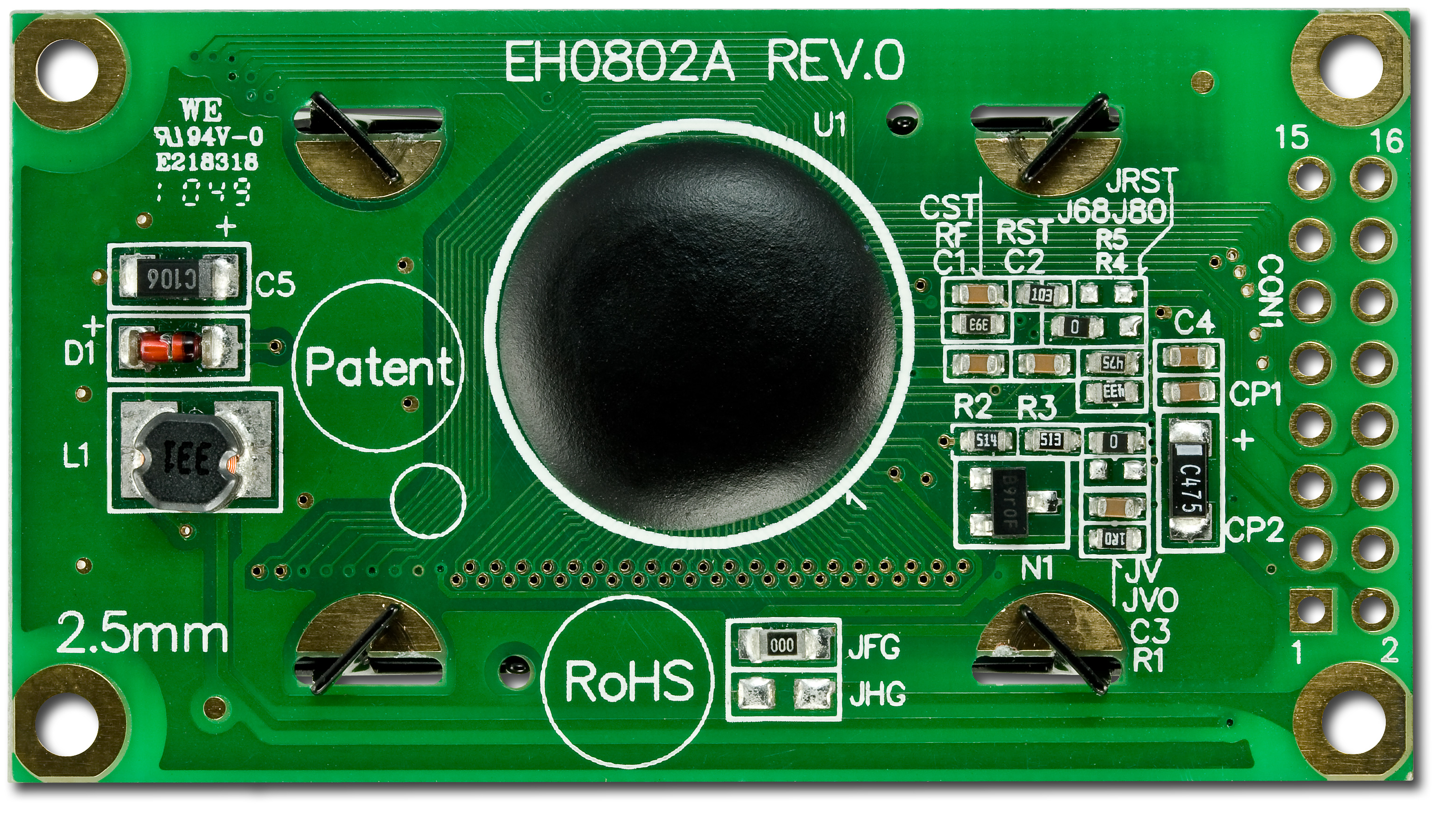

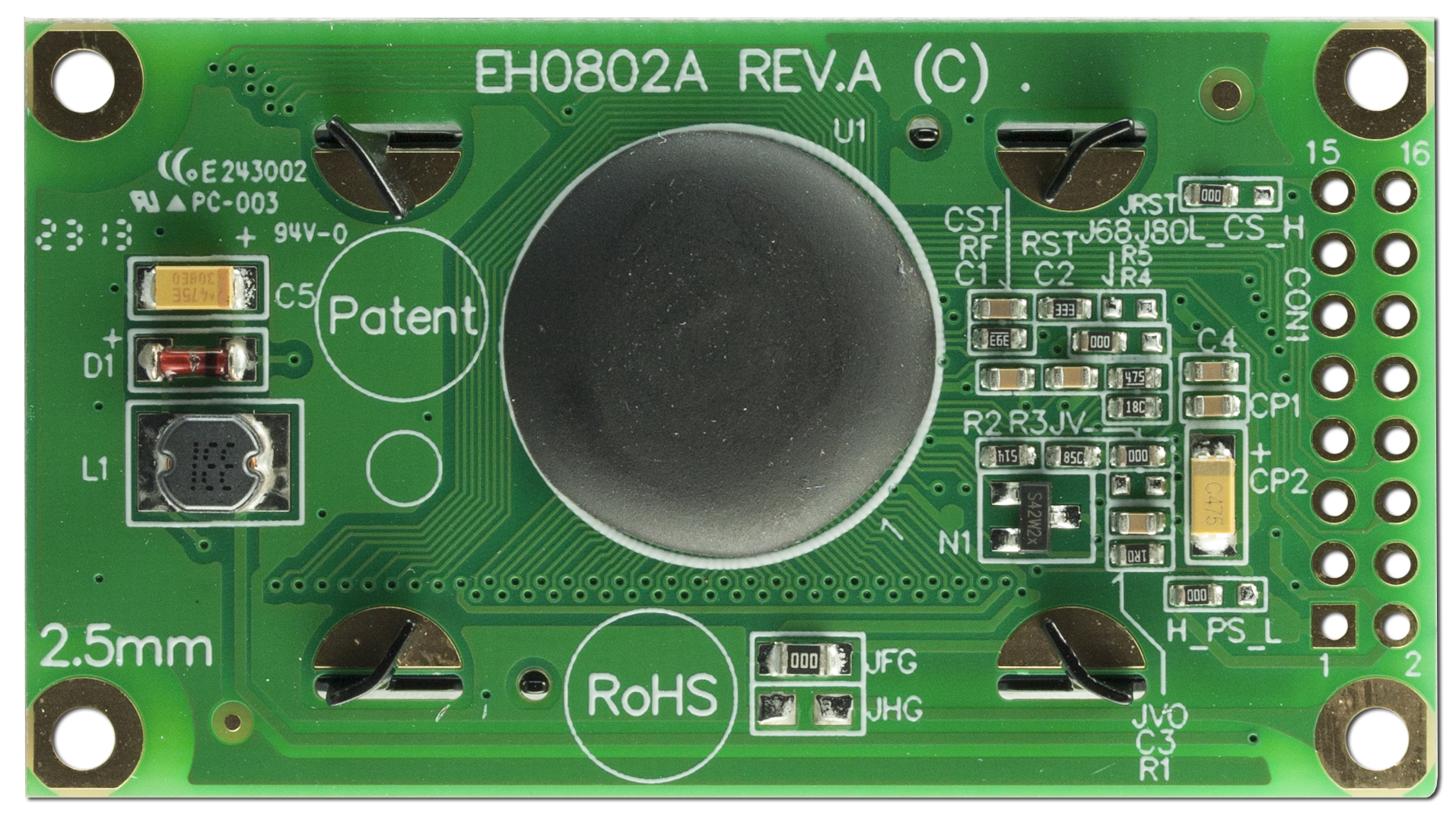

8x2 Character OLEDPart Number: CFAL0802A-YConsider using this yellow 8x2 character OLED to replace your existing STN character display. OLED character displays are great if you're building a low-power device as they require very low amps, only 16mA for this OLED display.
8-bit or 4-bit parallel interface.
The WS0010 controller interface is very similar to industry standard Hitachi HD44780.
Operating temperature range from  -40°C to 80°C.
Need this module with a SPI interface?
Contact us about availability.
 square_foot Physical Characteristics
Physical Characteristics

        Characters x Lines
            8 x 2

    Module Overall        width
        height
        depth

        millimeters
        58
        32
        10

        inches
        2.28
        1.26
        0.39

        Diagonal Dimension
            1.2"

    Viewing Area        Width
        Height

        millimeters
        38
        16

        inches
        1.50
        0.63

    Active Area        Width
        Height

        millimeters
        28.16
        11.86

        inches
        1.11
        0.47

    Character Size        Width
        Height

        millimeters
        2.96
        5.56

        inches
        0.117
        0.219

    Character Pitch        Width
        Height

        millimeters
        3.6
        6.3

        inches
        0.142
        0.248

    Dot Size        Width
        Height

        millimeters
        0.56
        0.66

        inches
        0.022
        0.026

    Dot Pitch        Width
        Height

        millimeters
        0.6
        0.7

        inches
        0.024
        0.028

        Weight
            17g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type
            OLED
Polarizer
            Emissive

        Mode
            Positive
Foreground Color
            Yellow
Background Color
            Black

 electric_bolt Electrical Specification
Electrical Specifications

        Supply Voltage for Logic Minimum
            4.8V
Supply Voltage for Logic Maximum
            5.3V
Supply Voltage for Logic Typical
            5V

        Supply Current Minimum
            16mA
Supply Current Maximum
            22mA
Supply Current Typical
            19mA

 nature Environmental
Environmental

    Operating Temperatures        min
        max

        Celsius
        -40°
        80°

        Fahrenheit
        -40°
        176°

    Storage Temperatures        min
        max

        Celsius
        -40°
        80°

        Fahrenheit
        -40°
        176°

    Humidity        min
        max

        Non-condensing
        0%
        90%

 cable Electronics
Electronics

        Controller Documents
            Winstar Display WS0010

Interface
            4-bit Parallel, 8-bit Parallel

 picture_as_pdf Datasheets
picture_as_pdfCFAL0802AY Datasheet

 download Files and Downloads
link Arduino Demo Code Download on Github
link Arduino Demo Code Respository on Github
 assured_workload Compliance Documents
 picture_as_pdf Declaration of Conformity RoHS2
 picture_as_pdf Declaration of Conformity REACH

Need a written quote? Add to cart, then enter your email address in the "request a quote" box.
 Quantity:

Price:

            Quantity
            Unit Price

            1
            $19.03

            10
            $17.49

            20
            $16.98

            50
            $16.36

            100
            $15.47

            200
            $15.37

            300
            $14.51

            500 *
            $14.41

            1000 *
            $13.66

338 Units In-Stock & Ready To Ship
 Pricing is subject to change.
* Contact us about potential lead times.
