8x2 Pin Dual Row Header

Part Number: CFAPN14409

This 16-position (8x2), 0.1", dual row header is compatible with most of our graphical LCDs (CFAG) and character LCDs (CFAH). This header can easily be cut down to fit when fewer positions are needed.

One end of this header is longer than the other to facilitate soldering directly to displays with a dual row header design.

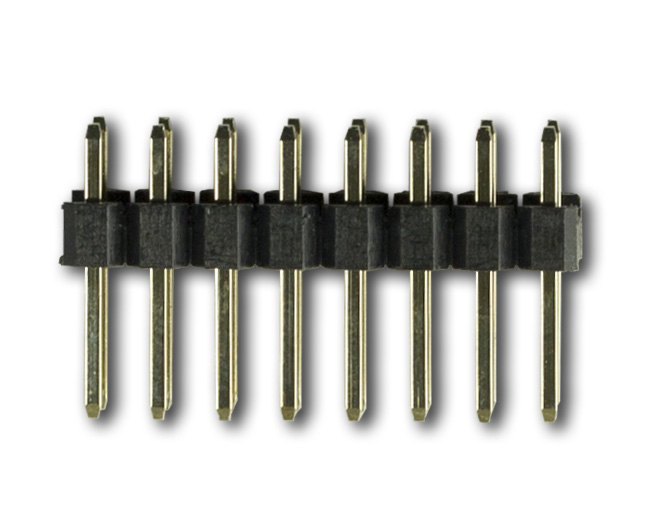

8x2 Pin Dual Row Header (CFAPN14409)

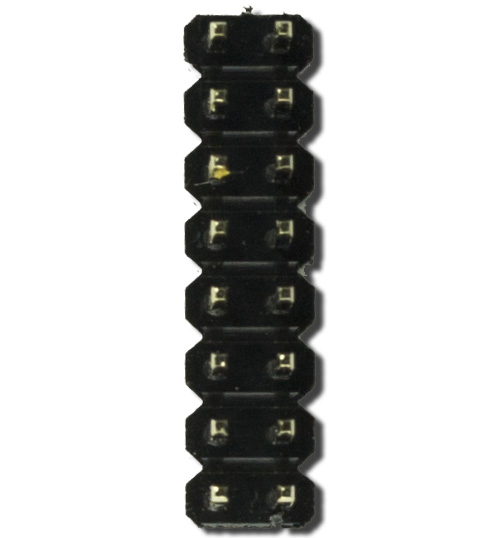

8x2 Dual Row Header Pins, top view.

Quantity	Price
5	$0.28
10	$0.16
100	$0.13
500	$0.10
1000	$0.09

* Pricing is subject to change. Contact us about potential lead times.

Components worth considering

1871

6-inch Female to Female Jumper Wires
Add jumper wires $3.38 ea.

Need a written quote? Add to cart, then enter your email address in the "request a quote" box.

Files

Hardware Design - 3D Model

Hardware Design - Mechanical Drawing

Part Change Notices

Subscribe to Part Change Notices by
email or RSS for CFAPN14409

Compliance Documents

Declaration of Conformity RoHS2

TECHNICAL SPECS

Physical Characteristics

Weight	0.9g
Pin Count	16

Electrical Specifications

Module Connector Pitch

2.54mm

Compatible Products

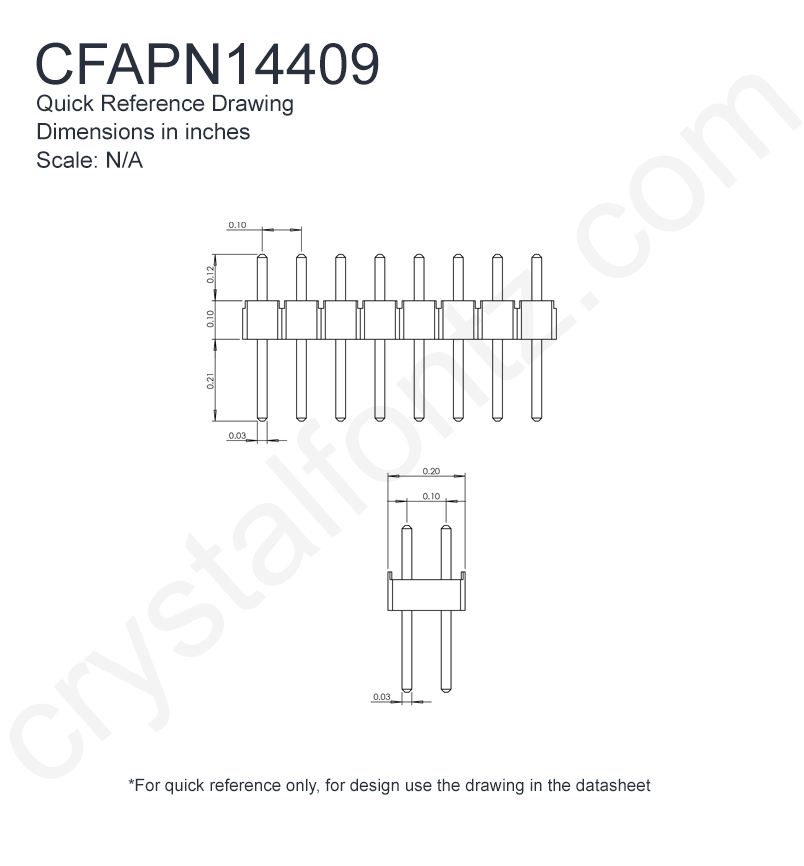

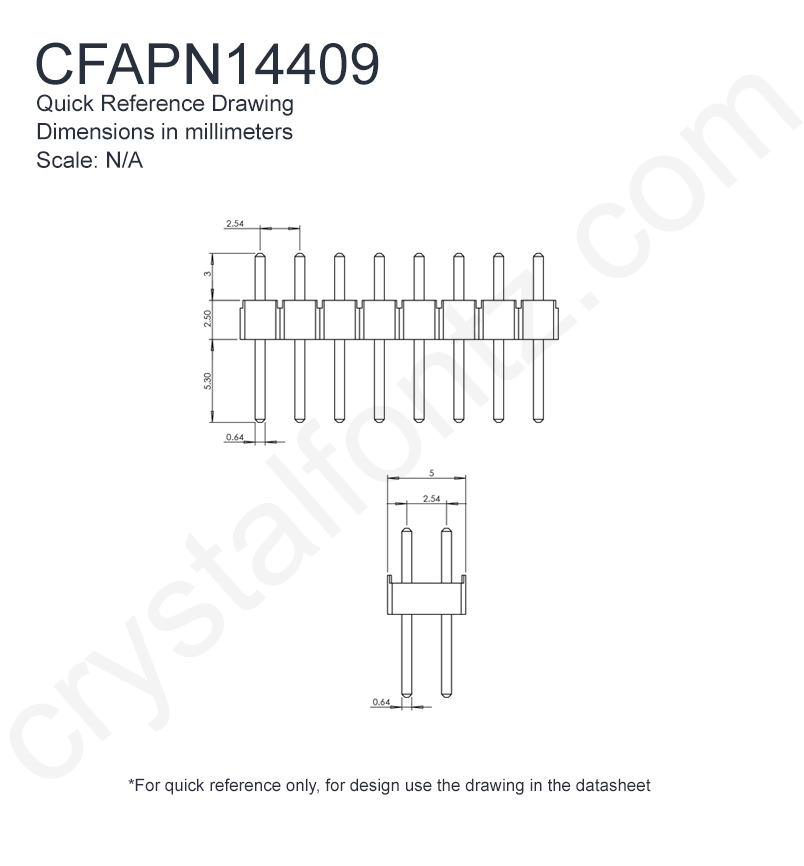

Dimensions

For reference only. For design purposes, please use the specifications in the datasheet.
