Small 128x32 Graphic OLED

Part Number: CFAL12832A-022W

Pricing

Quantity Price
1 $14.82
10 $12.88
20 $12.42
50 $11.96
100 $11.26
200 * $11.08
300 * $10.49
500 * $10.40
1000 * $9.32
* Contact us about potential lead times.
Qty:
Need a written quote? Add to cart, then enter your email address in the "request a quote" box.

Datasheet

CFAL12832A022W Datasheet
(Datasheet V 1.0)

Part Change Notices

Subscribe to Part Change Notices by
email Email subscription for changes to CFAL12832A-022W or RSS RSS feed for changes to CFAL12832A-022W for CFAL12832A-022W

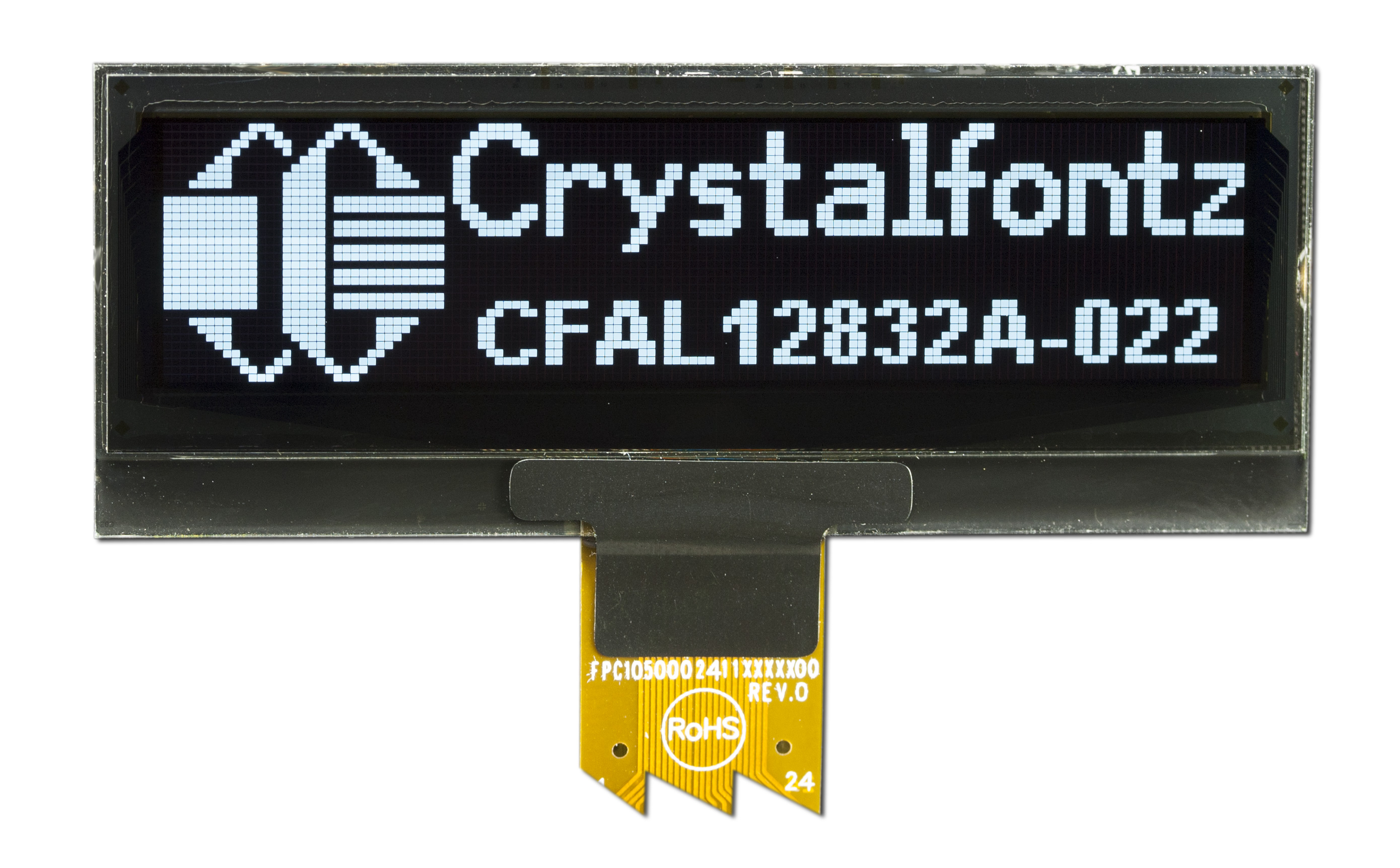

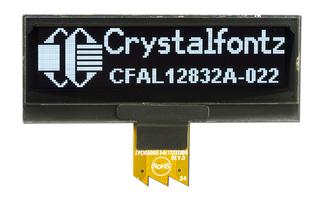

Small 128x32 Graphic OLED (CFAL12832A-022W)
Small 128x32 Graphic OLED
Close

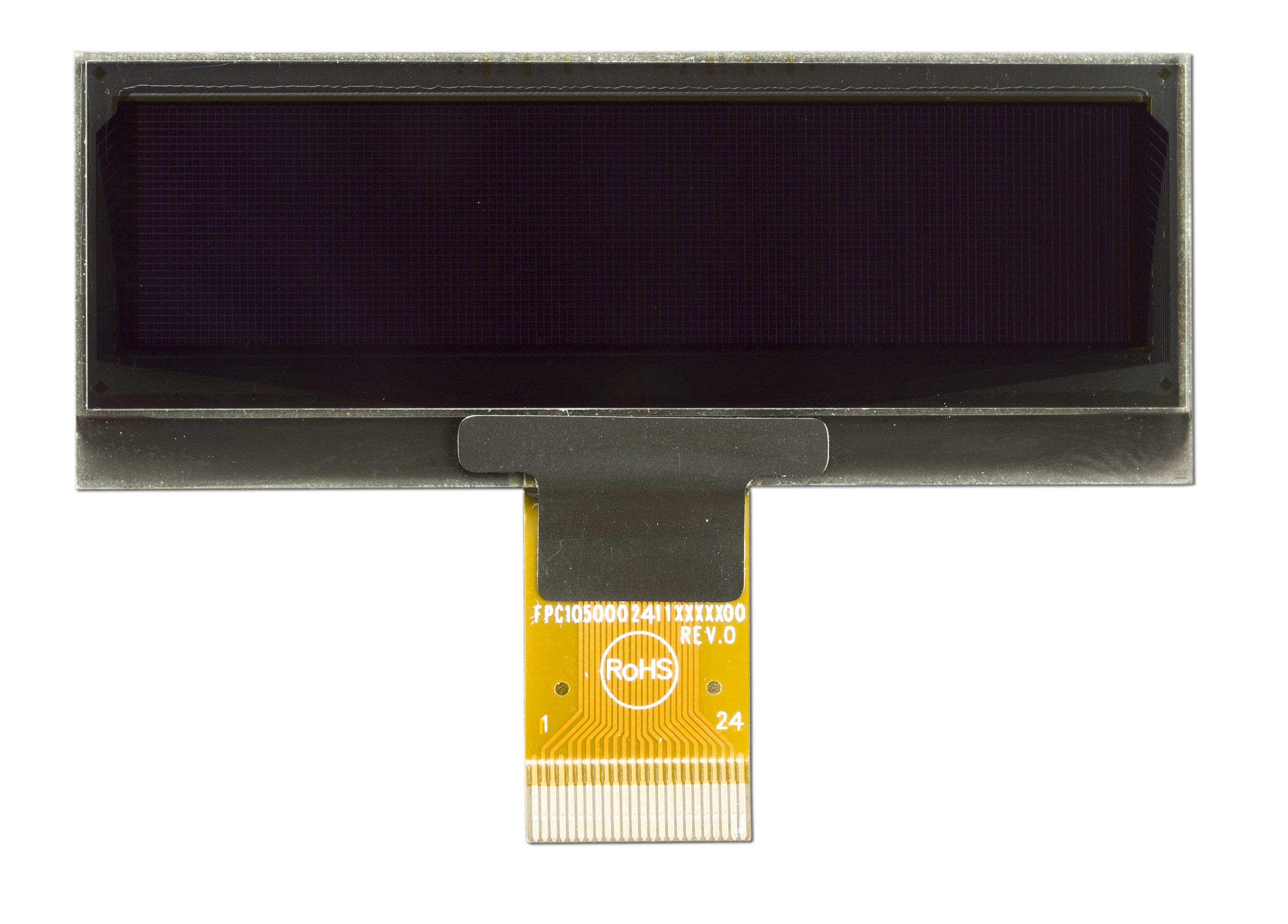

128x32 small white oled display, front, powered off.
128x32 small white oled display, front, powered off.
128x32 small white oled display, front, powered off.
Close

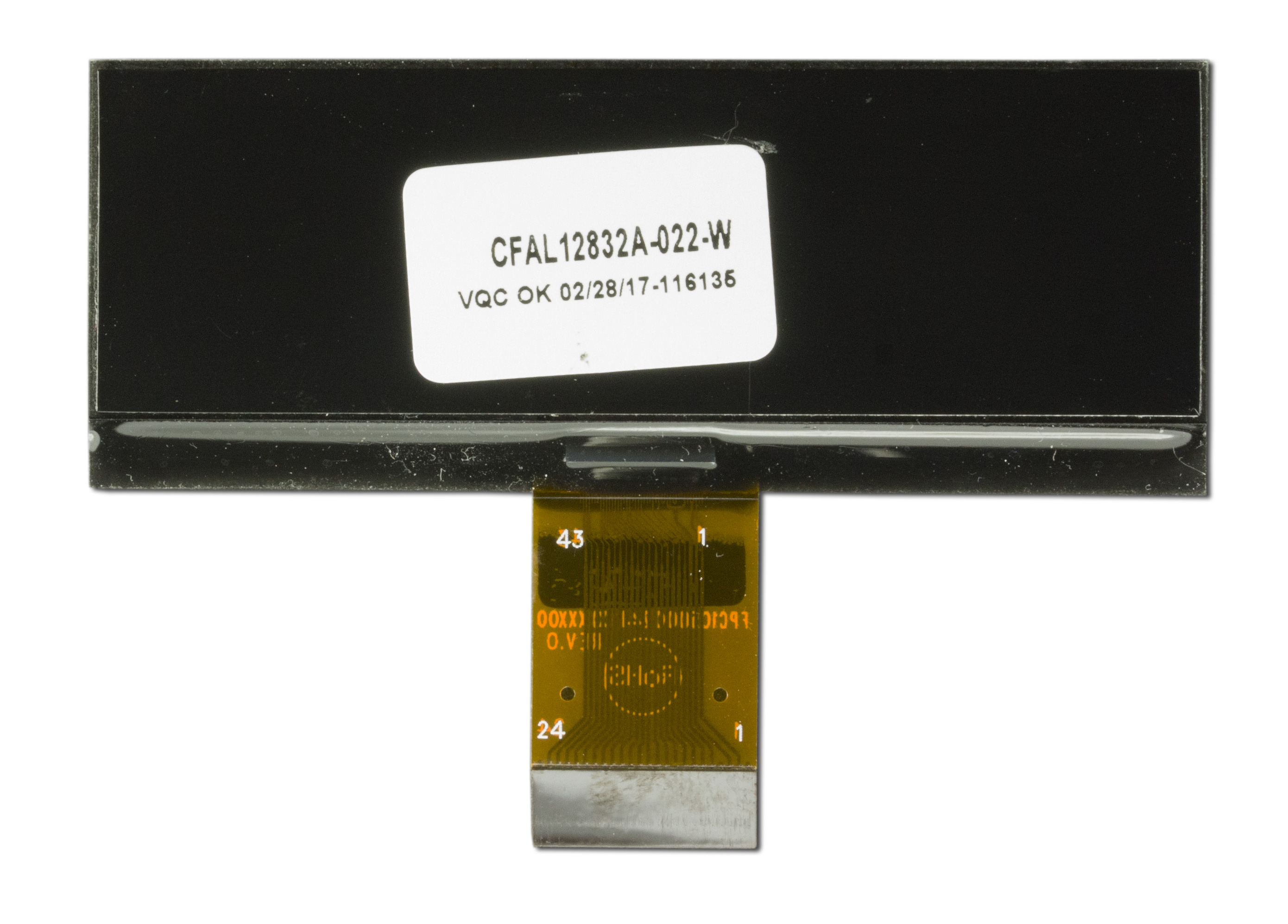

128x32 small oled display, back view.
128x32 small oled display, back view.
128x32 small oled display, back view.
Close

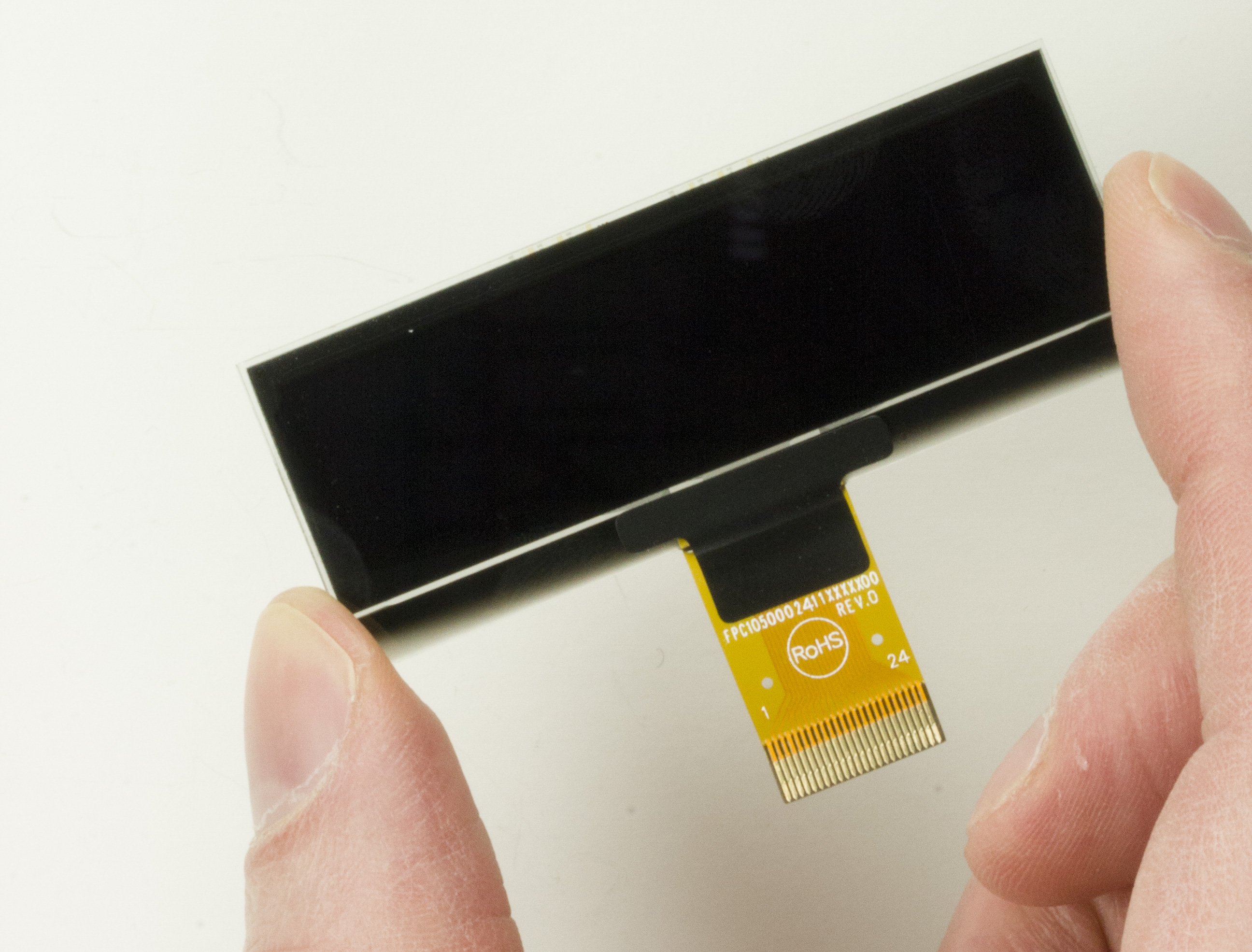

128x32 small oled display, front, in hand.
128x32 small oled display, front, in hand.
128x32 small oled display, front, in hand.
Close

Description

128x32 small, highly readable, white on black, graphical OLED. If you're looking for a small high definition OLED module, with low power requirements, this one may work for you.

  • 128*32 Dot Matrix
  • Built-in controller Solomon Systech SSD1305
  • +3V Power supply
  • 1/32 duty
  • Interface: 6800, 8080, SPI, I2C
  • Arduino Compatible! Checkout the demo sketch in the files section

TECHNICAL SPECS

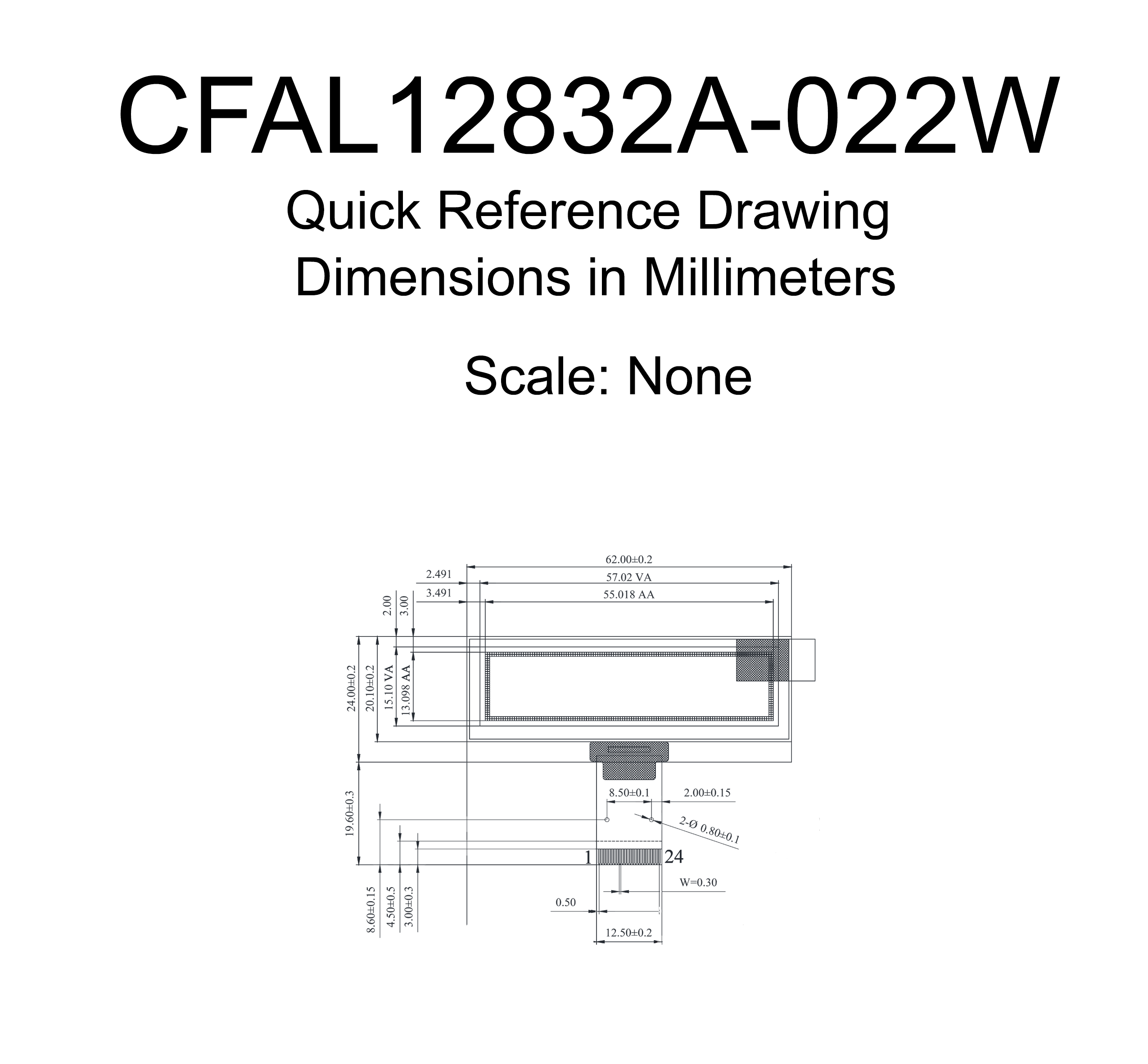

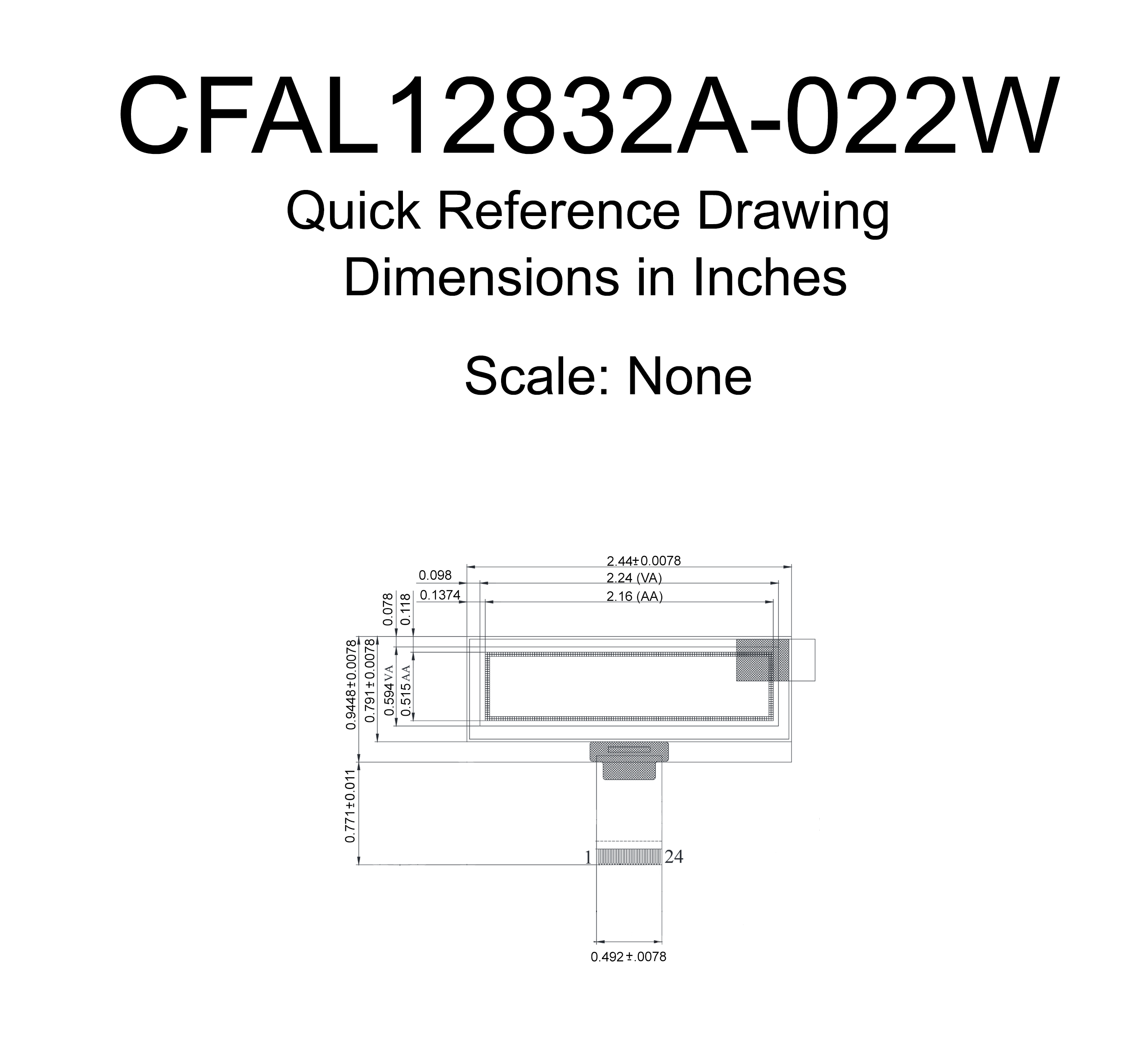

Physical Characteristics

Column Dots x Row Dots 128 x 32
Module Overall width height depth
millimeters 62 24 2.35
inches 2.441 0.945 0.093
*width / height does not include Foldable Tab
Diagonal Dimension 2.200"
Viewing Area width height
millimeters 57.02 15.1
inches 2.245 0.594
Active Area width height
millimeters 55.018 13.098
inches 2.1661 0.5157
Dot Size width height
millimeters 0.408 0.388
inches 0.0161 0.0153
Dot Pitch width height
millimeters 0.43 0.41
inches 0.017 0.016
Flexible Cable (FFC/FPC) length
millimeters 19.6
inches 0.772
Weight 6.3g

Optical Characteristics

Glass Type OLED
Polarizer Emissive
View Angle 160°
Foreground Color White
Background Color Black

Electrical Specifications

Supply Voltage for Logic Typical 3.3V
Supply Voltage for Driving LCD Typical 12V

Environmental

Operating Temperatures min max
Celsius -40° 80°
Fahrenheit -40° 176°
Storage Temperatures min max
Celsius -40° 80°
Fahrenheit -40° 176°

Electronics

Controller Documents Solomon Systech SSD1305
SSD1305 132 x 64 Dot Matrix
OLED/PLED Segment/Common Driver with Controller
Interface 8-bit Parallel, I2C, SPI

Miscellaneous

Foldable Tab Yes

Part Change Notice

Subscribe to Part Change Notices by email Email subscription for changes to CFAL12832A-022W or RSS RSS feed for changes to CFAL12832A-022W

Product Update #10848: (New Product) CFAL12832A-022W

New Product: CFAL12832A-022W
Date Issued: April 14, 2017
Summary: (New Product) CFAL12832A-022W
Description: OLED Modules: 128x32 small, highly readable, white on black, graphical OLED. If you're looking for a small high definition OLED module, with low power requirements, this one may work for you.


128*32 Dot Matrix
Built-in controller SSD1305Z
+3V Power supply
1/32 duty
Interface: 6800, 8080, SPI, I2C
For reference only. For design purposes, please use the specifications in the datasheet.
