128x64 2.2 inch White OLED

Part Number: CFAL12864CW-B1

Pricing

Quantity Price
1 $16.02
10 $13.93
20 $13.43
50 $12.94
100 $12.73
200 $12.54
500 * $12.13
1000 * $11.13
* Contact us about potential lead times.
Qty:


Need a written quote? Add to cart, then enter your email address in the "request a quote" box.

Datasheet


Files


Part Change Notices

Subscribe to Part Change Notices by
email Email subscription for changes to CFAL12864CW-B1 or RSS RSS feed for changes to CFAL12864CW-B1 for CFAL12864CW-B1


REACH & RoHS

Declaration of Conformity RoHS2


Declaration of Conformity REACH
128x64 2.2 inch White OLED (CFAL12864CW-B1)

Product Variants


8-bit Parallel / I2C / SPI

CFAL12864C-Y-B1CFAL12864CYB1
CFAL12864CW-B1CFAL12864CWB1
CFAL12864CB-B1CFAL12864CBB1

Description

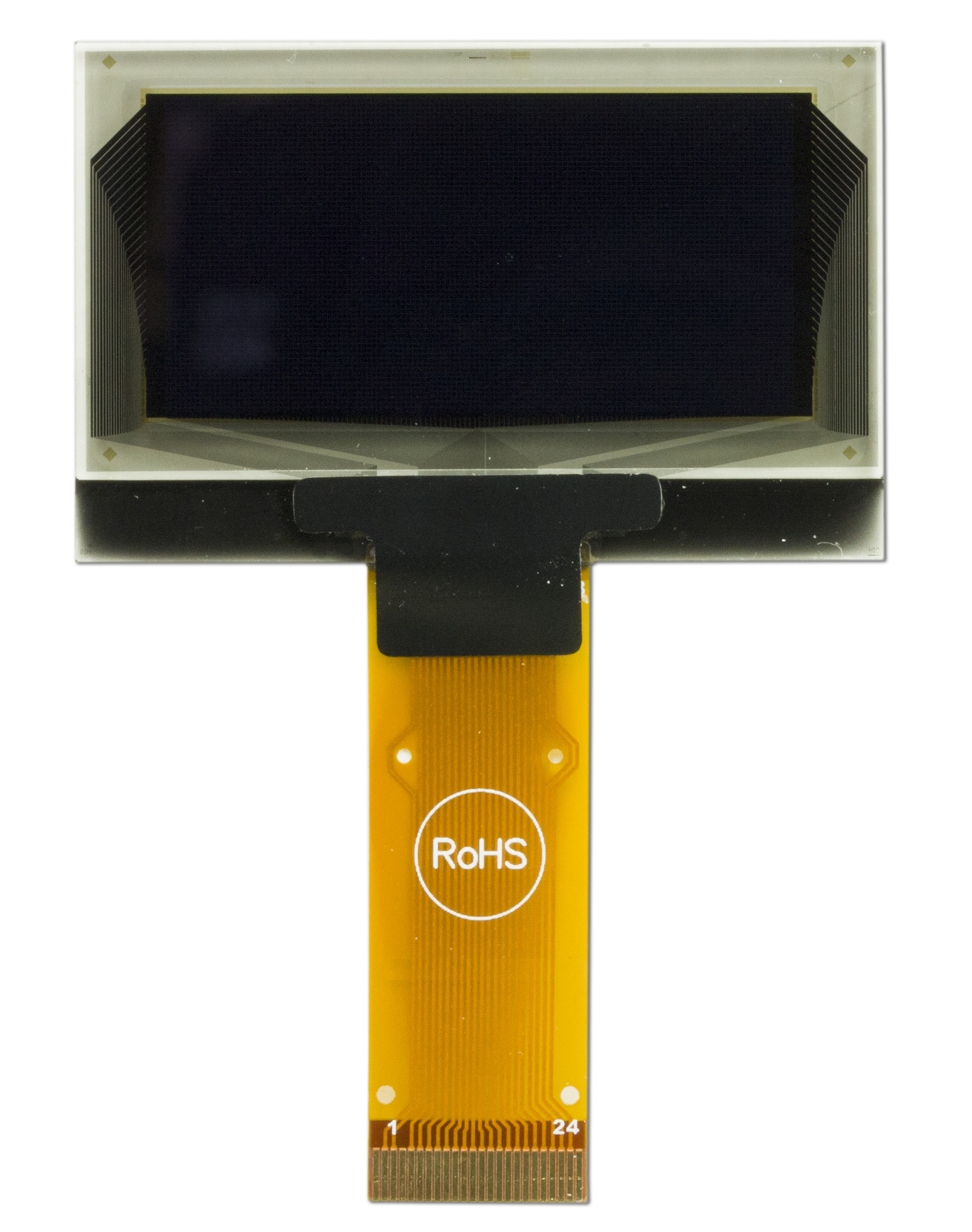

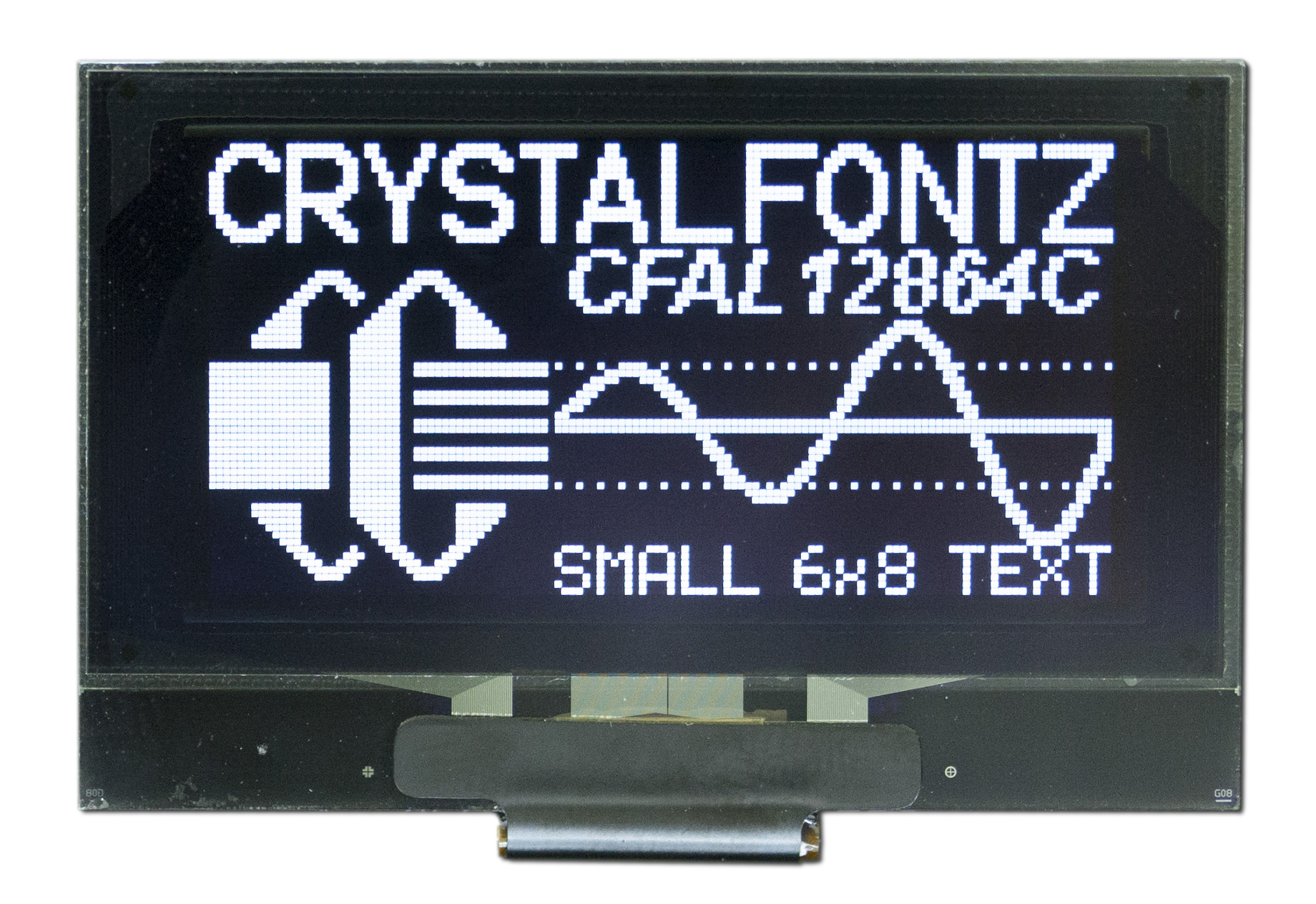

128x64 2.2 inch White OLED
  • SSD1305 Controller
  • 24-pin zif connector
  • Super high contrast, for easy readability
  • Small power requirements (3.3V)
  • 6800, 8080, I2C and SPI interfaces

TECHNICAL SPECS

For reference only. For design purposes, please use the specifications in the datasheet.

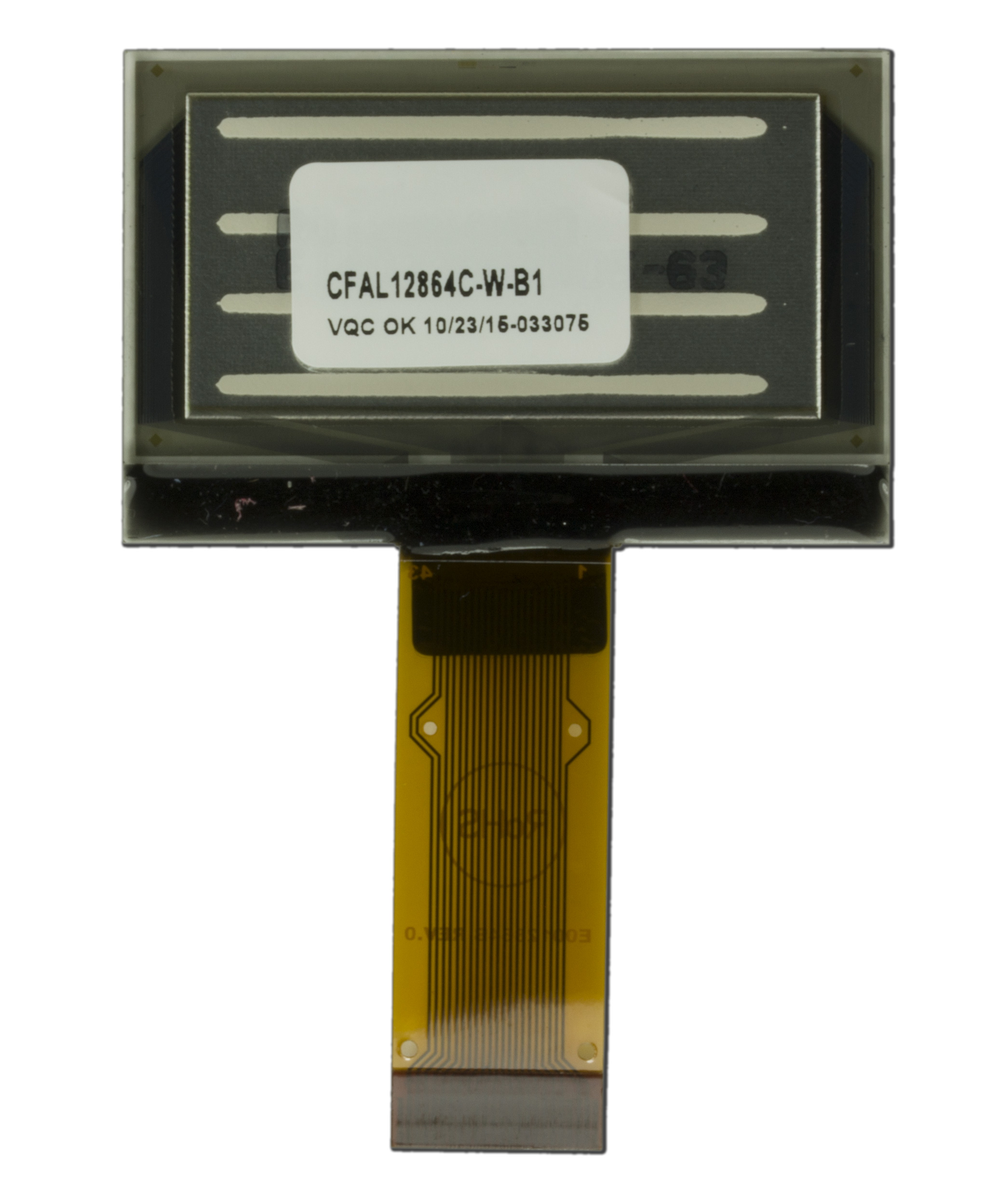

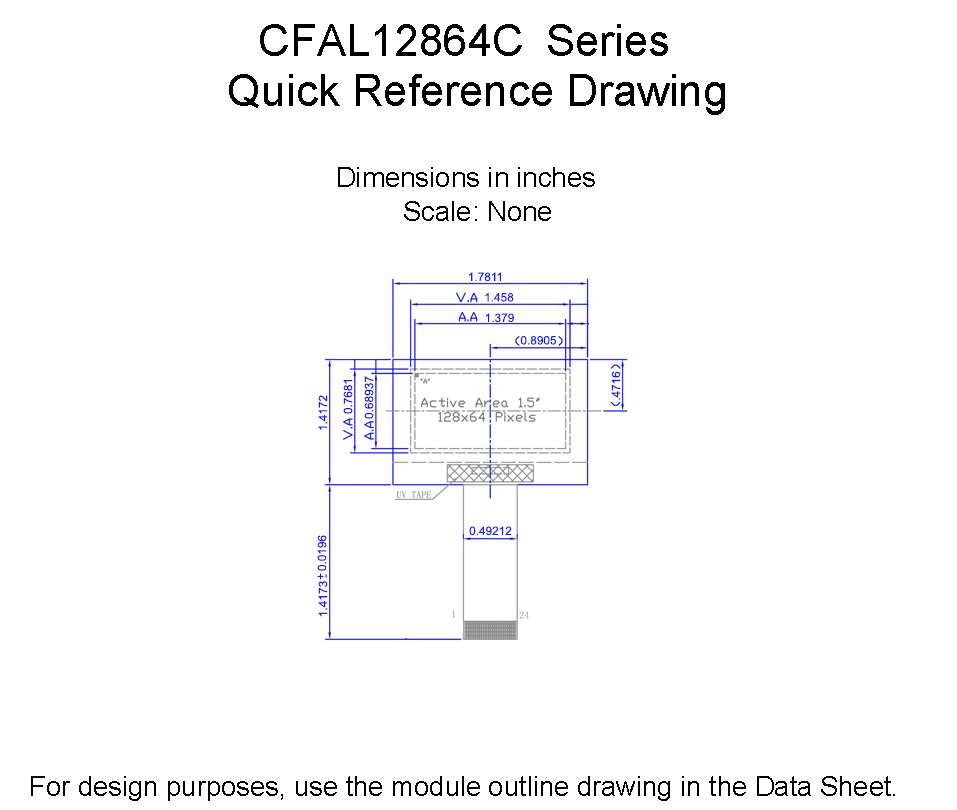

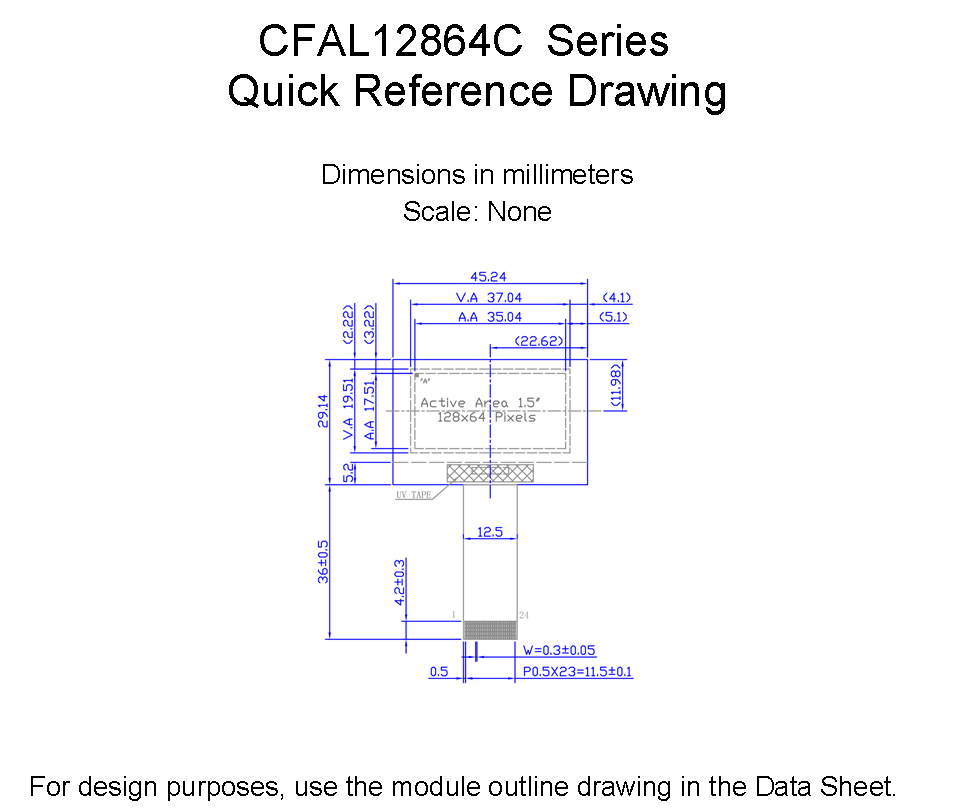

Physical Characteristics

Column Dots x Row Dots 128 x 64
Module Overall width height depth
millimeters 45.24 29.14 2.2
inches 1.781 1.147 0.087
*width / height does not include Foldable Tab
Diagonal Dimension 1.500"
Viewing Area width height
millimeters 37.04 19.51
inches 1.458 0.768
Active Area width height
millimeters 35.04 17.51
inches 1.380 0.689
Dot Size width height
millimeters 0.24 0.24
inches 0.009 0.009
Dot Pitch width height
millimeters 0.27 0.27
inches 0.011 0.011
Weight 6g

Optical Characteristics

Glass Type OLED
Polarizer Emissive
Mode Positive
Foreground Color White
Background Color Black

Electrical Specifications

Supply Voltage for Logic Typical 3.3V
Supply Voltage for Driving LCD Typical 12V
Module Connector Pitch 0.5mm

Environmental

Operating Temperatures min max
Celsius -40° 80°
Fahrenheit -40° 176°
Storage Temperatures min max
Celsius -40° 80°
Fahrenheit -40° 176°
Humidity min max
Non-condensing 0% 90%

Electronics

Controller Solomon Systech SSD1305
Interface 8-bit Parallel, I2C, SPI

Miscellaneous

Foldable Tab Yes

*Suggest a Correction

Part Change Notice

Subscribe to Part Change Notices by email Email subscription for changes to CFAL12864CW-B1 or RSS RSS feed for changes to CFAL12864CW-B1

Part Change Notice #11021: Part Change Notification

Products Affected: CFAL12864C-Y-B1, CFAL12864CW-B1
Date Issued: November 1, 2018
Summary: Part Change Notification
Description: The parts listed are being replaced by new part numbers
Reason: The glass used in these displays is being replaced by thinner more efficient glass.
Impact: The part numbers listed will be replaced by new part numbers. The operation of the displays will not change. The overall thickness of each of the displays will decrease by 0.05mm.

The part numbers changes are:

CFAL12864C-Y-B1 - CFAL12864D-0154M-Y
CFAL12864C-W-B1 - CFAL12864D-0154M-W
Recommendation: Users are recommended to verify that the change in the thickness dimension will not affect the installation of the displays.
Availability: The new parts will be available when current stock is depleted.

Product Update #10855: (New Product) CFAL12864CW-B1

New Product: CFAL12864CW-B1
Date Issued: May 22, 2017
Summary: (New Product) CFAL12864CW-B1
Description: New OLED Display Module: 128x64 2.2 inch White OLED

SSD1305 Controller
24-pin zif connector
Super high contrast, for easy readability
Small power requirements (3.3V)
6800, 8080 and SPI interfaces

See Details:
https://www.crystalfontz.com/product/cfal12864cwb1-128x64-small-white-oled
For reference only. For design purposes, please use the specifications in the datasheet.
