                        This product has reached end of life We suggest the CFAL12864LX-G as a possible replacement.

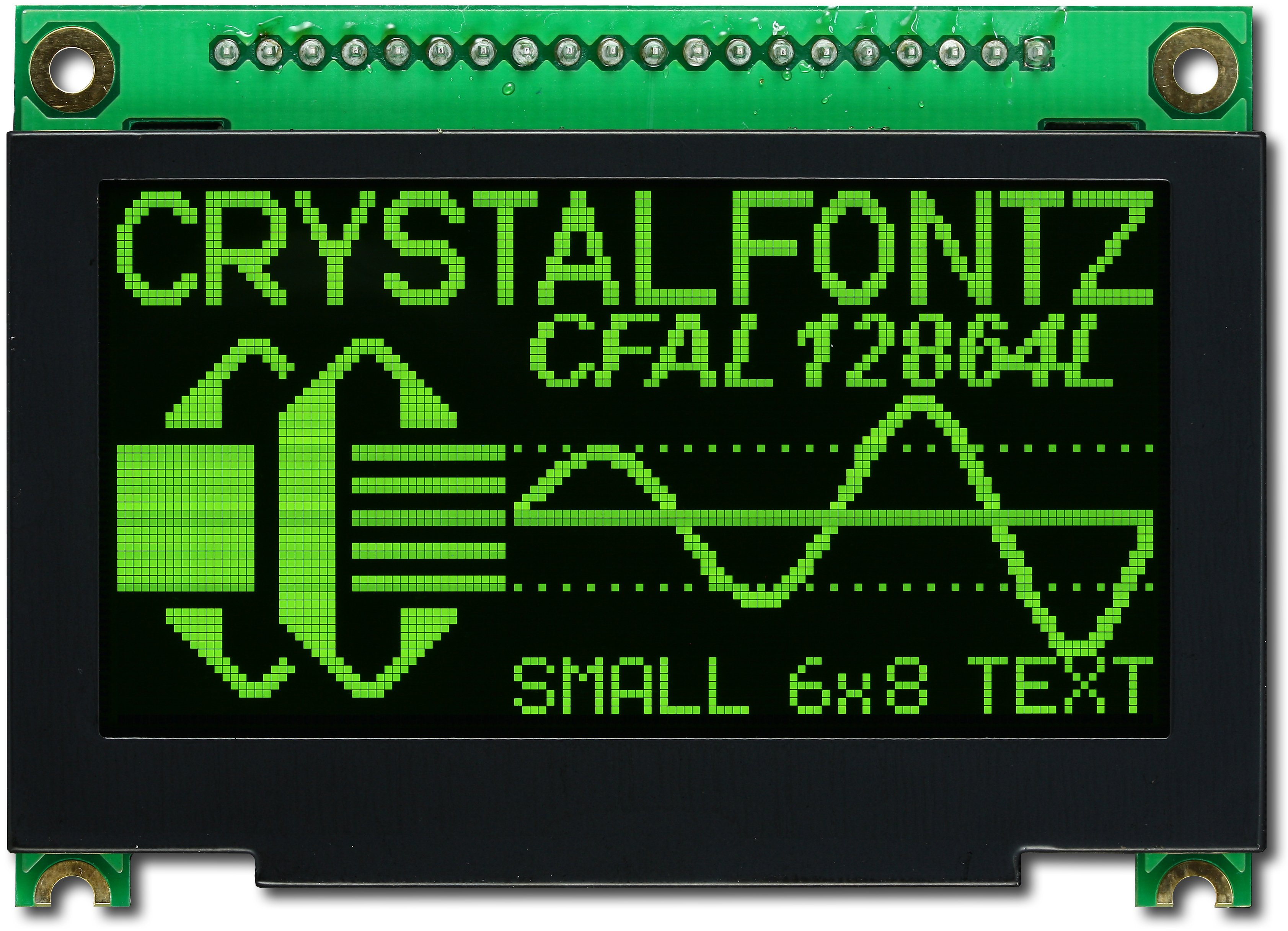

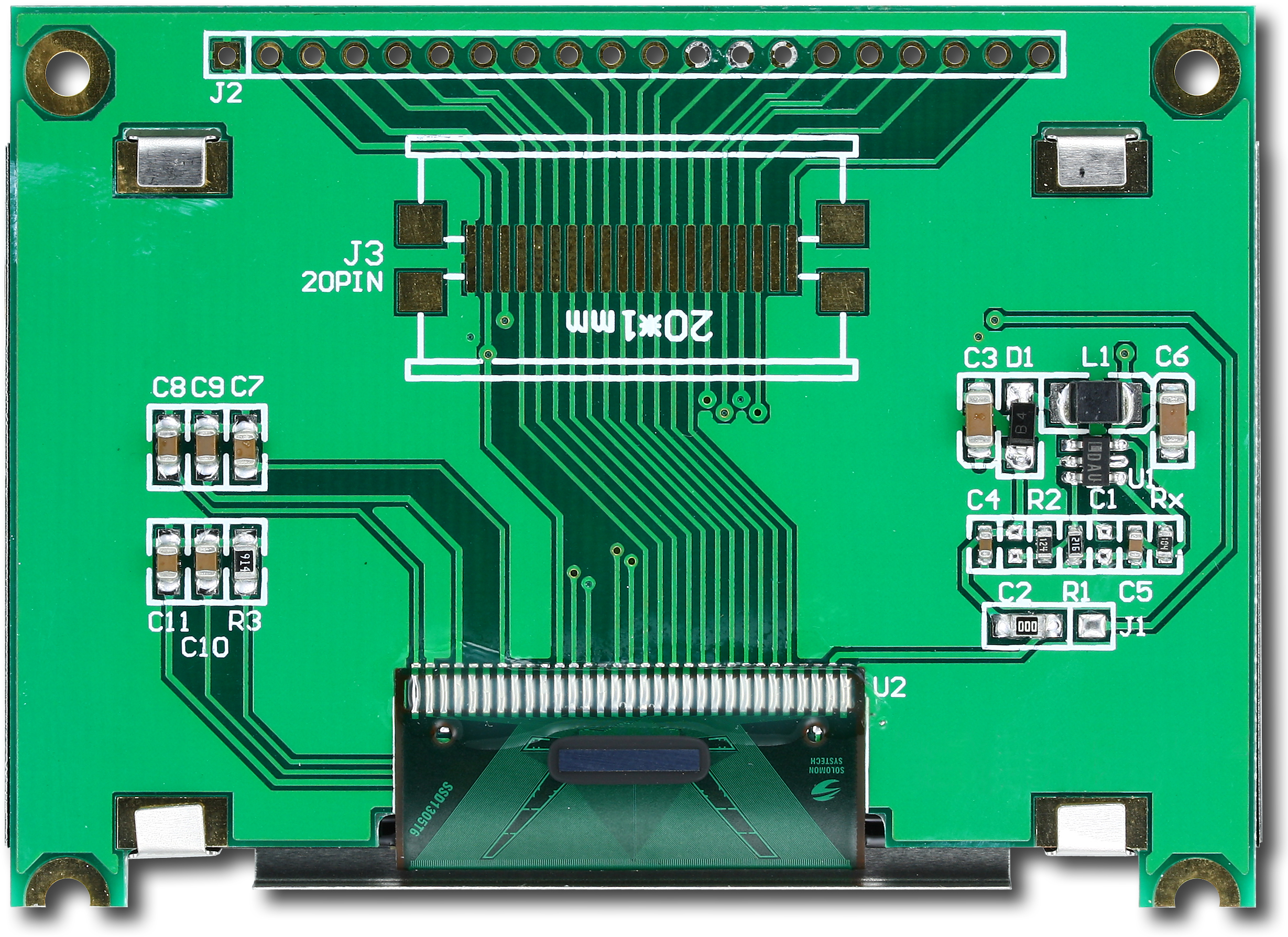

[EOL] 128x64 Parallel Graphic Green OLEDPart Number: CFAL12864L-G-B2128 x 64 Graphic OLED module, Green OLED
	128x64 graphic OLED display module
	Single 3v supply and logic levels (modules with PCB only)
	Extremely wide viewing angles
	Very high contrast ratio
	Built-in Solomon SSD1305 or compatible controller
	8-bit parallel interface or SPI Interface
	RoHS Compliant
 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            128 x 64

    Module Overall        width
        height
        depth

        millimeters
        74.8
        53.5
        6

        inches
        2.95
        2.11
        0.24

    PCB Outline        width
        height
        depth

        millimeters
        74.8
        53.5
        6

        inches
        2.95
        2.11
        0.24

    Viewing Area        Width
        Height

        millimeters
        63.41
        32.69

        inches
        2.50
        1.29

    Active Area        Width
        Height

        millimeters
        61.4
        30.7

        inches
        2.42
        1.21

    Dot Size        Width
        Height

        millimeters
        0.45
        0.45

        inches
        0.018
        0.018

    Dot Pitch        Width
        Height

        millimeters
        0.48
        0.48

        inches
        0.019
        0.019

        Weight
            28g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type
            OLED
Polarizer
            Emissive

        Backlight Type
            None
Mode
            Positive
Foreground Color
            Green
Background Color
            Dark

 electric_bolt Electrical Specification
Electrical Specifications

        Module Connector Pitch
            0.10mm

 nature Environmental
Environmental

    Operating Temperatures        min
        max

        Celsius
        -20°
        70°

        Fahrenheit
        -4°
        158°

    Storage Temperatures        min
        max

        Celsius
        -30°
        80°

        Fahrenheit
        -22°
        176°

    Humidity        min
        max

        Non-condensing
        0%
        90%

 cable Electronics
Electronics

        Controller Documents
            Solomon Systech SSD1305
SSD1305 132 x 64 Dot Matrix

OLED/PLED Segment/Common Driver with Controller
Interface
            8-bit Parallel, SPI

picture_as_pdf Datasheets
picture_as_pdfCFAL12864LGB2 Data Sheet v1.1.pdf
(Datasheet V 1.1, Hardware 2.2)
Previous Versions of Datasheetspicture_as_pdfCFAL12864LGB2 v1.0.pdf
(Datasheet V 1.0, Hardware A)
picture_as_pdfCFAL12864LGB2.pdf

download Files and Downloads
folder_zip Software Source - ATmega2561 Demonstration Code
folder_zip CAD Export - CFAL12864L-G-W-Y-B2
picture_as_pdf 1 to 1 Template - CFAL12864L-G-W-Y-B2 1 TO 1.PDF

Module Overall	width	height	depth
millimeters	74.8	53.5	6
inches	2.95	2.11	0.24

PCB Outline	width	height	depth
millimeters	74.8	53.5	6
inches	2.95	2.11	0.24

Viewing Area	Width	Height
millimeters	63.41	32.69
inches	2.50	1.29

Active Area	Width	Height
millimeters	61.4	30.7
inches	2.42	1.21

Dot Size	Width	Height
millimeters	0.45	0.45
inches	0.018	0.018

Dot Pitch	Width	Height
millimeters	0.48	0.48
inches	0.019	0.019

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Humidity	min	max
Non-condensing	0%	90%

Notices

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Part Change Notice #10344: This part will soon be End of Life and no longer available. There is no cross reference or substitute part.

Products Affected:	CFAL12822A-Y-B, CFAL12864L-Y-B2, CFAL12864L-G-B2, CFAL12864L-Y-B4, CFAL12864L-G-B4, CFAL12822A-Y-B1, CFAL12864S-Y-B1, CFAL160128B-F-B2, CFAL12832C-B-B1
Date Issued:	April 21, 2011
Summary:	This part will soon be End of Life and no longer available. There is no cross reference or substitute part.
