This product has reached end of life. We suggest the CFAL12864LX-G as a possible replacement.

128x64 Parallel Graphic OLED

Part Number: CFAL12864L-G-B4

Datasheet

CFAL12864LGB4 Data Sheet v2.1.pdf
(Datasheet V 2.1, Hardware 1.1)
Previous Versions of Datasheets
CFAL12864LGB4 v2.0.pdf
(Datasheet V 2.0, Hardware 1.1)
CFAL12864LGB4 v1.0.pdf
(Datasheet V 1.0, Hardware A)

Part Change Notices

Subscribe to Part Change Notices by
email Email subscription for changes to CFAL12864L-G-B4 or RSS RSS feed for changes to CFAL12864L-G-B4 for CFAL12864L-G-B4

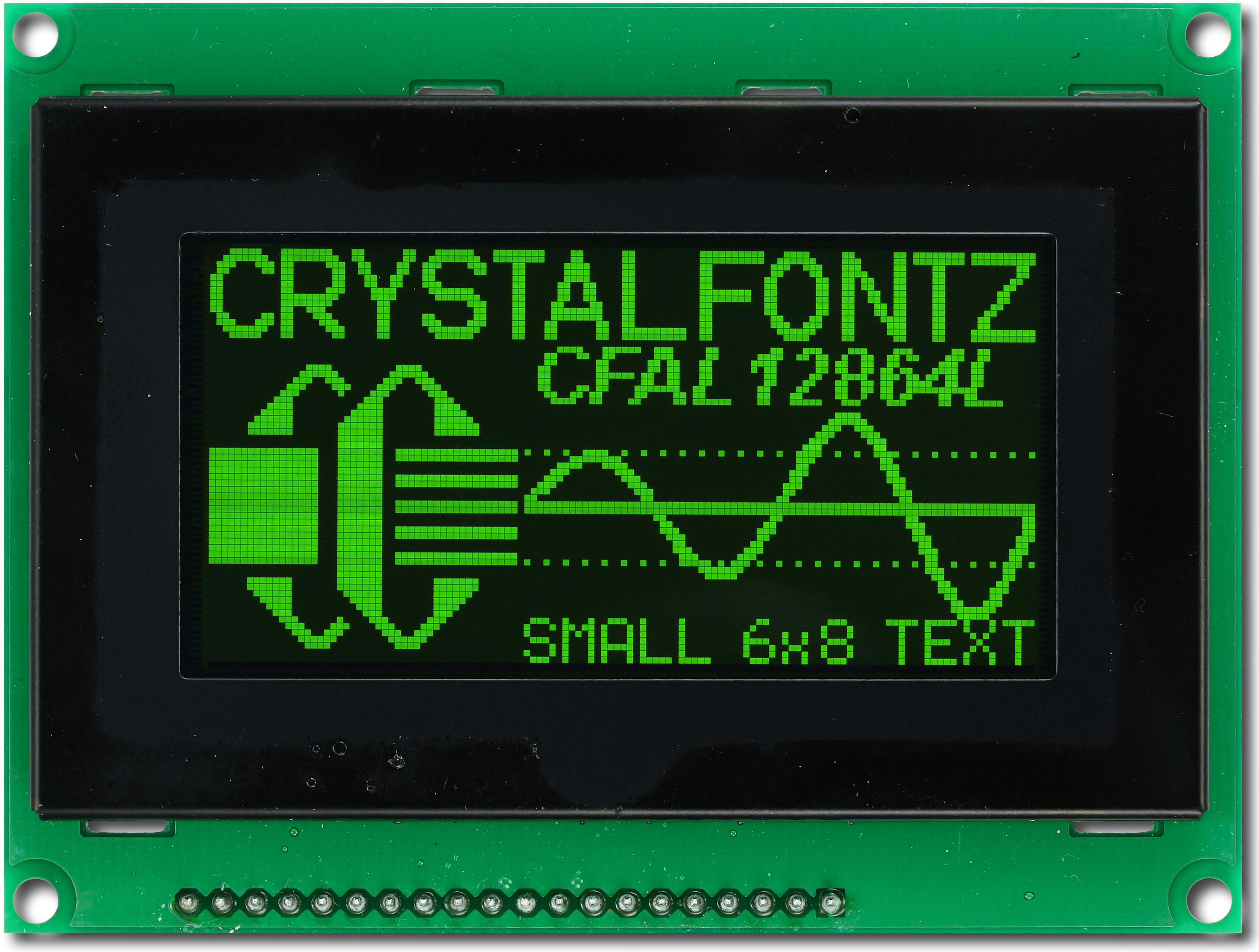

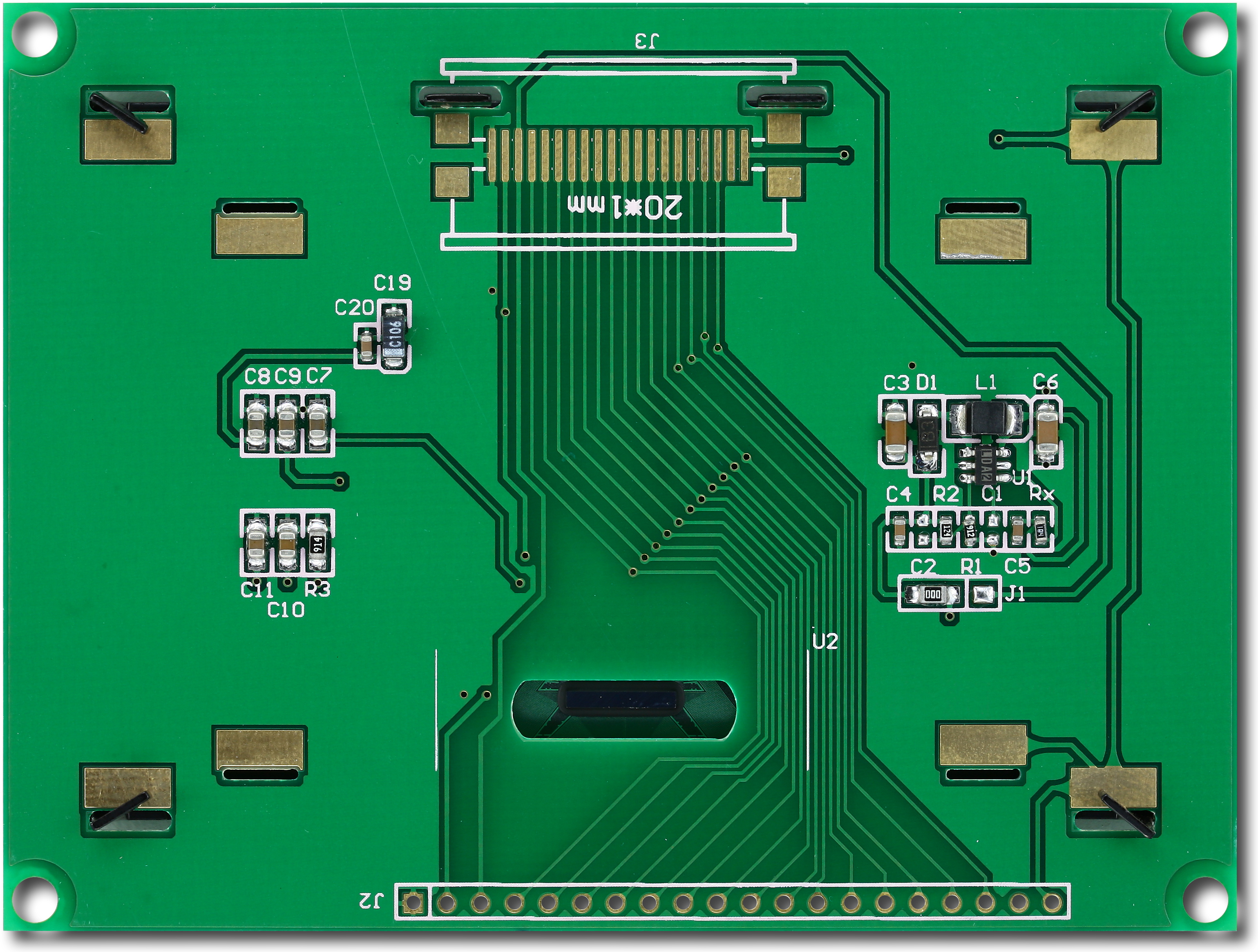

128x64  Parallel Graphic OLED (CFAL12864L-G-B4)
128x64 Parallel Graphic OLED
Close

Description

128 x 64 Graphic OLED module, Green OLED

  • 128x64 graphic OLED display module
  • Single 3v supply and logic levels (modules with PCB only)
  • Extremely wide viewing angles
  • Very high contrast ratio
  • Built-in Solomon SSD1305 or compatible controller
  • 8-bit parallel interface or SPI Interface
  • RoHS Compliant

TECHNICAL SPECS

Physical Characteristics

Column Dots x Row Dots 128 x 64
Module Overall width height depth
millimeters 93 70 9
inches 3.661 2.756 0.354
PCB Outline width height depth
millimeters 93 70 9
inches 3.661 2.756 0.354
Viewing Area width height
millimeters 65 33
inches 2.559 1.299
Active Area width height
millimeters 61.4 30.7
inches 2.417 1.209
Dot Size width height
millimeters 0.45 0.45
inches 0.018 0.018
Dot Pitch width height
millimeters 0.48 0.48
inches 0.019 0.019
Weight 59g

Optical Characteristics

Glass Type OLED
Polarizer Emissive
Backlight Type None
Mode Positive
Foreground Color Green
Background Color Black

Electrical Specifications

Module Connector Pitch 0.10mm

Environmental

Operating Temperatures min max
Celsius -20° 70°
Fahrenheit -4° 158°
Storage Temperatures min max
Celsius -30° 80°
Fahrenheit -22° 176°
Humidity min max
Non-condensing 0% 90%

Electronics

Controller Documents Solomon Systech SSD1305
SSD1305 132 x 64 Dot Matrix
OLED/PLED Segment/Common Driver with Controller
Interface 8-bit Parallel, SPI

Part Change Notice

Subscribe to Part Change Notices by email Email subscription for changes to CFAL12864L-G-B4 or RSS RSS feed for changes to CFAL12864L-G-B4

Product Update #10640: (New Product) CFAL12864L-G-B4

New Product: CFAL12864L-G-B4
Date Issued: January 30, 2015
Summary: (New Product) CFAL12864L-G-B4
Description: OLED Modules: 128 x 64 Graphic OLED module, Green OLED

Part Change Notice #10344: This part will soon be End of Life and no longer available. There is no cross reference or substitute part.

Products Affected: CFAL12822A-Y-B, CFAL12864L-Y-B2, CFAL12864L-G-B2, CFAL12864L-Y-B4, CFAL12864L-G-B4, CFAL12822A-Y-B1, CFAL12864S-Y-B1, CFAL160128B-F-B2, CFAL12832C-B-B1
Date Issued: April 21, 2011
Summary: This part will soon be End of Life and no longer available. There is no cross reference or substitute part.

Part Change Notice #10022: Datasheet update

Products Affected: CFAL12864L-Y-B4, CFAL12864L-G-B4
Date Issued: October 30, 2009
Summary: Datasheet update
Last revision: 1.0
Description: * In Absolute Maximum Ratings,
o Changed “Operating Temperature” from minimum “-40°C” to “-20°C” and maximum “+80°C” to “+70°C”.
o Changed “Storage Temperature” from minimum “-50°C” to “-30°C” and maximum “+85°C” to “+80°C”.

* In DC Characteristics,
o Changed “Input High Voltage” minimum from “+2.4v” to “+2.64v”.
o Changed “Total Power” maximum from “500 mW” to “1,000 mW”.

* CFAL12864L-G-B4 Optical Characteristics, changed “Brightness” from typical “80 cd/m2” to “Luminous Intensity” of “30 cd/m2.

* CFAL12864L-Y-B4 Optical Characteristics, changed “Brightness” from typical “80 cd/m2” to “40 cd/m2”.
For reference only. For design purposes, please use the specifications in the datasheet.
