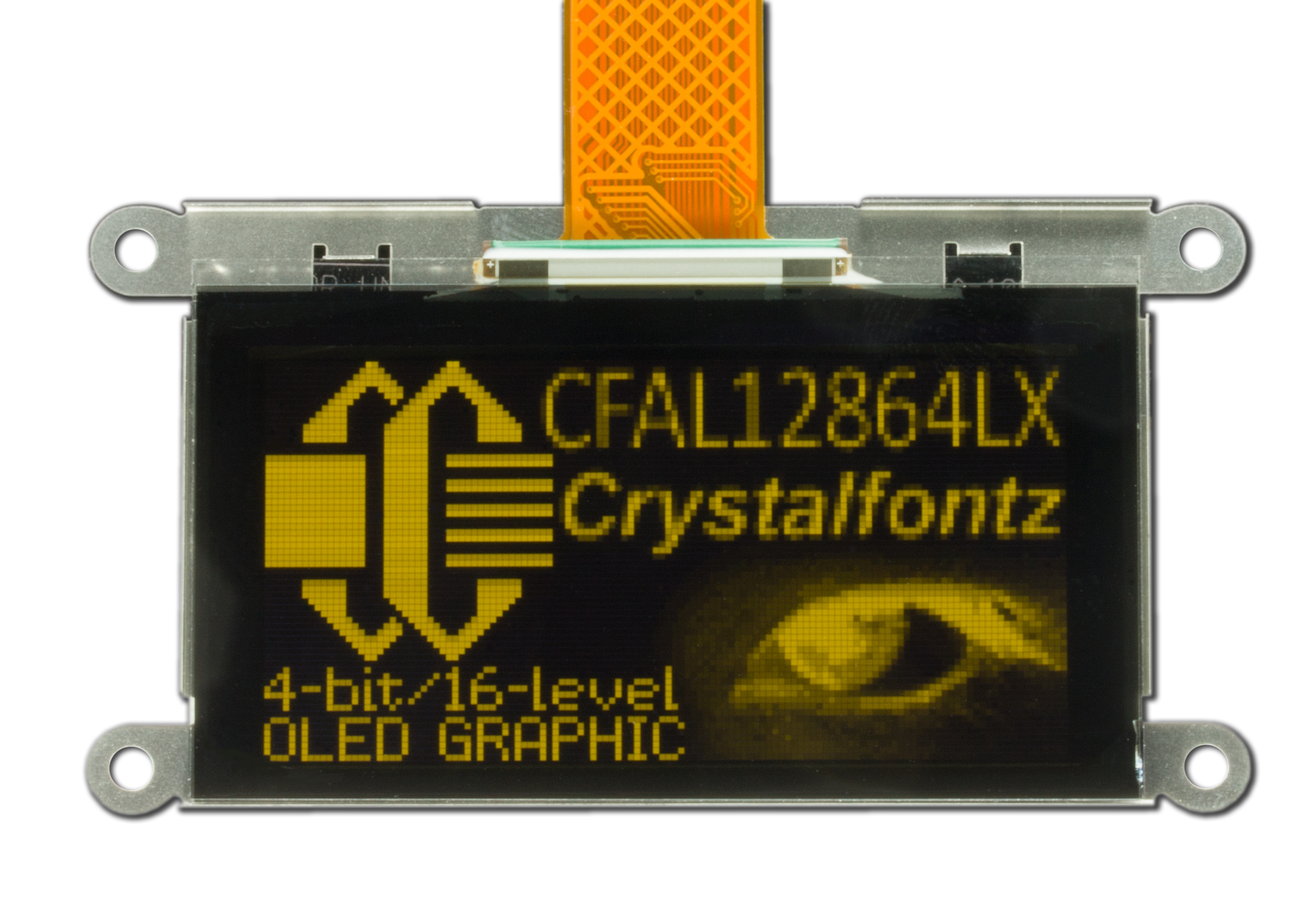

[EOL] 128x64 Graphic SPI OLED DisplayPart Number: CFAL12864LX-YThis 128x64 yellow OLED offers 3V operation, 8-bit parallel or SPI interface and a 30 pin FPC connector.
	Yellow 2.7" diagonal 128x64 graphic OLED display.
	16-level grayscale.

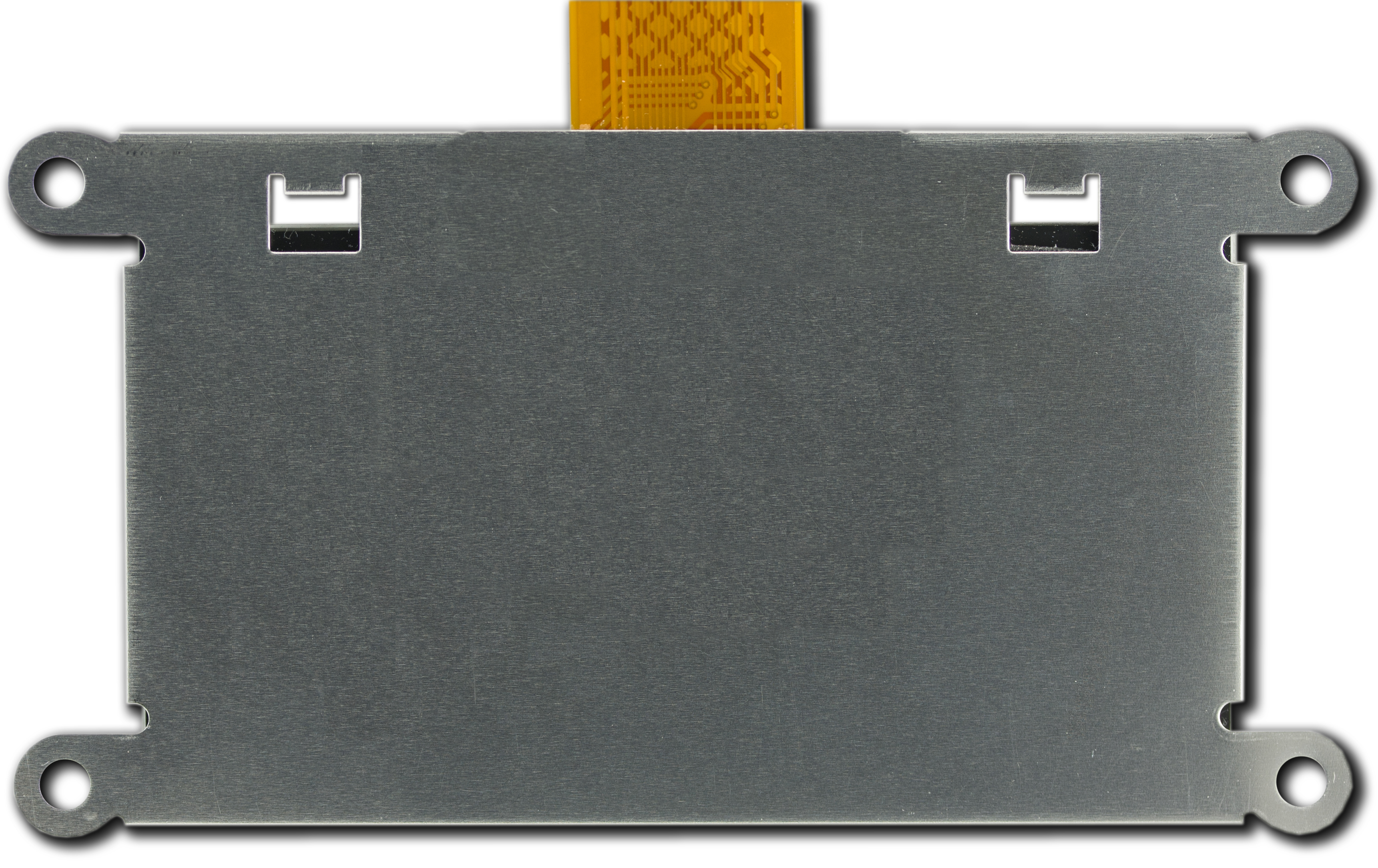

	Includes tray with mounting holes.
	Extremely wide viewing angles.
	Very high contrast ratio.
	Built-in Solomon Systech SSD1325 or compatible controller.
	8-bit parallel interface or SPI Interface.
	Operating temperature range -40C to +80C.
 Suggested ZIF connectors are Amphenol / FCI 10051922-3010ELF or SFV30R-2STE1LF for horizontal bottom or top contacts, or Omron XF2M-3015-1A as a vertical connector.
 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            128 x 64

    Module Overall        width
        height
        depth

        millimeters
        89.7
        47.2
        3.4

        inches
        3.53
        1.86
        0.13

*width / height does not include Foldable Tab

    PCB Outline        width
        height
        depth

        millimeters
        73.0
        41.86
        3.4

        inches
        2.87
        1.65
        0.13

        Diagonal Dimension
            2.7"

    Viewing Area        Width
        Height

        millimeters
        63.41
        32.69

        inches
        2.50
        1.29

    Active Area        Width
        Height

        millimeters
        61.41
        30.69

        inches
        2.42
        1.21

    Dot Size        Width
        Height

        millimeters
        0.45
        0.45

        inches
        0.018
        0.018

    Dot Pitch        Width
        Height

        millimeters
        0.48
        0.48

        inches
        0.019
        0.019

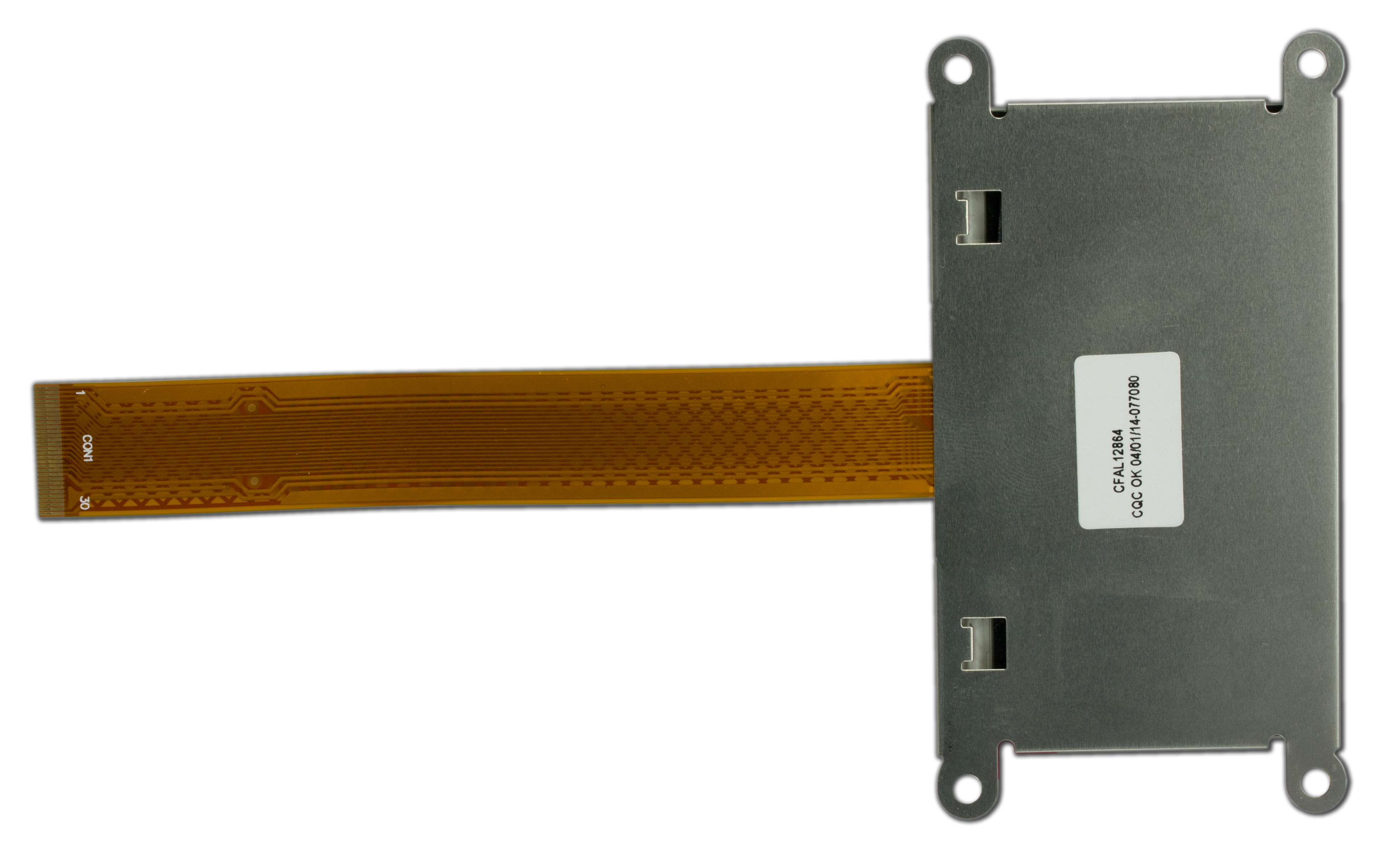

    Flexible Cable (FFC/FPC)        length

        millimeters
        105.7

        inches
        4.161

        Weight
            21g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type
            OLED
Polarizer
            Emissive
View Angle
            160°

        Foreground Color
            Yellow
Background Color
            Grayscale

 nature Environmental
Environmental

    Operating Temperatures        min
        max

        Celsius
        -40°
        80°

        Fahrenheit
        -40°
        176°

    Storage Temperatures        min
        max

        Celsius
        -40°
        80°

        Fahrenheit
        -40°
        176°

 cable Electronics
Electronics

        Controller Documents
            Solomon Systech SSD1325
SSD1325 128 x 80, 16 Gray Scale Dot Matrix

OLED/PLED Segment/Common Driver with Controller
Interface
            8-bit Parallel, SPI

picture_as_pdf Datasheets
picture_as_pdfCFAL12864LX Series Datasheet
(Datasheet V 1)
Previous Versions of Datasheetpicture_as_pdfCFAL12864LX Preliminary Data Sheet Release 2014-09-08.pdf

download Files and Downloads
picture_as_pdf Hardware Design - CFAL12864LX / CFAL12864QX Reference Schematic

Module Overall	width	height	depth
millimeters	89.7	47.2	3.4
inches	3.53	1.86	0.13
*width / height does not include Foldable Tab

PCB Outline	width	height	depth
millimeters	73.0	41.86	3.4
inches	2.87	1.65	0.13

Viewing Area	Width	Height
millimeters	63.41	32.69
inches	2.50	1.29

Active Area	Width	Height
millimeters	61.41	30.69
inches	2.42	1.21

Dot Size	Width	Height
millimeters	0.45	0.45
inches	0.018	0.018

Dot Pitch	Width	Height
millimeters	0.48	0.48
inches	0.019	0.019

Flexible Cable (FFC/FPC)	length
millimeters	105.7
inches	4.161

Operating Temperatures	min	max
Celsius	-40°	80°
Fahrenheit	-40°	176°

Storage Temperatures	min	max
Celsius	-40°	80°
Fahrenheit	-40°	176°

Notices

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Product Update #10732: End of Life Notification

Products Affected:	CFAL12864LX-G, CFAL12864LX-Y, CFAL12864QX-Y, CFAL12864QX-G
Date Issued:	November 10, 2016
Summary:	End of Life Notification
Description:	The listed parts are being discontinued and are not recommended for new designs. Existing stock is limited and will be sold until gone at the discounted price of $3.99.
Reason:	Flex cable manufacturer discontinued required component.
Impact:	Product End of Life
Recommendation:	No suitable replacement is currently available
Availability:	At this time we have no suitable replacements

Product Update #10611: (New Product) CFAL12864LX-Y

New Product:	CFAL12864LX-Y
Date Issued:	September 9, 2014
Summary:	(New Product) CFAL12864LX-Y
Description:	OLED Modules: Yellow, 128x64, OLED, 16-level greyscale, Extremely wide viewing angles, Very high contrast ratio
