This product is End-Of-Life. You might consider an alternative 16x2 Character OLED

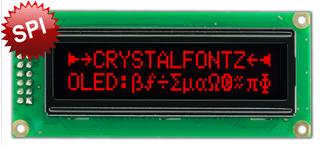

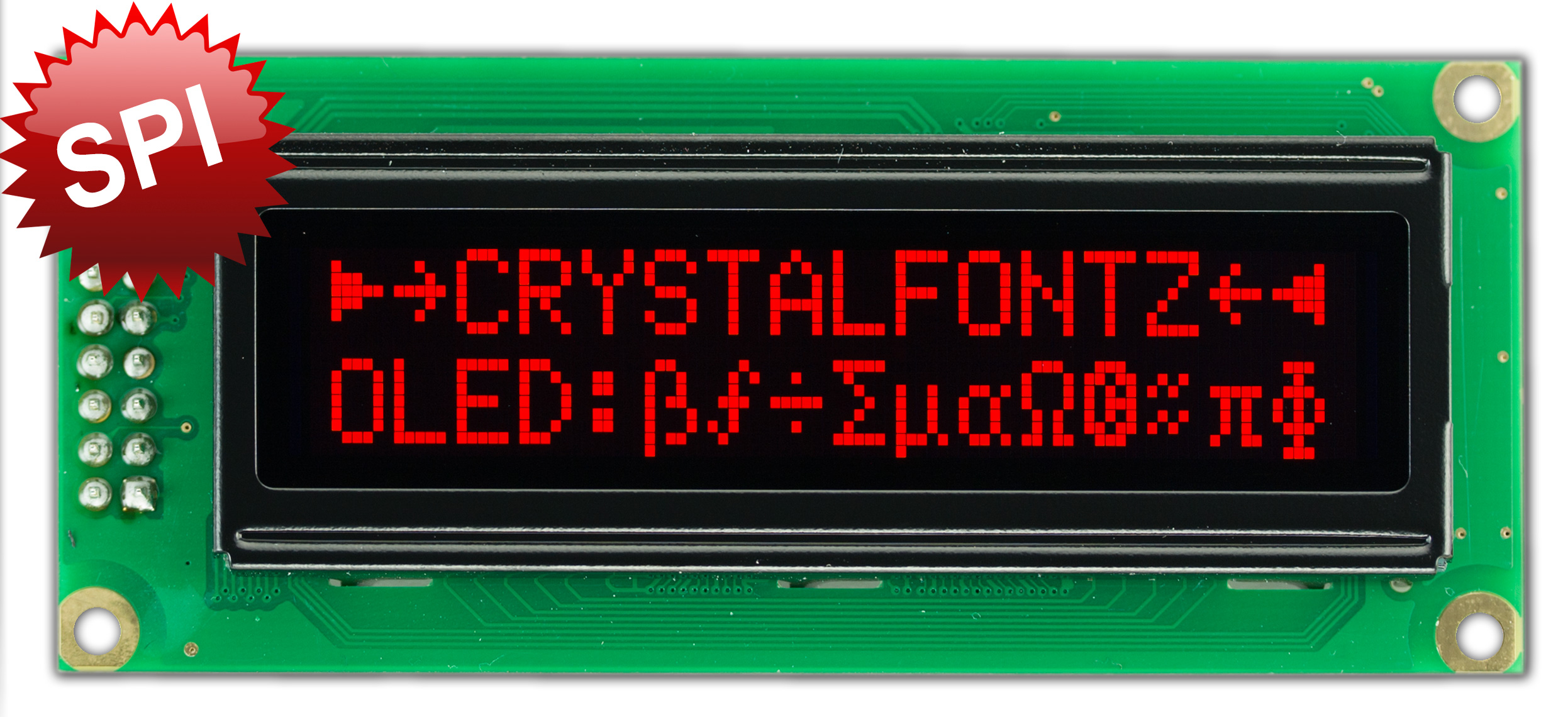

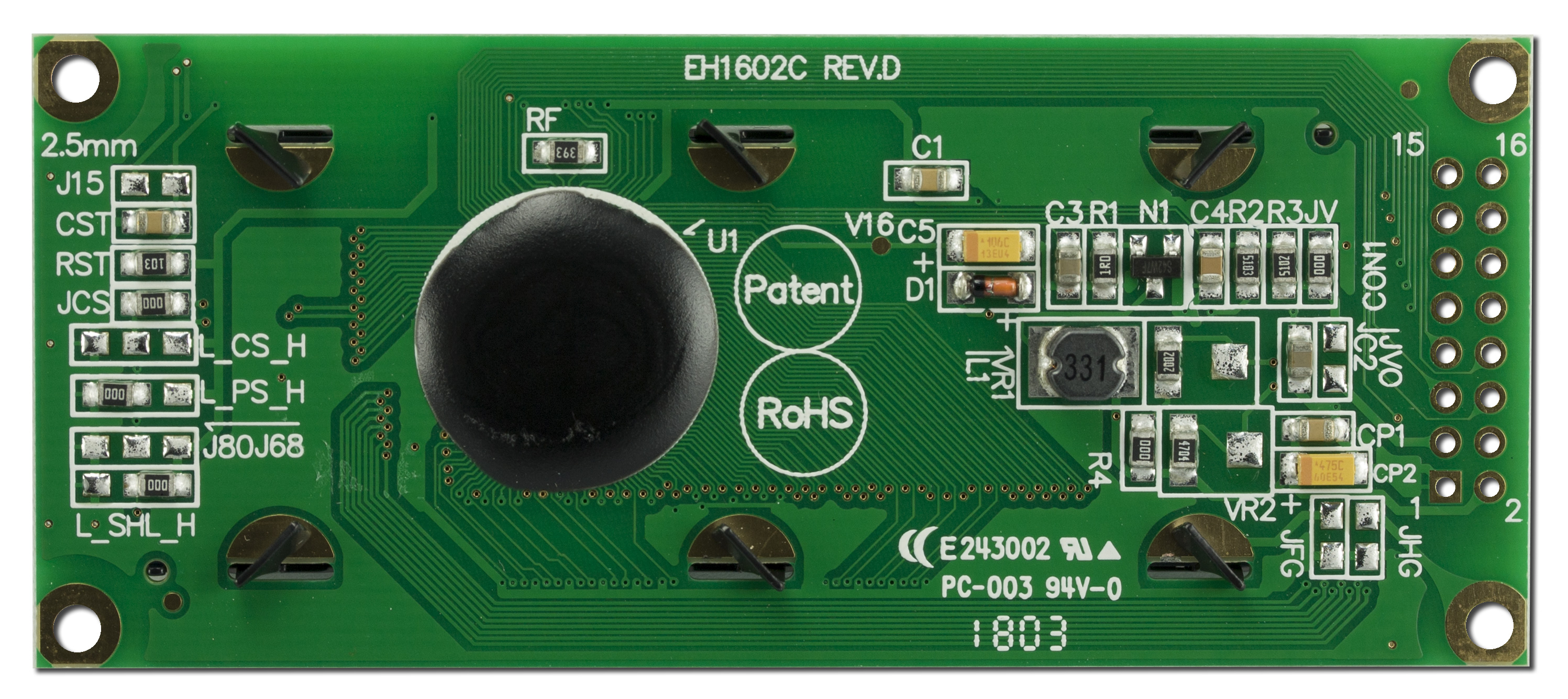

16x2 Red SPI Character OLED

Part Number: CFAL1602C-PR

Popular SPI Interface

The OLED technology of the red-on-black CFAL1602C-PR provides a striking, high contrast visual appearance that stays consistent from -40°C to 80°C (-40°F to 176°F). Since OLEDs are emissive, there is no backlight, resulting in a thinner package that is ideal when you need a reliable 16x2 character display and space is at a premium. The modern look of the CFAL1602C-PR OLED display provides a very wide 160° viewing angle, keeping the same crisp view from nearly any direction.

The command set of the on-board WS0010 controller is similar to the industry standard Hitachi HD44780 and compatibles, reducing your adoption time of the CFAL1602C-PR into your project. With four built in font tables, multi-language support is a breeze.

Do you want to change the look of your existing product that uses our STN LCD CFAH1602C? The CFAL1602C-PR has the same physical footprint.

  • High contrast OLED Character Display.
  • Four built in font tables:
    • English / Japanese
    • English / Western European I
    • English / Western European II
    • English / Cyrillic
  • True black background with red characters.
  • Thin package, no backlight.
  • Extra wide range operating temperature: -40°C to 80°C (-40°F to 176°F).
  • No visual change over entire operating temperature range.
  • Easy connectivity with standard 0.100" / 2.54mm connector.
  • SPI sample code, Datasheet, and RoHS/REACH Certificate of Compliance are under the Datasheets & Files tab.
  • Very wide 160° viewing angle with sleek, modern visual appearance.

Product Variants

Details16x2 Green Character OLED16x2 Green Character OLED
4-bit Parallel,8-bit Parallel, Green on Black
Details16x2 Blue Character OLED Module16x2 Blue Character OLED Module
4-bit Parallel,8-bit Parallel, Blue on Black
Details16x2 White Character OLED16x2 White Character OLED
4-bit Parallel,8-bit Parallel, White on Black
Details16x2 Yellow Character OLED Module16x2 Yellow Character OLED Module
4-bit Parallel,8-bit Parallel, Yellow on Black
Details16x2 Yellow Sunlight Readable Character OLED16x2 Yellow Sunlight Readable Character OLED
4-bit Parallel,8-bit Parallel, Yellow on Black
  • square_foot Physical Characteristics

    Physical Characteristics

    Characters x Lines 16 x 2
    Module Overall width height depth
    millimeters 85 36 8.9
    inches 3.346 1.417 0.350
    Diagonal Dimension 2.29"
    Viewing Area Width Height
    millimeters 66 16
    inches 2.598 0.630
    Active Area Width Height
    millimeters 56.95 11.85
    inches 2.242 0.467
    Character Size Width Height
    millimeters 2.95 5.55
    inches 0.116 0.219
    Character Pitch Width Height
    millimeters 3.6 6.3
    inches 0.142 0.248
    Dot Size Width Height
    millimeters 0.55 0.65
    inches 0.022 0.026
    Dot Pitch Width Height
    millimeters 0.6 0.7
    inches 0.024 0.028
    Weight 24g
  • visibility Optical Characteristics

    Optical Characteristics

    Glass Type OLED
    Polarizer Emissive
    View Angle >160°
    Foreground Color Red
    Background Color Black
  • electric_bolt Electrical Specification

    Electrical Specifications

    Supply Voltage for Logic Minimum 4.8V
    Supply Voltage for Logic Maximum 5.3V
    Supply Voltage for Logic Typical 5V
  • nature Enviromental


    Operating Temperatures min max
    Celsius -40° 80°
    Fahrenheit -40° 176°
    Storage Temperatures min max
    Celsius -40° 80°
    Fahrenheit -40° 176°
    Humidity min max
    Non-condensing 0% 90%
  • cable Electronics


    Controller Documents Winstar Display WS0010

    Interface SPI
  • picture_as_pdf Datasheets
  • download Files and Downloads

Part Change Notice

Subscribe to Part Change Notices by email Email subscription for changes to CFAL1602C-PR or RSS RSS feed for changes to CFAL1602C-PR
  • text_snippet
    Part Change Notice #11031: End-Of-Life Notification
    Products Affected: CFAL1602C-G, CFAL1602C-B, CFAL1602C-R, CFAL1602C-GT, CFAL1602C-PB, CFAL1602C-PG, CFAL1602C-PGT, CFAL1602C-PR
    Date Issued: January 22, 2019
    Summary: End-Of-Life Notification
    Description: The parts listed are being set to End of Life Status
    Reason: The manufacturing process for these colors is being revised. Replacement parts will not be available before Q4 2019.
    Impact: These parts will not be available once current stock is depleted. When replacement parts are available, new part numbers will be assigned.
    Recommendation: These parts should not be used for new designs.
    Availability: Current Stock
  • text_snippet
    Product Update #10748: (New Product) CFAL1602C-PR
    New Product: CFAL1602C-PR
    Date Issued: December 9, 2016
    Summary: (New Product) CFAL1602C-PR
    Description: OLED Modules: Sunlight Readable, 16x2 OLED Character, Red
