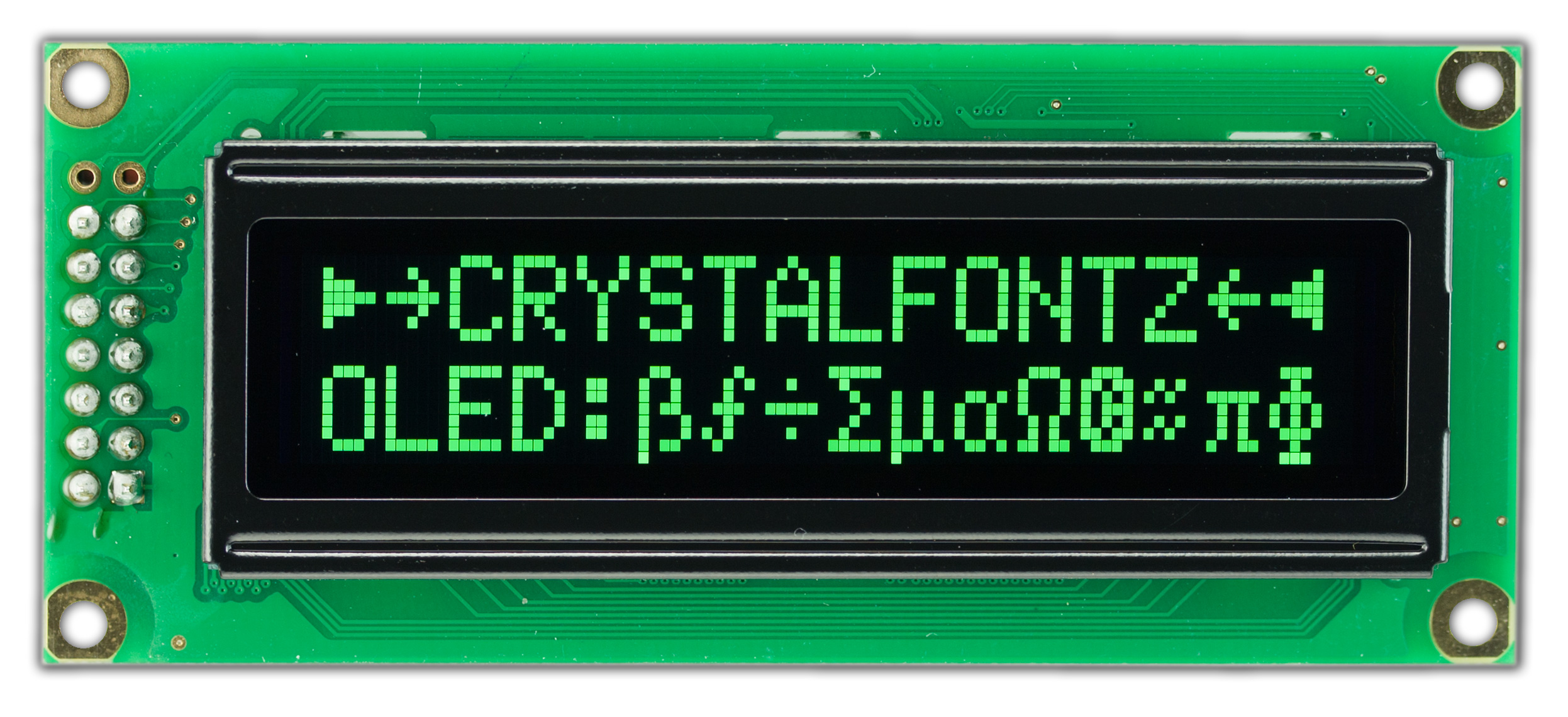

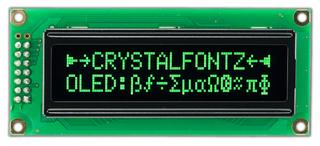

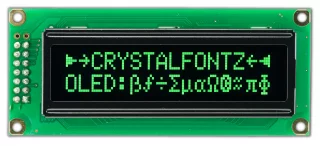

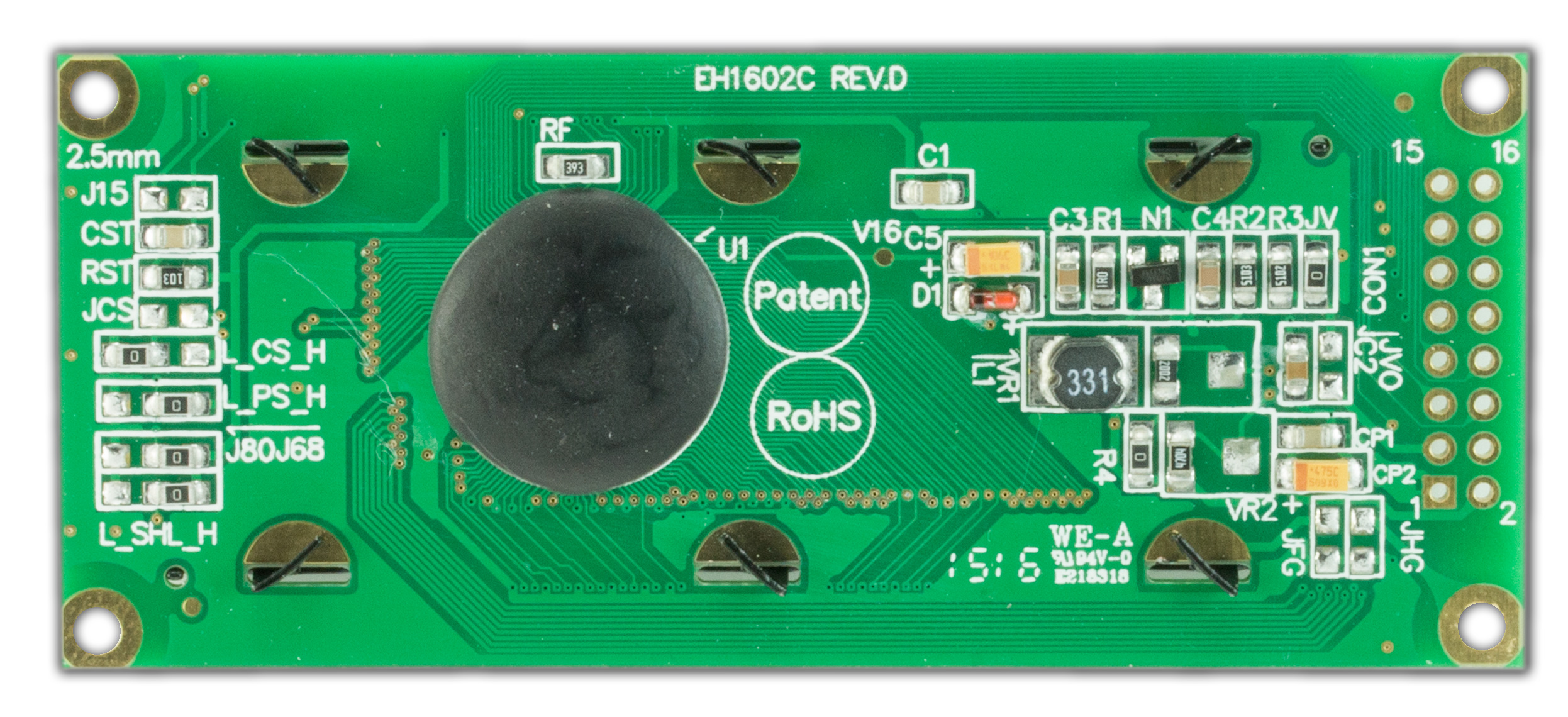

16x2 Green Sunlight Readable Character OLED

Part Number: CFAL1602C-GT

4-Bit/8-Bit Parallel Interface

The OLED technology of the sunlight readable green-on-black CFAL1602C-GT provides a striking, high contrast visual appearance that stays consistent from -40°C to 80°C (-40°F to 176°F). Since OLEDs are emissive, there is no backlight, resulting in a thinner package that is ideal when you need a reliable 16x2 character display and space is at a premium. The modern look of the CFAL1602C-GT OLED display provides a very wide 160° viewing angle, keeping the same crisp view from nearly any direction.

We offer these 16x2 character OLEDs ready to use with a standard 0.100" (2.54mm) connector. With no backlight and no contrast controls, designing in the CFAL1602C-GT reduces the number of control lines needed.

The command set of the on-board WS0010 controller is similar to the industry standard Hitachi HD44780 and compatibles, reducing your adoption time of the CFAL1602C-GT into your project. With four built in font tables, multi-language support is a breeze.

Looking to change the look of your existing product that uses our STN LCD CFAH1602C? The CFAL1602C-G has the same physical footprint.

  • High contrast OLED Character Display.
  • True black background with sunlight readable green characters.
  • Sleek, modern visual appearance.
  • Thin package, no backlight.
  • Extra wide range operating temperature: -40°C to 80°C (-40°F to 176°F).
  • No visual change over entire operating temperature range.
  • Four built in font tables:
    • English / Japanese
    • English / Western European I
    • English / Western European II
    • English / Cyrillic
  • Very wide 160° viewing angle.
  • Easy connectivity with standard 0.100" / 2.54mm connector.
  • Parallel sample code, datasheet, and RoHS/REACH Certificate of Compliance are under the Datasheets & Files tab.

TECHNICAL SPECS

Physical Characteristics

Characters x Lines 16 x 2
Module Overall width height depth
millimeters 85 36 8.9
inches 3.346 1.417 0.350
Diagonal Dimension 2.29"
Viewing Area width height
millimeters 66 16
inches 2.598 0.630
Active Area width height
millimeters 56.95 11.85
inches 2.242 0.467
Character Size width height
millimeters 2.95 5.55
inches 0.116 0.219
Character Pitch width height
millimeters 3.6 6.3
inches 0.142 0.248
Dot Size width height
millimeters 0.55 0.65
inches 0.022 0.026
Dot Pitch width height
millimeters 0.6 0.7
inches 0.024 0.028
Weight 24g

Optical Characteristics

Glass Type OLED
Polarizer Emissive
View Angle >160°
Sunlight Readable Yes
Foreground Color Green
Background Color Black

Electrical Specifications

Supply Voltage for Logic Minimum 4.8V
Supply Voltage for Logic Maximum 5.3V
Supply Voltage for Logic Typical 5V

Environmental

Operating Temperatures min max
Celsius -40° 80°
Fahrenheit -40° 176°
Storage Temperatures min max
Celsius -40° 80°
Fahrenheit -40° 176°
Humidity min max
Non-condensing 0% 90%

Electronics

Controller Documents Winstar Display WS0010

Interface 4-bit Parallel, 8-bit Parallel

Part Change Notice

Subscribe to Part Change Notices by email Email subscription for changes to CFAL1602C-GT or RSS RSS feed for changes to CFAL1602C-GT

Part Change Notice #11031: End-Of-Life Notification

Products Affected: CFAL1602C-G, CFAL1602C-B, CFAL1602C-R, CFAL1602C-GT, CFAL1602C-PB, CFAL1602C-PG, CFAL1602C-PGT, CFAL1602C-PR
Date Issued: January 22, 2019
Summary: End-Of-Life Notification
Description: The parts listed are being set to End of Life Status
Reason: The manufacturing process for these colors is being revised. Replacement parts will not be available before Q4 2019.
Impact: These parts will not be available once current stock is depleted. When replacement parts are available, new part numbers will be assigned.
Recommendation: These parts should not be used for new designs.
Availability: Current Stock

Product Update #10680: (New Product) CFAL1602C-GT

New Product: CFAL1602C-GT
Date Issued: November 5, 2015
Summary: (New Product) CFAL1602C-GT
Description: OLED Modules: 16x2 OLED Character Display, Green, Sunlight Readable
For reference only. For design purposes, please use the specifications in the datasheet.
