160x32 Flexible OLED Display
Part Number: CFAL16032A0-018P-W
Pricing
| Quantity | Price |
|---|---|
| 1 | $41.22 |
| 10 | $35.58 |
| 20 | $21.09 |
| 50 | $20.32 |
| 100 * | $20.01 |
| 200 * | $19.70 |
| 300 * | $19.55 |
| 500 * | $19.40 |
| 1000 * | $19.09 |
* Contact us about potential lead times.
Need a written quote? Add to cart, then enter your email address in the "request a quote" box.
Datasheet
Description

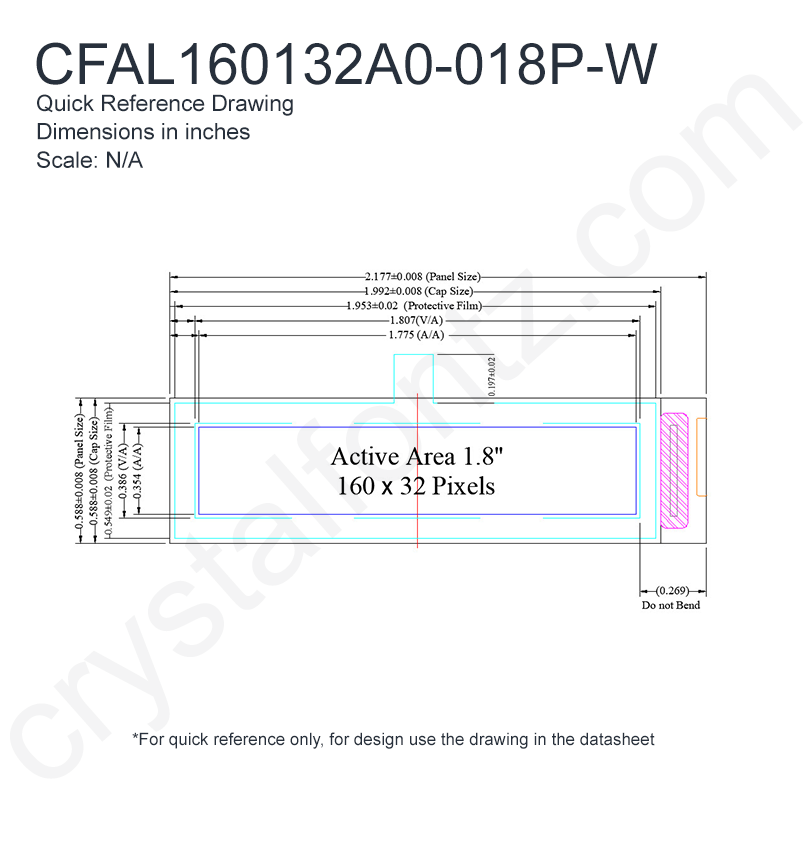

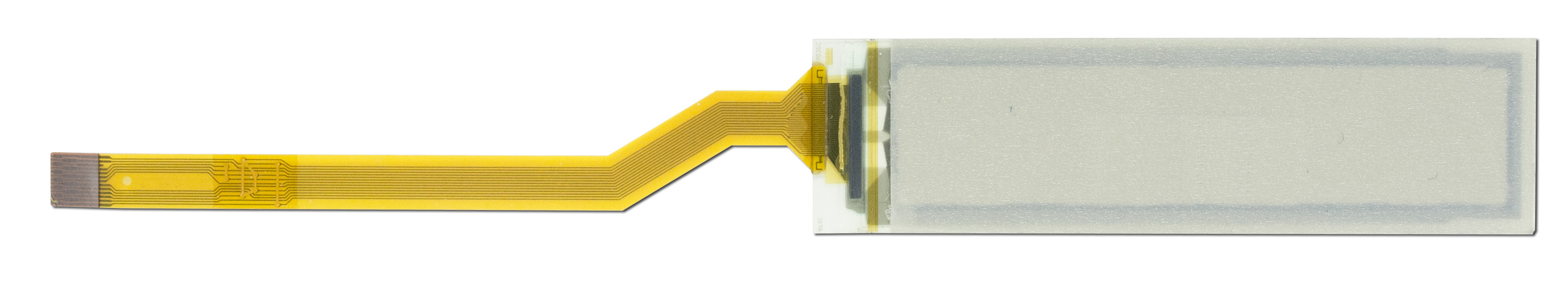

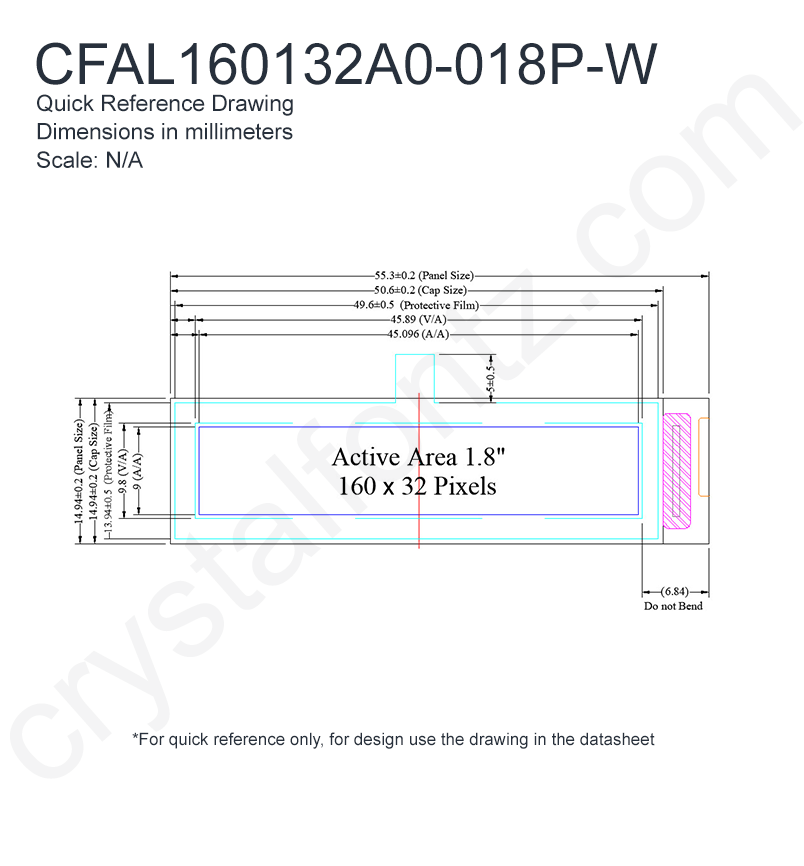

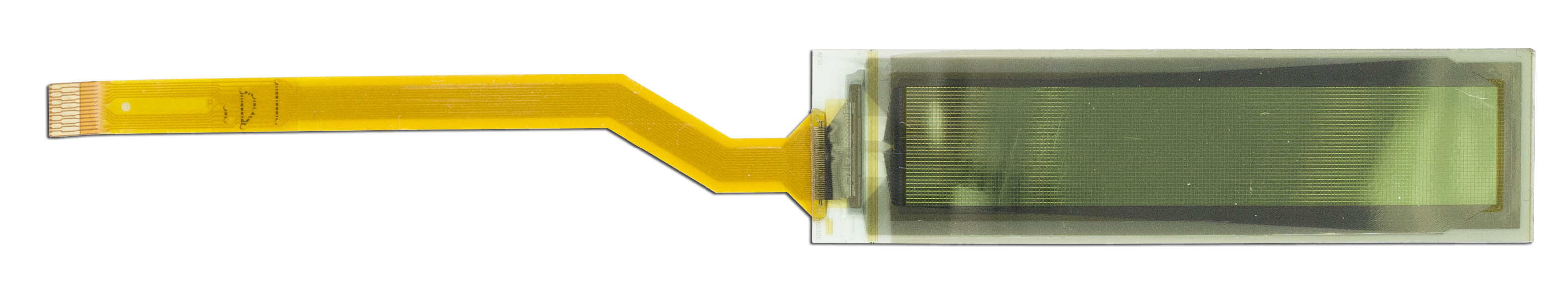

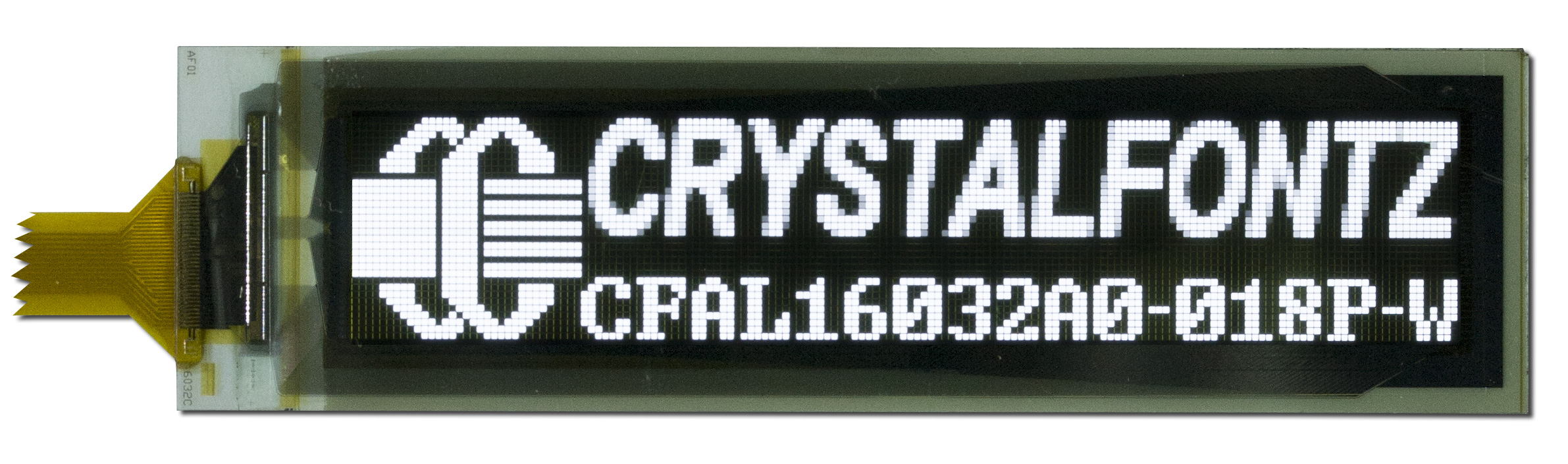

Finally! A flexible OLED. 160x32 pixel, flexible OLED display. This little OLED is really cool! It's highly reflective so taking a photo is rather tricky, but we're confident once you get one of these displays in your hand you'll be impressed! White text on a dark background makes this OLED super readable in most lighting situations.
This little bendable OLED is controlled with a Solomon Systech SSD1320 LCD controller.
The ZIF connector you need is a 13 Position FPC Connector Contacts, Bottom 0.012" (0.30mm) Surface Mount, Right Angle:
13 position ZIF connector
13 position ZIF connector
Video Demonstrations
160x32 Flexible OLED Display
Quick video demonstration showing this small flexible OLED display running and its flexibility.
TECHNICAL SPECS
For reference only. For design purposes, please use the specifications in the datasheet.
Physical Characteristics
| Column Dots x Row Dots | 160 x 32 |
| Module Overall | width | height | depth |
|---|---|---|---|
| millimeters | 113.3 | 14.94 | 0.3 |
| inches | 4.461 | 0.588 | 0.012 |
| *width / height does not include Foldable Tab | |||
| Diagonal Dimension | 1.800" |
| Viewing Area | width | height |
|---|---|---|
| millimeters | 45.89 | 9.8 |
| inches | 1.807 | 0.386 |
| Active Area | width | height |
|---|---|---|
| millimeters | 45.096 | 9 |
| inches | 1.7754 | 0.354 |
| Dot Size | width | height |
|---|---|---|
| millimeters | 0.258 | 0.258 |
| inches | 0.0102 | 0.0102 |
| Dot Pitch | width | height |
|---|---|---|
| millimeters | 0.282 | 0.282 |
| inches | 0.0111 | 0.0111 |
| Flexible Cable (FFC/FPC) | length |
|---|---|
| millimeters | 113.3 |
| inches | 4.461 |
| Weight | 0.4g |
Optical Characteristics
| Polarizer | Emissive |
| View Angle | 360° |
| Foreground Color | White |
| Background Color | Dark |
Electrical Specifications
| Supply Voltage for Logic Minimum | 1.65V |
| Supply Voltage for Logic Maximum | 3.5V |
| Supply Voltage for Logic Typical | 2.8V |
| Supply Voltage for Driving LCD Typical | 12V |
| Supply Current Maximum | 0.7mA |
| Supply Current Typical | 0.35mA |
Backlight Electrical Specifications
| Forward Voltage Maximum | 45.9V |
| Forward Voltage Typical | 36.7V |
Environmental
| Operating Temperatures | min | max |
|---|---|---|
| Celsius | -40° | 60° |
| Fahrenheit | -40° | 140° |
| Storage Temperatures | min | max |
|---|---|---|
| Celsius | -40° | 75° |
| Fahrenheit | -40° | 167° |
Electronics
| Controller | Solomon Systech SSD1320 |
| Interface | SPI |
Miscellaneous
| Foldable Tab | Yes |
