256x64 SPI Graphic OLED
Part Number: CFAL25664B-Y-B1

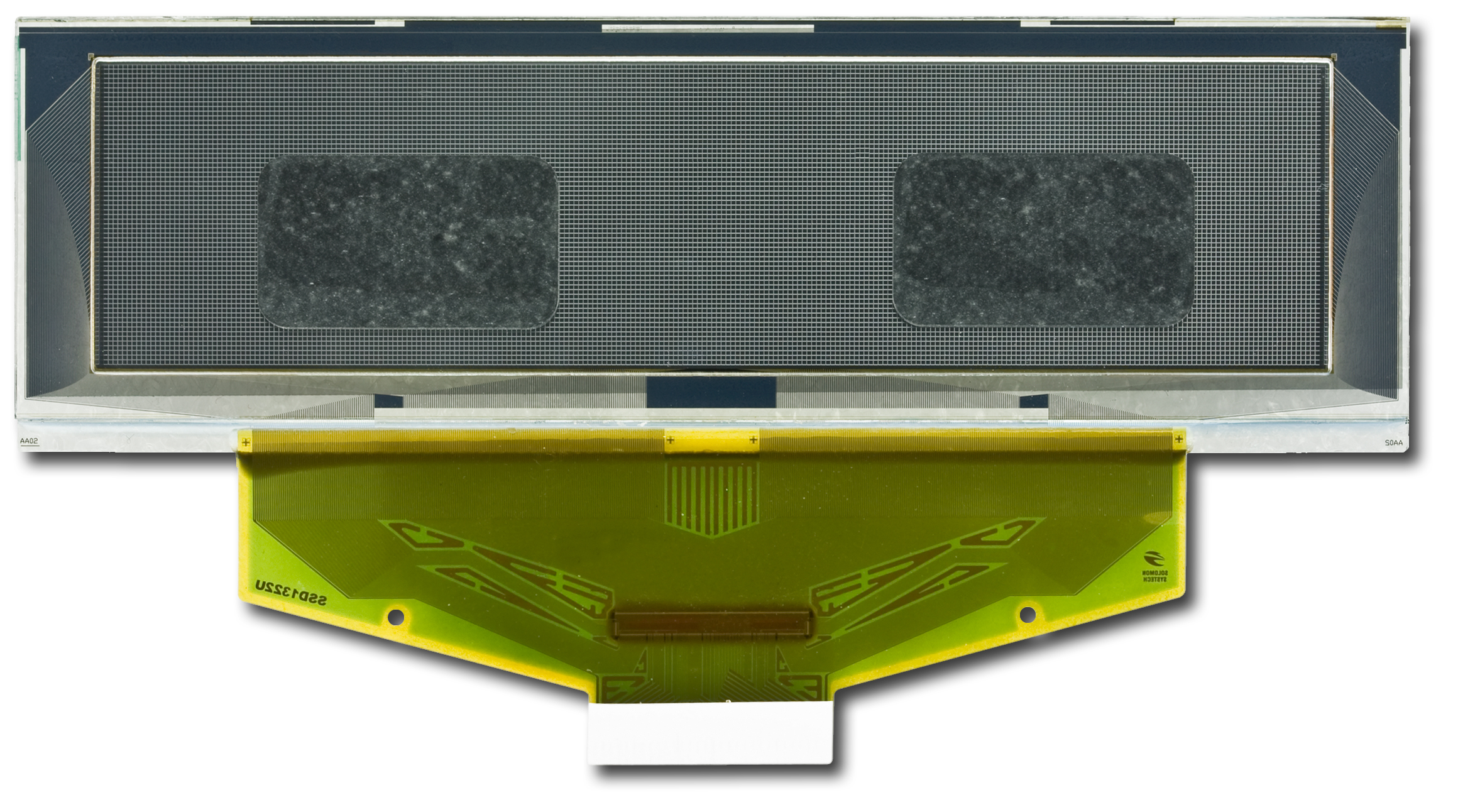

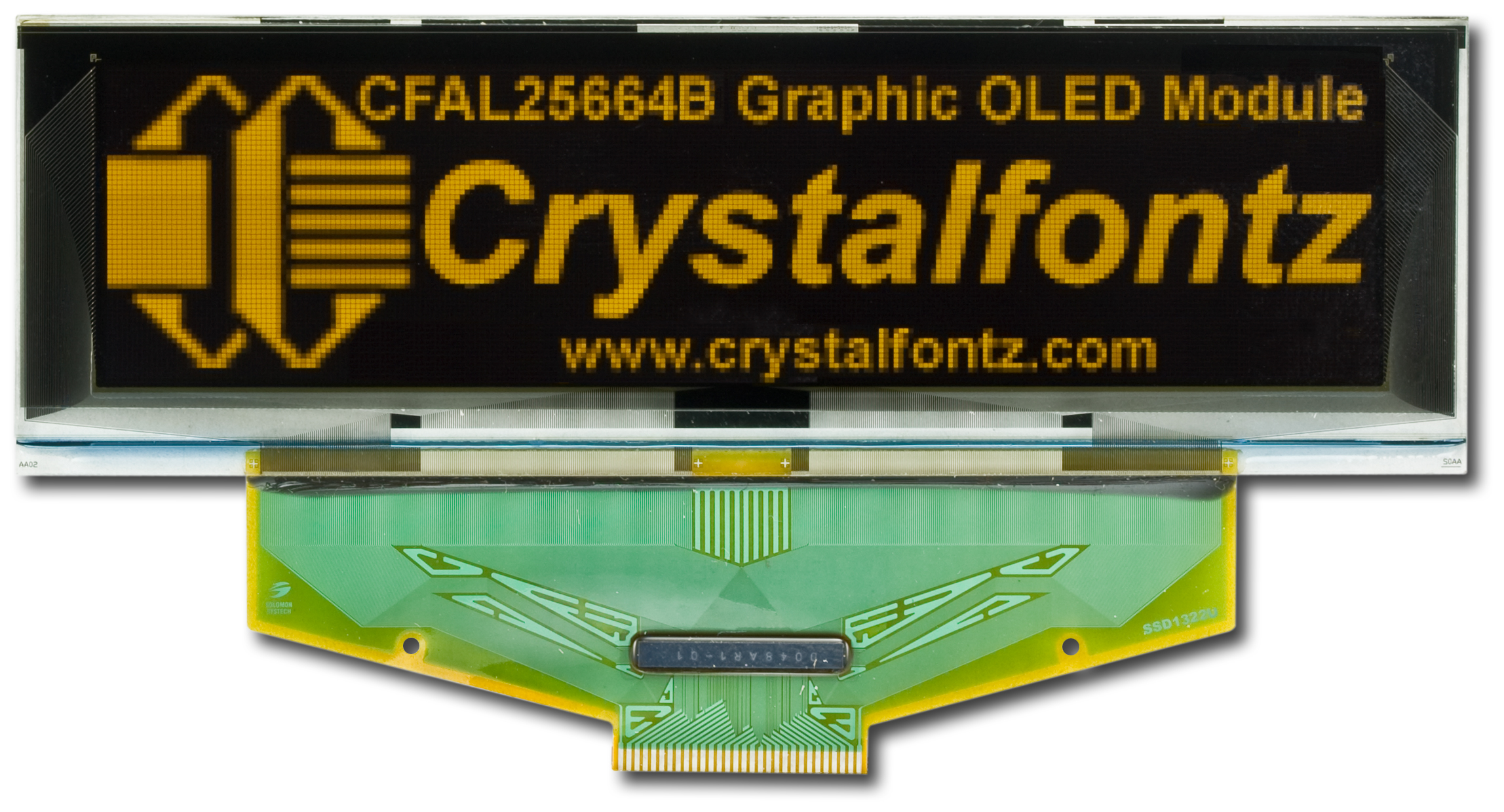

This 256x64 graphic OLED display module would be a fantastic enhancement to your next project. It packs a tremendous amount of pixels in a relatively small space. It is approximately 30mm in height (just under 1.25") and so could easily be placed on the front of a 1U server. It is less than 3mm (~1/8") deep, and so is also a great choice for depth constrained applications. The integrated controller has built-in gray scale functionality, offers anti-aliased fonts, and will will make your project stand out.
- Extremely wide viewing angles.
- Very high contrast ratio.
- Supports 68xx and 80xx 8-bit parallel or 3 wire / 4 wire SPI interfaces.
- Built-in Solomon Systech SSD1322 or compatible controller.
- Operating temperature range from -40°C to 80°C.
- This display is RoHS Compliant.
- Crystalfontz America Inc. is ISO 9001:2008 certified.
| Quantity | 1 | 10 | 20 | 50 | 100 | 200 | 500 * | 1000 * |
|---|---|---|---|---|---|---|---|---|
| Price | $33.62 | $32.64 | $29.58 | $27.04 | $24.38 | $22.34 | $20.12 | $19.26 |
| Quantity | Price |
|---|---|
| 1 | $33.62 |
| 10 | $32.64 |
| 20 | $29.58 |
| 50 | $27.04 |
| 100 | $24.38 |
| 200 | $22.34 |
| 500 * | $20.12 |
| 1000 * | $19.26 |
* Contact us about potential lead times.
TECHNICAL SPECS
For reference only. For design purposes, please use the specifications in the datasheet.
Physical Characteristics
| Column Dots x Row Dots | 256 x 64 |
| Module Overall | width | height | depth |
|---|---|---|---|
| millimeters | 88 | 27.8 | 2 |
| inches | 3.465 | 1.094 | 0.079 |
| *width / height does not include Foldable Tab | |||
| Diagonal Dimension | 3.120" |
| Viewing Area | width | height |
|---|---|---|
| millimeters | 78.78 | 21.18 |
| inches | 3.102 | 0.834 |
| Active Area | width | height |
|---|---|---|
| millimeters | 76.78 | 19.18 |
| inches | 3.023 | 0.755 |
| Dot Size | width | height |
|---|---|---|
| millimeters | 0.28 | 0.28 |
| inches | 0.011 | 0.011 |
| Dot Pitch | width | height |
|---|---|---|
| millimeters | 0.3 | 0.3 |
| inches | 0.012 | 0.012 |
| Weight | 12g |
Optical Characteristics
| Glass Type | OLED |
| Polarizer | Emissive |
| View Angle | >160° |
| Mode | Positive |
| Foreground Color | Yellow |
| Background Color | Black |
Electrical Specifications
| Supply Voltage for Logic Minimum | 2.4V |
| Supply Voltage for Logic Maximum | 3.5V |
| Supply Voltage for Logic Typical | 2.8V |
| Supply Voltage for Driving LCD Typical | 12V |
| Supply Current Minimum | 28.1mA |
| Supply Current Maximum | 53.65mA |
| Module Connector Pitch | 0.5mm |
Environmental
| Operating Temperatures | min | max |
|---|---|---|
| Celsius | -30° | 85° |
| Fahrenheit | -22° | 185° |
| Storage Temperatures | min | max |
|---|---|---|
| Celsius | -40° | 90° |
| Fahrenheit | -40° | 194° |
| Humidity | min | max |
|---|---|---|
| Non-condensing | 0% | 90% |
Electronics
| Controller | Solomon Systech SSD1322 |
| Interface | 8-bit Parallel, SPI |
Miscellaneous
| Foldable Tab | Yes |
