32x128 In-Cell Touchscreen OLED from Crystalfontz

Product

Home » Products » OLED Displays » Graphic

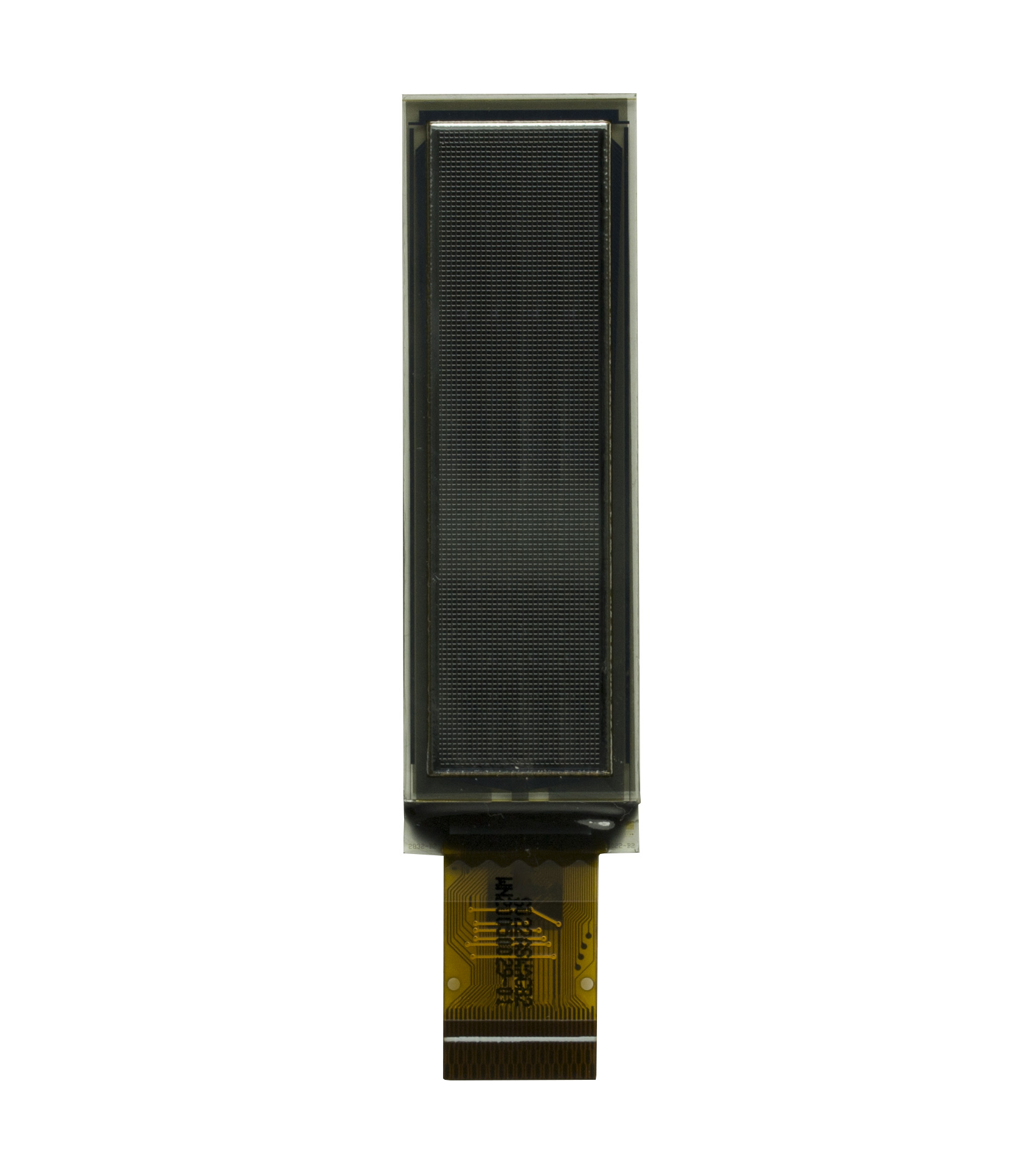

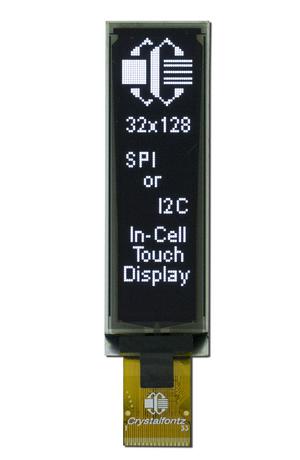

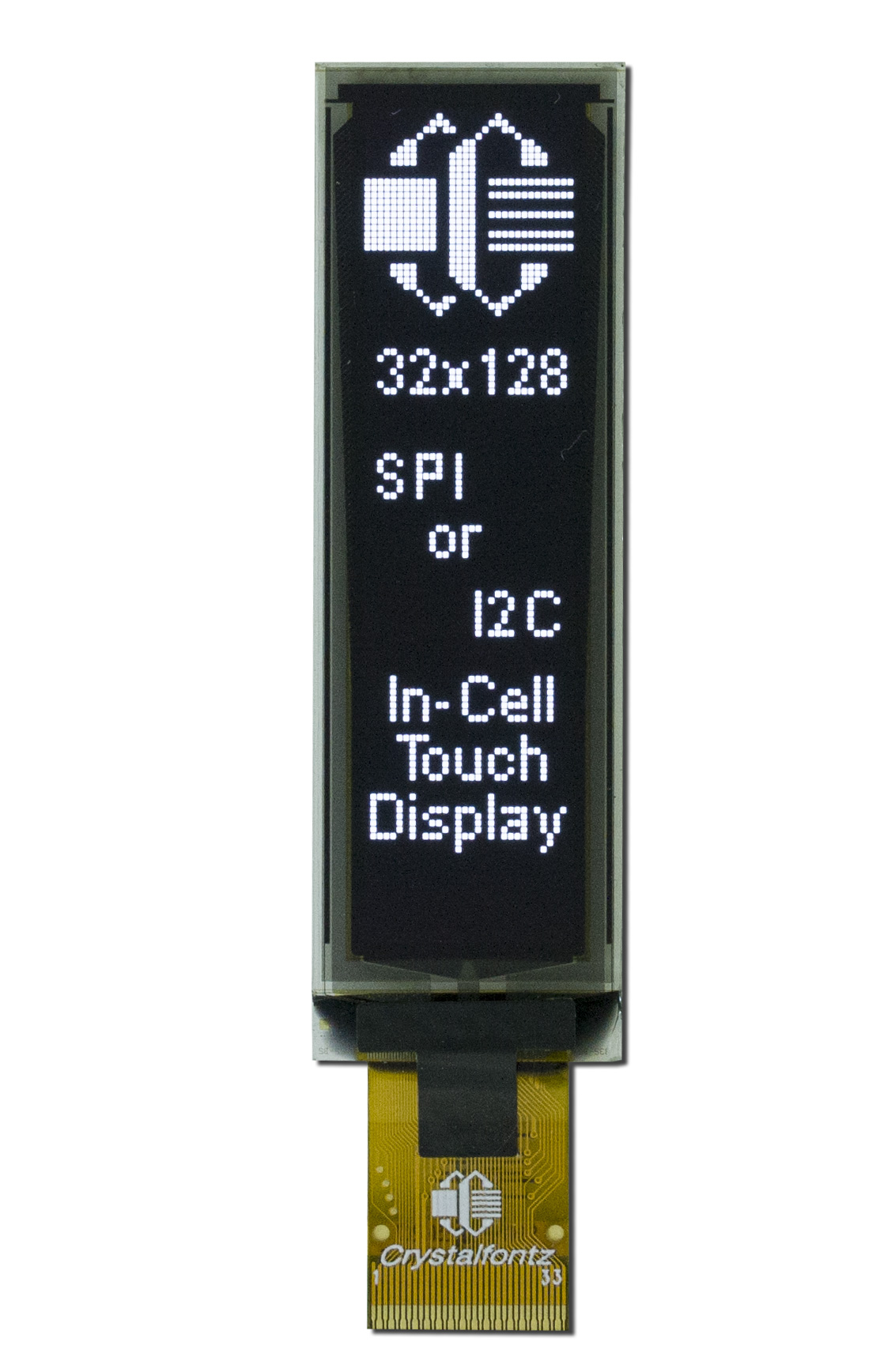

      32x128 In-Cell Touchscreen OLED
      Part Number: CFAL32128A0-0171B-WC

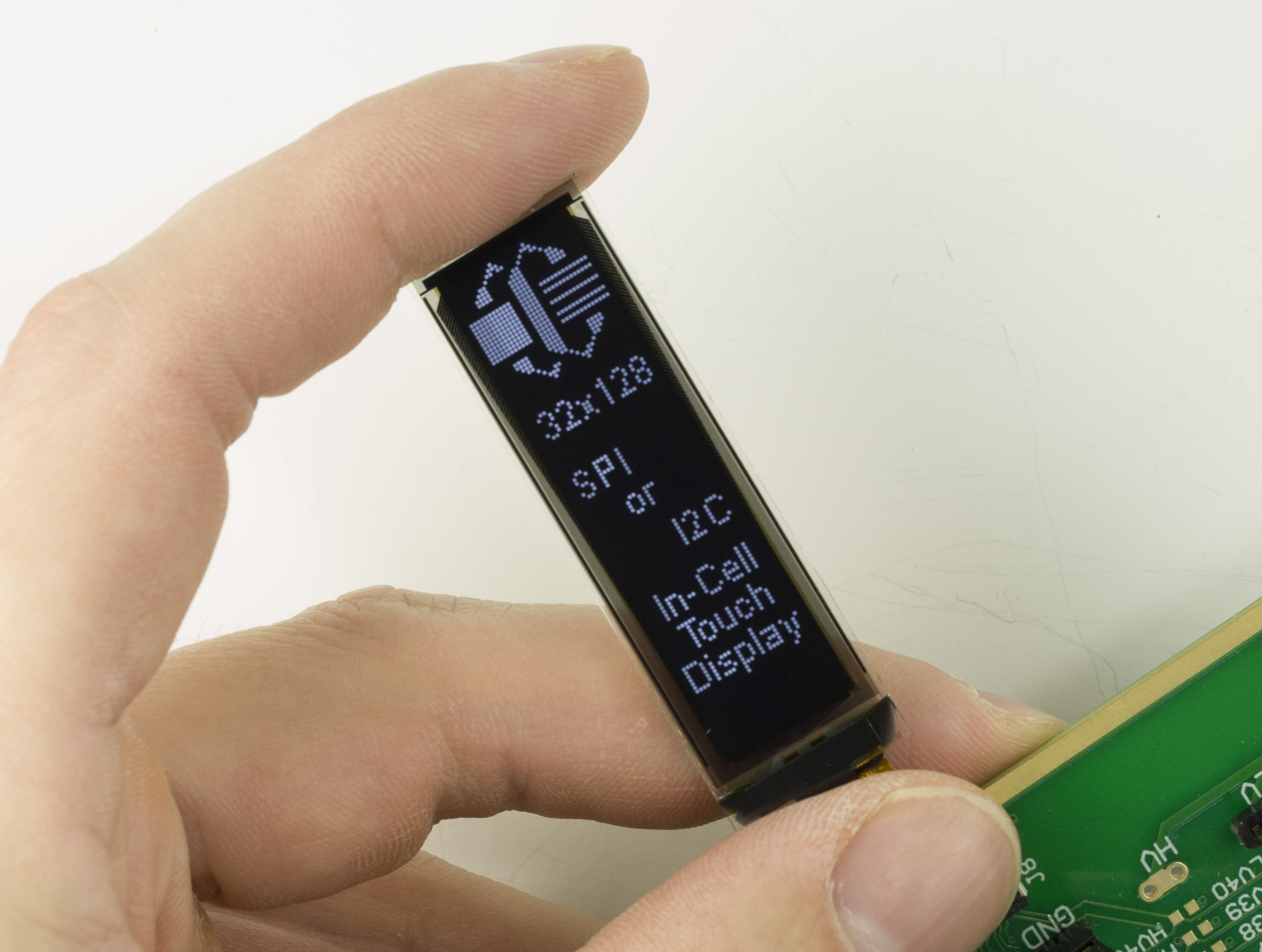

         This small OLED uses In-Cell technology to include a built-in touch screen making it exceptionally thin and light for a display with capacitive touch capabilities. The display can recognize multiple touch gestures as well as touches in four touch zones and has the option of adding two out-cell external touch sensors.

With its narrow form factor, this display could make a great touch-responsive gauge, a changeable button, or a reactive indicator.

Key Features:
32x128 pixel resolution
1.71" diagonal dimension
Single 0.3mm pitch, 33 position ZIF tail (no separate tail for the capacitive touchscreen)
Extremely thin (2mm)
4 touch zones with multiple gestures
2 out-cell multi-touch options for external sensors to be connected
Monochrome OLED
SPI and I2C interface for the display and touchscreen

Are  you looking for a similar but smaller in-cell touchscreen display? The .96" In-Cell Touchscreen OLED might be a better fit.

 square_foot Physical Characteristics

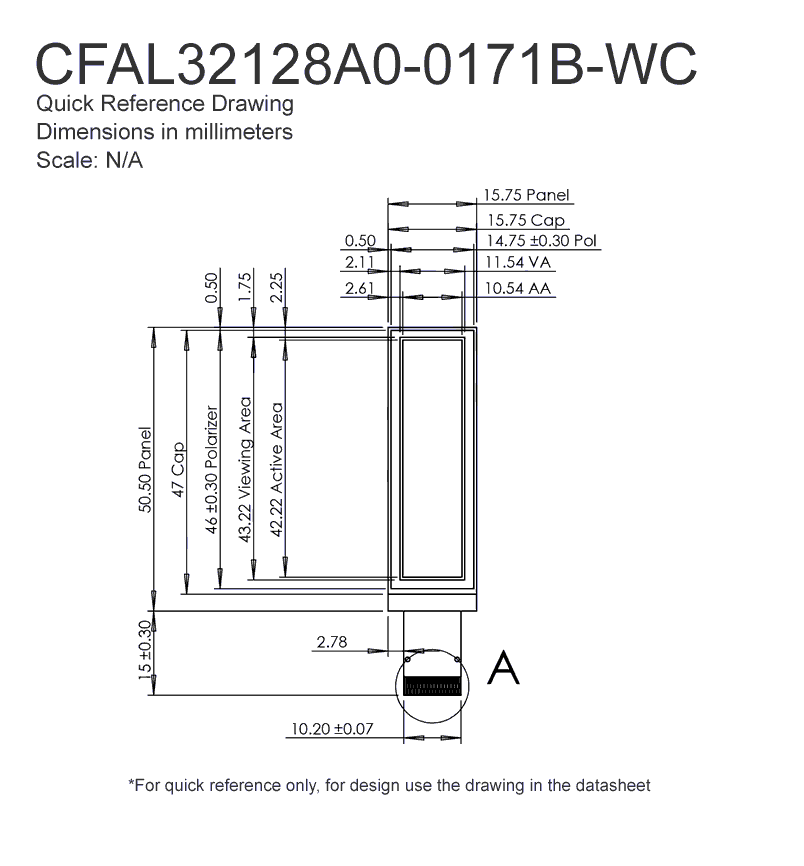

Physical Characteristics

        Column Dots x Row Dots
            32 x 128

    Module Overall        width
        height
        depth

        millimeters
        15.75
        65.5
        1.4

        inches
        0.62
        2.58
        0.06

        Diagonal Dimension
            1.71"

    Active Area        Width
        Height

        millimeters
        10.54
        42.22

        inches
        0.42
        1.66

    Dot Size        Width
        Height

        millimeters
        0.27
        0.27

        inches
        0.011
        0.011

    Dot Pitch        Width
        Height

        millimeters
        0.33
        0.33

        inches
        0.013
        0.013

        Optional Connectors
            CS030Z33G-A0

    Flexible Cable (FFC/FPC)        length

        millimeters
        15

        inches
        0.591

        Weight
            2.3g
Pin Count
            33

 visibility Optical Characteristics
Optical Characteristics

        Glass Type
            OLED

        Foreground Color
            White
Background Color
            Dark

 electric_bolt Electrical Specification
Electrical Specifications

        Supply Voltage for Logic Minimum
            1.65V
Supply Voltage for Logic Maximum
            3.5V
Supply Voltage for Logic Typical
            3.3V

        Supply Voltage for Driving Panel Typical
            12V
Supply Current Maximum
            17mA
Supply Current Typical
            7.8mA

 nature Environmental
Environmental

    Operating Temperatures        min
        max

        Celsius
        -40°
        70°

        Fahrenheit
        -40°
        158°

    Storage Temperatures        min
        max

        Celsius
        -40°
        85°

        Fahrenheit
        -40°
        185°

 cable Electronics
Electronics

        Controller Documents
            Solomon Systech SSD7317
Advance Information

128 x 96 Dot Matrix

OLED/PLED Segment/Common Driver

with Integrated Touch Controller
Interface
            I2C, SPI

 picture_as_pdf Datasheets
picture_as_pdfCFAL32128A0-0171B-WC Datasheet

 download Files and Downloads
folder_zip Hardware Design - CFAL32128A0-0171B-WC 3D Model
link Code Repository on Github
link Demo Code on Github
 assured_workload Compliance Documents
 picture_as_pdf Declaration of Conformity RoHS2
 picture_as_pdf Declaration of Conformity REACH

Need a written quote? Add to cart, then enter your email address in the "request a quote" box.
 Quantity:

Price:

            Quantity
            Unit Price

            1 *
            $18.22

            10 *
            $14.81

            20 *
            $14.31

            50 *
            $13.81

            100 *
            $13.60

            200 *
            $13.51

            300 *
            $13.41

            500 *
            $13.31

            1000 *
            $13.20

0 Units In-Stock & Ready To Ship
 Pricing is subject to change.
* Contact us about potential lead times.
Other components worth considering

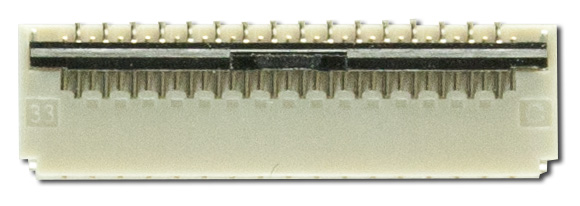

						33 Position, 0.3mm Pitch, Gold, ZIF FFC FPC connector
Add 5 ZIF Connectors $1.32 ea.

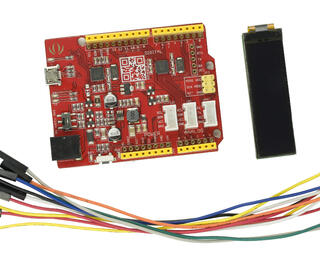

						32x128 In-Cell Touchscreen on Breakout Board
Buy this OLED on a breakout board. $33.64 ea.

Module Overall	width	height	depth
millimeters	15.75	65.5	1.4
inches	0.62	2.58	0.06

Active Area	Width	Height
millimeters	10.54	42.22
inches	0.42	1.66

Dot Size	Width	Height
millimeters	0.27	0.27
inches	0.011	0.011

Dot Pitch	Width	Height
millimeters	0.33	0.33
inches	0.013	0.013

Flexible Cable (FFC/FPC)	length
millimeters	15
inches	0.591

Operating Temperatures	min	max
Celsius	-40°	70°
Fahrenheit	-40°	158°

Storage Temperatures	min	max
Celsius	-40°	85°
Fahrenheit	-40°	185°

Quantity	Unit Price
1 *	$18.22
10 *	$14.81
20 *	$14.31
50 *	$13.81
100 *	$13.60
200 *	$13.51
300 *	$13.41
500 *	$13.31
1000 *	$13.20

Additional Options
Pin Table
Notices

Additional Options

Purchase this small in-cell OLED display in a development kit to speed up prototyping.

In-Cell OLED Development Kit
Part Number: CFAL32128A0-0171WC-E1-2

Details

Quantity	1 *
Unit Price	$65.74

Quantity:

32x128 In-Cell Touchscreen on Breakout Board
Part Number: CFAL32128A0-0171WC-E1

Details

Quantity	1	10 *	20 *	50 *	100 *	200 *	300 *	500 *	1000 *
Unit Price	$33.64	$32.75	$31.65	$30.54	$30.10	$29.88	$29.66	$29.44	$29.21

Quantity:

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Part Change Notice #11341: Datasheet Typo Corrections

Products Affected:	CFAL32128A0-0171B-WC, CFAL32128A0-0171WC-E1, CFAL32128A0-0171WC-E1-2
Date Issued:	April 8, 2025
Summary:	Datasheet Typo Corrections
Description:	Fixing typos in the datasheet that were introduced from the preliminary datasheet. The physical product is not changing. Typo corrections: C.I.E has minor changes Typical logic and touch is 3.3V from 3V Operating current typical is 0.65mA from 1.6mA Power up sequence is updated Thickness is 1.4mm from 2mm
Reason:	The datasheet was not properly updated once the product had been finalized.
Availability:	Contact Crystalfontz Support for up-to-date information by emailing support@crystalfontz.com.

Part Change Notices

Subscribe to Part Change Notices by
email or RSS for CFAL32128A0-0171B-WC
