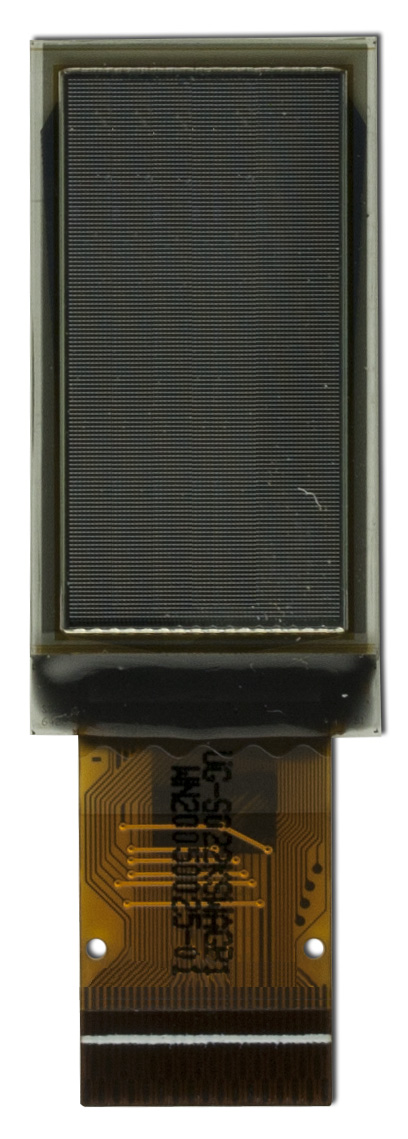

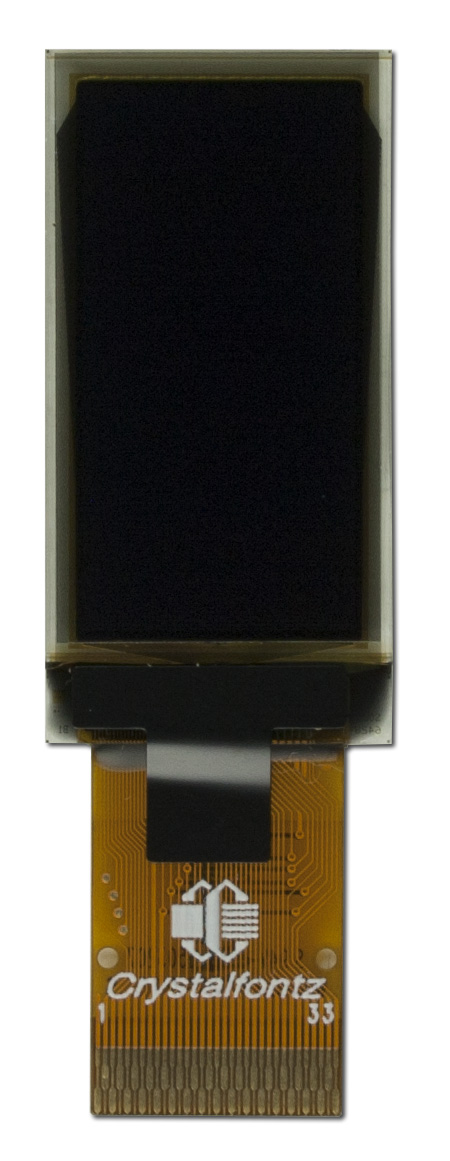

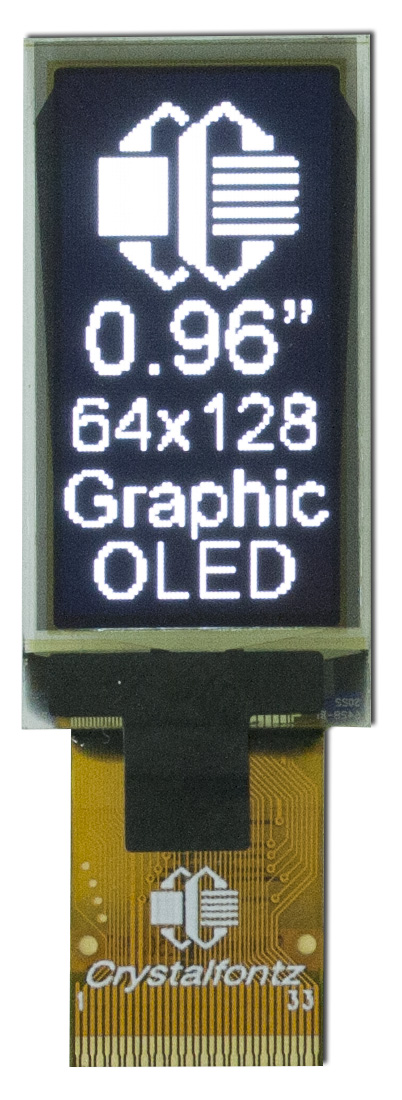

64x128 In-Cell OLED Display

Part Number: CFAL64128B0-0096B-WC

This OLED uses In-Cell technology to bring a touchscreen to this extremely thin module. As the name suggests, in-cell touch embeds the capacitive touch sensors into the glass of the display rather than adding a touch panel to the top of the module. By eliminating the need for this extra layer of glass, this touch screen OLED can be thinner and lighter than a comparable module using standard touch technology.

The touch on this display recognizes touches in four touch zones and different gestures such as swipes. There are also four out-cell touch options for external sensors.

Because the touch is part of the original OLED panel, this monochrome display only uses a single tail for both the display and touch. Plus, Crystalfontz has worked to create a slim tail to reduce the footprint needed to connect with this display.

This display offers a great way to have a changeable button, ancillary display, or visually responsive control.

Key Features:
  • 64x128 pixels
  • 0.96" diagonal
  • Single 0.3mm pitch, 33 position ZIF tail
  • Extremely thin (1.2 mm)
  • 4 touch zones with multiple gestures
  • 4 out-cell touch options for external sensors to be connected
  • Monochrome OLED
  • SPI and I2C interface options for both the touch and the display
  • I2C for touch

Looking for a quick way to get this display running? Check out this 0.96" in-cell display with breakout board, or the fully assembled 64x128 in-Cell Touchscreen Development Kit.

Product Variants

CFAL64128B0-0096B-WC64x128 In-Cell OLED Display
CFAL32128A0-0171B-WC32x128 In-Cell Touchscreen OLED
64x128 In-Cell OLED Display (CFAL64128B0-0096B-WC)
Qty:
Quantity Price
1 $8.48
10 $6.89
20 $6.66
50 $6.43
100 * $6.34
200 * $6.29
300 * $6.24
500 * $6.20
1000 * $6.15
* For quantites over this amount the lead time may be up to 60 Days. Contact us about potential lead times.
Components worth considering
4624 33 Position, 0.3mm Pitch, Gold, ZIF FFC FPC connector
Add 5 ZIF Connectors $1.32 ea.
Need a written quote? Add to cart, then enter your email address in the "request a quote" box.

Datasheet

Files

Part Change Notices

Subscribe to Part Change Notices by
email Email subscription for changes to CFAL64128B0-0096B-WC or RSS RSS feed for changes to CFAL64128B0-0096B-WC for CFAL64128B0-0096B-WC

Compliance Documents

Video Demonstrations

64x128 InCell Touchscreen Monochrome OLED Display

TECHNICAL SPECS

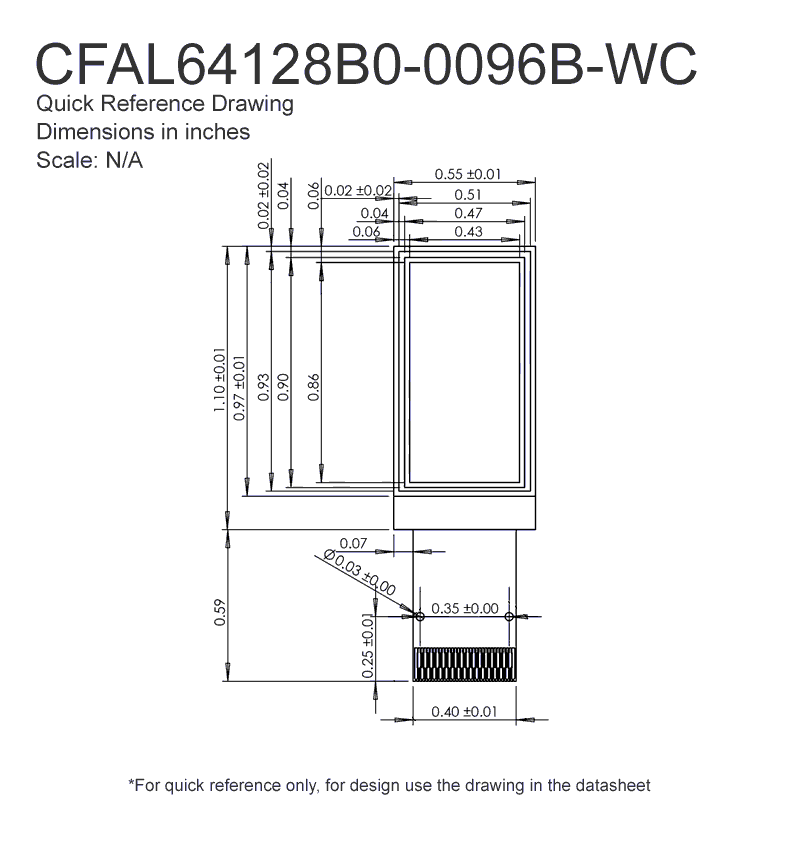

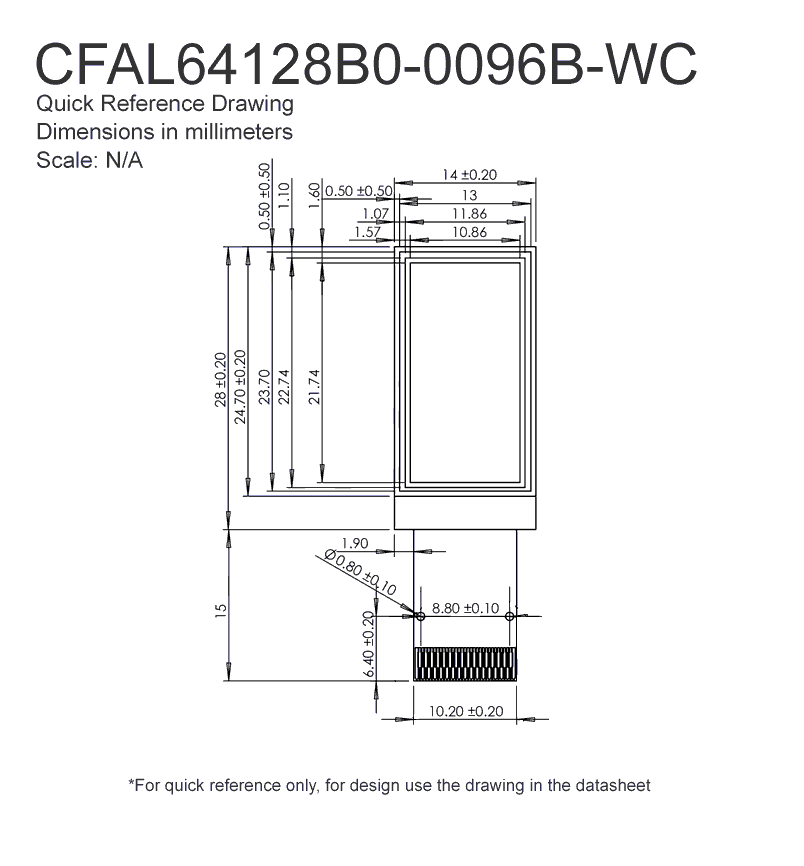

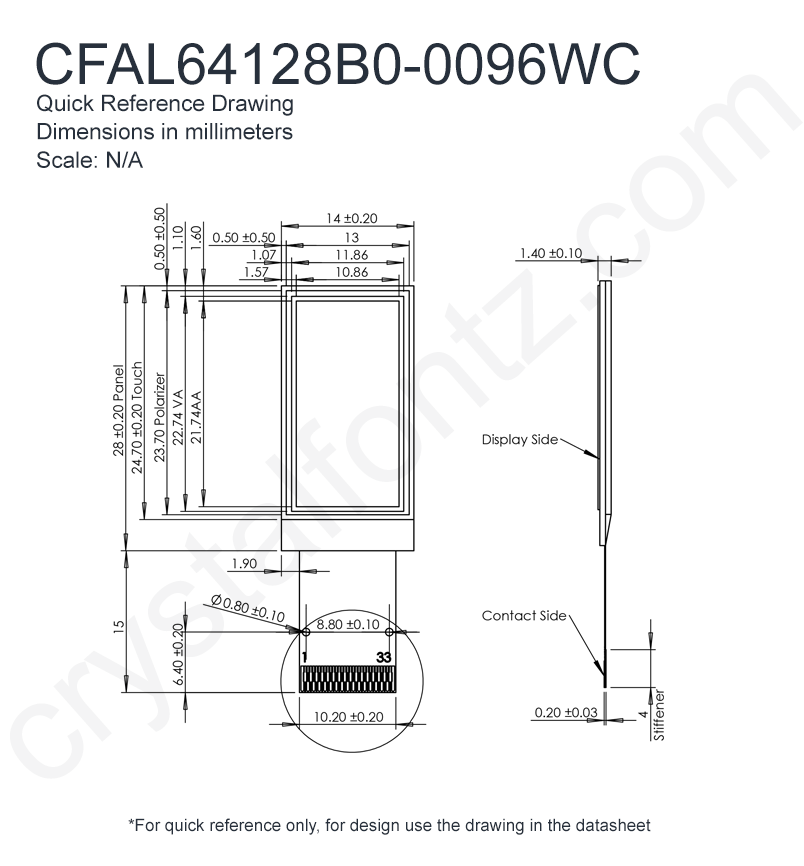

Physical Characteristics

Column Dots x Row Dots 64 x 128
Module Overall width height depth
millimeters 14 28 1.2
inches 0.551 1.102 0.047
*width / height does not include Foldable Tab
Diagonal Dimension 0.96"
Active Area width height
millimeters 10.86 21.74
inches 0.428 0.856
Dot Size width height
millimeters 0.15 0.15
inches 0.006 0.006
Dot Pitch width height
millimeters 0.17 0.17
inches 0.007 0.007
Optional Connectors CS030Z33G-A0
Flexible Cable (FFC/FPC) length
millimeters 15
inches 0.591
Weight 1.1g

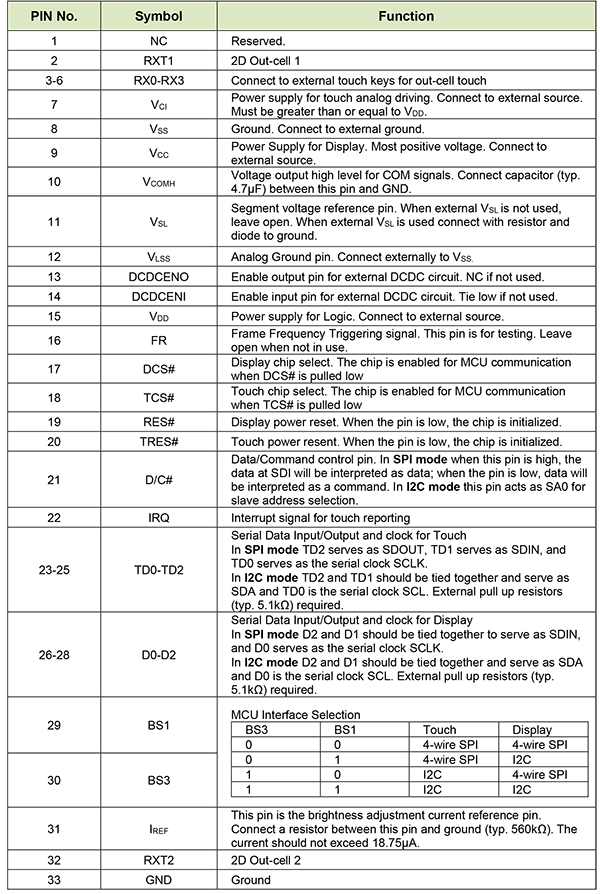

Pin Count 33

Optical Characteristics

Foreground Color White
Background Color Dark

Electrical Specifications

Supply Voltage for Logic Minimum 1.65V
Supply Voltage for Logic Maximum 3.5V
Supply Voltage for Logic Typical 3V
Supply Voltage for Driving Panel Typical 12:00V
Supply Current Minimum 11.5mA
Supply Current Maximum 12.5mA
Supply Current Typical 27.7mA

Environmental

Operating Temperatures min max
Celsius -40° 70°
Fahrenheit -40° 158°
Storage Temperatures min max
Celsius -40° 80°
Fahrenheit -40° 176°

Electronics

Controller Documents Solomon Systech SSD7317
Advance Information
128 x 96 Dot Matrix
OLED/PLED Segment/Common Driver
with Integrated Touch Controller
Interface I2C, SPI

Miscellaneous

Foldable Tab Yes
Touch Screen Capacitive In-Cell

Additional Options

Purchase this in-cell OLED display with a breakout board or a complete development kit to get prototyping done fast!

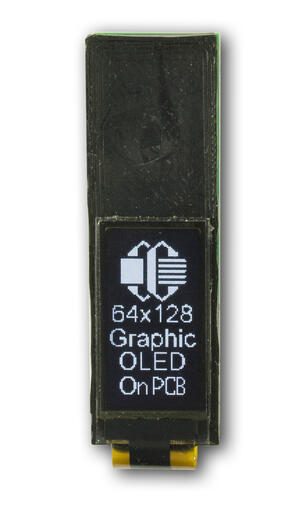

64x128 In-Cell Touchscreen OLED with Breakout Board
Part Number: CFAL64128B0-0096WC-E1

This in-cell touchscreen OLED display module consists of the 0.96" in-cell touchscreen OLED mounted to a breakout PCB and simplifies incorporating the in-cell display into a project. The PCB breaks the display tail out to a 0.1" header. A spacer is included between the OLED and the PCB to demonstrate the gap necessary to protect the display's touch sensors from noise

Packed into less than an inch diagonal, this display has 64x128 resolution and four touch sensing zones. Using in-cell capacitive touch technology, this display is thinner and lighter than a comparable touchscreen display.

This display module is small and light enough for a wearable, and with the combo of touch and display in this small package this display would make a great changing switch, human input device, and so on.

Key Features:

  • 64x128 pixel resolution
  • 0.96" diagonal dimension
  • 20 pin tenth inch header
  • 4 touch zones with multiple gestures
  • 2 out-cell multi-touch options for external sensors to be connected
  • Monochrome OLED
  • Easily switch between I2C or SPI communication using jumpers
Also check out the 0.96" in-cell touchscreen OLED development kit to get up and running quickly. Or, for a similar display with a different outline, the 1.71" in-cell touchscreen OLED display module.

Details
Quantity 1 5 10 20 50 100 * 200 * 300 * 500 * 1000 *
Price $30.56 $25.51 $24.84 $24.00 $23.16 $22.83 $22.66 $22.49 $22.32 $22.16
Quantity:

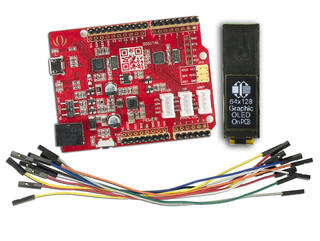

64x128 in-Cell Touchscreen Development Kit
Part Number: CFAL64128B0-0096WC-E1-2

A full development kit designed to quickly show the features of the 0.96" in-cell touch OLED display. This kit comes with everything needed to have this display up and running as soon as possible, including a Seeeduino microcontroller loaded with a sketch. Simply plug the included USB cable into a 5v power supply (your computer).

Read more about the display and the display module on their respective pages:


Kit Contents:
  • 0.96" in cell touchscreen OLED display
  • Breakout board
  • Seeeduino Microprocessor with demonstration code
  • Wires, cables, etc. as needed

Details
Quantity 1
Price $56.12
Quantity:
For reference only. For design purposes, please use the specifications in the datasheet.
