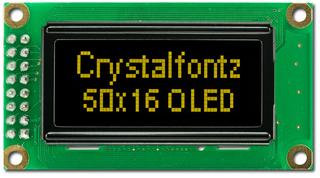

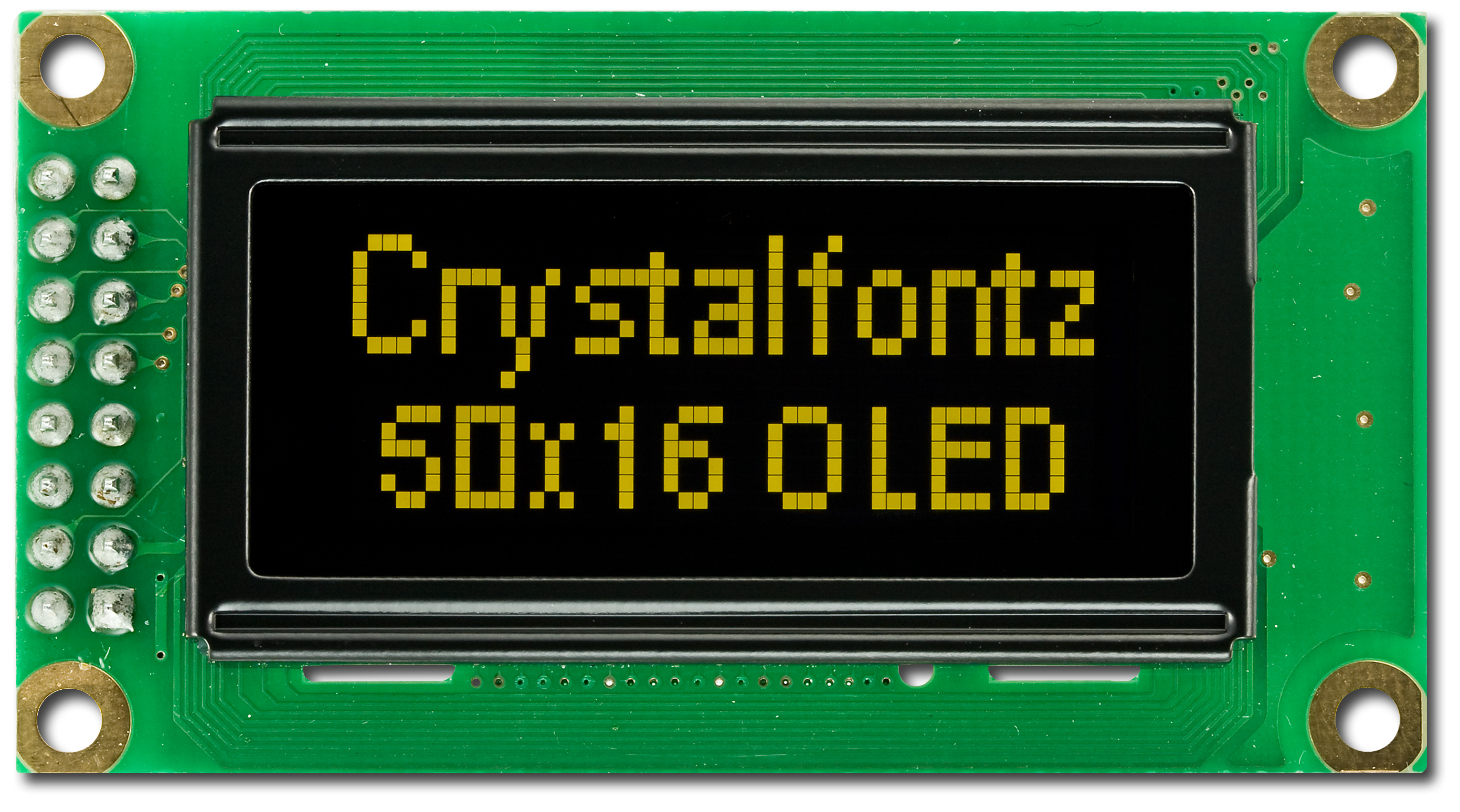

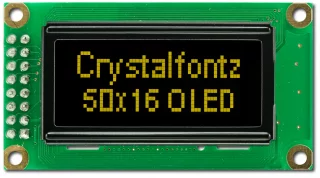

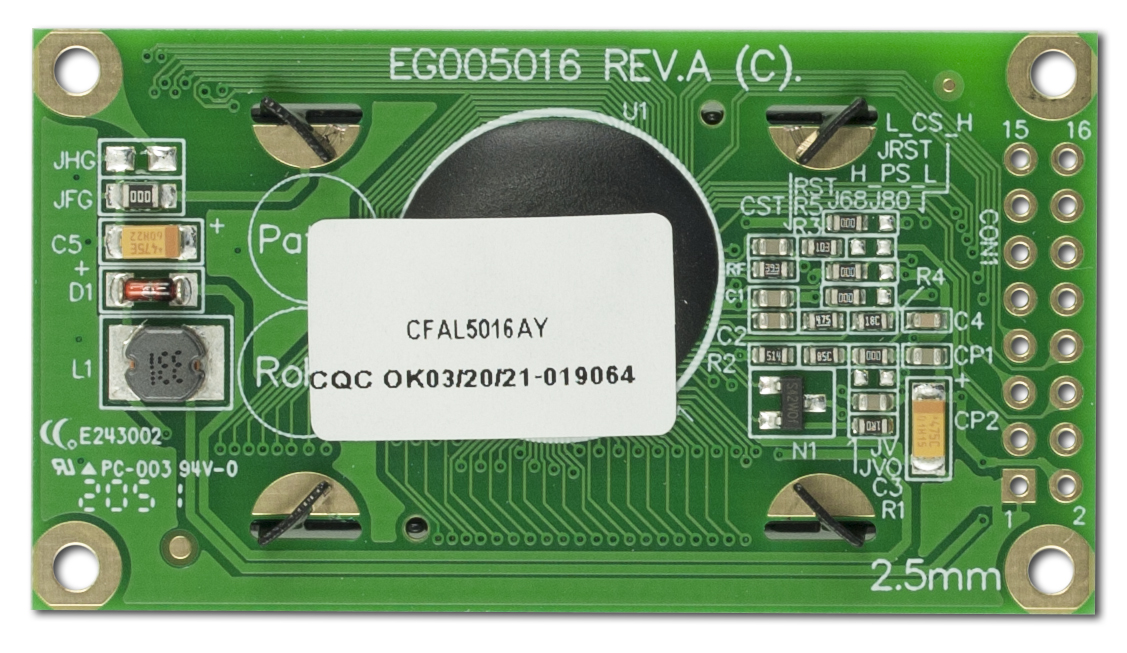

50x16 Graphic OLED DisplayPart Number: CFAL5016A-YThe CFAL5016A-Y is a versatile graphic OLED display module designed to fit the same display opening and mounting holes as the CFAH0802A series of character LCD display modules.  If you are planning a design refresh and you are currently using one of our CFAH0802A series of LCD display modules, with a very small modification to your PCB layout you can add a 50x16 pixel graphic OLED display module to your design without changing the enclosure for your product!
The CFAL5016A-Y graphic OLED display module has a very high contrast ratio (2000:1) with an extremely dark background versus the lit-up pixels on the display.  This will really make the information or graphics you're displaying pop, drawing the attention that your product deserves.  This display module features a viewing cone in excess of 160° and is able to communicate using either an 8 or 4-bit parallel microcontroller interface.  Because the CFAL5016A-Y only powers the pixels that are necessary, as opposed to backlighting the entire display all the time, there can be significant power savings when used with sparse display content.  Like all of our display offerings, the CFAL5016A-Y is REACH/RoHS compliant, so adding the CFAL5016A-Y won't cause you any difficulties when shipping to the European Union or other areas which hold to those rules.
8-bit parallel, 4-bit parallel.
The Winstar Display WS0010 controller interface is very similar to industry standard Hitachi HD44780.
Operating temperature range from -40°C to 80°C.
This product is RoHS Compliant.
Crystalfontz America Inc. is ISO 9001:2015 certified.
Need this module with a SPI interface? Take a look at our 50x16 SPI Graphic OLED Display.
Product VariationsInterfacesSPI4-bit Parallel, 8-bit Parallel

 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            50 x 16


    Module Overall        width
        height
        depth


        millimeters
        58
        32
        10


        inches
        2.28
        1.26
        0.39



    PCB Outline        width
        height
        depth


        millimeters
        58
        32
        10


        inches
        2.28
        1.26
        0.39



        Diagonal Dimension
            1.26"


    Viewing Area        Width
        Height


        millimeters
        38
        16


        inches
        1.50
        0.63



    Active Area        Width
        Height


        millimeters
        29.96
        11.16


        inches
        1.18
        0.44



    Dot Size        Width
        Height


        millimeters
        0.56
        0.66


        inches
        0.022
        0.026



    Dot Pitch        Width
        Height


        millimeters
        0.6
        0.7


        inches
        0.024
        0.028



        Weight
            16g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type
            OLED
Polarizer
            Emissive
View Angle
            160°


        Mode
            Positive
Foreground Color
            Yellow
Background Color
            Black

 electric_bolt Electrical Specification
Electrical Specifications

        Supply Voltage for Logic Minimum
            4.8V
Supply Voltage for Logic Maximum
            5.3V
Supply Voltage for Logic Typical
            5V


        Supply Current Minimum
            15mA
Supply Current Maximum
            24mA
Supply Current Typical
            19mA

 nature Environmental
Environmental

    Operating Temperatures        min
        max


        Celsius
        -40°
        80°


        Fahrenheit
        -40°
        176°



    Storage Temperatures        min
        max


        Celsius
        -40°
        80°


        Fahrenheit
        -40°
        176°



    Humidity        min
        max


        Non-condensing
        0%
        90%


 cable Electronics
Electronics

        Controller Documents
            Winstar Display WS0010

Interface
            4-bit Parallel, 8-bit Parallel

 picture_as_pdf Datasheets
picture_as_pdfCFAL5016AY Datasheet

Previous Versions of Datasheetpicture_as_pdfCFAL5016A-Y Data Sheet 2012-04-25

 download Files and Downloads
folder_zip Software Source - ATMEGA2561 8, 4-bit and 3 wire SPI example code
link Arduino Demo Code Download on Github
link Arduino Demo Code Respository on Github
 assured_workload Compliance Documents
 picture_as_pdf Declaration of Conformity RoHS2
 picture_as_pdf Declaration of Conformity REACH










Need a written quote? Add to cart, then enter your email address in the "request a quote" box.
 Quantity:


Price:



            Quantity
            Unit Price


            1
            $14.69

            10
            $13.54

            20
            $13.08

            50 *
            $12.62

            100 *
            $11.91

            200 *
            $11.83

            300 *
            $11.21

            500 *
            $11.13

            1000 *
            $10.41

24 Units In-Stock & Ready To Ship
 Pricing is subject to change.
* Contact us about potential lead times.
Other components worth considering


						8x2 Pin Dual Row Header
Add header pins (5pk)? $0.28 ea.





Interfaces	SPI 4-bit Parallel, 8-bit Parallel

Module Overall	width	height	depth
millimeters	58	32	10
inches	2.28	1.26	0.39

PCB Outline	width	height	depth
millimeters	58	32	10
inches	2.28	1.26	0.39

Viewing Area	Width	Height
millimeters	38	16
inches	1.50	0.63

Active Area	Width	Height
millimeters	29.96	11.16
inches	1.18	0.44

Dot Size	Width	Height
millimeters	0.56	0.66
inches	0.022	0.026

Dot Pitch	Width	Height
millimeters	0.6	0.7
inches	0.024	0.028

Operating Temperatures	min	max
Celsius	-40°	80°
Fahrenheit	-40°	176°

Storage Temperatures	min	max
Celsius	-40°	80°
Fahrenheit	-40°	176°

Humidity	min	max
Non-condensing	0%	90%

Quantity	Unit Price
1	$14.69
10	$13.54
20	$13.08
50 *	$12.62
100 *	$11.91
200 *	$11.83
300 *	$11.21
500 *	$11.13
1000 *	$10.41

Notices

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Part Change Notice #11101: Reset Pin Change

Products Affected:	CFAL2004A-Y, CFAL2002A-Y, CFAL1602L0-Y, CFAL1202A-Y, CFAL5016A-Y, CFAL0802A-Y, CFAL1602C-B, CFAL1602C-W, CFAL1602C-Y
Date Issued:	August 17, 2021
Summary:	Reset Pin Change
Description:	RST and CST, the components in the RC filter for the reset pin, are being modified. RST will be 33kOhms and CST will be 1uF.
Reason:	Some reset circuits have shown not to be strong enough to drive the reset pin within the specified timing. If the reset circuit is not strong enough, the controller will not properly reset which causes abnormal behavior.

Part Change Notice #11077: Small Layout Change

Products Affected:	CFAL2004A-Y, CFAL2002A-Y, CFAL1602L0-Y, CFAL1202A-Y, CFAL5016A-Y, CFAL0802A-Y, CFAL1602C-W, CFAL1602C-Y, CFAL1602C-YT, CFAL1602C-PW, CFAL1602C-PY, CFAL5016A-PY
Date Issued:	February 10, 2021
Summary:	Small Layout Change
Description:	Changing manufacturing locations of the wafers used in the controller chip. The layout has to be slightly modified to accommodate the practices at the new facility. The functionality will remain the same.
Reason:	Changing manufacturing locations due to the wafer process no longer being supported by the original facility.

Product Update #10413: (New Product) CFAL5016A-Y

New Product: CFAL5016A-Y

Date Issued: April 27, 2012

Summary: (New Product) CFAL5016A-Y

Description: Under OLED Modules: 50x16 Graphic OLED module
