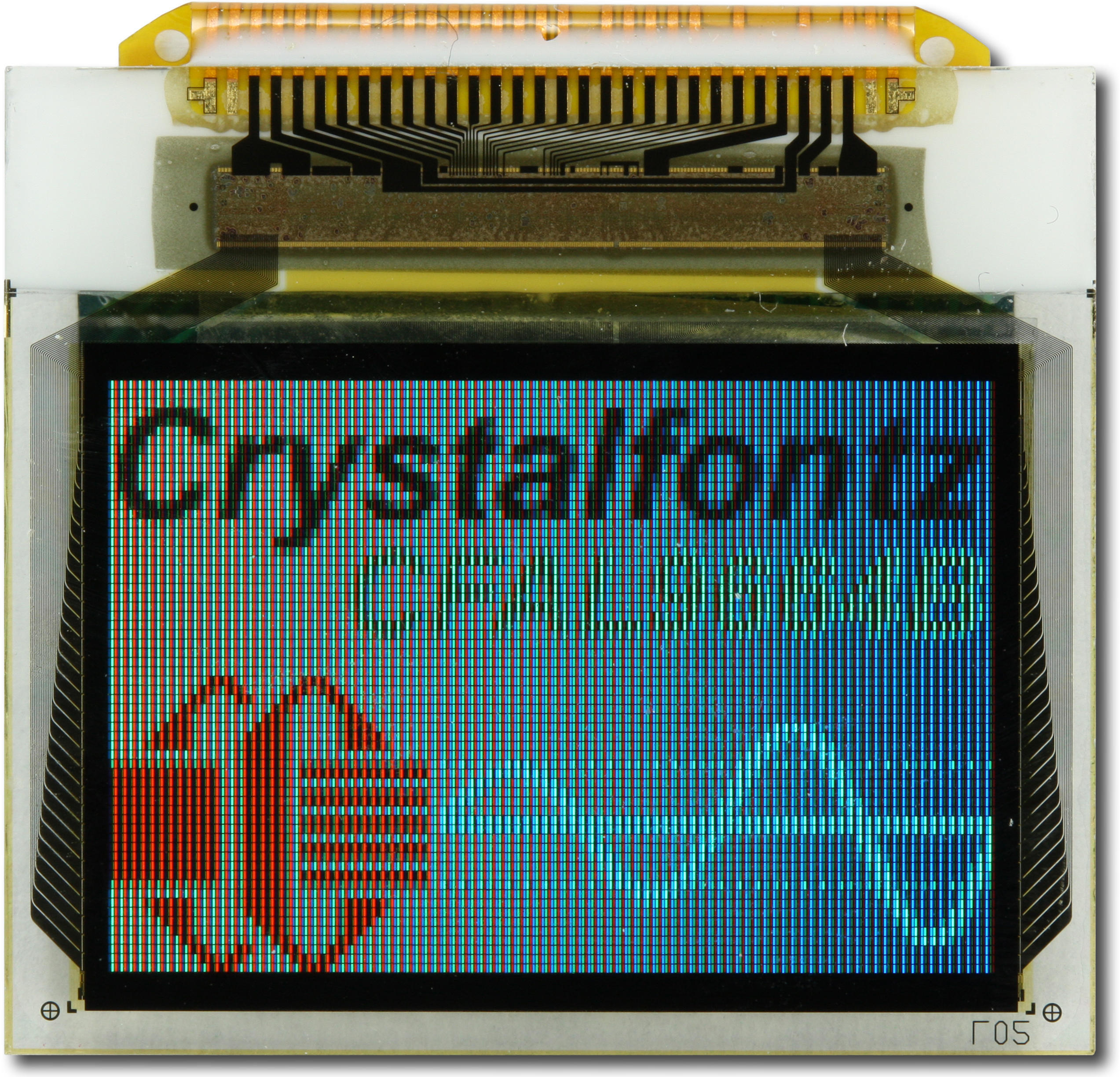

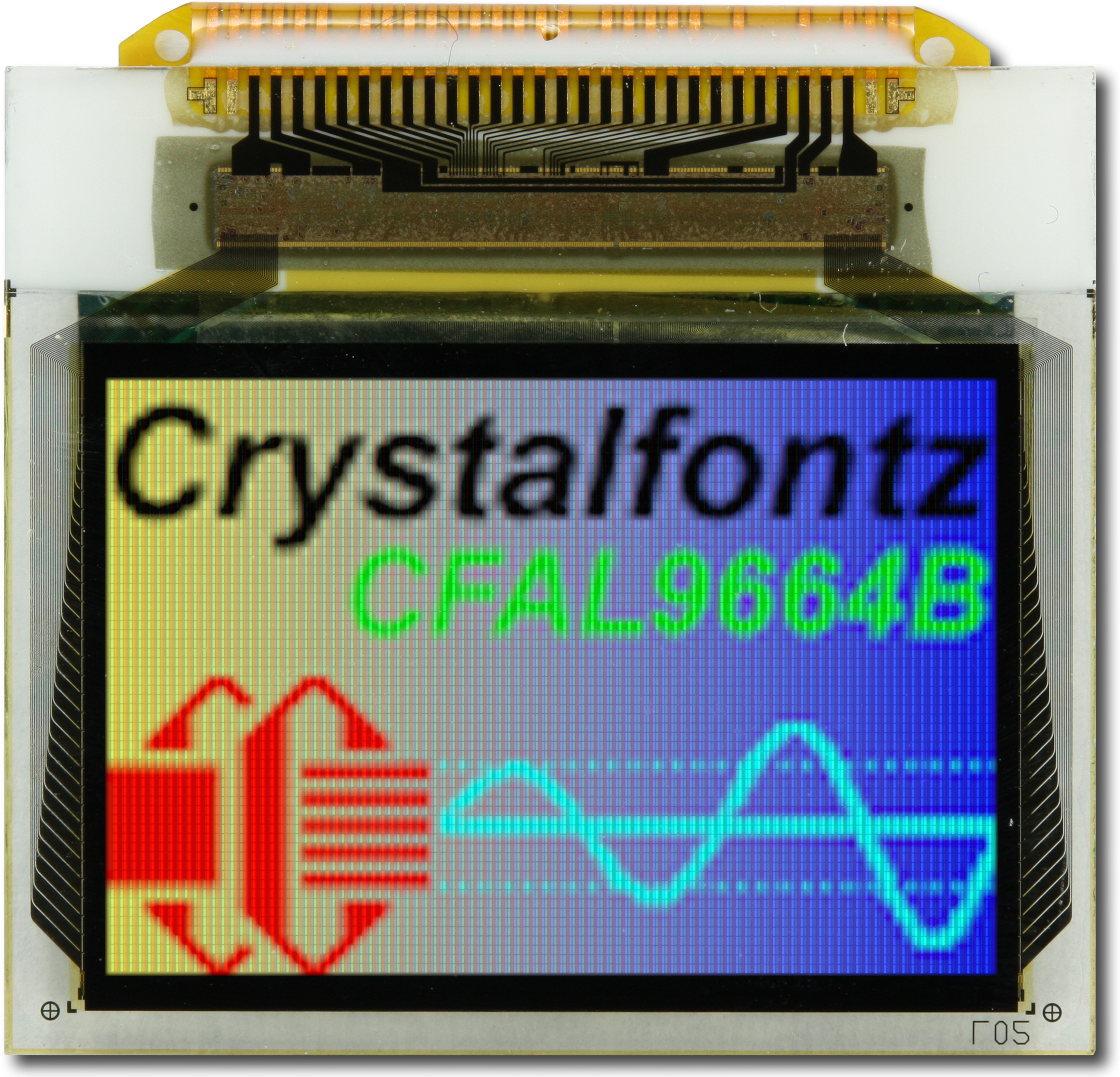

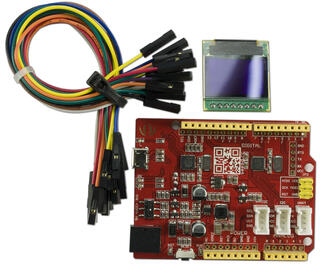

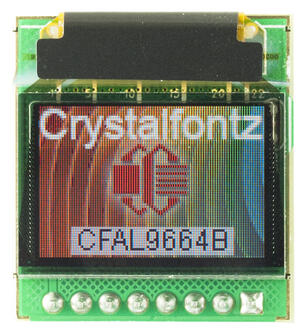

Or to speed up prototyping, order this OLED pre-assembled on a carrier board.

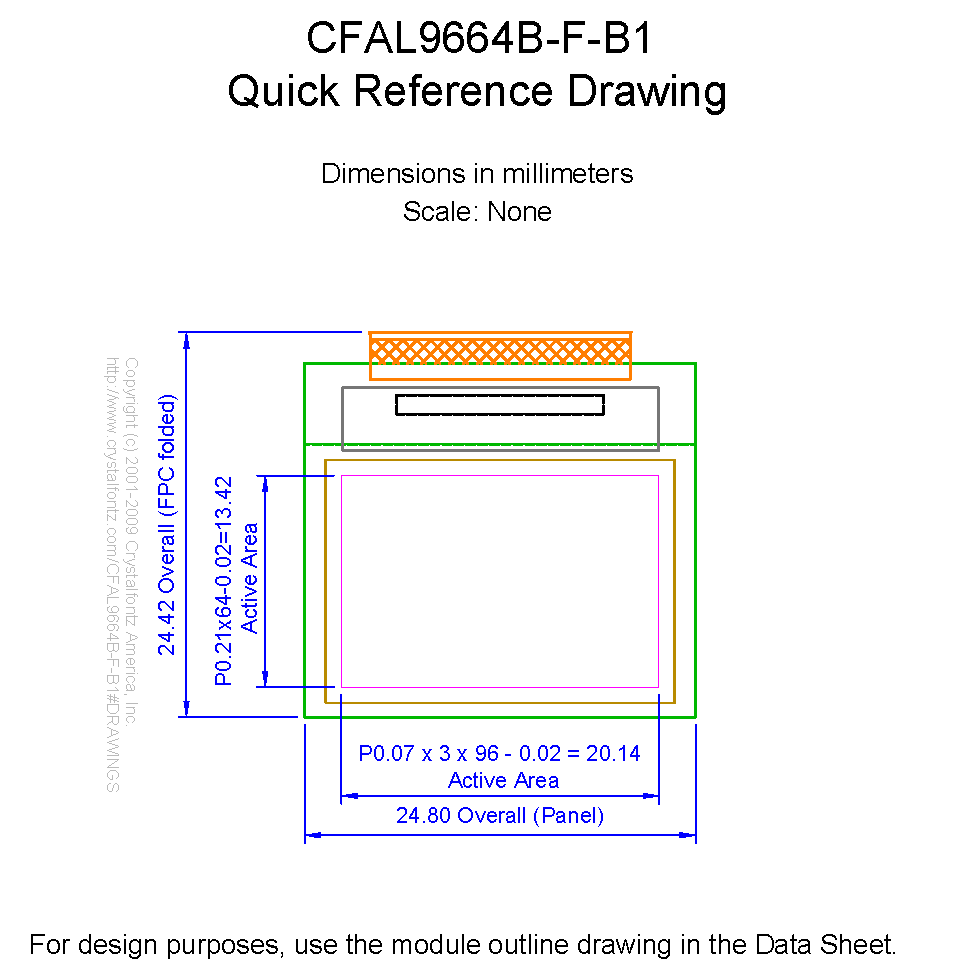

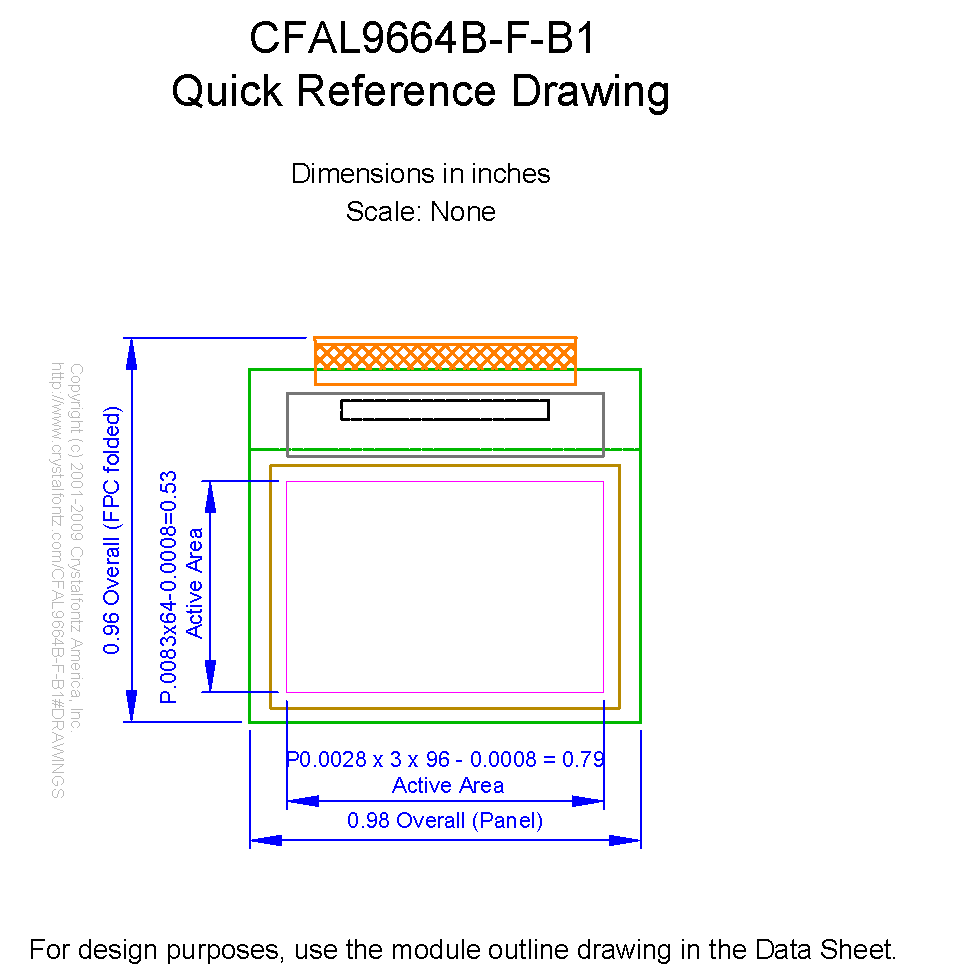

For reference only. For design purposes, please use the specifications in the datasheet.
*Suggest a Correction
|Column Dots x Row Dots
||96 x 64|
|Module Overall ||width
|*width / height does not include Foldable Tab
|Viewing Area ||width
|Active Area ||width
|Dot Size ||width
|Dot Pitch ||width
|Supply Voltage for Logic Minimum
|Supply Voltage for Logic Maximum
|Supply Voltage for Logic Typical
|Supply Voltage for Driving LCD Typical
|Module Connector Pitch
|Operating Temperatures ||min
|Storage Temperatures ||min
RoHS/REACH COC - F-0058B CFA REACH DoC OLED Displays
REACH EC/1097-2006 SVHC Annex 1 Declaration of Conformity to include ECHA List updated 2016-06-20 (169 Substances)
REACH EC/1097-2006 Annex XIV 'Authorisation List' Updated 2016-01-11 (31 substances)
REACH EC-1097-2006 Annex XVII Restricted Substances
Directive 76/769/EEC, Updated 2016-03-17 (61 unique substances/entries)
Part Change Notice
Subscribe to Part Change Notices by email
Part Change Notice #10014: Datasheet correction
||July 2, 2009|
||Reversed FPC detail drawing in Module Outline Drawings (Pg. 7) to match how the module looks from a front view. Corrected pin order on Quick Reference For Pin Functions (Front View) (Pg. 16). VPANEL is pin 2 and VLOGIC is pin 3. PLUS|
This module does not have an internal DC-DC converter.
References to internal DC-DC converter (VDD2) were deleted, including in the System Block Diagram (Pg. 10).
||Conflicting information was present which could cause failure of the product if the incorrect diagram were to be used. Also to reduce confusion regarding the DC-DC converter mentioned in the controller datasheet.|

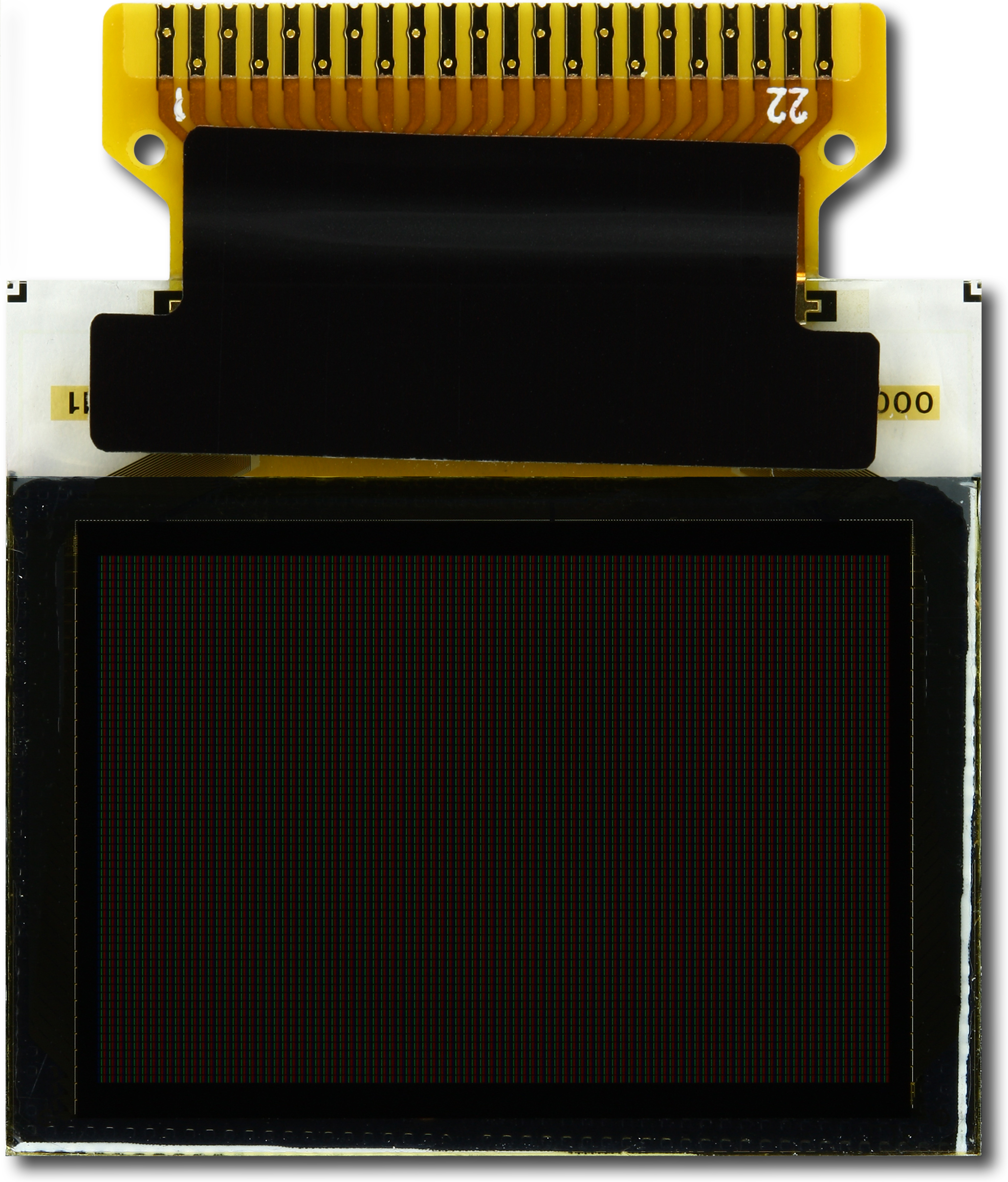

This module is engineered for high volume production. It uses a "TAB" (tape automated bonding) or "COF" (chip on flex) style flex tail mated with a "COG" (chip on glass) display. The TAB connector is soldered directly to corresponding pads on your PCB using a hot-bar soldering machine. High volume contract manufacturers will be familiar with this type of construction and its assembly methods. Hot-bar soldering machines designed for prototype, rework or repair of TAB connections are available from equipment suppliers at reasonable cost.
The TAB style connection requires no separate connector, so the cost is very low, and the ultra thin profile of the display is maintained.
