96x64 Color OLED with Carrier Board

Part Number: CFAL9664BFB1-E1-1

This OLED breakout-kit consists of our 96x64 graphic full-color OLED Display mounted on a carrier board.

The carrier board allows easy integration into your device or project. The carrier board has a convenient 8-pin, 0.10 inch center header. Integrated VPP means you only need a single power supply. The 4-wire SPI interface lets you connect your microcontroller directly to the display and simplifies circuit configuration by automatically handling panel voltage and interface selection.

Learn how to create a Tiny OLED Full Color Slideshow with this display in our Blog.

96x64 Color OLED with Carrier Board (CFAL9664BFB1-E1-1)

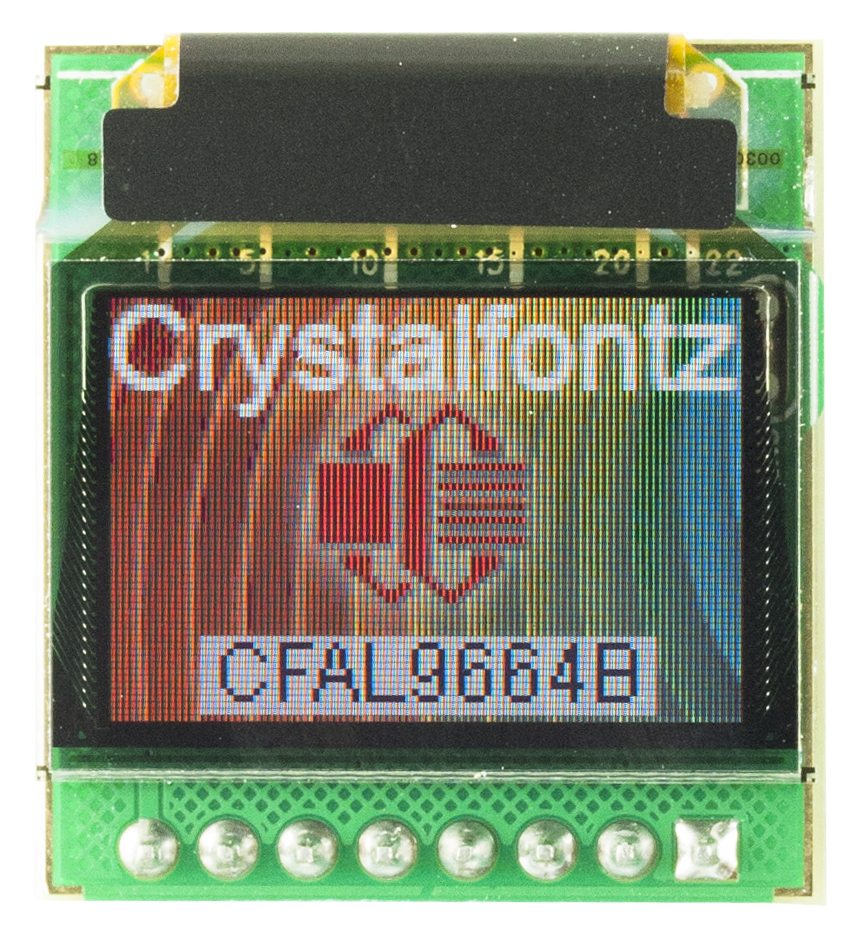

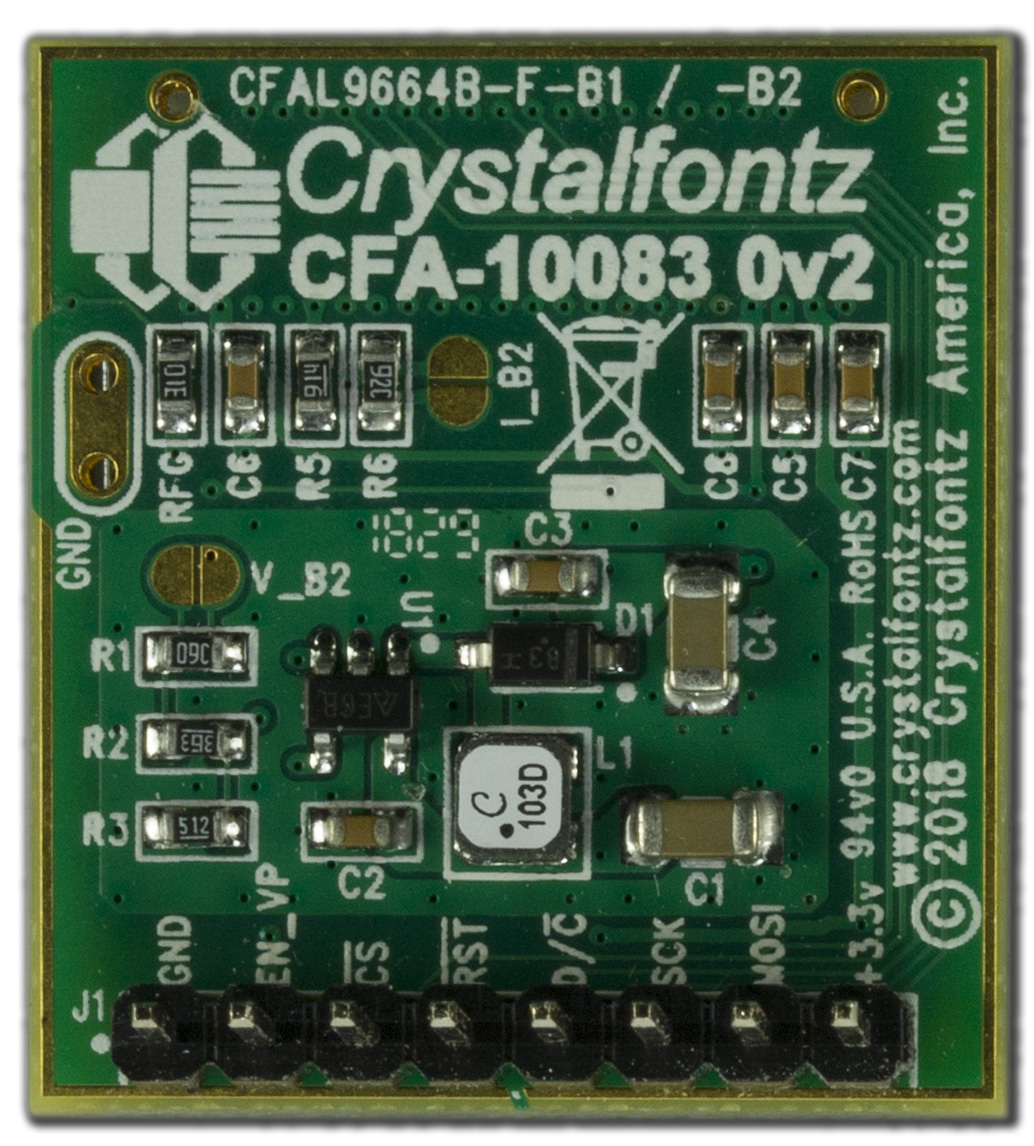

96x64 color oled on carrier board. View of carrier board.

Quantity	Price
1	$24.90
10	$21.67
20	$20.90
50	$20.14
100	$19.84
200	$19.53
300 *	$19.38
500 *	$19.23
1000 *	$19.08

* Pricing is subject to change. Contact us about potential lead times.

Components worth considering

1871

6-inch Female to Female Jumper Wires
Add jumper wires? $3.38 ea.

4583

Seeeduino 4.2
Need a microcontroller? $20.67 ea.

Need a written quote? Add to cart, then enter your email address in the "request a quote" box.

Files

Hardware Design - Carrier Board Build Package

Arduino Code Repository on Github

Arduino Demo Code Download on Github

Part Change Notices

Subscribe to Part Change Notices by
email or RSS for CFAL9664BFB1-E1-1

Compliance Documents

TECHNICAL SPECS

Physical Characteristics

Diagonal Dimension

0.95"

Weight

4.7g

Compatible Products
Blog Posts

Blog Posts about this product:

Tiny OLED Full Color Slideshow
