7" Touchscreen Raspberry PI LCD

Part Number: CFAM1024600A0-070R

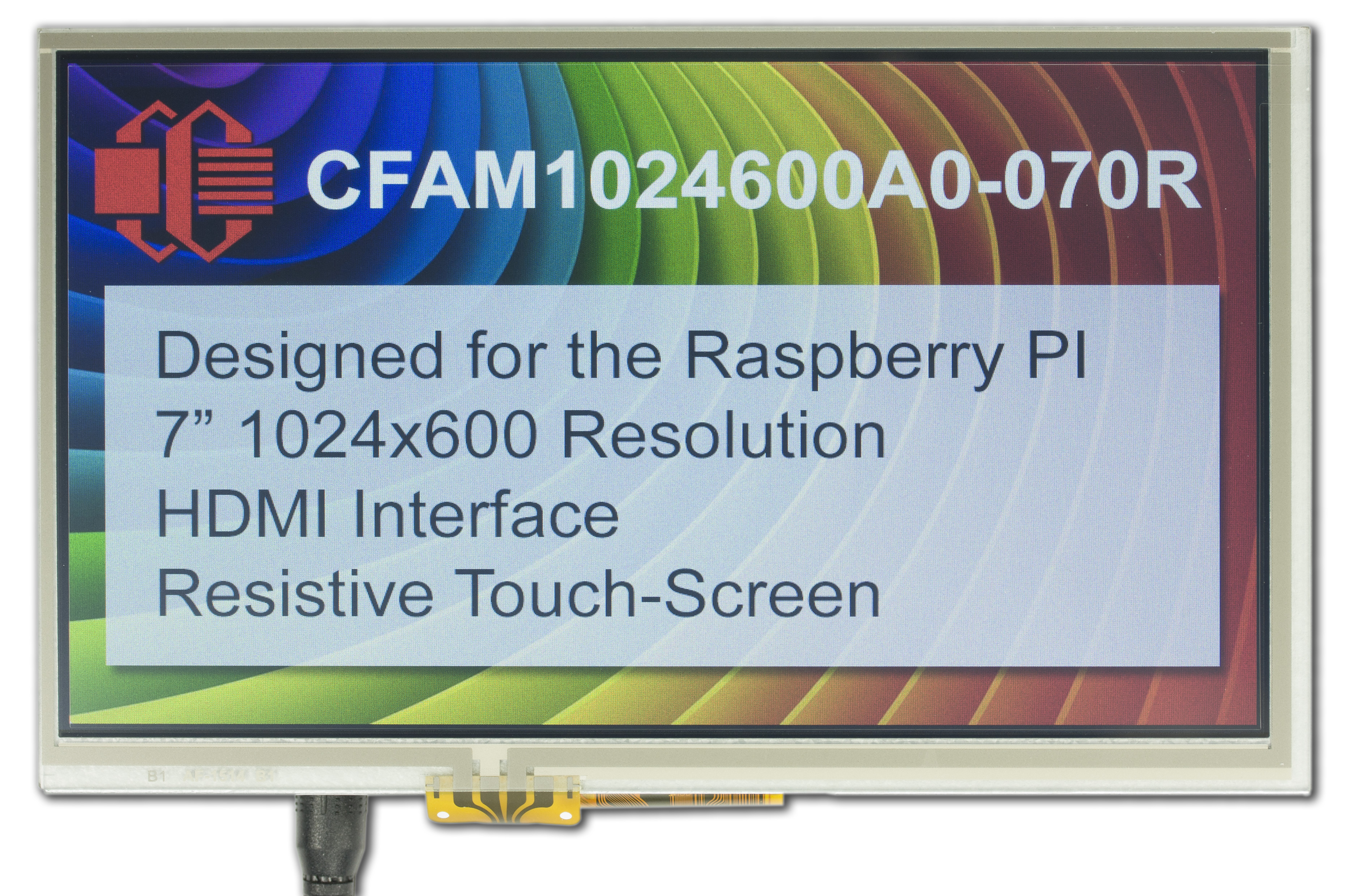

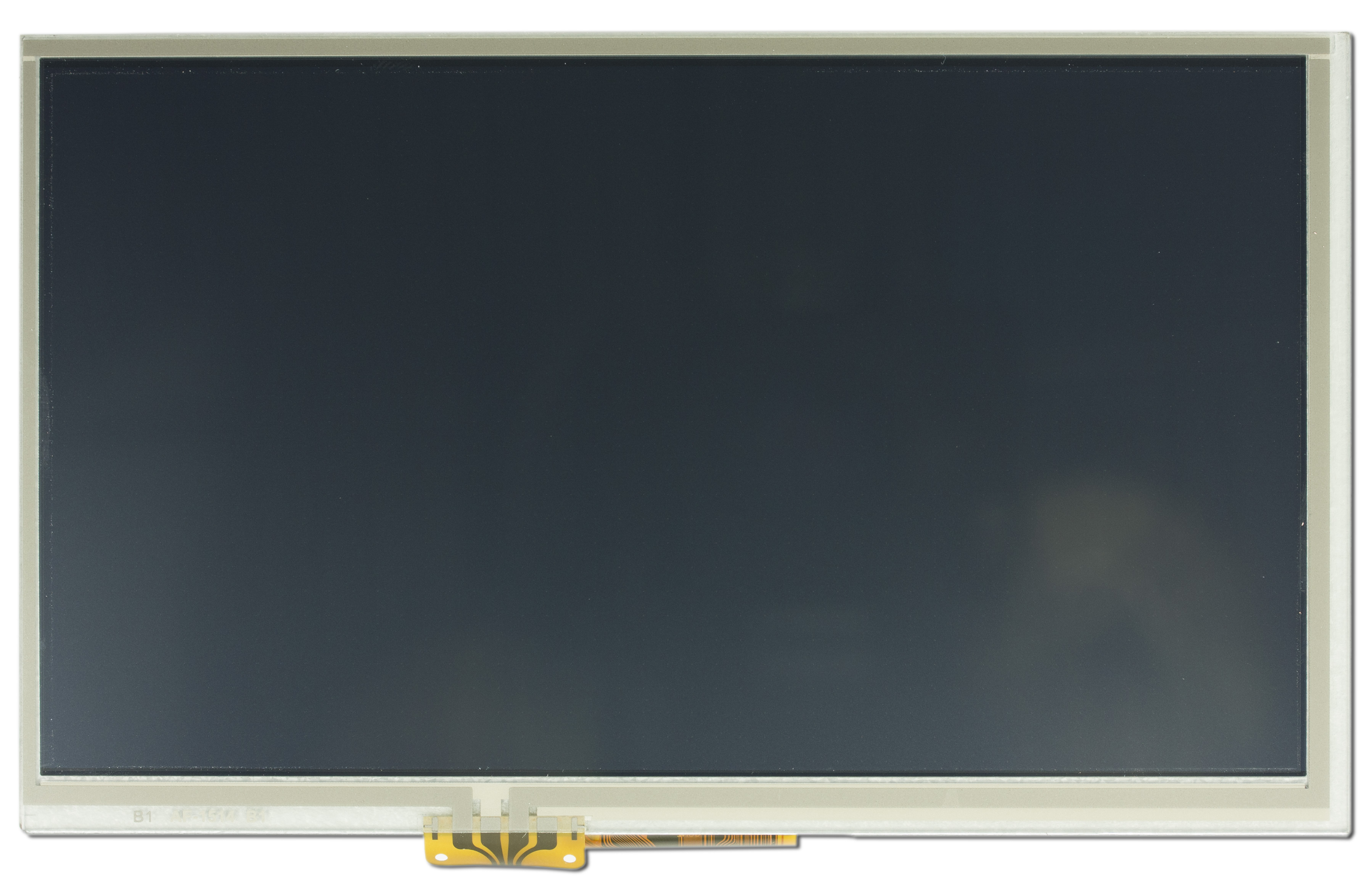

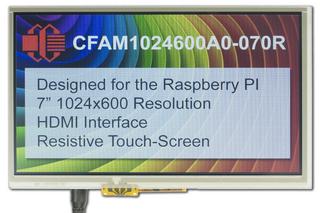

7" 1024x600 HDMI Raspberry PI TFT LCD with Resistive Touchscreen.

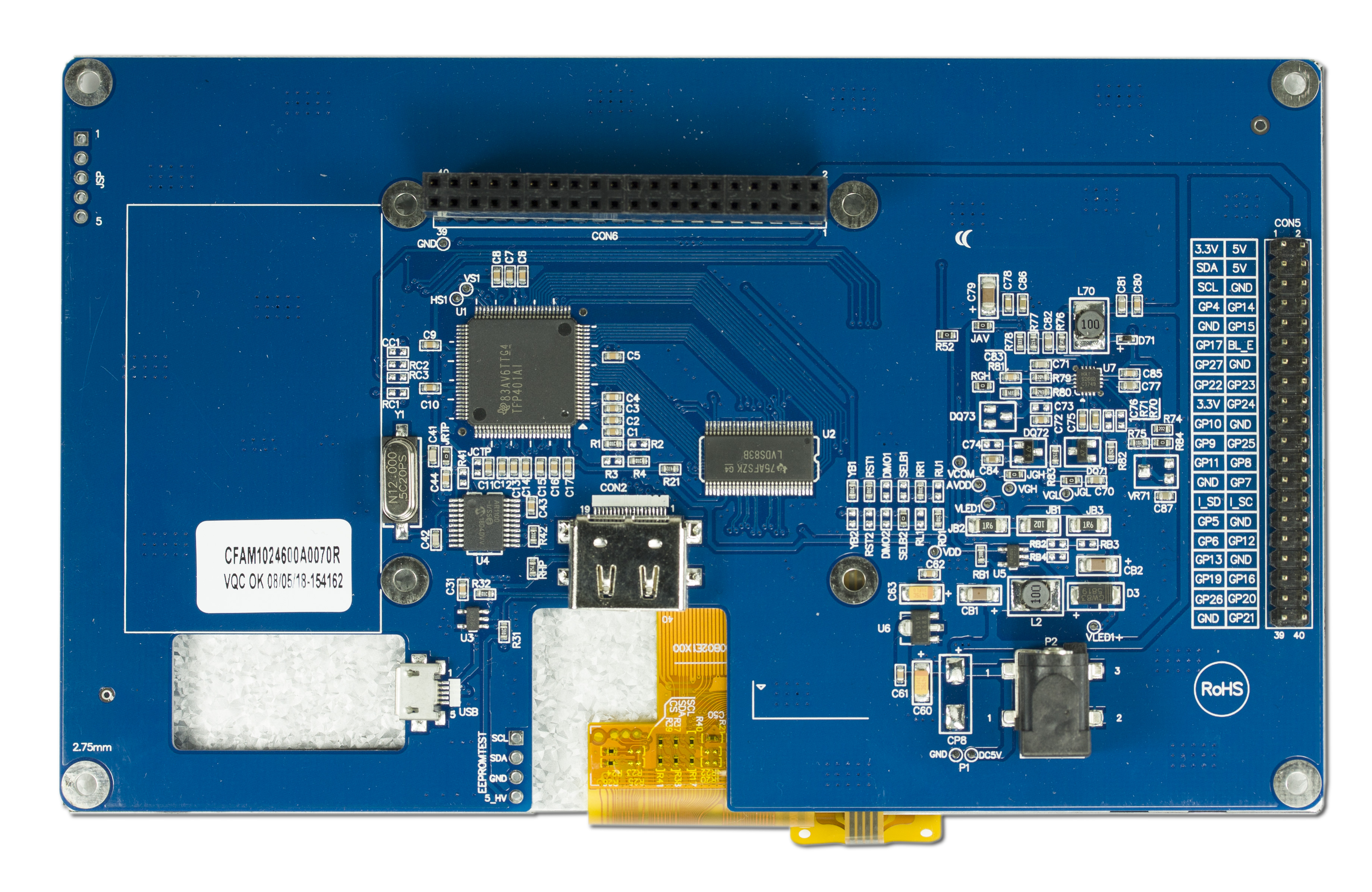

This 7 inch TFT LCD was designed specifically for integration with a Raspberry PI. It uses the RPI's HDMI port, PINS and USB connection for the touchscreen.
It offers a high resolution for a 7" screen, This is an IPS transmissive screen with a white LED backlight making it easily viewable in all lighting conditions and any viewing direction. It also boasts a resistive touchscreen making it perfect for handheld devices.

We have found that this displays power requirements are a bit high for the Raspberry Pi when using the Pi's power source to supply the LCD display, so we've used this additional power supply for powering the backlight when controlling it via a Raspberry Pi.

This device's touch-screen drivers are not supported by the Android OS

Product Variants

7" Touchscreen Raspberry PI LCD (CFAM1024600A0-070R)

Datasheet

Files

Video Demonstrations

HDMI Raspberry PI Display

Here's a quick demonstration of our 7 inch HDMI Raspberry PI Display


TECHNICAL SPECS

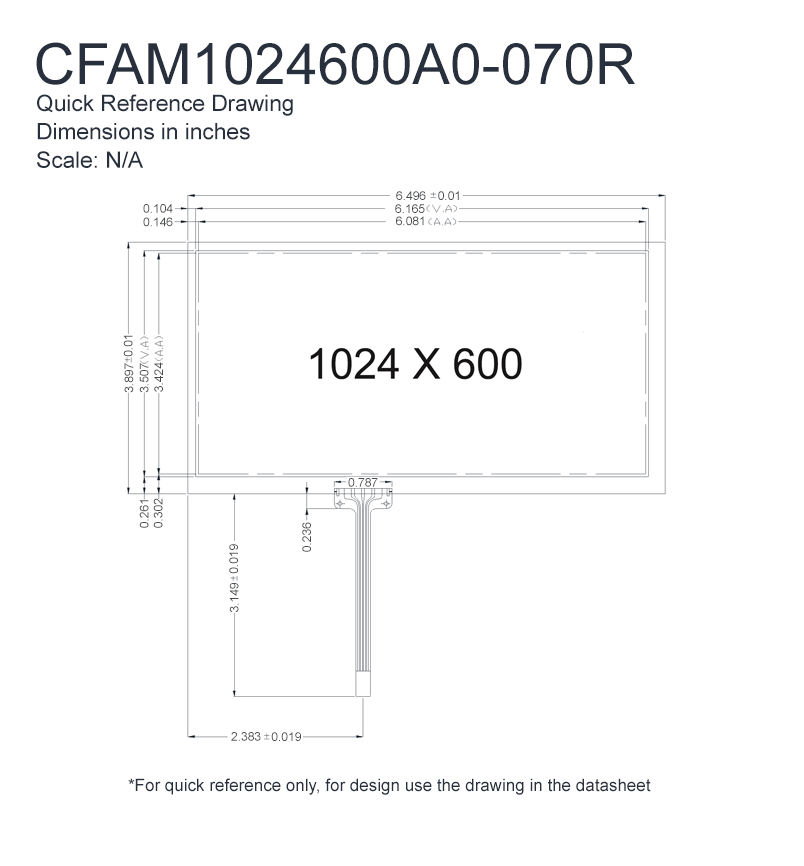

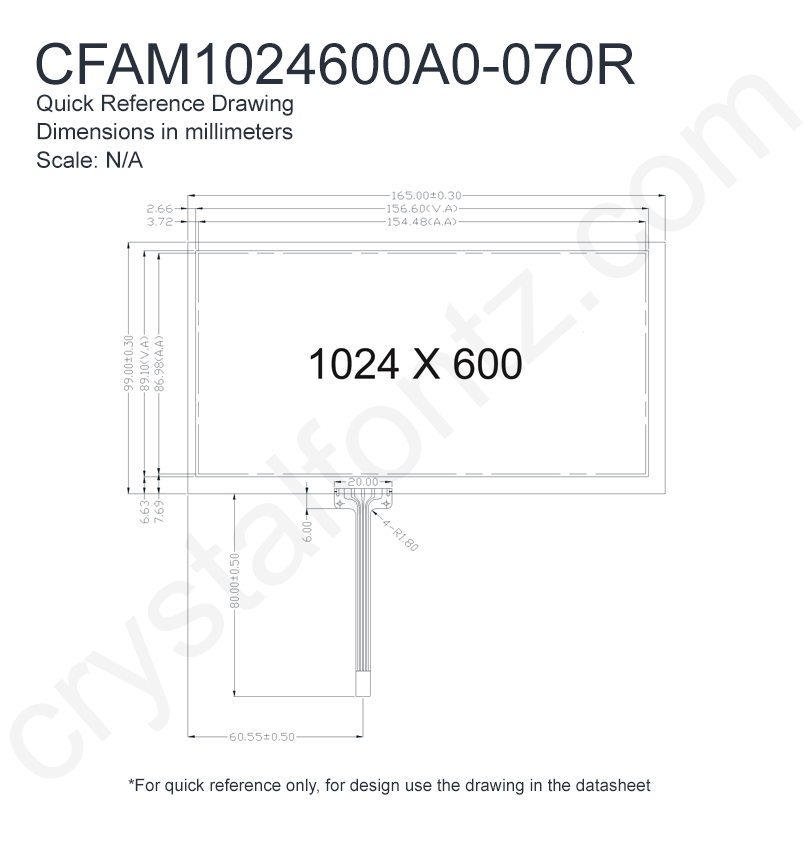

Physical Characteristics

Column Dots x Row Dots 1024 x 600
Module Overall width height depth
millimeters 165 99.8 25.3
inches 6.496 3.929 0.996
Diagonal Dimension 6.95"
Viewing Area width height
millimeters 156.6 89.1
inches 6.165 3.508
Active Area width height
millimeters 154.211 85.92
inches 6.0713 3.383
Dot Pitch width height
millimeters 0.1506 0.1432
inches 0.0059 0.0056
Weight 262g
Pin Count 40

Optical Characteristics

Glass Type TFT
Polarizer Transmissive
View Angle 80°
Sunlight Readable Yes
Backlight Color White
Backlight Type LED
Foreground Color RGB
Background Color Dark

Electrical Specifications

Supply Voltage for Logic Minimum 4.5V
Supply Voltage for Logic Maximum 5.5V
Supply Voltage for Logic Typical 5V
Supply Voltage for Driving Panel Typical 5V
Supply Current Typical 1000mA

Backlight Electrical Specifications

Forward Current Typical 1660mA

Environmental

Operating Temperatures min max
Celsius -20° 70°
Fahrenheit -4° 158°
Storage Temperatures min max
Celsius -30° 80°
Fahrenheit -22° 176°

Electronics

Interface HDMI

Miscellaneous

Touch Screen Resistive

Part Change Notice

Subscribe to Part Change Notices by email Email subscription for changes to CFAM1024600A0-070R or RSS RSS feed for changes to CFAM1024600A0-070R

Part Change Notice #11071: EOL notice.

Product Affected: CFAM1024600A0-070R
Date Issued: November 3, 2020
Summary: EOL notice.
Description: This display is going EOL due to the resistive touch manufacturer discontinuing the touch interface.
Reason: Discontinued touch panel.
Impact: This display can no longer be purchased.
Recommendation: Contact support@crystalfontz.com if a replacement part is needed. A direct replacement will be available soon.
Availability: No current date as to when the new part will be available. If you would like more information, please contact support@crystalfontz.com.
Price Change: The new part is subject to a pricing change.
For reference only. For design purposes, please use the specifications in the datasheet.
