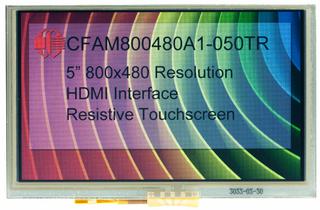

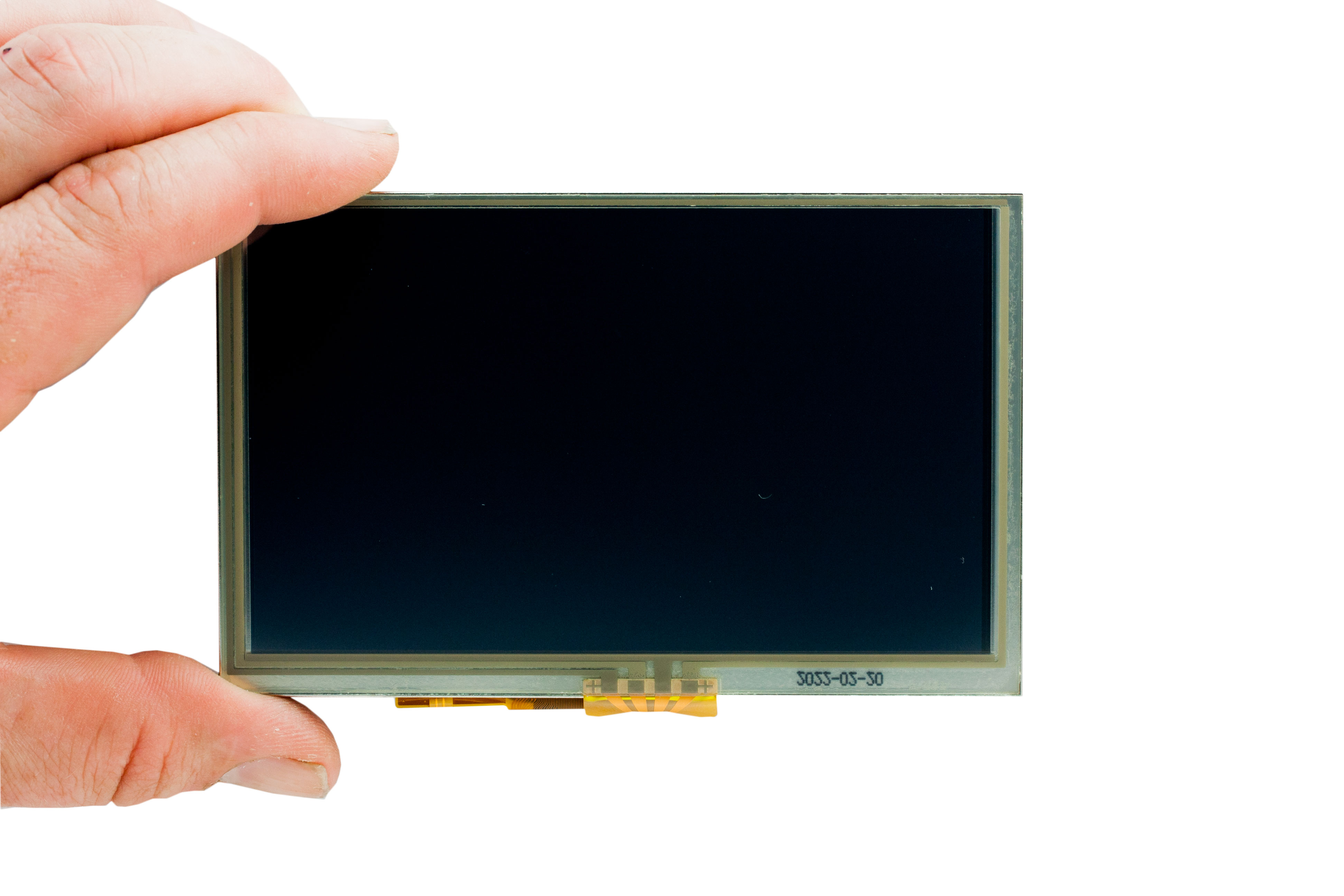

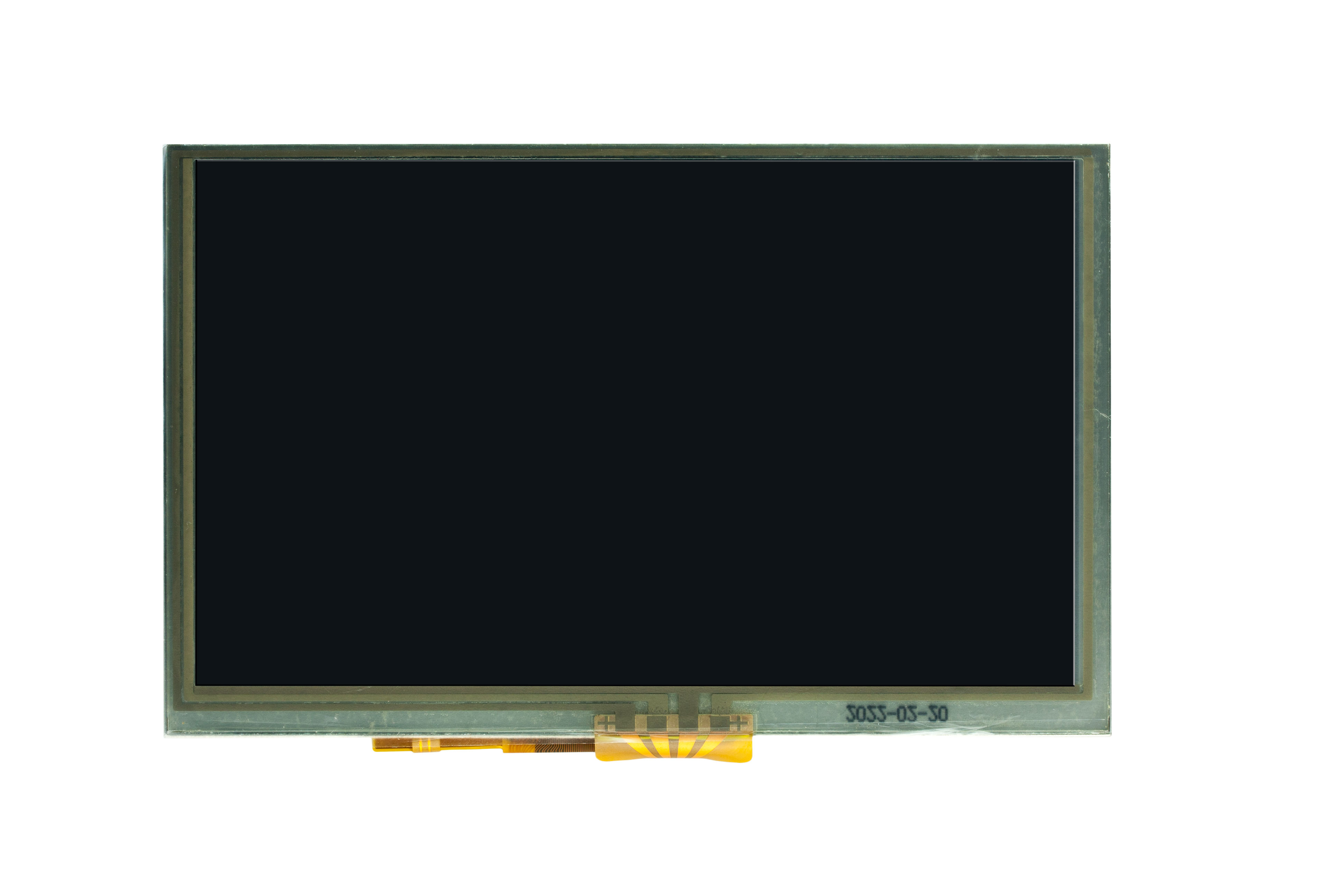

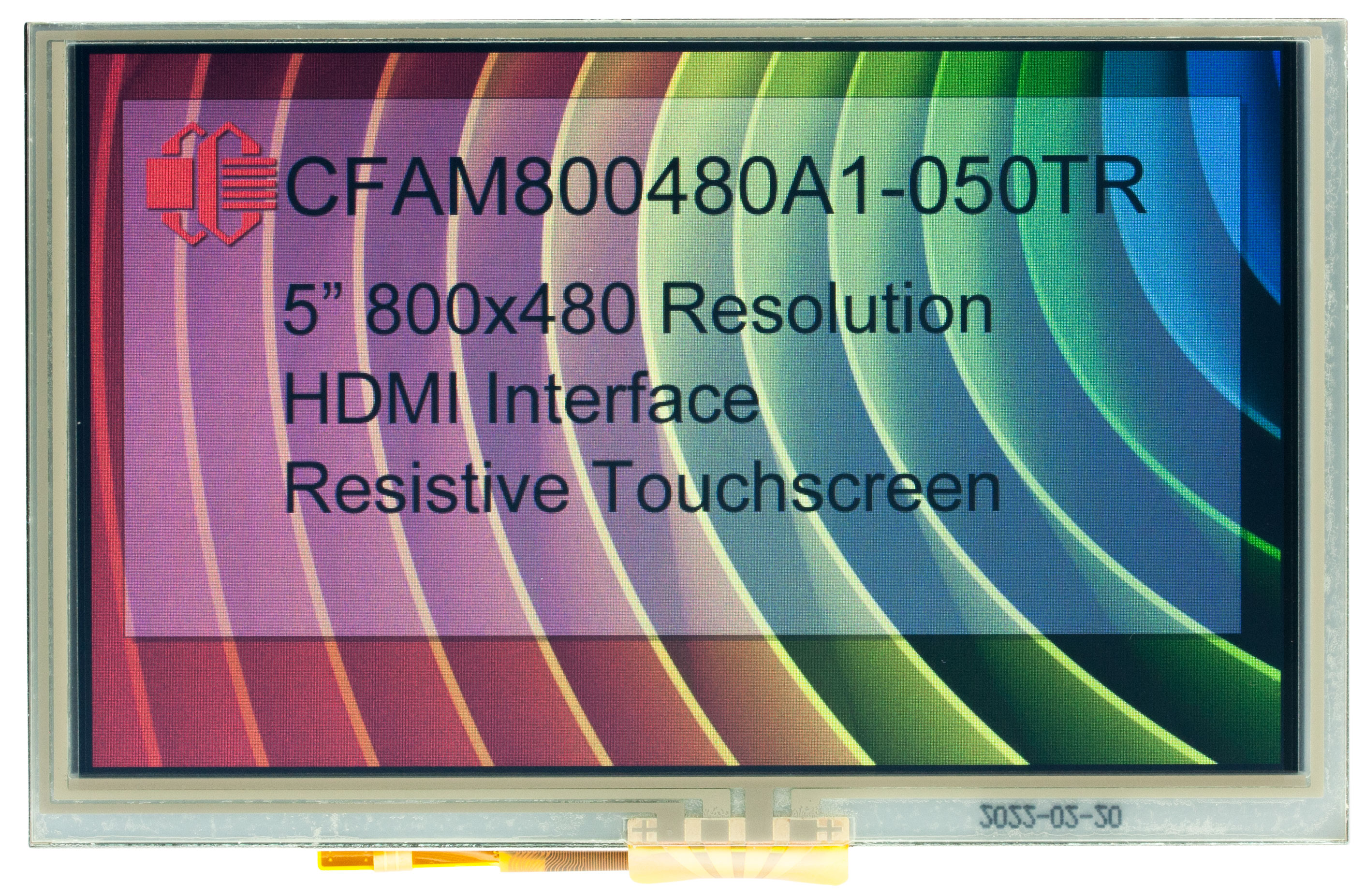

800x480 Resistive Touch TFT with HDMI
Part Number: CFAM800480A1-050TR

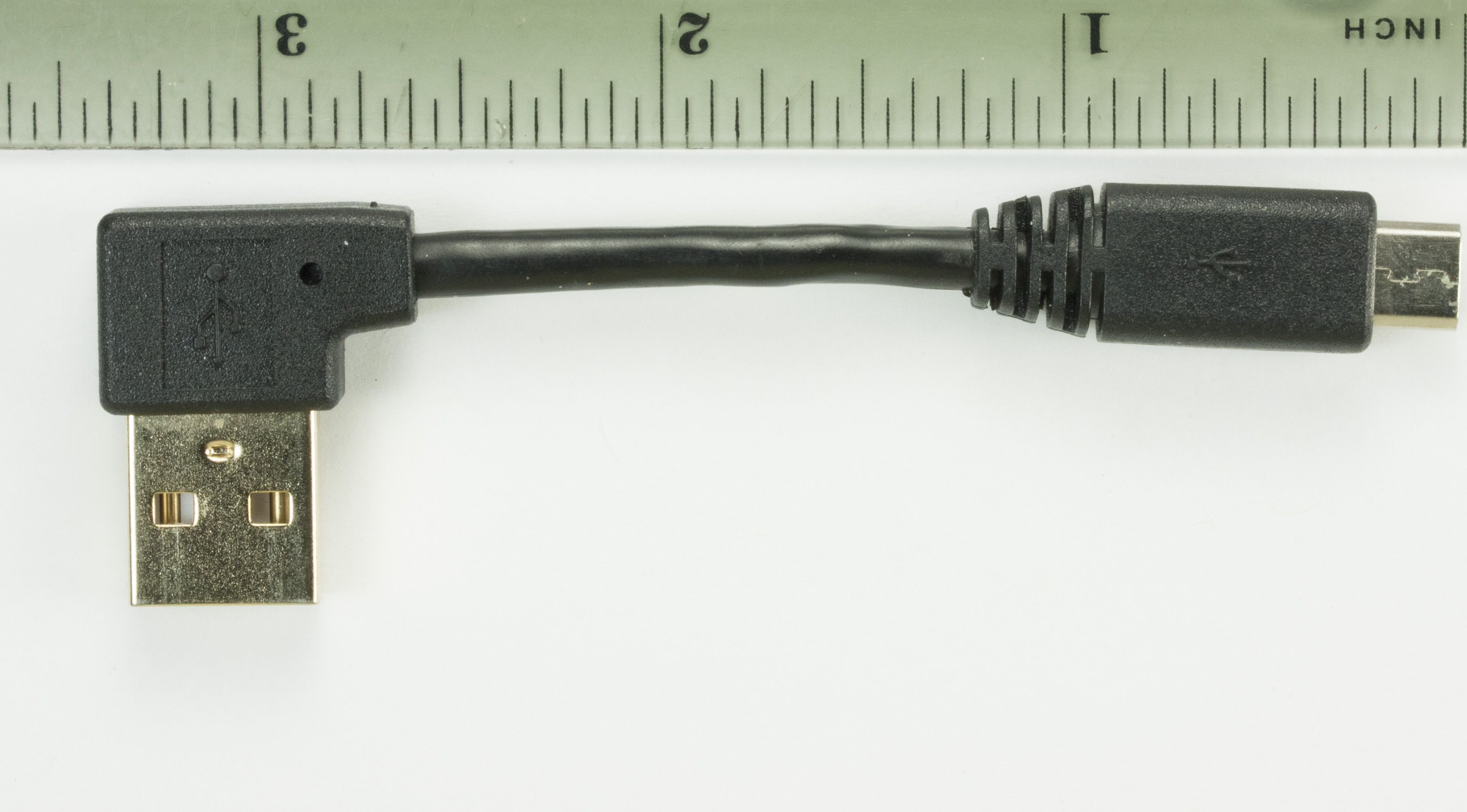

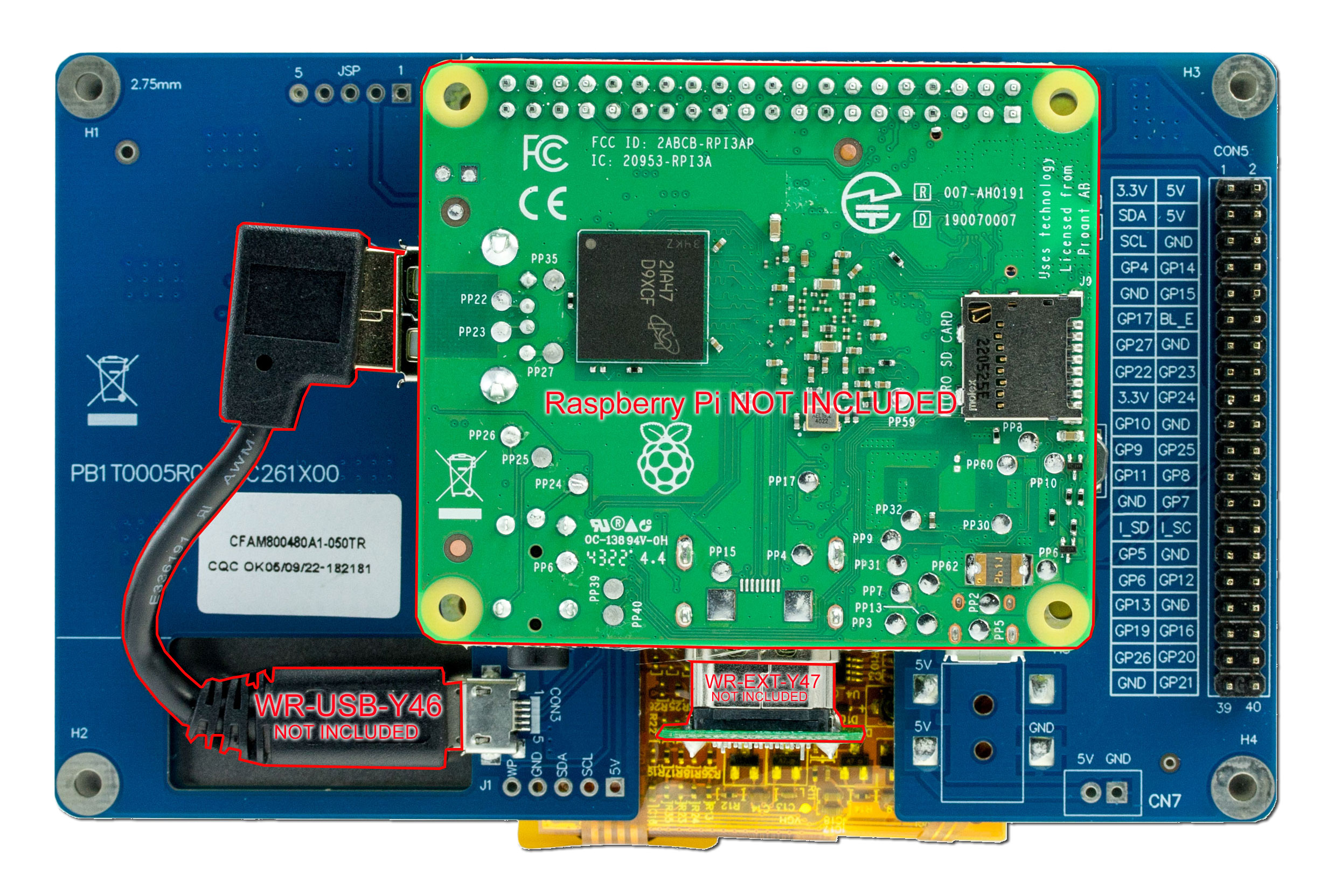

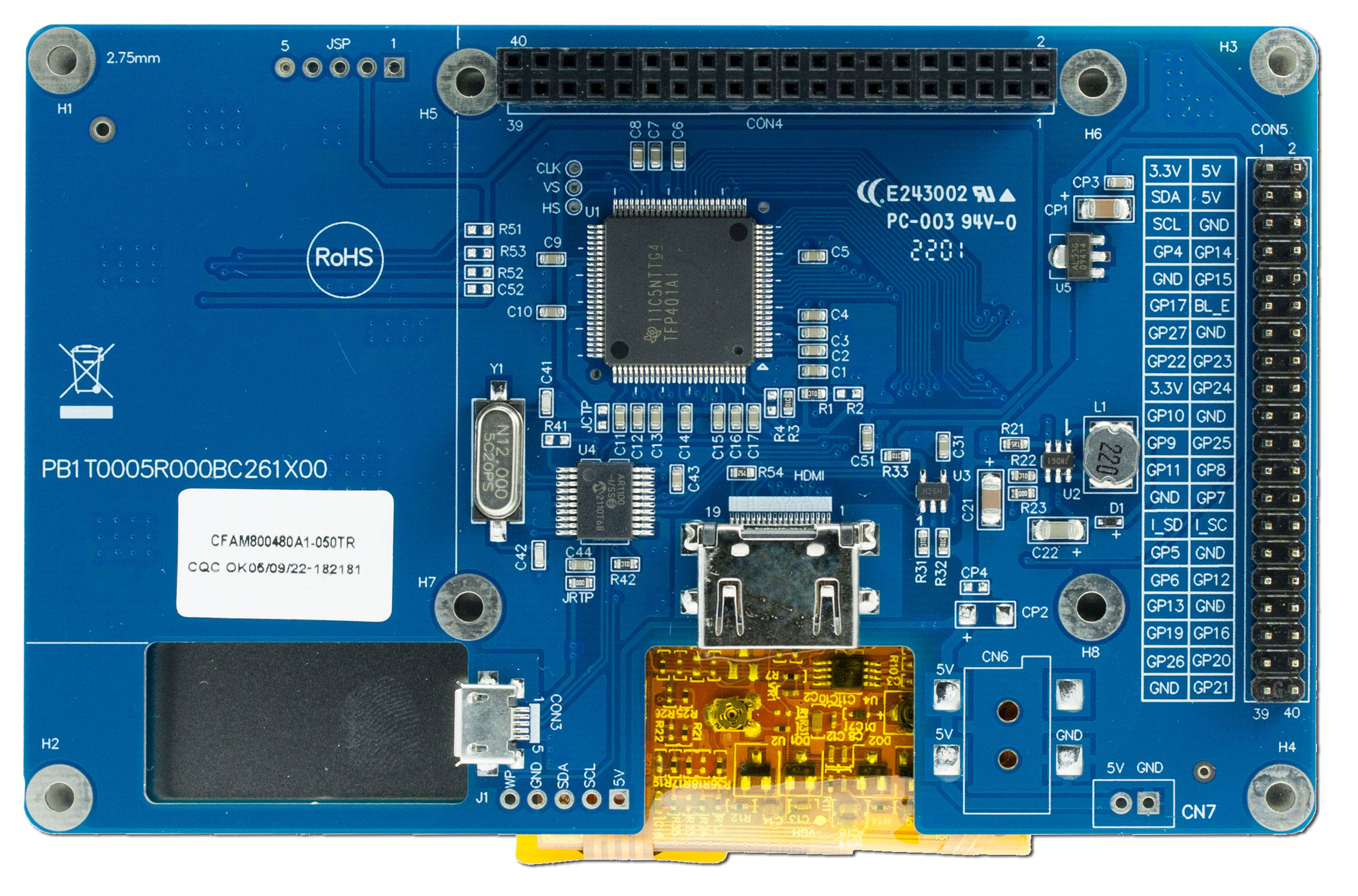

This 5" TFT display module includes a control board specifically designed to connect to a 40-pin header on a Raspberry Pi, so the display acts as a Raspberry Pi hat. It also includes a pass through of the 40-pin connector so none of the RPi's functionality is lost. To connect to the Raspberry Pi HDMI, this Short USB for RPi cable and HDMI to HDMI connector are useful.
Even if the Raspberry Pi isn't how you're looking to connect this HDMI display module, the standard-sized HDMI connector allows it to be used with many HDMI outputs.
This display is small and compact and is easy to use with a Raspberry Pi, a Mini-Computer or an embedded system that has HDMI output.
Part Number:
CFA - Crystalfontz America
M - HDMI Module
800480 - 800x480 pixel resolution
A1 - Family and Revision
050 - 5" diagonal dimension
T - Standard Brightness
R - Resistive Touchscreen
Even if the Raspberry Pi isn't how you're looking to connect this HDMI display module, the standard-sized HDMI connector allows it to be used with many HDMI outputs.
This display is small and compact and is easy to use with a Raspberry Pi, a Mini-Computer or an embedded system that has HDMI output.
Part Number:
CFA - Crystalfontz America
M - HDMI Module
800480 - 800x480 pixel resolution
A1 - Family and Revision
050 - 5" diagonal dimension
T - Standard Brightness
R - Resistive Touchscreen
Need a written quote? Add to cart, then enter your email address in the "request a quote" box.
Datasheet
Compliance Documents
TECHNICAL SPECS

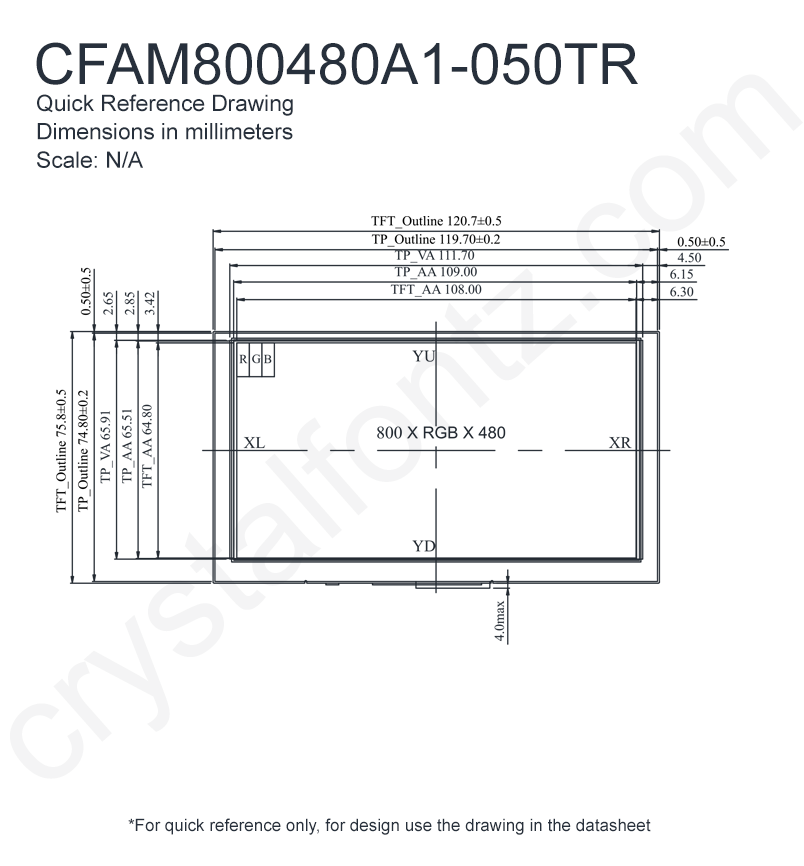

Physical Characteristics
| Column Dots x Row Dots | 800 x 480 |
| Module Overall | width | height | depth |
|---|---|---|---|
| millimeters | 120.7 | 75.8 | 23 |
| inches | 4.752 | 2.984 | 0.906 |
| Diagonal Dimension | 5" |
| Viewing Area | width | height |
|---|---|---|
| millimeters | 111.7 | 65.91 |
| inches | 4.398 | 2.595 |
| Active Area | width | height |
|---|---|---|
| millimeters | 108 | 64.8 |
| inches | 4.252 | 2.551 |
| Dot Size | width |
|---|---|
| millimeters | 0.135 |
| inches | 0.0053 |
| Dot Pitch | height |
|---|---|
| millimeters | 0.135 |
| inches | 0.0053 |
| Weight | 123.2g |
Optical Characteristics
| Glass Type | TFT |
| Polarizer | Transmissive |
| View Direction | 12 o'clock |
| View Angle | 70° |
| Backlight Color | White |
| Backlight Type | LED |
| Foreground Color | RGB |
| Background Color | Dark |
Electrical Specifications
| Supply Voltage for Logic Minimum | 4.9V |
| Supply Voltage for Logic Maximum | 5.1V |
| Supply Voltage for Logic Typical | 5V |
| Supply Voltage for Driving Panel Typical | 5V |
| Supply Current Maximum | 680mA |
| Supply Current Typical | 450mA |
Environmental
| Operating Temperatures | min | max |
|---|---|---|
| Celsius | -30° | 70° |
| Fahrenheit | -22° | 158° |
| Storage Temperatures | min | max |
|---|---|---|
| Celsius | -20° | 80° |
| Fahrenheit | -4° | 176° |
Electronics
| Interface | HDMI |
Miscellaneous
| Nits | 350 |
| Touch Screen | Resistive |
Part Change Notice
Subscribe to Part Change Notices by email
or RSS
End-Of-Life #11203: End-Of-Life Notification
| Product Affected: | CFAM800480A1-050TR |
| Date Issued: | May 30, 2023 |
| Summary: | End-Of-Life Notification |
| Description: | These parts are being replaced with a new part and will no longer be available with the Innolux TFT display once the stock has been depleted. For up-to-date information on the replacement options, contact support@crystalfontz.com. |
| Reason: | Innolux is closing down its line that manufactures the display panels used on these parts. |
| Availability: | Contact Crystalfontz Support for up-to-date information by emailing support@crystalfontz.com. |
For reference only. For design purposes, please use the specifications in the datasheet.
Product Notes
When using a Raspberry Pi, the following must be added to /boot/config.txt:hdmi_group=2
hdmi_mode=87
hdmi_cvt 800 480 60 6 0 0 0
